Universal U-Series Rotavator: Complete Guide for Indian Farmers
The Universal U-Series Rotavator is a fast, economical farm implement designed for…
Universal U-Series Rotavator: Complete Guide for Indian Farmers

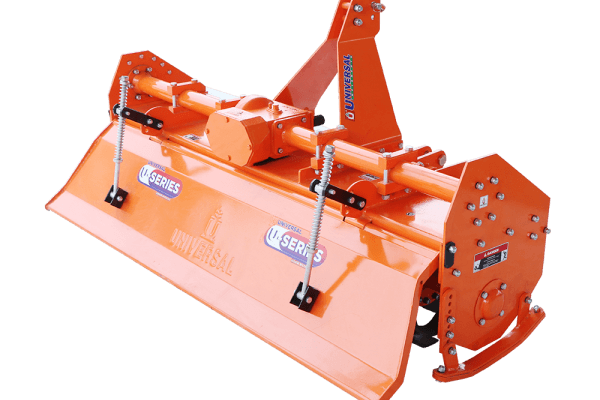

The Universal U-Series Rotavator is a fast, economical farm implement designed for medium soil conditions. With its specialized rotor design and helical blade arrangement, it puts less load on tractors, resulting in fuel savings and efficient soil preparation. The Universal U-Series is perfect for farmers seeking a versatile and lightweight rotary tiller suitable for both wet and dry lands.
Key Features and Technology
- Gear drive with multi-speed gearbox offering flexibility for different soil and crop needs
- Lightweight design with specialized rotor and helical blade positioning to reduce tractor load
- Boron steel blades (Universal Super quality) available in L and C type to suit various soil conditions
- Innovative bearing housing and seal design to prevent moisture/mud entry, extending bearing life
- Dust covers on both side hubs protect against mud contamination
- Side skid allows easy cutting depth adjustment for precise tillage
Technical Specifications and Model Variants
Specific model dimensions, blade counts, and weight vary based on tractor compatibility and gearbox configuration. Designed to function effectively in soft to medium soil types including both dry and wet conditions.
Based on the attached image, here are the detailed technical specifications and model variants for the Universal U-Series Rotavator Multi Speed:
| Description | BEUMSG-145/3042 | BEUMSG-165/3048 | BEUMSG-185/3054 | BEUMSG-205/3060 | BEUMSG-225/3066 |
| Gearbox Type | Multi Speed | Multi Speed | Multi Speed | Multi Speed | Multi Speed |
| No. of Blades | 42 | 48 | 54 | 60 | 66 |
| No. of Flanges | 8 | 9 | 10 | 11 | 12 |
| Rotor Type | Seamless Pipe | Seamless Pipe | Seamless Pipe | Seamless Pipe | Seamless Pipe |
| P.T.O RPM | 540/1000 (Opt.) | 540/1000 (Opt.) | 540/1000 (Opt.) | 540/1000 (Opt.) | 540/1000 (Opt.) |
| Type of Side Drive | Gear | Gear | Gear | Gear | Gear |
| 3-Point Linkage/Category | Cat-I & Cat-II | Cat-I & Cat-II | Cat-I & Cat-II | Cat-I & Cat-II | Cat-I & Cat-II |
| Pull Type | Mounted | Mounted | Mounted | Mounted | Mounted |
| Gear Box Over Load Protection | Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt |
| Width of Cut (cm-Approx) | 145 | 165 | 185 | 205 | 225 |
| Weight without PTO (Kg Approx) | 390 | 410 | 430 | 450 | 465 |
| Tractor Power (HP) | 30-45 | 35-45 | 45-55 | 55-65 | 65-75 |
Gear Ratio Chart at 540 and 1000 PTO RPM:
| PTO RPM | Gear A | Gear B | Rotor RPM |
| 540 | 16 | 20 | 181 |
| 540 | 20 | 16 | 284 |
| 540 | 17 | 19 | 203 |
| 540 | 19 | 17 | 253 |
| 1000 | 12 | 24 | 210 |
This provides flexibility to choose appropriate rotor speed based on soil and crop needs.
Let me know if more information or a detailed description is needed based on these specifications.
Agricultural Benefits and Applications
Enhanced Farming Efficiency
- Reduces fuel consumption due to low tractor load and efficient blade action
- Speeds up seedbed preparation with precision and consistent soil pulverization
- Enhances soil aeration and promotes healthy crop root development
- Decreases labor costs by mechanizing tillage
Versatile Crop Applications
Ideal for rotavator for paddy/wheat/vegetables, sugarcane, cotton, maize, and various vegetable crops. Its adaptability makes it valuable for both rainfed and irrigated farming systems.
Performance Specifications
- Adjustable tillage depth up to typical requirements for medium soil cultivation
- Boron steel L and C type blades ensure long-lasting cutting performance
- Multi-speed capability supports diverse soil types and field conditions
Pricing and Value Proposition
The Universal U-Series Rotavator price in India starts around Rs. 75,000*, providing excellent affordability combined with advanced features for medium soil farmers prioritizing efficiency and durability.
Maintenance and Care
- Routine blade checking and replacement after 50–60 hours of use
- Periodic gearbox and bearing lubrication for continued smooth operation
- Keep dust covers and seals intact to prevent premature wear
- Clean off mud and debris after every operation cycle
Longevity Factors
- Premium boron steel blades maintain cutting edge longer than regular blades
- Sealed bearing housings extend service intervals and reduce downtime
- Vibration-dampening frame construction enhances overall durability and operator comfort
FAQs Section
What tractor horsepower (HP) is required for Universal U-Series rotavator?
Compatible mostly with tractors having 540 and 1000 PTO RPM, fitting tractor powers typically needed for medium soil tillage (varies by specific model).
Which types of blades are available in Universal U-Series, and what do they do?
Features Universal Super boron steel L and C type blades designed for efficient soil cutting and mixing in medium soils.
What is the working width of the Universal U-Series rotavator?
Varies by model, but generally designed to fit standard tractor and field requirements for medium soil conditions.
How deep can the Universal U-Series rotavator cultivate in a single pass?
Depth is adjustable via side skid, suitable for standard tillage depths required for paddy, wheat, and vegetables.
How important is blade hardness and quality in Universal U-Series?
High importance; quality boron steel blades provide extended wear resistance and consistent performance.
Are Universal U-Series rotavators compatible with all tractor brands and models in India?
Yes, the universal 3-point linkage system ensures wide compatibility with Indian tractors.
What about maintenance and warranty in Universal U-Series?
Maintenance includes regular lubrication, blade inspection, and cleaning. Warranty and service support depend on dealer terms.
How TractorXpert Helps Farmers Choose the Right Farm Implement
TractorXpert empowers farmers with in-depth comparisons of rotavator specifications, blade technologies, and gearbox configurations. By analyzing affordable Rotavator price options and maintenance requirements, TractorXpert ensures farmers select the best farm implements for their crops and soils, enhancing farm mechanization and boosting productivity across India.
