Universal Implements Mini-Series Rotary Tiller
{{ galleryProps.activeIndex + 1 }}/2
Description
Universal Mini-Series Rotary Tiller: Compact & Versatile Rotavator for Small‐Scale Farming | Price & Specs | Best Rotavator for Farming…
Universal Mini-Series Rotary Tiller: Compact & Versatile Rotavator for Small‐Scale Farming | Price & Specs | Best Rotavator for Farming India | TractorXpert
Discover Universal Mini-Series Rotavator price, lightweight specs, and features. Ideal farm implements for orchards, nurseries, and small plots. Compare on TractorXpert.
About Product

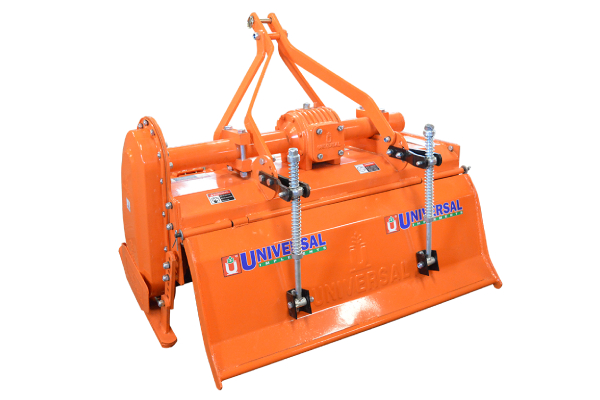

The Universal Mini-Series Rotary Tiller is a lightweight, compact rotavator designed for agricultural equipment for soil preparation in confined spaces. Perfect for fruit orchards, vegetable beds, nurseries, vineyards, greenhouse farming, and hobby gardens, the Mini-Series offers fast, economical seedbed preparation while placing minimal load on small tractors.
Key Features and Technology
- Single & Multi-Speed Gearboxes: Single-speed model for 540 RPM PTO. Multi-speed variant supports 540/1000 RPM for adjustable rotavator depth and width capacity.
- Precision Blade Options: Available with L-type and C-type boron steel blades for rotavator blade types suited to soft and medium soils.
- Compact Design: Narrow profile excels under overhanging branches and between rows in orchards and vineyards.
- Side-Skid Depth Control: Easy depth adjustment for consistent tillage depth from 3–6 inches.
- Heavy-Duty PTO Shaft: Shear-bolt protection guards gearbox from overload.
- Durable Bearings & Seals: Innovative housing prevents mud intrusion for rotavator maintenance and durability.
Technical Specifications and Model Variants
| Specification | Single Speed Model | Multi Speed Model |
| PTO RPM | 540 RPM | 540/1000 RPM (Optional) |
| Gearbox | Single-Speed Gear Drive | Multi-Speed Gear Drive |
| Blade Configuration | L-type, C-type | L-type, C-type |
| 3-Point Linkage | Cat-I | Cat-I |
| Side Disc Attachment | Optional | Optional |
| Rotor Type | Seamless Pipe | Seamless Pipe |
| Overload Protection | Shear Bolt | Shear Bolt |
Working Width & HP Range
| Model Code | Width (cm) | Tractor HP | Approx. Weight |
| MINI-100 (SS) | 100 | 15–20 HP | 180 kg |
| MINI-120 (SS) | 120 | 18–25 HP | 200 kg |
| MINI-140 (SS) | 140 | 22–30 HP | 220 kg |
| MINI-100 (MS) | 100 | 15–20 HP | 200 kg |
| MINI-120 (MS) | 120 | 18–25 HP | 220 kg |
| MINI-140 (MS) | 140 | 22–30 HP | 240 kg |
Agricultural Benefits and Applications
Enhanced Farming Efficiency
- Fuel Savings: Lightweight design reduces tractor drawbar load.
- Time Reduction: Quick seedbed preparation—up to 50% faster than manual methods.
- Soil Health: Precise mixing aerates soil and improves water retention.
Versatile Crop Applications
- Paddy & Rice Seedbeds: Effective puddling in small paddy plots.
- Vegetables & Flowers: Precision tillage for vegetable gardens, nurseries, and greenhouses.
- Fruit Orchards & Vineyards: Compact width allows operation under canopies.
Performance Specifications
- Depth Capability: Adjustable 3–6 inches (8–15 cm) per pass.
- Width Options: 100 cm, 120 cm, 140 cm to match mini-tractor sizes.
- Blade RPM (MS): 200–300 RPM depending on PTO speed.
Pricing and Value Proposition
Universal Mini-Series delivers an affordable rotavator price* without compromising build quality. Starting at Rs. 60,000* for the 100 cm single-speed model and up to Rs. 75,000* for the 140 cm multi-speed variant, it’s the best rotavator for farming small plots, orchards, and specialty crops.
Maintenance and Care
- Blade Maintenance: Clean and sharpen every 40 hours; replace when edges dull.
- Gearbox Service: Change oil every 100 hours; grease bearings every 50 hours.
- Visual Checks: Inspect shear bolts, skid plates, and dust seals monthly.
Longevity Factors
- High-Hardness Blades: Boron steel blades rated 65–68 HRC for extended life.
- Robust Gearbox: Single- or multi-speed gear drives built for heavy-duty orchard work.
- Sealed Bearings: Advanced seals block mud and moisture for longer service intervals.
FAQs
What tractor horsepower (HP) is required for Universal Mini-Series rotavator?
Mini-Series fits 15–30 HP compact tractors, ideal for hobby farmers, landscapers, and orchardists.
Which blade types are available in Universal Mini-Series, and what do they do?
L-type blades for soft soils and general tillage; C-type blades for firmer soils requiring deeper cutting.
What is the working width of the Universal Mini-Series rotavator?
Available in 100 cm, 120 cm, and 140 cm widths to suit narrow-row and specialty operations.
How deep can the Universal Mini-Series rotavator cultivate in a single pass?
Adjustable up to 6 inches (15 cm) depth with side-skid controls for uniform tillage.
How important is blade hardness and quality in Universal Mini-Series?
High-hardness boron steel blades ensure durability, consistent cutting, and reduced replacement costs.
Are Universal Mini-Series rotavators compatible with all tractor brands and models in India?
Yes. The Mini-Series uses standard Cat-I linkage and 540 RPM PTO, fitting all major mini-tractor brands.
What about maintenance and warranty in Universal Mini-Series?
Universal Implements provides a full warranty and nationwide support. Regular blade inspections, gearbox oil changes, and bearing greasing keep the implement in top condition.
How TractorXpert Helps You Choose the Right Farm Implement
TractorXpert simplifies implement selection by offering detailed Tractor Rotavator specifications, current Rotavator price in India*, and user ratings. Compare brands, model features, blade types, and prices side-by-side to find the best rotavator for farming your specialty crops, orchards, or gardens. Make informed decisions with expert insights on farm mechanization in India and invest in farm implements that boost productivity, reduce labor, and ensure long-term durability.
Product General Information
Brand Name:
Universal Implements (Bharat Engineering Company)
Model Name:
Mini-Series Rotary Tiller
Implement Type:
Rotavator
Category:
Tillage
Compatible Tractor Power:
15–30 HP
