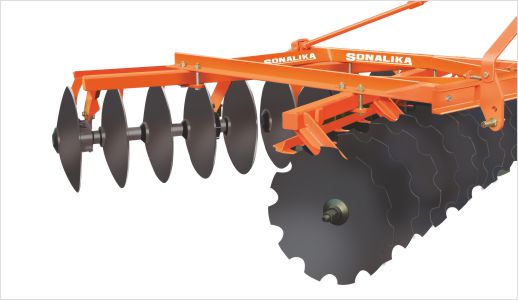

Sonalika Disc Harrow (6×6 to 12×12 Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Sonalika Disc Harrow price* in India, specifications, working width, depth & disc details. Find the…
- About Product
Sonalika Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Sonalika Disc Harrow Variants
| Type | 6×6 | 7×7 | 8×8 | 9×9 | 10×10 | 12×12 |
| No. of Discs | 12 | 14 | 16 | 18 | 20 | 24 |
| Disc Diameter (mm) | 560 | 560 | 560 | 560 | 560 | 560 |
| Disc Spacing (mm) | 228 | 228 | 228 | 228 | 228 | 228 |
| Width of Cut (mm) | 1370–1420 | 1585–1635 | 1798–1852 | 2018–2068 | 2235–2285 | 2668–2718 |
| Working Width (m) | 1.37–1.42 | 1.59–1.64 | 1.80–1.85 | 2.02–2.07 | 2.24–2.29 | 2.67–2.72 |
| Bearing Hubs | 4 | 4 | 6 | 8 | 8 | 8 |
| Weight (kg) | 390 | 430 | 500 | 575 | 615 | 730 |
| Tractor HP Required | 30+ | 40+ | 50+ | 60+ | 75+ | 90+ |
| Mounting Type | CAT-II | CAT-II | CAT-II | CAT-II | CAT-II | CAT-II |
Common Specifications:
- Frame Material: 75×10 mm angle frame with 100×50 mm front channel
- Gang Bolt/Axle: 31.5 mm solid square rod
- Disc Type: Notched disc in front gang, plain disc in rear gang
- Gang Configuration: Split gang design for efficient cutting and mixing
- Working Depth: Field adjustable (typically 100–200 mm)
- Technical Specifications – Sonalika Disc Harrow
- Soil Type Compatibility: Light, medium, heavy, clay, and rocky soils
- Field Efficiency: Up to 1.5 ha/hr depending on model and field conditions
- Fuel Consumption Impact: Reduces fuel usage by 12–15% through efficient design
- Durability Rating: Heavy-duty construction with quality bearings and hubs
- Bearing Quality: Sealed industrial bearings with waterproof/dustproof protection
- Maintenance Requirements: Grease bearings every 50 hrs; disc inspection every 100 hrs
- Spare Parts: Widely available through Sonalika dealer network
- Warranty Details: 12 months or 1,000 hrs with comprehensive service support
- Weather Suitability: Performs effectively in wet and dry field conditions
- Crop Compatibility: Suitable for all seasonal crops across farming systems
- Agricultural Benefits and Applications of Sonalika Disc Harrow
- Primary Tillage: Breaks hardpan, cuts through crop residues, loosens compacted soil
- Secondary Tillage: Creates uniform seedbed, levels field surface for optimal planting
- Weed Control: Cuts and buries weeds effectively while mixing crop residues
- Soil Structure Improvement: Enhances soil aeration and water infiltration capacity
- Enhanced Farming Efficiency through Sonalika Disc Harrow
- Time-Saving Benefits: Single-pass operation reduces field preparation time significantly
- Fuel Efficiency Gains: Lower draft requirement saves fuel compared to multiple implements
- Labor Reduction: Simple operation with minimal manual intervention required
- Field Productivity: Wide working widths enable faster field coverage and completion
- Versatile Crop Applications through Sonalika Disc Harrow
- Cereal Crops: Wheat, barley, oats, rice cultivation
- Cash Crops: Cotton, sugarcane, maize, sunflower production
- Pulse Crops: Chickpea, lentils, pigeon pea farming
- Vegetable Cultivation: Potato, onion, tomato, and other vegetable crops
- Orchard Applications: Inter-cultivation in orchards, vineyards, and plantations
- Performance Specifications of Sonalika Disc Harrow
- Operating Speed Range: 5–8 km/hr depending on soil conditions and model
- Ground Pressure Distribution: Even load distribution prevents soil compaction
- Penetration Capability: Effective in various soil types up to 200 mm depth
- Levelness and Finish: Consistent, level seedbed preparation for uniform germination
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (<5 acres): 6×6, 7×7 models (390–430 kg)*
- Medium farms (5–25 acres): 8×8, 9×9 models (500–575 kg)*
- Large farms (>25 acres): 10×10, 12×12 models (615–730 kg)*
Soil-Specific Recommendations:
- Light soils: 6×6 to 8×8 models with moderate depth setting
- Medium soils: 8×8 to 10×10 models with standard operating parameters
- Heavy clay soils: 10×10 to 12×12 models with maximum depth penetration
Budget-Wise Categorization:
- Economy Models: 6×6, 7×7 (basic features, cost-effective)*
- Mid-Range Options: 8×8, 9×9 (balanced performance and features)*
- Premium Models: 10×10, 12×12 (heavy-duty, maximum coverage)*
ROI Calculation: Payback typically achieved in 1–2 seasons through reduced operations and improved crop yields
- Maintenance and Care of Sonalika Disc Harrow
- Disc Maintenance: Inspect disc sharpness every 100 hrs; replace when significantly worn
- Bearing Lubrication: Apply grease to bearing hubs every 50 operating hours
- Frame Care: Check frame bolts, apply rust prevention treatment annually
- Seasonal Storage: Store in covered area; clean thoroughly after use
- Pre-Operation Checklist: Verify linkage pins, bearing condition, disc alignment
- Longevity Factors of Sonalika Disc Harrow
- Material Quality: High-grade steel discs with heat-treated cutting edges
- Wear Resistance: Disc life expectancy of 800–1,000 operating hours
- Structural Durability: Robust angle frame construction withstands heavy-duty use
- Component Replaceability: Easy replacement of discs, bearings, and wearing parts
FAQs – Sonalika Disc Harrow
What tractor horsepower (HP) is required for Sonalika Disc Harrow?
30+ HP for 6×6 model up to 90+ HP for 12×12 model, depending on size selection.
What types of harrows are available in Sonalika Disc Harrow?
Disc harrow with split gang configuration; notched front discs for cutting, plain rear discs for leveling.
What is the working width and depth capacity of Sonalika Disc Harrow?
Working width ranges from 1.37m to 2.72m; depth adjustable up to 200mm based on field conditions.
How does Sonalika Disc Harrow help in seedbed preparation?
Creates uniform tilth through disc cutting action, levels soil surface, and incorporates crop residues effectively.
Why is disc quality important in Sonalika Disc Harrow?
Quality steel discs ensure consistent cutting performance, durability, and effective soil penetration across field conditions.
Is Sonalika Disc Harrow compatible with all tractor brands?
Yes, fits CAT-II 3-point linkage standard on all major Indian tractor manufacturers.
What about gang angle adjustment and depth control in Sonalika Disc Harrow?
Fixed gang angle with depth control through hydraulic adjustment and skid shoes for precise operation.
How does Sonalika Disc Harrow compare to cultivators and rotavators?
Provides better residue handling than cultivators, lower fuel consumption than rotavators, with superior soil mixing.
What maintenance schedule should be followed for Sonalika Disc Harrow?
Grease bearings every 50 hrs, inspect discs every 100 hrs, check frame and bolts quarterly.
What warranty and after-sales service support is available for Sonalika Disc Harrow?
12 months or 1,000 hrs warranty with nationwide Sonalika dealer network service support.
TractorXpert empowers farmers across India by providing comprehensive comparisons of harrow implement prices*, specifications, and performance features from leading manufacturers like Sonalika. Our platform helps farmers make informed decisions about disc harrow for farming, ensuring they select the most suitable agricultural harrow equipment that matches their farm size, soil conditions, and budget requirements, ultimately leading to improved seedbed quality, reduced tillage operations, enhanced farm productivity, and better return on investment through efficient soil preparation solutions.
