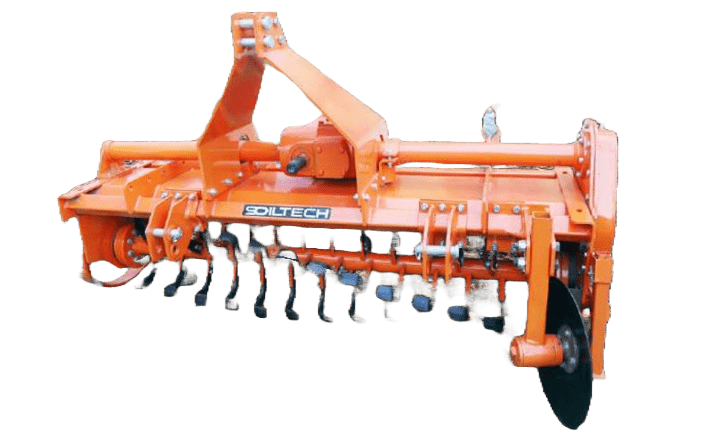

Soiltech Median Rotavator
{{ galleryProps.activeIndex + 1 }}/1
Description
Soiltech Median Rotavator – Affordable Tractor Rotavator Specifications in India
Get the Soiltech Median Rotavator price in India* for 30–55…
Soiltech Median Rotavator – Affordable Tractor Rotavator Specifications in India
Get the Soiltech Median Rotavator price in India* for 30–55 HP tractors. Best Rotavator for farming with 4–7 ft widths, durable blades, multi-speed gearbox, low maintenance.
Key Features and Technology
- Multi-Speed Gearbox (15×24): Adjust rotor RPM to match field conditions for uniform tillage.
- Hardened L-Type Blades (L-80×7): 30–54 blades provide efficient cutting and mixing with high durability.
- Shear Bolt Safety Device: Protects driveline against shock loads.
- Robust Frame: Optimized offset for stability and reduced draft force.
Technical Specifications and Model Variants
| Specification | MS-135 | MS-160 | MS-175 | MS-185 | MS-210 |
| Working Size (ft) | 4′ | 5′ | 5.5′ | 6′ | 7′ |
| Tractor Power (HP) | 30–40 | 35–45 | 40–50 | 40–50 | 45–55 |
| Overall Length (mm) | 1,516 | 1,755 | 1,929 | 2,000 | 2,245 |
| Overall Width (mm) | 950 | 950 | 950 | 950 | 950 |
| Tilling Width (mm/inch) | 1,216 / 48″ | 1,455 / 57″ | 1,629 / 64″ | 1,700 / 67″ | 1,945 / 76″ |
| Overall Height (mm) | 1,080 | 1,080 | 1,080 | 1,080 | 1,080 |
| 3-Point Hitch Type | CAT-II | CAT-II | CAT-II | CAT-II | CAT-II |
| Frame Offset (mm/inch) | 31.5 / 1.2″ | 0 / 0″ | 0.5 / 0.02″ | 24.5 / 1″ | 12.75 / 0.5″ |
| No. of Blades (L-80×7) | 30 | 36 | 42 | 42/48 | 48/54 |
| Main Gearbox Type | Multi-Speed (15×24) | Multi-Speed (15×24) | Multi-Speed (15×24) | Multi-Speed (15×24) | Multi-Speed (15×24) |
| Side Transmission Type | Gear (20-42-28) | Gear (20-42-28) | Gear (20-42-28) | Gear (20-42-28) | Gear (20-42-28) |
| Max. Working Depth (mm/inch) | 148 / 5.5″ | 148 / 5.5″ | 148 / 5.5″ | 148 / 5.5″ | 148 / 5.5″ |
| Rotor Swing Diameter (mm) | 470 | 470 | 470 | 470 | 470 |
| Rotor Tube Diameter (mm) | 89 | 89 | 89 | 89 | 89 |
| Driveline Safety Device | Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt |
| Weight (kg) | 410 | 435 | 448 | 455 | 495 |
Agricultural Benefits and Applications
Enhanced Farming Efficiency
Median Rotavator reduces fuel consumption and time by preparing soil in a single pass. Improved aeration and moisture retention boost soil health and reduce labor costs.
Versatile Crop Applications
Suitable Rotavator for paddy, wheat, sugarcane, cotton, maize, vegetables, and more. Supports farm mechanization in India with adaptable depth and width capacity.
Performance Specifications
Depth and Width Capabilities
- Working Width: 1,216 mm to 1,945 mm
- Cultivation Depth: Up to 148 mm per pass
Pricing and Value Proposition
With an affordable Rotavator price* of ₹45,000*–₹75,000*, the Soiltech Median Rotavator delivers value-for-money farm implements with medium-duty performance and reliability.
Maintenance and Care
- Blade Maintenance: Inspect and sharpen blades every 50–75 hours for consistent performance.
- Lubrication: Grease gearbox and rotor bearings regularly to prevent wear.
- Servicing: Annual check of gearbox oil and seals to ensure durability.
Longevity Factors
- Durability: High-tensile steel frame withstands tough field conditions.
- Wear Resistance: Hardened blade edges reduce replacement frequency.
- Gearbox Strength: Industrial-grade gears ensure smooth power transmission under variable tractor power compatibility.
FAQs
What tractor horsepower (HP) is required for Soiltech Median Rotavator?
Soiltech Median Rotavator fits tractors from 30 HP up to 55 HP depending on model size.
Which types of blades are available in Soiltech Median, and what do they do?
Median offers 30 to 54 L-type blades that cut, mix, and pulverize soil for fine seedbeds in light to medium soils.
What is the working width of the Soiltech Median Rotavator?
Working widths range from 1,216 mm (48″) to 1,945 mm (76″).
How deep can the Soiltech Median Rotavator cultivate in a single pass?
Up to 148 mm (5.5″) depth per pass.
How important is blade hardness and quality in Soiltech Median?
High blade hardness ensures efficient soil cutting, longer blade life, and consistent Rotavator maintenance and durability.
Are Soiltech Median Rotavators compatible with all tractor brands and models in India?
Yes, they mount on a standard CAT-II three-point linkage and fit any 30–55 HP tractor.
What about maintenance and warranty in Soiltech Median?
Routine blade sharpening, lubrication, and annual gearbox servicing maintain peak performance. Manufacturer warranty covers one year on gearbox and frame.
