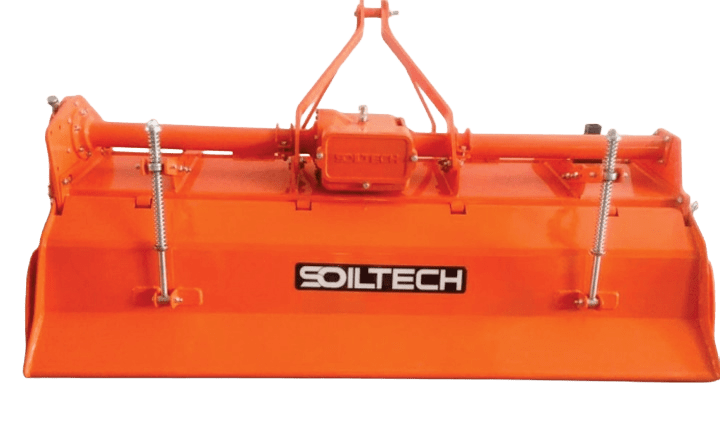

Soiltech Alpha Rotavator
{{ galleryProps.activeIndex + 1 }}/1
Description
Soiltech Alpha Rotavator – Heavy-Duty Tractor Rotavator Specifications in India
Discover the Soiltech Alpha Rotavator price in India* for 35–55…
Soiltech Alpha Rotavator – Heavy-Duty Tractor Rotavator Specifications in India
Discover the Soiltech Alpha Rotavator price in India* for 35–55 HP tractors. Best Rotavator for farming with multi-speed gearbox, 5–7 ft widths, durable blades, low maintenance.
Key Features and Technology
- Multi-Speed Gearbox (15×24): Adjustable rotor shaft RPM for varying field conditions.
- High-Hardness Blades (L-80×7): 36–54 hardened steel blades for precise cutting and extended durability.
- Shear Bolt Safety Device: Protects driveline during overloads.
- Compact Yet Robust Frame: Balances strength and ease of hitching.
Technical Specifications and Model Variants
| Specification | ST-160 (Alpha) | ST-185 (Alpha) | ST-210 (Alpha Plus) |
| Working Size (ft) | 5′ | 6′ | 7′ |
| Tractor Power (HP) | 35–45 | 40–50 | 45–55 |
| Overall Length (mm) | 1,713 | 1,963 | 2,213 |
| Overall Width (mm) | 750 | 750 | 750 |
| Tilling Width (mm/inch) | 1,686 / 66″ | 1,716 / 68″ | 1,966 / 77″ |
| Overall Height (mm) | 1,080 | 1,080 | 1,080 |
| 3-Point Hitch Type | CAT-II | CAT-II | CAT-II |
| Frame Offset (mm/inch) | 28 / 1.1″ | 28 / 1.1″ | 28 / 1.1″ |
| Number of Blades (L-80×7) | 36 | 42 | 48/54 |
| Main Gearbox Type | Multi-Speed (15×24) | Multi-Speed (15×24) | Multi-Speed (15×24) |
| Side Transmission Type | Gear (16-41-25) | Gear (16-41-25) | Gear (16-41-25) |
| Max. Working Depth (mm/inch) | 148 / 5.5″ | 148 / 5.5″ | 148 / 5.5″ |
| Rotor Swing Diameter (mm) | 470 | 470 | 470 |
| Rotor Tube Diameter (mm) | 89 | 89 | 89 |
| Driveline Safety Device | Shear Bolt | Shear Bolt | Shear Bolt |
| Weight (kg) | 381 | 412 | 442 |
Agricultural Benefits and Applications
Enhanced Farming Efficiency
The Soiltech Alpha Rotavator reduces fuel consumption and field time by delivering uniform tillage. Its blade design improves soil porosity and moisture retention, lowering labor costs and boosting soil health.
Versatile Crop Applications
Ideal for Rotavator for paddy, wheat, sugarcane, cotton, maize, and vegetable beds. Its heavy-duty Rotavator model scope supports diverse farm mechanization in India.
Performance Specifications
Depth and Width Capabilities
- Working Width Capacity: 1,686 mm to 1,966 mm
- Max. Cultivation Depth: 148 mm per pass
Pricing and Value Proposition
With an affordable Rotavator price* of ₹50,000*–₹80,000*, the Soiltech Alpha Rotavator combines value-for-money farm implements with heavy-duty performance and durability.
Maintenance and Care
- Blade Care: Inspect and sharpen blades every 50–75 hours for optimal performance.
- Lubrication: Grease gearbox and rotor bearings after every 50 hours.
- Servicing: Annual gearbox oil change and seal inspection prevent wear and tear.
Longevity Factors
- Durability: High-tensile steel frame resists bending in tough soil.
- Wear Resistance: Hardened blade edges minimize replacements.
- Gearbox Strength: Industrial-grade gears withstand heavy loads and varying tractor power compatibility.
FAQs
What tractor horsepower (HP) is required for Soiltech Alpha Rotavator?
Soiltech Alpha Rotavator requires tractors from 35 HP up to 55 HP.
Which types of blades are available in Soiltech Alpha, and what do they do?
Alpha uses L-type blades in counts of 36 to 54 for precise soil cutting and mixing, suitable for medium to hard soils.
What is the working width of the Soiltech Alpha Rotavator?
Working widths are 1,686 mm (66″), 1,716 mm (68″), and 1,966 mm (77″).
How deep can the Soiltech Alpha Rotavator cultivate in a single pass?
Up to 148 mm (5.5″) depth per pass.
How important is blade hardness and quality in Soiltech Alpha?
High blade hardness ensures efficient cutting, longer life, and consistent Rotavator maintenance and durability.
Are Soiltech Alpha Rotavators compatible with all tractor brands and models in India?
Yes, they mount on standard CAT-II three-point linkage and fit any 35–55 HP tractor.
What about maintenance and warranty in Soiltech Alpha?
Regular blade sharpening, lubrication, and annual gearbox servicing maintain performance. Manufacturer warranty covers one year on gearbox and frame.
How TractorXpert Helps Farmers Choose
TractorXpert simplifies farm mechanization by comparing Tractor Rotavator specifications, Rotavator price in India, blade types, depth and width capacity, and durability. Whether you need a heavy-duty Rotavator model or an affordable Rotavator price*, TractorXpert helps you select the best Rotavator for farming by evaluating models, features, prices, and benefits.
