Shaktiman Tusker Rotary Tiller - Complete Agricultural Solution Guide
Key Features and Technology
The Shaktiman Tusker rotary tiller represents advanced…

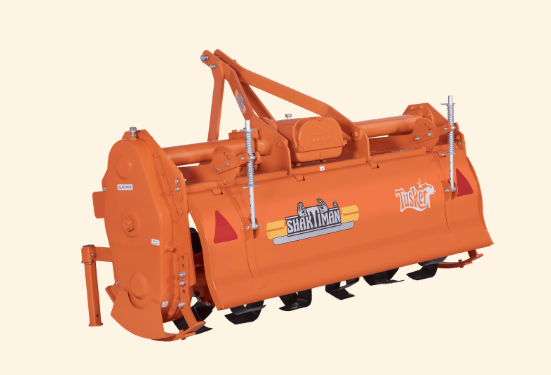

Shaktiman Tusker Rotary Tiller – Complete Agricultural Solution Guide
Key Features and Technology
The Shaktiman Tusker rotary tiller represents advanced agricultural engineering specifically designed for challenging crop residue management. This specialized implement features enhanced blade-to-hull clearance that provides extra space required for effective tillage and crushing of thick fibrous stems. The machine incorporates a 6mm thick single sheet hull plate for superior durability, while 11mm thick pipes and 15mm thick rotor flanges ensure robust construction.
The implement includes heavy-duty damper spring assemblies to handle extra weight from the trailing board and manage vibration effectively. Safety features include stub axle bearing covers with oil protection that prevent damage from soil contact and stubbles. The construction utilizes heavy top mast strips with 16mm thickness and heavy-duty damper spring rods for enhanced structural integrity.
Technical Specifications and Model Variants
| Model | SRT-5 | SRT-6 | SRT-7 |
| Overall Length (mm) | 1818 | 2084 | 2317 |
| Overall Width (mm) | 940 | 940 | 940 |
| Overall Height (mm) | 1218 | 1218 | 1218 |
| Tilling Width (mm) | 1606 | 1872 | 2105 |
| Number of L-Blades | 36 | 42 | 48 |
| Weight (Kg) | 599 | 654 | 690 |
Universal Specifications Across All Models
All Tusker models share common engineering specifications designed for consistent performance:
- Maximum Working Depth: 200mm (8 inches)
- 3-Point Hitch Type: Category II
- Transmission Type: Gear-driven system
- Standard Blade Construction: L-shaped (Square type)
- Rotor Tube Diameter: 89mm (3.5 inches)
- Rotor Swing Diameter: 504mm (20 inches)
- Driveline Safety Device: Slip Clutch protection
- PTO Input Speed: 540 RPM standard
Agricultural Benefits and Applications
The Tusker series addresses a critical agricultural challenge that traditionally costs farmers approximately Rs. 5,500* per acre for manual banana stem removal. This laborious process typically requires 10-30 days for stems to dry before burning, significantly delaying the next crop cycle. The Tusker eliminates this challenge by crushing roots and stems simultaneously in a single operation.
The implement increases soil fertility and permeability through effective pulverization of crop residue. This process enhances soil aeration and water holding capacity, making it particularly effective for sandy and sandy loam soil conditions. The machine is specifically suited for managing thick fibrous residue from crops including banana, papaya, and sugarcane.
Enhanced Farming Efficiency
The Tusker rotary tiller transforms time-consuming manual operations into efficient mechanized processes. Where traditional methods require multiple steps including stem removal, drying periods, and burning, the Tusker completes soil preparation in a single pass. This efficiency translates to significant labor cost savings and reduced field preparation time.
The implement’s design incorporates 12mm RD plates and 10mm SD plates for durability, while the 4mm thickness trailing board ensures proper soil finishing. The heavy side gears with increased oil quantity provide reliable power transmission and extended operational life.
Versatile Crop Applications
Beyond banana cultivation, the Tusker excels in various crop residue management scenarios:
- Sugarcane fields: Effective crushing of thick cane stubble
- Papaya orchards: Efficient stem and root destruction
- Multi-crop rotations: Preparing fields for diverse planting schedules
- Organic farming: Natural residue incorporation for soil enrichment
Performance Specifications
The Tusker operates with specific gear configurations optimized for different conditions:
- Standard Gear Pair: 17-18 for optimal rotor speed
- Multi-speed capability for various soil conditions
- Rotor RPM range: 193-250 depending on input speed
- Power transmission efficiency: Maximized through gear-driven system
Depth and Width Capabilities
Working Depth Range: Up to 200mm (8 inches) maximum depth capability provides flexibility for various tillage requirements. The adjustable depth control allows farmers to customize operations based on soil conditions and crop requirements.
Width Options: The series offers three width configurations:
- SRT-5: 1606mm (63.2 inches) working width
- SRT-6: 1872mm (73.7 inches) working width
- SRT-7: 2105mm (82.8 inches) working width
Pricing and Value Proposition
The Tusker series pricing reflects its specialized capabilities and robust construction:
- Entry-level SRT-5: Rs. 1,28,000* – Rs. 1,53,600*
- Mid-range SRT-6: Similar price range with enhanced capacity
- High-capacity SRT-7: Premium pricing for maximum productivity
This investment provides excellent return on investment considering the elimination of manual labor costs (Rs. 5,500* per acre) and reduced operational time.
Maintenance and Care
Routine Maintenance Requirements:
- Regular blade inspection and replacement when worn
- Gearbox oil level monitoring and periodic changes
- Lubrication of bearing points and moving components
- Inspection of safety devices including slip clutch
Service Support: Shaktiman provides comprehensive service networks with trained technicians and genuine spare parts availability. The implement comes with manufacturer warranty typically spanning 1-2 years depending on model and dealer terms.
Longevity Factors
The Tusker’s durability stems from high-quality materials and engineering:
- Boron steel blade construction for enhanced wear resistance
- Oil-bathed transmission system for reduced friction and wear
- Multi-lip oil seals providing superior protection against contamination
- Heavy-duty construction designed for challenging agricultural conditions
Frequently Asked Questions (FAQs)
- What tractor horsepower (HP) is required for Shaktiman Tusker rotavator?
The Shaktiman Tusker requires 50 HP and above tractors with creeper gear for optimal performance. The specific requirements are:
- SRT-5 model: 50+ HP minimum
- SRT-6 model: 55+ HP minimum
- SRT-7 model: 60+ HP minimum
The creeper gear is essential for maintaining proper forward speed while providing adequate power for the challenging task of crushing fibrous crop residue.
- Which type of blades are available in Shaktiman Tusker, what do they do?
The Shaktiman Tusker features L-shaped blades with square construction. These blades are specifically designed for:
- Heavy residue crushing: The L-shape provides optimal cutting angle for thick fibrous materials.
- Self-sharpening action: The curved design maintains cutting edge sharpness through use.
- Enhanced clearance: Greater space between blade and hull prevents clogging.
- Durability: Made from high-carbon steel with boron treatment for extended life.
The blade configuration includes 36, 42, or 48 blades depending on the model, ensuring complete soil coverage and thorough residue incorporation.
- What is the width of the Shaktiman Tusker rotavator?
The Shaktiman Tusker is available in three working width options:
- SRT-5: 1606mm (63.2 inches / 5.27 feet) working width
- SRT-6: 1872mm (73.7 inches / 6.14 feet) working width
- SRT-7: 2105mm (82.8 inches / 6.9 feet) working width
The overall width remains consistent at 940mm across all models, allowing for easy transport and maneuverability.
- How deep can Shaktiman Tusker rotavator cultivate in single pass?
The Shaktiman Tusker can cultivate to a maximum depth of 200mm (8 inches) in a single pass. This depth capability is:
- Adjustable based on soil conditions and requirements
- Consistent across all models (SRT-5, SRT-6, SRT-7)
- Optimal for residue incorporation while maintaining soil structure
- Suitable for most tillage applications in Indian agricultural conditions
The depth control system allows farmers to adjust operations based on specific crop requirements and soil conditions.
- How important is blade hardness and quality in Shaktiman Tusker?
Blade hardness and quality are critically important for the Tusker’s specialized applications. The importance includes:
- Enhanced wear resistance: High-carbon steel with boron treatment provides superior durability.
- Consistent performance: Proper hardness maintains cutting efficiency throughout the season
- Cost-effectiveness: Quality blades reduce replacement frequency and maintenance costs
- Operational efficiency: Sharp, durable blades ensure effective residue crushing and soil preparation
Research indicates that boron steel blades with proper heat treatment provide the best combination of hardness and toughness for rotavator applications.
- Are Shaktiman Tusker rotavators compatible with all tractor brands/models?
The Shaktiman Tusker rotavators are designed with universal compatibility features:
- Standard Category II 3-point hitch fits most tractors in the 50+ HP range
- 540 RPM PTO requirement matches standard tractor specifications
- Compatible with major Indian tractor brands including Mahindra, John Deere, New Holland, and others
- Adjustable hitch brackets accommodate minor variations in tractor specifications
However, farmers should verify specific compatibility with their tractor dealer, particularly regarding creeper gear availability and PTO specifications.
- What about maintenance and warranty in Shaktiman Tusker?
Warranty Coverage:
- Standard warranty: 1-2 years depending on model and dealer terms.
- Coverage includes: Manufacturing defects and premature component failure
- Exclusions: Normal wear items like blades and routine maintenance components
Maintenance Requirements:
- Regular blade inspection: Check for wear and damage after every 25-30 hours of operation
- Gearbox service: Oil changes every 100 hours or as recommended
- Lubrication schedule: Daily greasing of bearing points during active seasons
- Safety device inspection: Regular slip clutch and PTO shaft checks
Service Support:
- Nationwide dealer network providing parts and service.
- Trained service technicians familiar with Tusker-specific requirements
- Genuine parts availability through authorized dealers
- Technical support for operational questions and troubleshooting
