Shaktiman Proton Series (SRT-0.8, SRT-1.0)
{{ galleryProps.activeIndex + 1 }}/2
Description

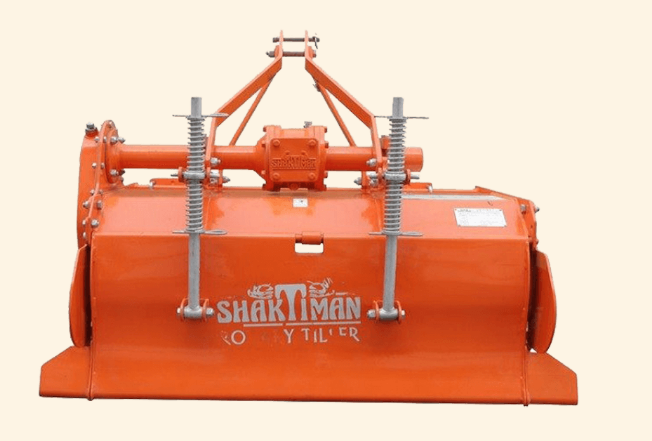

Shaktiman Proton Rotary Tiller - Compact Agricultural Equipment for Nano Tractors
The Shaktiman Proton Rotavator is specially designed as the…
Shaktiman Proton Rotary Tiller – Compact Agricultural Equipment for Nano Tractors
The Shaktiman Proton Rotavator is specially designed as the best rotavator for farming with nano lower HP tractors, perfectly suited for black, sandy, and loamy soil conditions. This compact agricultural equipment for soil preparation excels in seedbed preparation and inter-cultivation, making it an ideal choice for small-scale farmers and agricultural operations requiring precision tillage.
Key Features and Technology
The Shaktiman Proton Rotavator incorporates advanced technology specifically engineered for nano tractor applications. Its compact, light in weight but strong design makes this machine exceptionally suitable for light soil, shallow tillage, and sinking wet lands. The implement delivers the highest working efficiency in the mini-tiller segment, enhancing productivity while significantly reducing operational costs.
The rotary tiller features a single speed gearbox ensuring steady operation for consistent tilling results. The gear-driven side transmission in oil bath provides superior reliability and extended component life, while adjustable depth skids allow precise control over tilling depth for diverse agricultural requirements.
Safety features include shear bolt safety protection preventing damage from sudden overloads or field obstructions. The implement is engineered for low fuel consumption while maintaining optimal performance, making it highly cost-effective for small farming operations.
Technical Specifications and Model Variants
| Specification | SRT-0.8 | SRT-1.0 |
| Overall Length (mm) | 718 | 718 |
| Overall Width (mm) | 1256 | 1256 |
| Overall Height (mm) | 896 | 896 |
| Tilling Width (mm) | 1067 | 1067 |
| Working Width (Feet) | 2.73 | 2.73 |
| Tractor Power (HP) | 10-15 | 15-20 |
| Number of Blades | 24 | 30 |
| Weight (Kg) | 151 | 166 |
| Working Depth (mm) | 100 | 100 |
Universal Specifications Across All Models
Both Shaktiman Proton Rotavator models maintain consistent technical specifications ensuring reliable performance across the range:
- Maximum Working Depth: 100mm (4 inches)
- 3-Point Hitch Type: Category I
- Transmission Type: Gear-driven system
- Rotor Tube Diameter: 73mm (2.9 inches)
- Rotor Swing Diameter: 387mm (15.2 inches)
- PTO Input Speed: 540 RPM standard
- Driveline Safety Device: Shear Bolt protection
- Standard Blade Type: C-type curved construction
- Gearbox Type: Single Speed center alignment
- RPM at 540 PTO: 223 RPM
Agricultural Benefits and Applications
The Shaktiman Proton Rotavator delivers exceptional agricultural benefits through its specialized design for nano tractor operations. This premium farm implements excels in soil conditioning, weed control, and fertilizer incorporation in row crops, making it perfect for precision agriculture applications.
The implement significantly enhances seedbed preparation in light soil conditions, creating optimal growing environments for various crops. Its applications include effective weed control through uprooting and fertilizer incorporation in row crops, ensuring comprehensive soil management in a single pass.
The Shaktiman Proton Rotavator provides excellent soil aeration capabilities while maintaining proper soil structure for healthy plant development. The implement’s compact design allows for inter-cultivation operations, making it invaluable for ongoing crop management throughout the growing season.
Enhanced Farming Efficiency
The Shaktiman Proton Rotavator delivers substantial fuel savings through its optimized design specifically for low-power applications, significantly reducing operational costs for small farmers. The implement’s lightweight construction minimizes load on nano tractors while maximizing efficiency and reducing tire slippage.
Farmers experience significant time reduction in field preparation operations, with the implement capable of performing multiple operations in a single pass. The Shaktiman Proton Rotavator eliminates extensive manual labor requirements, resulting in reduced labor costs and improved operational efficiency for small-scale farming operations.
The implement enhances soil health through proper residue incorporation and optimal soil structure creation. This improved soil condition leads to better seed germination rates, stronger crop establishment, and ultimately improved farm profitability for small and marginal farmers.
Versatile Crop Applications
The Shaktiman Proton Rotavator excels across diverse small-scale agricultural applications:
Rotavator for Vegetables: Perfect for vegetable cultivation in small plots, the implement creates fine seedbeds essential for small seeds and transplanted seedlings. The rotavator depth and width capacity ensures precise soil preparation for various vegetable crop requirements.
Inter-cultivation Operations: The compact design makes it ideal for inter-cultivation between crop rows, effectively managing weeds and incorporating fertilizers during crop growth periods.
Light Soil Management: Specifically designed for light soil, shallow tillage, and sinking wet lands, making it perfect for diverse soil conditions commonly found in small farming operations.
Nursery and Small Plot Preparation: Excellent for nursery bed preparation and small plot cultivation where precision and gentle tillage are essential for optimal plant establishment.
Performance Specifications
The Shaktiman Proton Rotavator delivers consistent performance through optimized operational parameters:
- Rotor Speed at 540 RPM: 223 RPM for both models
- Working Depth: Adjustable up to 100mm (4 inches)
- Operational Speed: 2-5 km/hr depending on soil conditions
- Power Transmission Efficiency: Superior through gear-driven system
- Fuel Efficiency: Optimized for low consumption operations
The implement’s center gearbox alignment ensures balanced power distribution while reducing wear on drive components. The single speed gearbox provides consistent operation ideal for precision applications requiring steady performance.
Depth and Width Capabilities
Rotavator Depth and Width Capacity: The Shaktiman Proton Rotavator offers consistent specifications across both models:
- Working Width: 2.73 feet (1067mm) for both SRT-0.8 and SRT-1.0 models
- Total Width: 4.12 feet (1256mm) overall machine width
- Working Depth: Maximum 100mm (4 inches) adjustable depth control
This compact sizing makes the Shaktiman Proton Rotavator perfect for small plots, narrow field access, and precision agriculture applications where larger implements cannot operate effectively.
Pricing and Value Proposition
The Shaktiman Proton Rotavator offers exceptional affordable rotavator price with the SRT-0.8 model starting at Rs. 75,114* and the SRT-1.0 model at Rs. 80,114*. This competitive rotavator price in India makes it highly accessible for small and marginal farmers seeking mechanization solutions.
The rotavator represents outstanding value-for-money farm implement investment, considering its specialized design for nano tractors, durable construction, and comprehensive features. The implement provides significant cost savings compared to manual operations while improving productivity and crop yields for small-scale farming operations.
Maintenance and Care
Blade Care: The Shaktiman Proton Rotavator features C-type curved blades requiring specific maintenance protocols. These blades are designed for light to medium soil conditions and require regular inspection for wear patterns every 20-25 hours of operation.
Lubrication Schedule: Proper rotavator maintenance and durability protocols include daily greasing of specified lubrication points during active seasons. The gear-driven side transmission in oil bath requires monitoring every 40-50 hours to ensure optimal oil levels and performance.
Servicing Requirements: Regular blade bolt tightening prevents loosening during operation, while the shear bolt safety mechanism requires periodic inspection and replacement as needed. The compact design allows easy access to maintenance points, reducing service time and costs.
Longevity Factors
Durability: The Shaktiman Proton Rotavator incorporates robust construction despite its compact size, with premium materials ensuring extended operational life. The gear-driven transmission in oil bath significantly reduces friction and extends component life compared to chain-driven alternatives.
Wear & Tear Resistance: The implement features single speed gearbox construction using precision manufacturing to handle demanding field conditions. The center alignment design distributes loads evenly, preventing premature wear and ensuring reliable operation across various soil conditions.
Blade Hardness: High-quality C-type blade construction ensures consistent cutting performance throughout extended use periods. The curved blade design provides optimal soil penetration while maintaining durability in challenging conditions.
Gearbox Strength: The single speed gearbox construction uses premium materials specifically designed for low-power applications while maintaining strength and reliability for continuous operation.
Frequently Asked Questions (FAQs)
- What tractor horsepower (HP) is required for Shaktiman Proton Rotavator rotavator?
The Shaktiman Proton Rotavator rotavator is specifically designed for nano tractors with 10-20 HP power range. The detailed HP requirements are:
- Shaktiman Proton Rotavator SRT-0.8: 10-15 HP minimum
- Shaktiman Proton Rotavator SRT-1.0: 15-20 HP range
This tractor power compatibility makes the Shaktiman Proton Rotavator perfect for small tractors, mini tractors, and nano tractors that are increasingly popular among small and marginal farmers. The implement ensures optimal performance while preventing overloading of lower HP tractors, making it ideal for small-scale farming operations.
- Which types of blades are available in Shaktiman Proton Rotavator, and what do they do?
The Shaktiman Proton Rotavator features C-type curved blades specifically designed for light to medium soil conditions. These rotavator blade types provide:
C-Type Curved Blades: Perfect for light soil, sandy, and loamy soil conditions, these blades create fine seedbeds with minimal power consumption. The Shaktiman Proton Rotavator C-type blades excel in soil conditioning, weed control, and fertilizer incorporation while being gentle on low-power tractors.
The curved design ensures:
- Effective soil cutting with reduced power requirements
- Optimal mixing of soil and organic matter
- Minimal wear on nano tractor components
- Consistent performance in wet and semi-wet land conditions
The Shaktiman Proton Rotavator SRT-0.8 comes with 24 C-type blades, while the SRT-1.0 features 30 C-type blades for enhanced coverage and mixing capability.
- What is the working width of the Shaktiman Proton Rotavator rotavator?
The Shaktiman Proton Rotavator rotavator offers consistent working width of 2.73 feet (1067mm) for both models:
- Shaktiman Proton Rotavator SRT-0.8: 2.73 feet working width
- Shaktiman Proton Rotavator SRT-1.0: 2.73 feet working width
The total machine width is 4.12 feet (1256mm), allowing easy maneuverability in small plots and narrow field access situations. This compact width makes the Shaktiman Proton Rotavator perfect for:
- Small plot cultivation and vegetable farming
- Inter-cultivation between crop rows
- Nursery bed preparation
- Areas where larger implements cannot operate effectively
- How deep can the Shaktiman Proton Rotavator rotavator cultivate in a single pass?
The Shaktiman Proton Rotavator rotavator can cultivate to a maximum depth of 100mm (4 inches) in a single pass. This rotavator depth and width capacity remains consistent for both Shaktiman Proton Rotavator models.
The working depth is adjustable up to 4 inches for both models, allowing farmers to:
- Customize tillage depth based on soil conditions
- Adapt operations for different crop requirements
- Optimize power consumption on nano tractors
- Achieve proper soil preparation for small-scale farming
This depth capability is specifically designed for light soil, shallow tillage, and sinking wet lands, making it perfect for precision agriculture applications where gentle but effective soil preparation is required.
- How important is blade hardness and quality in Shaktiman Proton Rotavator?
Blade hardness and quality are critically important for the Shaktiman Proton Rotavator’s performance, especially given its design for continuous operation with lower-power tractors. The implement features premium C-type curved blade construction optimized for durability and efficiency.
High-quality blade construction ensures:
- Extended operational life reducing replacement frequency for small farmers
- Consistent cutting performance maintaining efficiency throughout seasons
- Optimal power utilization ensuring nano tractors operate within capacity
- Reduced maintenance costs crucial for small-scale farming economics
- Reliable performance in diverse soil conditions
The Shaktiman Proton Rotavator incorporates quality metallurgy specifically designed for the unique demands of nano tractor applications, where blade efficiency directly impacts overall implement performance and tractor longevity.
- Are Shaktiman Proton Rotavator rotavators compatible with all tractor brands and models in India?
The Shaktiman Proton Rotavator rotavators feature universal compatibility with most nano tractor brands through standardized specifications:
- Category I 3-point hitch fits most nano tractors in the 10-20 HP range
- 540 RPM PTO requirement matches standard nano tractor specifications
- Lightweight design suitable for small tractor hydraulic systems
- Compact mounting accommodates space constraints of mini tractors
Compatible nano tractor brands include Mahindra, VST, Captain, Eicher, Force Motors, and other mini tractor manufacturers. However, farmers should verify specific compatibility with their TractorXpert dealer, particularly regarding:
- Exact hitch pin spacing for Category I systems
- PTO shaft length requirements for compact tractors
- Hydraulic lift capacity for the implement weight
- Ground clearance requirements for specific nano tractor models
- What about maintenance and warranty in Shaktiman Proton Rotavator?
Warranty Coverage: The Shaktiman Proton Rotavator typically includes 1-2 years warranty covering manufacturing defects and premature component failure. The comprehensive warranty covers:
- Gearbox components and transmission assemblies
- Structural frame and hitch systems
- Manufacturing defects in blade mounting systems
- Premature failure of factory-installed components
Maintenance Requirements: The Shaktiman Proton Rotavator maintenance program includes:
Daily/8 Hours:
- Driveshaft greasing and lubrication point service
- Blade bolt tightening and comprehensive inspection
- Visual inspection for damage, wear, or operational issues
Weekly/40 Hours:
- Gearbox oil level checking in the oil bath system
- Shear bolt inspection and replacement as needed
- Complete bolt and fastener tightening verification
Seasonal/100 Hours:
- Complete gearbox oil change with recommended lubricants
- Comprehensive blade inspection and replacement
- Complete component inspection and adjustment
Service Support:
- Nationwide dealer network providing parts and service
- Genuine spare parts availability through authorized dealers
- Factory-trained technicians familiar with Shaktiman Proton Rotavator specifications
- Technical support for nano tractor compatibility issues
