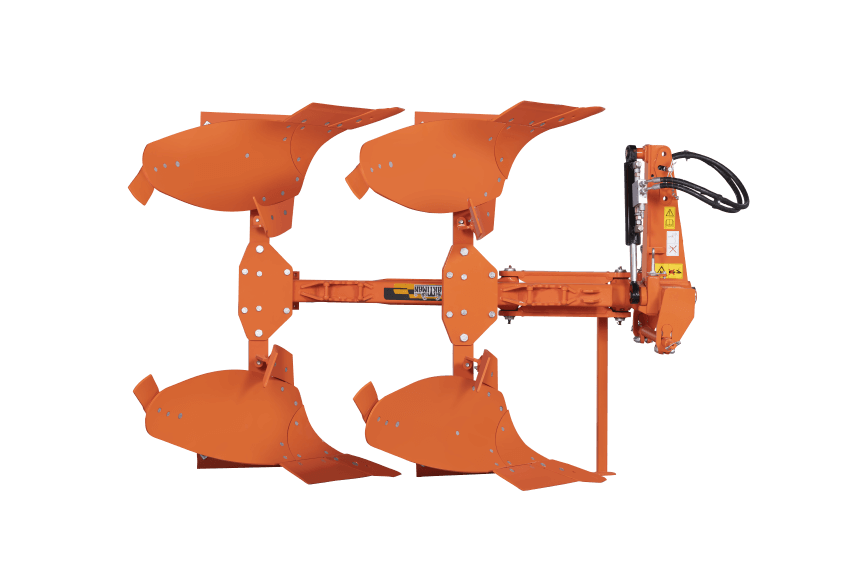

Shaktiman Reversible MB Plough 2+1 Bottom (SMP-2AX)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Shaktiman Reversible MB Plough 2+1 Bottom price* in India, specifications, working depth, width &…
- About Product
Shaktiman Reversible MB Plough 2+1 Bottom price* in India, specifications, working depth, width & disc/tyne details. Find the best tractor plough on TractorXpert.
- Key Specification and Technology Reversible MB Plough 2+1 Bottom
Type of plough: Hydraulic Reversible Mouldboard Plough
Number of mouldboards: 2 bottoms with reversible mechanism
Working width: 20-30 inches (508-762 mm)
Working depth: 8-14 inches (203-356 mm)
Overall dimensions: Length 2,208 mm × Width 1,370 mm × Height 1,490 mm
Weight: 410 kg (904 lbs)
Tractor power requirement: 45-55 HP range
Mounting type: CAT-2 Three Point Linkage
Frame material: Heavy-duty steel construction with hardened and tempered mouldboards
| Characteristic | SMP-2AX | SMP-3AX |
| Number of Bottoms | 2 | 3 |
| Reversible Type | Hydraulic – 180° | Hydraulic – 180° |
| Overall Length (mm) | 2208 | 3030 |
| Overall Width (mm) | 1370 | 1478 |
| Overall Height (mm) | 1490 | 1490 |
| Weight (kg / lbs) | 410 / 904 | 550 / 1213 |
| Tractor Power Requirement (HP & PTO) | 45+ HP & 38+ transferred | 55+ HP & 47+ transferred |
| Three Point Hitch | CAT-2 | CAT-2 |
| Max Working Depth (mm) | 203–356 | 203–356 |
| Ploughing Width (mm) | 508–762 | 762–1067 |
| Under Frame Clearance (mm) | 700 | 700 |
| Inter Body Clearance (mm) | 850 | 850 |
| Driveline Safety Device | Shear Bolt Type | Shear Bolt Type |
| Standard Equipment | 1. Multi Speed Gear Box 2. Rear adjustable levelling bar 3. Special hardened mouldboard 4. Powder coated finish 5. Three point hitch Cat II-III | 1. Multi Speed Gear Box 2. Rear adjustable levelling bar 3. Special hardened mouldboard 4. Powder coated finish 5. Three point hitch Cat II-III |
- Technical Specifications Reversible MB Plough 2+1 Bottom
Soil type compatibility: Light, Medium, and Heavy soils including clay conditions
Field efficiency percentage: 85-90% with reduced dead furrow formation
Fuel consumption impact: 20% fuel savings compared to conventional ploughs
Durability rating: High-grade steel construction with replaceable wear parts
Maintenance requirements: Regular greasing, share replacement every 5 acres in sandy soils
Spare parts availability: Widely available across India with authorized dealers
Warranty details: Standard manufacturer warranty with service support
Weather condition suitability: All-season operation capability
Crop compatibility: Sugarcane, wheat, maize, cotton, pulses, and oilseeds
- Agricultural Benefits and Applications of Reversible MB Plough 2+1 Bottom
The Reversible MB Plough 2+1 Bottom delivers exceptional primary tillage performance for modern farming operations. This advanced agricultural equipment for soil preparation breaks hardpan soil layers effectively while turning crop stubbles into the ground for natural decomposition. The hydraulic 180-degree reversible mechanism enables efficient soil inversion in both directions, eliminating dead furrows and reducing soil compaction.
Key agricultural applications include breaking hard soil crusts, burying crop residues deep into soil, controlling weed growth naturally, and bringing nutrients from deeper soil layers to the surface. The implement excels in preparing seedbeds for paddy, wheat, sugarcane, cotton, and vegetable cultivation, making it versatile for diverse cropping patterns across India.
- Enhanced Farming Efficiency through Reversible MB Plough 2+1 Bottom
This heavy-duty tractor plough model significantly enhances farm productivity through multiple efficiency factors. Time savings of up to 30% are achieved as the reversible mechanism eliminates frequent turning at field ends. Labor reduction is substantial since single-operator management becomes possible for large field operations.
Fuel saving benefits include 20% reduced consumption compared to traditional ploughs due to optimized draft requirements. The implement’s design reduces tractor load while maintaining superior ploughing performance, directly translating to lower operational costs for farmers.
- Versatile Crop Applications through Reversible MB Plough 2+1 Bottom
The implement demonstrates remarkable versatility across various crop applications. For paddy cultivation, it effectively manages stubble incorporation and puddling preparation. Wheat farming benefits from excellent trash burial and seedbed preparation capabilities. Sugarcane fields receive thorough soil preparation with deep penetration capabilities.
Cotton and vegetable cultivation advantages include precise soil turning for optimal root development. The plough’s adjustable depth control accommodates different crop requirements, from shallow cultivation for vegetables to deep ploughing for sugarcane and cotton crops.
- Performance Specifications of Reversible MB Plough 2+1 Bottom
Performance parameters demonstrate superior field capabilities with under frame clearance of 700 mm and inter body clearance of 850 mm. The shear bolt type safety protection prevents damage during rocky conditions. Hydraulic reversible operation ensures consistent performance across varying field conditions.
Working specifications include ploughing depth range of 8-16 inches with working width of 20-28 inches. The implement maintains uniform furrow depth and width, ensuring consistent soil preparation quality throughout field operations.
- Farmer Decision Support
Farm Size Recommendations
Small farms (under 5 acres): Highly suitable with excellent maneuverability and cost-effectiveness
Medium farms (5–25 acres): Optimal choice providing perfect balance of capacity and efficiency
Large farms (above 25 acres): Recommended with time-saving reversible technology for extensive operations
Soil-specific recommendations
Light soils: Excellent performance with minimal power requirements
Medium soils: Ideal application with standard 45-50 HP tractors
Heavy clay soils: Requires 50-55 HP tractors for optimal penetration
Budget-wise categorization
Economy: Entry-level pricing around ₹1,70,000*
Mid-range: Standard features at ₹2,00,000* to ₹2,25,000*
Premium: Advanced hydraulics up to ₹2,50,000*
ROI calculation guidance
Farmers typically recover investment within 2-3 seasons through fuel savings, reduced labor costs, and increased productivity. Custom hiring potential generates additional income of ₹800-1,200 per hour.
Financing and subsidy information
Available under various government subsidy schemes with 40-50% subsidy support. Multiple financing options through implement loans at competitive interest rates.
- Maintenance and Care of Reversible MB Plough 2+1 Bottom
Mouldboard care requires regular cleaning after each use to prevent soil buildup and corrosion. Apply protective coating on soil-engaging surfaces during storage periods. Share maintenance involves replacement every 5 acres in sandy conditions or when cutting edge becomes blunt.
Lubrication schedule includes greasing pivot points, hydraulic cylinders, and depth wheel bearings every 10 hours of operation. Hydraulic system maintenance requires checking hose connections, cylinder seals, and oil levels regularly. Frame inspection should identify crack development, bolt looseness, and structural integrity issues.
Disc coulter maintenance involves checking rotation freedom, alignment accuracy, and sharpness levels. Storage preparation includes thorough cleaning, protective coating application, and covered storage to prevent weather damage.
- Longevity Factors of Reversible MB Plough 2+1 Bottom
Material strength derives from high-grade steel construction with hardened and tempered mouldboards ensuring extended service life. Wear resistance features include replaceable shares, renewable cutting edges, and reinforced high-stress areas.
Durability enhancement comes from proper maintenance schedules, quality spare parts usage, and operator training programs. Expected service life ranges 15-20 years with proper care and maintenance. Structural integrity maintains performance standards through robust frame design and quality welding processes.
FAQs Section (Farmer-Friendly Answers)
What tractor horsepower (HP) is required for Reversible MB Plough 2+1 Bottom?
The Reversible MB Plough 2+1 Bottom requires 45-55 HP tractor power for optimal performance. Light soil conditions may operate effectively with 45 HP, while heavy clay soils benefit from 50-55 HP tractors for proper penetration and soil inversion.
What types of ploughs are available in Reversible MB Plough 2+1 Bottom, and what do they do?
The Reversible MB Plough 2+1 Bottom is a mouldboard type with hydraulic reversible mechanism. It performs soil cutting, turning, and inverting operations in both directions, eliminating dead furrows while burying crop residues effectively for enhanced soil preparation.
What is the working width of the Reversible MB Plough 2+1 Bottom?
The Reversible MB Plough 2+1 Bottom provides working width of 20-30 inches (508-762 mm). This width specification ensures efficient field coverage while maintaining uniform furrow formation across varying soil conditions.
How deep can the Reversible MB Plough 2+1 Bottom work in a single pass?
The Reversible MB Plough 2+1 Bottom achieves working depth of 8-16 inches (203-356 mm) in single pass operation. Depth adjustment mechanisms allow farmers to customize penetration based on soil conditions and crop requirements.
Why is mouldboard hardness and quality important in Reversible MB Plough 2+1 Bottom?
Mouldboard hardness and quality in Reversible MB Plough 2+1 Bottom ensure effective soil inversion, reduced wear rates, and consistent performance. Hardened and tempered mouldboards resist abrasive soil conditions while maintaining smooth soil flow for optimal furrow formation.
Is Reversible MB Plough 2+1 Bottom compatible with all tractor brands and models in India?
The Reversible MB Plough 2+1 Bottom features CAT-2 three-point linkage making it compatible with most Indian tractor brands in 45-55 HP range. Standard mounting specifications ensure broad compatibility across Mahindra, Sonalika, John Deere, and other popular tractor models.
What about maintenance, warranty, and after-sales service for Reversible MB Plough 2+1 Bottom?
The Reversible MB Plough 2+1 Bottom comes with standard manufacturer warranty and comprehensive after-sales service. Maintenance requirements include regular greasing, share replacement, and hydraulic system checks. Authorized service centers provide spare parts support across India with trained technicians for repairs and maintenance guidance.
How TractorXpert Helps Farmers
TractorXpert serves as the ultimate destination for farmers seeking the perfect plough by comparing models, prices*, features, and benefits from different manufacturers. Our platform helps farmers save money through comprehensive price* comparisons, detailed specification analysis, and expert recommendations tailored to specific farming requirements.
We provide unbiased reviews, technical specifications, performance comparisons, and financing options to help farmers make informed decisions. Whether choosing between disc plough, mouldboard plough, or reversible plough options, TractorXpert ensures farmers select implements that maximize farm productivity while minimizing costs.
Our expert guidance covers soil compatibility assessments, tractor power matching, field size optimization, and ROI calculations to help farmers choose agricultural equipment for soil preparation that delivers long-term value. Through TractorXpert, farmers access affordable plough prices*, maintenance tips, financing assistance, and subsidy information – making farm mechanization in India accessible and profitable for every farming operation.
