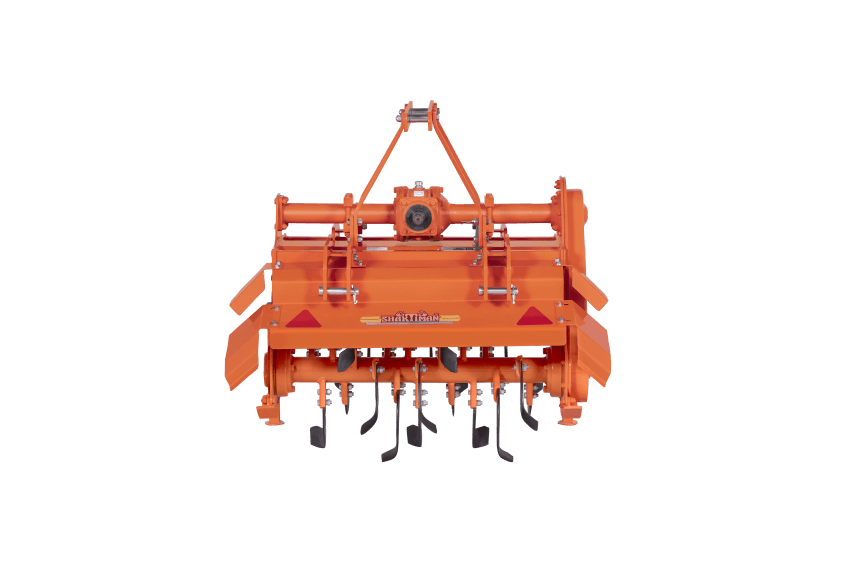

Shaktiman Reverse Forward Series (RF Models)
{{ galleryProps.activeIndex + 1 }}/2
Description
Shaktiman Reverse Forward Rotavator – Unique Dual-Rotation Tiller for Sugarcane
Key Features and Technology
The Shaktiman Reverse Forward Rotavator…
Shaktiman Reverse Forward Rotavator – Unique Dual-Rotation Tiller for Sugarcane
Key Features and Technology
The Shaktiman Reverse Forward Rotavator is a revolutionary agricultural equipment for soil preparation that performs a function no standard rotavator can match: earthing-up and soil-throwing operations essential for sugarcane farming. This unique compact tiller features dual-rotation capability, allowing both forward and reverse blade rotation from a single PTO shaft, enabling precise soil management operations impossible with conventional equipment.
Unique Dual-Rotation System:
The signature feature is the ability to rotate blades in both forward and reverse directions using a single integrated PTO drive shaft. Forward rotation works like a standard rotavator, tilling and pulverizing soil. Reverse rotation activates the implement’s distinctive earthing-up capability—the blades throw soil outward to both sides, creating raised soil banks that support and stabilize sugarcane stems.
Earthing-Up Action for Sugarcane:
When operating in reverse, the Shaktiman Reverse Forward Rotavator throws soil from the center lane outward on both sides, effectively creating soil mounds that provide mechanical support to sugarcane plants. This operation is critical for sugarcane cultivation—properly earthed-up plants resist lodging, improve root development, and enhance yield. What traditionally required hours of manual labor with hoes or earth-ups now happens in a single pass.
Compact, Lightweight Design:
At just 145-154 kg, this tiller is exceptionally lightweight—up to one-third the weight of standard rotavators. This compact profile makes it ideal for small holding farmers and marginal operations where full-size implements are wasteful. Despite its small size, the rotor delivers powerful soil mixing and pulverization.
Chain Transmission System:
The compact chain-drive transmission (vs. heavy gear boxes) keeps weight and cost low while maintaining reliable performance. The single-speed gearbox simplifies operation and maintenance, with minimal moving parts to service.
Trenching & Ring Basin Creation:
Beyond sugarcane earthing-up, the reverse-rotation capability makes the Shaktiman Reverse Forward ideal for creating trenches and ring basins around trees and plantations. The dual-rotation flexibility transforms it into a multi-purpose implement.
Technical Specifications and Model Variants
The Shaktiman Reverse Forward Series offers two focused models (RF-60 and RF-80), each engineered for specific tractor sizes and cultivation intensities.
| Model | RF-60 | RF-80 |
| Working Width (feet/mm) | 2.1 ft / 633 mm | 2.6 ft / 790 mm |
| Total Width (feet/mm) | 2.62 ft / 992 mm | 3.14 ft / 992 mm |
| Tractor Power (HP) | 15-22 | 18-25 |
| No. of Blades | 18 | 22 |
| Weight (kg) | 145 | 154 |
| Working Depth (inches/mm) | 5.9 in / 150 mm | 5.9 in / 150 mm |
| Overall Length (mm) | 798 | 958 |
| Overall Width (mm) | 992 | 992 |
| Overall Height (mm) | 980 | 980 |
| Rotor Tube Diameter (mm) | 73 | 73 |
| Price Estimate* | ₹55,000* – ₹69,000* | ₹65,000* – ₹73,000* |
Universal Specifications Across All Models
- Hitch Type: Cat-I 3-Point Linkage (universal standard)
- Transmission Type: Chain Drive (compact, lightweight)
- Gearbox: Single Speed
- PTO Input Speed: 540 RPM (standard)
- Rotor Speed: 258 RPM @ 540 PTO
- Rotor Swing Diameter: 484 mm (both models)
- Blade Types: L-type (standard) and J-type (optional, for deeper penetration)
- Blade Material: Durable Boron steel construction
- Driveline Safety: Slip Clutch / Shear Bolt protection
- Rotation Capability: Forward and Reverse from single shaft
- Blade Count: 18 (RF-60) or 22 (RF-80)
- Frame Material: Reinforced steel design
- Lubrication: Grease lubrication (vs. oil bath for larger tillers)
Agricultural Benefits and Applications
Enhanced Farming Efficiency:
The Shaktiman Reverse Forward Rotavator transforms sugarcane cultivation by mechanizing the labor-intensive earthing-up operation. Traditional manual earthing-up requires significant hand labor with hoes—expensive, time-consuming, and physically demanding. This compact tiller accomplishes the same work in a fraction of the time, saving substantial labor costs while improving operational consistency.
Fuel efficiency is excellent due to the lightweight design and compact rotor. Your small-HP tractor operates efficiently, using minimal fuel for maximum output. Operating costs are among the lowest for any rotavator category.
Versatile Crop Applications:
While the Shaktiman Reverse Forward is the Best Rotavator for farming sugarcane using its unique earthing-up capability, it serves multiple agricultural purposes:
- Sugarcane Fields: The primary application. Earthing-up provides mechanical support to stalks, improves root development, controls weeds through inter-cultivation, and prepares soil for root extension.
- Trenching & Ring Basins: Create trenches around tree bases (fruit orchards, nut plantations, coconut), improving water infiltration and nutrient uptake. The reverse-rotation feature makes this operation simple and efficient.
- Inter-Cultivation: Mechanical weeding in row crops with 4+ feet spacing. The compact width allows safe operation between closely-spaced plants.
- Soil Preparation: Light to medium soil pulverization in small holdings where full-size rotavators are uneconomical.
- Plantation Nurseries: Specialized soil preparation in confined nursery spaces.
- Vegetable Row Crops: For widely-spaced vegetables requiring inter-cultivation and earthing-up operations.
Performance Specifications
Depth and Width Capabilities:
The Shaktiman Reverse Forward provides a consistent working depth of 5.9 inches (150mm) across both RF-60 and RF-80 models. This depth is optimized for sugarcane inter-cultivation and earthing-up operations—deep enough to achieve soil mixing and weed incorporation without disturbing deep sugarcane root systems.
The working width is intentionally compact at 2.1-2.6 feet (depending on model), allowing safe operation in sugarcane rows with standard 5-6 foot spacing. This narrow width is a design advantage, enabling precise, controlled operation where full-size rotavators cannot function.
Dual-Rotation Capability:
The unique ability to operate in both forward and reverse directions from a single PTO shaft gives this implement extraordinary versatility. Forward rotation performs standard tilling; reverse rotation throws soil outward for earthing-up. A single implement eliminates the need for separate specialized equipment.
Pricing and Value Proposition:
With prices starting at just ₹55,000*, the Shaktiman Reverse Forward offers the most Affordable Rotavator price* in any rotavator category. The value proposition is exceptional for sugarcane farmers: a single implement replacing both manual earthing labor and specialized equipment, operating on compact 15-25 HP tractors that many small farmers already own.
The ROI is rapid—the implement pays for itself within one to two seasons through labor savings and increased operational efficiency.
Maintenance and Care
Blade Maintenance:
Inspect blades weekly for damage or wear, especially when working in rocky fields or heavy clay. Replace any bent or damaged blades immediately to maintain smooth operation and soil quality. The Boron steel blades are durable, requiring replacement only after extended use.
Transmission Lubrication:
Check grease levels at all bearing and chain points every 20-30 hours of operation. Apply quality multipurpose grease to all pivot points, chain connections, and bearing assemblies daily or after every 8 hours of operation. The simplified grease-lubrication system (vs. oil baths in larger tillers) makes maintenance straightforward.
Chain Inspection:
The chain transmission requires periodic inspection. Check tension and adjust as needed—a loose chain reduces efficiency and may slip under load. Lubricate the chain with appropriate chain lubricant after every 5-8 hours of operation to prevent premature wear.
Regular Inspection:
Before each use, tighten all bolts and fasteners. Verify that both forward and reverse rotation functions smoothly. Listen for unusual grinding sounds (lubrication problems) or clunking (loose connections).
Seasonal Servicing:
At season’s end, thoroughly wash the tiller with water and allow complete drying. Check all grease points and reapply as needed. Lubricate the chain and inspect for excessive wear. Store under cover to prevent rust.
Longevity Factors
Durability Advantages:
The Shaktiman Reverse Forward is engineered for extended service life of 10-12 years despite its compact, lightweight design. The robust frame construction and high-quality materials ensure durability through thousands of operating hours. The simplified design—fewer components than full-size rotavators—means fewer potential failure points.
Wear & Tear Resistance:
Boron steel blades resist wear and maintain sharp cutting edges throughout extended use. The chain transmission, while requiring more frequent lubrication than gear drives, provides reliable performance when properly maintained. Chain components are engineered to tolerate the dual-rotation stresses of forward and reverse operation.
Blade Quality & Longevity:
The high-quality Boron steel blades resist dulling even in abrasive soils. Properly maintained blades can last 2-3 times longer than softer steel alternatives, reducing your blade replacement costs significantly.
Component Reliability:
All critical components—the rotor shaft, chain transmission, bearings, and linkage—are engineered with reliability margins. The slip clutch/shear bolt safety system protects against catastrophic failure, ensuring the implement disengages safely if sudden impact occurs rather than breaking internal components.
FAQs (Frequently Asked Questions)
1) What tractor horsepower (HP) is required for Shaktiman Reverse Forward Rotavator?
The Tractor Rotavator specifications for the Reverse Forward Series are notably lower than standard rotavators:
|
Model |
Tractor Power Required |
|
RF-60 |
15-22 HP |
| RF-80 |
18-25 HP |
This is the most fuel-efficient rotavator series, designed specifically for farmers with small-to-medium tractors. Many small landholders own 15-20 HP machines perfect for the RF-60. The compact power requirement is a major advantage—you don’t need to upgrade to a larger, more expensive tractor to operate this implement.
2) Which types of blades are available in Shaktiman Reverse Forward Rotavator, and what do they do?
Two Rotavator blade types are available:
- L-Type Blades (Standard): The common option for general tilling and earthing-up. Provides good soil penetration and mixing with balanced fuel efficiency.
- J-Type Blades (Optional): Deeper penetration design for harder, more compacted soils. Provides more aggressive tilling action when breaking difficult sugarcane field soils.
Both are manufactured from high-quality Boron steel for durability and resistance to wear. The compact rotor design uses 18 or 22 blades (compared to 36-60 on larger rotavators) but delivers excellent soil pulverization due to optimized blade geometry.
3) What is the working width of the Shaktiman Reverse Forward Rotavator?
The Rotavator depth and width capacity is specifically compact:
|
Model |
Working Width (feet) | Working Width (mm) |
|
RF-60 |
2.1 |
633 |
| RF-80 | 2.6 |
790 |
This narrow working width is intentional—it allows the tiller to fit safely between sugarcane rows with 5-6 feet spacing. The compact width is an advantage, not a limitation, enabling precise earthing-up and inter-cultivation without damaging adjacent plants.
4) How deep can Shaktiman Reverse Forward Rotavator cultivate in a single pass?
The Shaktiman Reverse Forward achieves a working depth of 5.9 inches (150mm), which is consistent across both models. This depth is optimized for sugarcane inter-cultivation and earthing-up operations—deep enough for soil mixing and weed incorporation while respecting sugarcane root systems.
5) How important is blade hardness and quality in Shaktiman Reverse Forward Rotavator?
Blade hardness and quality are absolutely critical for optimal earthing-up and inter-cultivation performance. The high-quality Boron steel blades are essential because:
- Earthing-Up Precision: Hard blades maintain sharp edges for clean, controlled soil movement
- Durability: Resist wear even with frequent reverse-rotation operation
- Fuel Efficiency: Sharp blades cut efficiently, reducing tractor strain
- Soil Quality: Quality blades create better soil structure and proper soil throw for earthing-up
- Safety: Proper blade hardness prevents dangerous blade shattering
Never compromise on blade quality—earthing-up effectiveness depends directly on sharp, quality blades that can move soil precisely.
6) Are Shaktiman Reverse Forward Rotavators compatible with all tractor brands and models in India?
Yes, absolutely. The Shaktiman Reverse Forward comes with a universal Cat-I 3-point hitch, compatible with all small-tractor categories in India. This makes it compatible with virtually all major brands in the 15-25 HP range, including:
- Mahindra (Arjun, Bolero, etc.)
- Swaraj (small models)
- Sonalika (compact range)
- Force (mini tractors)
- TAFE (compact models)
- Eicher (small series)
- Kubota
- Farmtrac (small series)
Verify your tractor has a Cat-I hitch (standard on all small tractors) and adequate horsepower for your soil conditions.
7) What about maintenance and warranty in Shaktiman Reverse Forward Rotavator?
Warranty: Shaktiman typically provides a 1-2 year manufacturer’s warranty (specific terms vary by dealer). Some dealers offer extended warranty options. Request warranty details in writing before purchase.
Maintenance: The Shaktiman Reverse Forward is designed for simple, low-cost maintenance:
- Grease-lubricated system (simpler than oil baths)
- Chain transmission requires periodic chain lubrication only
- Minimal moving parts compared to larger rotavators
- Boron steel blades replace infrequently
- No complex hydraulics or electronics
- Straightforward daily greasing and oil checks
Typical annual maintenance costs are very modest, primarily grease/chain lubricant and occasional blade inspection. The simplified design keeps long-term ownership costs exceptionally low.
How TractorXpert Helps You Find the Right Farm Implement
Specialized implements like the Shaktiman Reverse Forward Rotavator serve unique farming needs. TractorXpert guides farmers through the selection process with comprehensive expertise:
Specialty Equipment Recognition:
TractorXpert identifies when you need specialized equipment like the Shaktiman Reverse Forward Rotavator versus standard tillers. Input your crop type (sugarcane), field operation (earthing-up), and tractor size, and TractorXpert instantly confirms this is your ideal implement.
Tractor Power Verification:
Own a compact 15-20 HP tractor? TractorXpert confirms compatibility and shows that this implement is perfect for your machine—unlike larger rotavators requiring 50+ HP. Understand your tractor can efficiently operate this equipment without strain.
Earthing-Up Benefits Analysis:
Uncertain about dual-rotation benefits? TractorXpert explains the earthing-up advantage, calculating labor savings compared to manual earth-up operations. See exact cost comparisons showing how quickly the implement pays for itself.
Sugarcane-Specific Guidance:
Growing sugarcane? TractorXpert shows exactly how the Shaktiman Reverse Forward improves your operations—faster earthing-up, better plant support, improved yields, and reduced labor costs. Read testimonials from sugarcane farmers already using this implement successfully.
Soil-Specific Blade Selection:
Determine which Rotavator blade types (L or J) suit your sugarcane field soil. TractorXpert explains blade differences and recommends optimal choices based on your soil compaction and tillage history.
ROI & Payback Calculation:
Input your current manual earthing-up labor costs and field size. TractorXpert calculates payback period—typically 1-2 seasons for sugarcane farmers on modest holdings.
Affordable Pricing Transparency:
TractorXpert provides current Rotavator price in India for both RF-60 and RF-80 models. Compare dealer prices across your region, learn about financing options, and discover seasonal discounts.
Maintenance Planning:
Understand the straightforward maintenance requirements specific to compact chain-drive tillers. Learn greasing schedules, chain care intervals, and blade replacement timings.
Trenching & Multi-Purpose Guidance:
Beyond sugarcane earthing-up, learn how the reverse-rotation capability enables trenching, ring basin creation, and other specialized operations in orchards and plantations.
Regional Dealer Network:
TractorXpert locates authorized Shaktiman dealers offering demonstrations and test operations. Verify warranty coverage and spare parts availability in your area.
Farmer Community Insights:
Connect with experienced sugarcane and orchard farmers already using the Shaktiman Reverse Forward. Learn real-world operational tips, maintenance strategies, and performance expectations from actual users.
Farm Mechanization Strategy:
Understand how the Shaktiman Reverse Forward Rotavator fits into your comprehensive Farm mechanization in India plan alongside other implements for maximum farm efficiency.
Make Your Decision with Complete Confidence:
Whether you’re a sugarcane farmer seeking to eliminate manual earthing-up labor or an orchardist needing trenching capabilities, TractorXpert provides the expert guidance, detailed specifications, farmer feedback, and transparent pricing needed to select the perfect specialized implement.
Product General Information
Brand Name:
Shaktiman
Model Name:
Reverse Forward Series (RF Models)
Implement Type:
Rotavator
Category:
Tillage
Compatible Tractor Power:
15 HP – 25 HP
