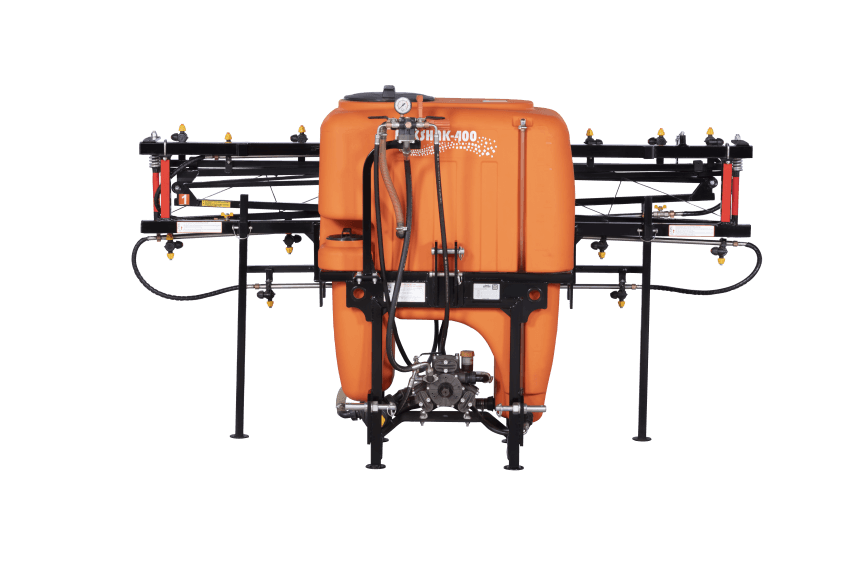

Shaktiman Rakshak 400 with Boom
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Specification | Details |
| Brand | Shaktiman |
| Model Name | …
- About Product
| Specification | Details |
| Brand | Shaktiman |
| Model Name | Rakshak 400 with Boom |
| Implement Type | Boom Sprayer |
| Category | Crop Protection |
| Compatible Tractor Power | 34-75 HP |
| Price Range | ₹1,58,000* – ₹1,80,000* |
- Key Specification and Technology Shaktiman Rakshak 400 with Boom
| Parameter | Specification |
| Sprayer Type | Boom sprayer |
| Tank Capacity | 400 liters |
| Pump Type and Specifications | Diaphragm pump with 54 L/min capacity |
| Pump Capacity | 54-55 liters per minute |
| Maximum Working Pressure | 40 bar (580 PSI) |
| Boom Width | 12 meters (40 feet) |
| Number of Nozzles | 24 nozzles (5+5+4+5+5 arrangement) |
| Nozzle Spacing | 500mm (50cm) between each nozzle |
| Nozzle Types Available | 2-way triple action with ceramic 80° hollow cone and 110° flat fan (changeable) |
| Overall Dimensions | 1360 × 790 × 1000 mm (L × W × H) |
| Weight | 230 kg |
| Tractor Power Requirement | 34-75 HP range |
| Mounting Type | 3-point linkage Category II |
| Drive System | PTO driven |
| PTO Speed Requirement | 540 RPM |
| Tank Material | Polyethylene double layer horizontal tank |
- Technical Specifications Shaktiman Rakshak 400 with Boom
| Technical Parameter | Specification |
| Application Rate Capacity | 150-400 liters per hectare |
| Field Coverage Efficiency | 1.27-2.08 hectares per hour |
| Boom Height Adjustment Range | 0.75 meter standby + hydraulic adjustment |
| Pump Working Pressure Specifications | 3-20 bar operating range (hollow cone: 7-20 bar, flat fan: 3-7 bar) |
| Agitation System Type | Ultimate agitation with perfect liquid flow |
| Filtration System | Lid filter on main tank, suction filter with valve release knob |
| Control System Specifications | Remote switchbox for on/off operation from seated position |
| Operating Speed Range | 2.5-4.0 km/hr |
| Chemical Compatibility | Pesticides, herbicides, insecticides, fungicides, and liquid fertilizers |
| Weather Condition Suitability | Standard field conditions with wind speed limitations |
| Maintenance Intervals | Regular pump maintenance, nozzle cleaning, and filter replacement |
| Spare Parts Availability | Available through authorized dealers |
| Warranty Coverage | Standard manufacturer warranty with service support |
- Agricultural Benefits and Applications of Shaktiman Rakshak 400 with Boom
Primary Crop Protection Applications: The Rakshak 400 delivers comprehensive pest control, disease prevention, and weed management solutions across diverse agricultural environments. Its ceramic-tipped nozzles ensure ample spray penetration into soil and crops for effective chemical distribution.
Precision Spraying Benefits: The 2-way triple action nozzles with ceramic discs create low micron droplet size for appropriate penetration while reducing chemical wastage. The 12-meter boom width provides uniform coverage with minimal drift potential.
Multi-crop Compatibility: Suitable for field crops, horticultural applications, and cash crops with adjustable application rates. The sprayer effectively handles various pesticide formulations and liquid fertilizers.
Resistance Management: Supports integrated pest control programs with precise chemical application and coverage uniformity.
- Enhanced Farming Efficiency through Shaktiman Rakshak 400 with Boom
Time-saving Benefits: Covers 1.27-2.08 hectares per hour with 12-meter working width, significantly reducing application time compared to smaller sprayers. The 400-liter tank capacity allows extended operation with fewer refilling stops.
Chemical Cost Reduction: Precise application through ceramic nozzles and controlled pressure settings minimize chemical wastage while ensuring effective coverage. The agitation system maintains proper chemical mixing throughout operation.
Labor Efficiency Improvements: Single operator can manage large-scale spraying operations with remote control functionality and PTO-driven system. The robust construction ensures trouble-free performance with minimal maintenance requirements.
Increased Application Accuracy: 24 precisely spaced nozzles with 50cm intervals deliver uniform spray patterns across the 12-meter boom width. Ceramic nozzle tips provide consistent droplet size and spray angle.
Reduced Environmental Impact: Controlled application pressure and droplet size management reduce spray drift and environmental contamination.
- Versatile Crop Applications through Shaktiman Rakshak 400 with Boom
Field Crops: Wheat, rice, maize, cotton, sugarcane, and soybean protection with adjustable application rates for different growth stages.
Horticultural Crops: Suitable for fruit orchards, vegetable cultivation, and plantation crops with boom height adjustment capabilities.
Cash Crops: Cotton, sugarcane, sunflower, and groundnut protection with specialized nozzle configurations for row crop applications.
Cereal Crops: Wheat, barley, and oats disease and pest control with uniform spray coverage across wide field areas.
Special Applications: Defoliation, growth regulation, and nutrient spraying with compatible chemical formulations.
- Performance Specifications of Shaktiman Rakshak 400 with Boom
Application Precision: 24 ceramic-tipped nozzles with 50cm spacing ensure uniform spray distribution across 12-meter boom width. The diaphragm pump delivers consistent 54 L/min flow rate at 540 RPM.
Coverage Efficiency Ratings: Field capacity ranges from 1.27-2.08 hectares per hour depending on operating conditions and application rates. Field efficiency typically achieves 73-85% under normal working conditions.
Spray Drift Control: Boom height adjustment and nozzle pressure control minimize spray drift while maintaining effective coverage. Operating pressure ranges from 3-20 bar depending on nozzle type and application requirements.
Chemical Utilization Efficiency: Precise flow control and agitation system ensure optimal chemical mixing and application rates of 150-400 L/ha.
Operating Cost per Hectare: Fuel consumption averages 4.88 L/hr with estimated operating costs including chemical application and labor.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (under 5 acres): The Rakshak 400 provides efficient coverage for small to medium operations with 400-liter capacity
- Medium farms (5-25 acres): Ideal choice with 12-meter boom width covering 1.27-2.08 ha/hr for medium-scale farming
- Large farms (above 25 acres): Suitable for large operations with extended working hours and minimal refilling requirements
Crop-specific Recommendations:
- Field crop requirements: 12-meter boom width ideal for cereals, cotton, and sugarcane with uniform spray patterns
- Row crop applications: 50cm nozzle spacing compatible with standard row crop configurations
- Orchard compatibility: Adjustable boom height accommodates various crop canopy heights
Budget-wise Categorization:
- Mid-range option: Priced at ₹1,58,000* – ₹1,80,000* with balanced features and performance
- Value features: Diaphragm pump, ceramic nozzles, and hydraulic controls provide excellent value
- Cost-effective operation: 34-75 HP tractor compatibility suits various farm power requirements
ROI Calculation Guidance: Payback period typically 2-3 seasons based on reduced chemical costs and increased application efficiency.
Financing Options: Available through implement loans and government subsidy programs.
- Maintenance and Care of Shaktiman Rakshak 400 with Boom
Pump Maintenance: Regular inspection of diaphragm pump components, seal replacement, and proper lubrication ensures optimal 54 L/min flow rate. The zero-maintenance design minimizes service requirements.
Nozzle Care and Calibration: Ceramic nozzle tips require periodic cleaning and calibration to maintain precise spray patterns. Replace worn nozzles to ensure consistent droplet size and application uniformity.
Tank Cleaning Procedures: The 40-liter circuit cleaning tank facilitates thorough system cleaning between chemical applications. The 15-liter hand-wash tank provides operator safety during maintenance.
Boom Maintenance: Flexible steel fabricated boom structure requires periodic inspection for structural integrity. Hydraulic height adjustment system needs regular fluid checks and seal maintenance.
Filtration System Maintenance: Regular cleaning of lid filter and suction filter with valve release mechanism ensures proper chemical flow. Replace filters according to manufacturer recommendations.
Seasonal Storage Preparation: Thorough cleaning, proper drainage, and protective storage extend equipment life.
Pre-operation Safety Inspection: Check pump pressure, nozzle function, and boom integrity before each operation.
Calibration Procedures: Regular flow rate testing and spray pattern verification ensure accurate application rates.
- Longevity Factors of Shaktiman Rakshak 400 with Boom
Component Quality: High-grade diaphragm pump with 580 PSI capacity and ceramic nozzle tips ensure extended service life. The robust steel frame construction withstands field operating conditions.
Chemical Resistance Features: Polyethylene double-layer tank construction provides excellent chemical compatibility and corrosion resistance. Ceramic nozzle tips offer superior wear resistance compared to standard materials.
Structural Engineering: The 230 kg weight distribution and Category II 3-point linkage provide stable mounting and operation. Flexible boom design accommodates field irregularities while maintaining structural integrity.
Wear Part Replaceability: Standard components like nozzles, filters, and pump seals are readily available through dealer networks. Modular design facilitates easy maintenance and part replacement.
Expected Service Life: Properly maintained units typically provide 8-12 years of reliable service with regular component replacement. Quality construction and materials ensure long-term durability in agricultural environments.
FAQs Section
What tractor horsepower (HP) is required for Shaktiman Rakshak 400 with Boom sprayer?
The Shaktiman Rakshak 400 with Boom requires 34-75 HP tractors with 540 RPM PTO and Category II 3-point linkage. The minimum recommended power is 40 HP for optimal performance.
What types of sprayers are available in Shaktiman Rakshak 400 with Boom, and what are their applications?
The Rakshak 400 is specifically a boom sprayer designed for broadcast applications across field crops, cereals, cotton, and sugarcane. It features a 12-meter flexible boom with 24 nozzles for uniform coverage.
What is the tank capacity and boom width of the Shaktiman Rakshak 400 with Boom sprayer?
The sprayer features a 400-liter main chemical tank, 40-liter circuit cleaning tank, and 15-liter hand-wash tank. The boom width spans 12 meters (40 feet) with 24 strategically placed nozzles.
How does Shaktiman Rakshak 400 with Boom sprayer help in crop protection and pest management?
The sprayer delivers precise chemical application through ceramic-tipped nozzles that create optimal droplet penetration into crops. It effectively applies pesticides, herbicides, insecticides, and fungicides for comprehensive pest management.
Why is pump quality and nozzle type important in Shaktiman Rakshak 400 with Boom sprayer?
The zero-maintenance diaphragm pump provides consistent 54 L/min flow at 40 bar pressure. Ceramic nozzle tips offer superior wear resistance and precise spray patterns compared to standard materials.
Is Shaktiman Rakshak 400 with Boom sprayer compatible with all tractor brands and models in India?
Yes, the sprayer is compatible with any tractor having 34-75 HP power, 540 RPM PTO, and Category II 3-point linkage system. This covers most Indian tractor brands and models in this power range.
What about boom height adjustment and spray pressure control in Shaktiman Rakshak 400 with Boom sprayer?
The sprayer features hydraulic boom height adjustment up to 0.75 meters plus standby height. Pressure control ranges from 3-20 bar depending on nozzle type and application requirements.
How does Shaktiman Rakshak 400 with Boom sprayer compare to other crop protection methods?
The boom sprayer provides superior coverage efficiency at 1.27-2.08 ha/hr compared to knapsack sprayers at 0.5-0.6 ha/hr. Chemical savings and uniform application make it more cost-effective than manual methods.
What maintenance schedule should be followed for Shaktiman Rakshak 400 with Boom sprayer?
Regular maintenance includes daily nozzle cleaning, weekly pump inspection, monthly filter replacement, and seasonal thorough cleaning. The zero-maintenance pump design reduces service requirements.
What warranty and after-sales service support is available for Shaktiman Rakshak 400 with Boom?
Shaktiman provides standard manufacturer warranty with authorized dealer network support across India. Spare parts availability and service support ensure reliable long-term operation.
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices*, features, and benefits from different manufacturers, helping them save money, improve crop protection efficiency, reduce chemical wastage, and enhance overall farm productivity through precise and effective spraying solutions that enable farmers to protect their crops from pests, diseases, and weeds while optimizing chemical usage and ensuring uniform coverage across their fields for maximum agricultural yield and profitability.
