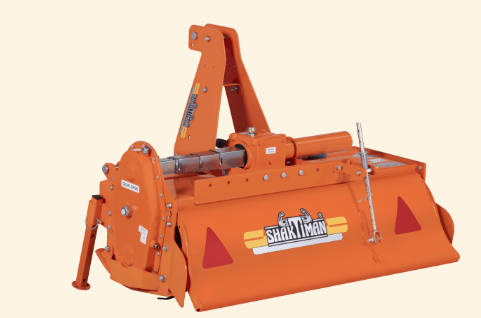

Shaktiman Mini Manual Side Shift Rotary Tiller (Available in SRT-4, SRT-5, and SRT-5.5 variants)
{{ galleryProps.activeIndex + 1 }}/2
Description
Shaktiman Mini Manual Side Shift Rotavator - Advanced Agricultural Equipment for Modern Farming
The Shaktiman Mini Manual Side Shift…
Shaktiman Mini Manual Side Shift Rotavator – Advanced Agricultural Equipment for Modern Farming
The Shaktiman Mini Manual Side Shift Rotavator is a versatile and efficient agricultural implement designed to deliver superior performance with optimal efficiency. This implement is specifically engineered to meet the needs of modern farmers, ensuring excellent soil preparation and low operational costs. As a premium rotavator for farming applications, this implement represents the latest in agricultural mechanization technology that helps farmers achieve better soil health while reducing manual labor requirements.
Key Features and Technology
The Shaktiman Mini Manual Side Shift Rotavator incorporates advanced engineering features that make it a best rotavator for farming applications. The implement features curved tine construction which ensures effective soil mixing and residue incorporation. The gear drive transmission (SRT-4) and chain drive (SRT-5 and SRT-5.5) systems provide reliable power transfer for consistent performance.
The rotavator utilizes 36-48 blades per rotor depending on the model, ensuring thorough soil preparation. With a PTO input speed of 540 RPM, it maintains optimal performance while being fuel-efficient. The CAT-I 3-point hitch system ensures easy attachment to compatible tractors.
Technical Specifications and Model Variants
| Specification | SRT-4 | SRT-5 | SRT-5.5 |
| Overall Length (mm) | 1356 | 1730 | 1885 |
| Tilling Width (mm) | 1175 | 1524 | 1676 |
| No. of Tines per Rotor | 36 | 42 | 48 |
| Max. Working Depth (mm) | 85 | 85 | 85 |
| Weight (Kg) | 190 | 265 | 290 |
| Rotor Shaft Speed | 203 | 208 | 208 |
| Transmission Type | Gear drive | Chain drive | Chain drive |
Universal Specifications Across All Models
All Shaktiman Mini Manual Side Shift Rotavator models feature standardized components including 73mm rotor tube diameter, CAT-I 3-point hitch, and 540 RPM PTO input speed. The implements maintain consistent 85mm maximum working depth across variants, ensuring uniform soil preparation capabilities.
Agricultural Benefits and Applications
The Shaktiman Mini Manual Side Shift Rotavator offers significant benefits for agricultural equipment for soil preparation. This implement excels in breaking up soil clumps, mixing organic matter, leveling fields, and creating ideal seedbed conditions. The rotavator’s design makes it particularly effective for rotavator for paddy cultivation, wheat field preparation, and vegetable farming applications.
Enhanced Farming Efficiency
Fuel Savings: The gear-driven design reduces tractor power requirements, leading to substantial fuel cost savings. Studies indicate that proper farm mechanization can reduce fuel consumption by 15-20%.
Time Reduction: The implement combines multiple operations – plowing, harrowing, and leveling – into a single pass, reducing field preparation time by up to 50%.
Soil Health Improvement: The curved tine design ensures proper soil aeration and organic matter incorporation, improving soil fertility and structure.
Reduced Labor Costs: Farm mechanization through rotavator use significantly reduces dependency on manual labor, addressing labor shortage issues in rural areas.
Versatile Crop Applications
The Shaktiman Mini Manual Side Shift Rotavator demonstrates excellent versatility for various crop applications:
- Paddy Fields: Ideal for wetland preparation with effective mixing of crop residues.
- Wheat Cultivation: Ensures proper seedbed preparation for optimal germination.
- Sugarcane: Suitable for between-row cultivation and soil preparation.
- Cotton: Effective for primary tillage operations.
- Maize: Provides excellent soil pulverization for corn planting.
- Vegetables: Perfect for garden and vegetable plot preparation.
Performance Specifications
Depth and Width Capabilities
The rotavator achieves 85mm maximum working depth, suitable for most soil preparation requirements. The tilling width ranges from 1175mm to 1676mm depending on the model, providing efficient field coverage.
Blade Configuration
The implement uses rotavator blade types including curved designs that provide superior soil cutting and mixing performance. The blade hardness specifications ensure durability and extended service life.
Pricing and Value Proposition
The Shaktiman Mini Manual Side Shift Rotavator represents excellent value-for-money farm implement with pricing between Rs. 1,17,458 to Rs. 1,27,547**. This positioning makes it competitive within the heavy-duty rotavator models category while maintaining affordability for small and medium farmers.
Maintenance and Care
Blade Care
Regular rotavator blade inspection and maintenance are crucial for optimal performance. The blades should be checked for sharpness and replaced when worn to maintain effective soil cutting.
Lubrication
The gearbox and transmission components require regular lubrication as specified in the maintenance schedule. Proper lubrication extends component life and ensures smooth operation.
Servicing
Regular servicing every 40-50 hours of operation helps maintain performance and prevents major breakdowns. This includes engine oil changes, filter replacements, and general inspection of moving parts.
Longevity Factors
Durability
The Shaktiman Mini Manual Side Shift Rotavator features robust construction with high-quality materials ensuring extended service life. The boron steel blades provide superior wear resistance compared to standard steel options.
Wear & Tear Resistance
Advanced blade hardness specifications and quality engineering minimize wear and tear, resulting in longer replacement intervals.
Gearbox Strength
The transmission system is designed for heavy-duty applications with oil bath lubrication ensuring smooth operation under demanding conditions.
FAQs Section
- What tractor horsepower (HP) is required for Shaktiman Mini Manual Side Shift rotavator?
The Shaktiman Mini Manual Side Shift requires different HP ranges based on the model: SRT-4 needs 18 HP & Above, SRT-5 requires 25 HP & Above, and SRT-5.5 needs 30 HP & Above. This tractor power compatibility ensures optimal performance across various tractor sizes.
2. Which types of blades are available in Shaktiman Mini Manual Side Shift, and what do they do?
The Shaktiman Mini Manual Side Shift uses curved tine construction designed for effective soil cutting, mixing, and residue incorporation. These rotavator blade types provide superior soil preparation compared to straight blade designs.
3. What is the working width of the Shaktiman Mini Manual Side Shift rotavator?
The rotavator width capacity varies by model: SRT-4 offers 1175mm tilling width, SRT-5 provides 1524mm, and SRT-5.5 delivers 1676mm tilling width, allowing farmers to choose based on their field size requirements.
4. How deep can the Shaktiman Mini Manual Side Shift rotavator cultivate in a single pass?
The Shaktiman Mini Manual Side Shift achieves a maximum working depth of 85mm in a single pass. This rotavator depth capacity is suitable for most soil preparation applications and seedbed creation.
5. How important is blade hardness and quality in Shaktiman Mini Manual Side Shift?
Blade hardness is crucial for the Shaktiman Mini Manual Side Shift as it directly affects performance and longevity. High-quality blades with proper hardness specifications ensure effective soil cutting, reduced wear, and extended replacement intervals, making the implement more cost-effective over time.
6. Are Shaktiman Mini Manual Side Shift rotavators compatible with all tractor brands and models in India?
Yes, the Shaktiman Mini Manual Side Shift features CAT-I 3-point hitch system that ensures compatibility with most Indian and international tractor brands within the specified HP ranges. The tractor power compatibility design makes it versatile for various farming operations.
7. What about maintenance and warranty in Shaktiman Mini Manual Side Shift?
The Shaktiman Mini Manual Side Shift requires regular maintenance including blade inspection, lubrication, and servicing every 40-50 hours of operation. Shaktiman provides comprehensive warranty coverage and has an extensive service network across India for rotavator maintenance and durability support.
TractorXpert helps farmers choose the right farm implement by providing comprehensive comparisons of rotavator models, detailed specifications, current pricing information, and expert recommendations. Through TractorXpert’s platform, farmers can easily compare the Shaktiman Mini Manual Side Shift Rotavator with other models, understand technical specifications, evaluate rotavator price in India options, and make informed decisions based on their specific farming needs, tractor power compatibility, and budget requirements. The platform’s expert guidance ensures farmers select the most suitable agricultural equipment for soil preparation that maximizes their farming efficiency and productivity.
Product General Information
Brand Name:
Shaktiman
Model Name:
Mini Manual Side Shift Rotary Tiller (Available in SRT-4, SRT-5, and SRT-5.5 variants)
Implement Type:
Rotavator
Category:
Tillage
Compatible Tractor Power:
• SRT-4: 18 HP & Above• SRT-5: 25 HP & Above• SRT-5.5: 30 HP & Above
