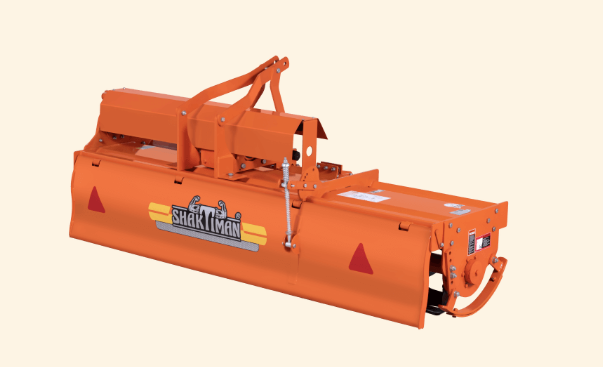

Shaktiman Manual Side Shift Rotary Tiller (Models SRT-5, SRT-6, SRT-7)
{{ galleryProps.activeIndex + 1 }}/2
Description
Shaktiman Manual Side Shift Rotavator – Versatile Farm Implement for Precision Tillage
The Shaktiman Manual Side Shift Rotavator features a…
Shaktiman Manual Side Shift Rotavator – Versatile Farm Implement for Precision Tillage
The Shaktiman Manual Side Shift Rotavator features a hydraulic shift mechanism that allows central and offset operation, making it ideal for working under and between trees in orchards and vineyards. Its robust frame and sturdy structure are built to endure tough conditions, and it also works seamlessly with track-type tractors.
Compatible Tractor Power (HP Range)
- SRT-5: 40–55 HP
- SRT-6: 50–65 HP
- SRT-7: 60–75 HP
Price Range
- SRT-5 (63.2″ width): ₹1,22,000*-₹1,48,000*
- SRT-6 (73.7″ width): ₹1,22,000*-₹1,48,000*
- SRT-7 (82.8″ width): ₹1,22,000*-₹1,48,000*
Key Features and Technology
- Hydraulic Side Shift: Central and offset positions for inter-row cultivation without harming trunks or vines
- Curved/Square Tines: Standard tine construction for effective soil cutting and mixing
- Gear Drive Transmission: Robust power transfer with minimal maintenance
- Slip Clutch / Shear Bolt: Driveline safety device to protect against overload
- Track-Tractor Compatibility: Works with both wheeled and tracked tractors
Technical Specifications and Model Variants
| Specification | SRT-5 | SRT-6 | SRT-7 |
| Overall Length (mm) | 1743 | 1995 | 2242 |
| Tilling Width (mm/inch) | 1606 / 63.2″ | 1872 / 73.7″ | 2105 / 82.8″ |
| Tractor Power | 40–55 HP | 50–65 HP | 60–75 HP |
| Frame Offset (mm/inch) | 150 / 5.9″ | 242 / 9.5″ | 350 / 13.8″ |
| No. of Tines per Rotor | 36 | 42 | 48 |
| Max. Working Depth (mm/inch) | 200 / 7.9″ | 200 / 7.9″ | 200 / 7.9″ |
| Rotor Tube Diameter (mm/inch) | 89 / 3.5″ | 89 / 3.5″ | 89 / 3.5″ |
| Rotor Swing Diameter (mm/inch) | 480 / 18.9″ | 480 / 18.9″ | 480 / 18.9″ |
| Weight (Kg/lbs) | 524 / 1155 | 556 / 1226 | 587 / 1294 |
| Transmission Type | Gear | Gear | Gear |
Universal Specifications Across All Models
- 3-Point Hitch: CAT-II
- PTO Speed: 540 RPM
- Standard Tine Options: Curved or square blades
- Construction: Heavy-duty frame, high-tensile steel components
Agricultural Benefits and Applications
- Enhanced Soil Health: Curved tine design promotes better aeration and residue mixing
- Fuel Savings: Efficient gear drive reduces tractor load, lowering fuel consumption
- Time Reduction: Offset shift enables cultivation close to trees in one pass, cutting labor time
- Labor Cost Reduction: Farm mechanization replaces manual intercultivation
- Versatile Crop Use: Ideal for paddy, wheat, sugarcane, cotton, maize, vegetables, orchards, and vineyards
Performance Specifications
Depth and Width Capabilities
- Working Depth: Up to 200 mm (7.9″) in a single pass
- Tilling Width: From 1606 mm (63.2″) to 2105 mm (82.8″) depending on model
Blade Configuration
- Rotavator Blade Types: Curved for residue mixing and square for deep cutting
- Blade Hardness: High-carbon steel for wear resistance and long life
Pricing and Value Proposition
The Shaktiman Manual Side Shift Rotavator offers an affordable rotavator price with premium features tailored for precision farming. Its versatility and durable design make it a value-for-money farm implement that boosts productivity and lowers operational costs.
Maintenance and Care
- Blade Care: Inspect and sharpen blades regularly; replace worn tines to maintain cutting efficiency
- Lubrication: Grease gearbox and driveline components after every 40–50 hours of use
- Servicing: Schedule preventive maintenance checks every season to ensure component longevity
Longevity Factors
- Durability: Heavy-duty frame and robust gear drive for years of reliable operation
- Wear & Tear Resistance: High-hardness tines and reinforced rotor tubes resist abrasion
- Gearbox Strength: Industrial-grade gears with slip clutch protection ensure smooth power transfer
FAQs
What tractor horsepower is required for Shaktiman Manual Side Shift Rotavator?
- SRT-5 needs 40–55 HP, SRT-6 requires 50–65 HP, and SRT-7 works with 60–75 HP tractors.
Which types of blades are available for Shaktiman Manual Side Shift Rotavator and what do they do?
- Curved tines mix residue and aerate soil; square tines cut deeply for tougher soils.
What is the working width of Shaktiman Manual Side Shift Rotavator?
- Models range from 1606 mm (63.2″) to 2105 mm (82.8″) for efficient coverage.
How deep can Shaktiman Manual Side Shift Rotavator cultivate in one pass?
- Up to 200 mm (7.9″) for effective primary and secondary tillage.
How important is blade hardness and quality?
- Crucial for cutting efficiency and tine longevity; high-carbon steel blades ensure durability under heavy use.
Shaktiman Manual Side Shift Rotavator compatible with all tractor brands and models in India?
- Yes, the CAT-II hitch and standard PTO speed (540 RPM) fit most Indian and international tractors within the specified HP ranges.
What about maintenance and warranty of Shaktiman Manual Side Shift Rotavator?
- Regular blade inspection, lubrication, and seasonal servicing keep performance high. Shaktiman offers comprehensive warranty support and a wide service network for rotavator maintenance and durability.
TractorXpert helps farmers choose the right farm implement by comparing models, features, prices, and benefits. Its expert guidance lets you evaluate rotavator price in India, tractor rotavator specifications, and agricultural equipment for soil preparation side by side, ensuring you select the best rotavator for farming that maximizes efficiency and return on investment.
Product General Information
Brand Name:
Shaktiman
Model Name:
Manual Side Shift Rotary Tiller (Models SRT-5, SRT-6, SRT-7)
Implement Type:
Rotavator
Category:
Tillage
Compatible Tractor Power:
• SRT-5: 40–55 HP• SRT-6: 50–65 HP• SRT-7: 60–75 HP
Engine
Transmission
Implement Type:
Rotavator
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
