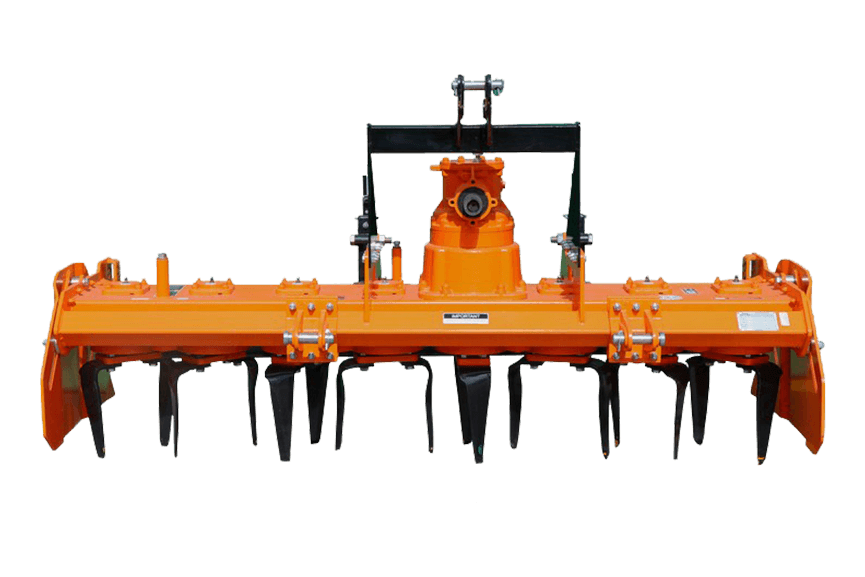

Shaktiman Light Series Power Harrow Pehalwan (SPH Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Shaktiman Light Series Power Harrow Pehalwan price* in India, specifications, working width, depth &…
- About Product
Shaktiman Light Series Power Harrow Pehalwan price* in India, specifications, working width, depth & tine details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Shaktiman Light Series Power Harrow Pehalwan Variants
| Model | Speed | L × W × H (mm) | Working Width (mm/inch) | Working Depth (mm/inch) | HP Req. | No. of Blades | Weight (Kg/lbs) |
| SPH-4D | Single | 1500×1365×1100 | 1250 / 49 | 100–200 / 4–8 | 50+ | 10 | 390 / 860 |
| SPH-5D | Single | 1500×1610×1100 | 1500 / 59 | 100–200 / 4–8 | 55+ | 12 | 430 / 948 |
| SPH-6D | Single | 1500×1855×1100 | 1750 / 69 | 100–200 / 4–8 | 60+ | 14 | 470 / 1036 |
| SPH-7D | Single | 1500×2100×1100 | 2000 / 79 | 100–200 / 4–8 | 65+ | 16 | 510 / 1124 |
Roller Options for Each Model:
- Packer Roller
- Diameter: 420 mm
- Weight: 139–196 kg (increases with model size)
- Spike Roller
- Diameter: 504 mm
- Weight: 106–151 kg
- Cage Roller
- Diameter: 383 mm
- Weight: 68–92 kg
- Technical Specifications
- Soil Type Compatibility: Suitable for all soils including heavy, clay, and rocky fields
- Field Efficiency: Covers up to 1 ha/hr depending on width and power
- Fuel Impact: Multi-pass reduction lowers overall fuel use
- Durability: Boron steel blades, robust frame
- Bearings & Seals: Sealed, maintenance-friendly, water/dust resistant
- Maintenance: Blade check every 100 hrs; gearbox greasing every 50 hrs
- Spare Parts: Easily available, affordable
- Warranty: 12 months / 1 000 hrs
- Weather Suitability: Operates efficiently in both wet and dry soil
- Agricultural Benefits and Applications
- Primary Tillage: Breaks hard soil, incorporates residues
- Secondary Tillage: Deep seedbed preparation (up to 200 mm)
- Weed Management: Mixes and buries weeds effectively
- Soil Structure: Reduces compaction by requiring fewer passes
- Enhanced Farming Efficiency
- Time-Saving: Wide working widths, one-pass results
- Fuel Savings: Reduces number of tractor runs
- Labor Reduction: Large coverage rate per pass
- Productivity: Consistent, uniform seedbed ensures crop uniformity
- Versatile Crop Applications
- Cereals, Pulses, Cash Crops, Vegetables, Orchards — including potatoes, tubers, wheat, rice, maize, cotton, onions, and more
- Performance Specifications
- Operating Speed: 3–7 km/hr
- Ground Pressure: Rollers ensure level, uncompacted surface
- Penetration: 100–200 mm (deep tillage for all SPH models)
- Finish Quality: Flat, clod-free, ready-to-sow seedbed
- Farmer Decision Support
- Small Farms: SPH-4D, SPH-5D
- Medium Farms: SPH-5D, SPH-6D
- Large Farms: SPH-6D, SPH-7D
- Light Soils: Cage roller option; Normal depth
- Heavy Soils/Clay: Spike or packer roller; Maximum depth
- Economy: SPH-4D
- Mid-range: SPH-5D, SPH-6D
- Premium: SPH-7D
- ROI: Payback often in 1–2 seasons with time/fuel savings; Subsidy eligible*
- Maintenance and Care
- Blades: Check for sharpness/wear, replace if needed
- Bearings: Grease every 50 hrs
- Rollers/Frame: Inspect rollers, tighten bolts, check rust protection regularly
- Storage: Clean, covered, rust-protected
- Pre-op Checklist: Lubrication, blade, linkage, roller check
- Longevity Factors
- Material Quality: Boron steel, heat-treated
- Wear Resistance: Blades last 800–1,000 hrs
- Robust Frame and Replaceable Rollers
- Service Life: 5–8+ years with good care
FAQs – Shaktiman Light Series Power Harrow Pehalwan
What HP is required?
50+ HP for SPH-4D up to 65+ HP for SPH-7D
What models are available?
SPH-4D, 5D, 6D, 7D with packer, spike, or cage roller options
What is the working width and depth?
1.25–2.0 m working width; up to 200 mm depth
How does it help seedbed preparation?
Creates a flat, finely tilled, uniform seedbed with fewer passes
Why quality tines/blades?
Long boron steel blades provide long life and effective tillage
Brand compatibility?
Fits all major tractor brands with standard 3-point linkage
Depth/roller control?
Model and roller selection determines finish and depth adaptability
How does it compare to cultivators/rotavators?
Deeper tillage, consistent finish, and reduced compaction; multi-roller and width options
Maintenance?
Blade/roller check 100 hrs; greasing bearings and tightening critical bolts
Warranty/support?
12 months/1,000 hrs; Shaktiman’s dealer/service network
TractorXpert simplifies the process for Indian farmers—from technical comparison, price*, field needs, to maintenance—helping them select the most efficient, durable, and cost-effective harrow implements that improve yield, save costs, and boost field productivity.
Product General Information
Brand Name:
Shaktiman
Model Name:
Light Series Power Harrow Pehalwan (SPH Series)
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
50–65+ HP (model dependent)
