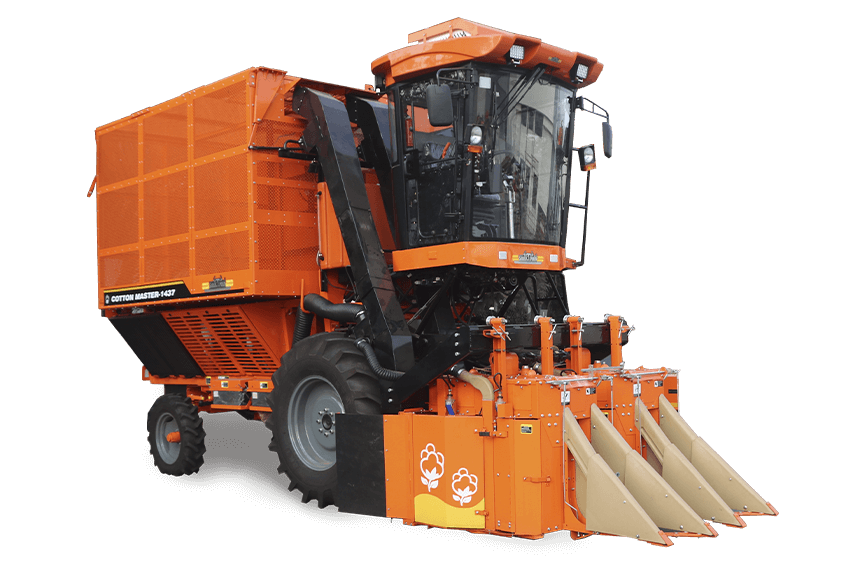

Shaktiman Cotton Master 1437
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Specification
| Details / Information | Description |
| Brand | Shaktiman… |
- About Product
Specification
| Details / Information | Description |
| Brand | Shaktiman (Tirth Agro Technology Pvt. Ltd.) |
| Model Name | Cotton Master 1437 |
| Implement Type | Tractor-Mounted Cotton Picker / Cotton Harvester |
| Category | Harvesting Equipment |
| Compatible Tractor Power | 45–65 HP |
| Price Range | ₹8.00–10.50 lakh* |
- Key Specifications and Technology
| Specification | Details |
| Harvester Type | Tractor-mounted, PTO-driven |
| Picking Mechanism | Spindle type (drum-based spindle system) |
| Row Capacity | 2-row picker |
| Picking Width | 1400–1600 mm |
| Picking Efficiency | 90–95% |
| Cotton Damage Rate | Less than 3–4% |
| Basket/Collection Capacity | 300–400 kg per basket |
| Field Capacity | 1 acre per hour (approximately 0.4 hectares/hour) |
| Tractor Power Requirement | 45–65 HP |
| Mounting Type | Tractor-mounted (3-point hitch compatible) |
| Drive System | PTO-driven (Power Take-Off) |
| PTO Speed Requirement | 540 RPM |
| Frame Material | High-tensile steel with rust-resistant coating |
| Overall Dimensions | Length × Width × Height (approx. 4200 × 1500 × 2100 mm) |
| Weight | 1200–1400 kg (without PTO shaft and safety devices) |
- Technical Specifications
| Specification | Technical Details |
| Picking Efficiency | 90–95% |
| Cotton Recovery Rate | 95–98% |
| Damage/Boll Loss Rate | 2–4% |
| Field Capacity | 1 acre/hour under optimal field conditions |
| Productivity Rate | 300–400 kg/hour depending on cotton density and plant height |
| Operating Speed | 4–5 km/hr |
| Operating Conditions | Temperature: 15–40°C; Humidity tolerance: 30–90%; Crop height range: 800–1200 mm |
| Spindle Type Mechanism | Rotating spindles grab and twist cotton fibers from opened bolls without damaging lint |
| Number of Spindle Drums | 2 (one per row) |
| Spindles Per Drum | 18–24 spindles for efficient picking |
| Air Suction System | Gentle suction mechanism reduces fiber contamination and foreign material inclusion |
| Collection System | Pneumatic suction into collection basket with manual or semi-automatic unloading |
| Maintenance Intervals | Daily: Clean spindles and suction tubes; Weekly: Check bearings and spindle wear; Seasonal: Replace worn spindles and seals |
| Spare Parts Availability | Readily available through authorized Shaktiman dealers across cotton-growing regions |
| Warranty Coverage | 1-year standard warranty with optional extended coverage; Includes major components (gearbox, spindle drums, suction system) |
- Agricultural Benefits and Applications
- Efficient and gentle cotton picking ensuring minimal fiber loss and premium-quality lint preservation through spindle-based mechanism
- Reduces dependency on seasonal manual labor during peak harvest periods, addressing chronic labor shortage issues
- Uniform cotton collection improving overall fiber quality, cleanliness, and market value
- Faster harvesting ensures timely completion before weather deterioration and rainfall contamination
- Reduces operational costs by replacing 8–12 laborers per hectare, substantially improving farm profitability
- Minimizes post-harvest contamination risk through gentle handling and controlled suction system
- Ideal for medium-scale cotton farms improving overall productivity and mechanization levels
- Enhanced Farming Efficiency through Cotton Master 1437
- Time-saving capability harvests 1 acre per hour compared to 0.25 acres/day with manual picking
- Labor cost reduction effectively replaces 8–12 manual laborers per hectare, reducing seasonal employment burden
- Consistent fiber quality and reduced moisture contamination through controlled picking mechanism
- Suitable for various cotton varieties including Bt cotton, hybrid cotton, and desi varieties
- Adapts to different plant densities and row spacings with adjustable suction strength settings
- Improves overall farm productivity and profitability enabling timely harvest completion
- Supports sustainable farming practices through efficient mechanization and reduced chemical pesticide residue
- Versatile Crop and Field Applications
- Cotton picking for long-staple, medium-staple, and short-staple varieties with optimal spindle adjustment
- Suitable for rainfed and irrigated cotton regions across India’s cotton belt
- Compatible with both Bt cotton and hybrid cotton crops widely cultivated in India
- Effective on flat and gently sloped terrains commonly found in cotton-growing regions
- Ideal for 2-row field planting patterns typical in small to medium farms
- Recommended for cotton-growing regions including Gujarat, Maharashtra, Telangana, Madhya Pradesh, Karnataka, and Andhra Pradesh
- Effective in regions with controlled crop management and pre-harvest defoliation practices
- Performance Specifications
| Performance Parameter | Measurement Range |
| Picking Efficiency | 90–95% |
| Cotton Recovery Rate | 95–98% |
| Boll Loss Rate | 2–4% |
| Fiber Cleanliness | 90–94% |
| Field Capacity per Hour | 1 acre/hour (0.4 hectares) |
| Field Capacity per Day | 6–8 acres/day (2.4–3.2 hectares) |
| Operating Cost per Hectare | ₹1200–1800 (fuel, maintenance, and labor combined) |
| Average Productivity | 300–400 kg/hour depending on crop density and cotton openness |
| Waste/Trash Content | Less than 5% of harvested cotton |
- Farmer Decision Support
Farm Size Recommendations
- Small farms (2–5 acres): 2-row Cotton Master 1437 (45–55 HP tractor) – optimal cost-effectiveness
- Medium farms (5–15 acres): 2-row Cotton Master 1437 with extended operational hours (55–65 HP tractor)
- Large farms (above 15 acres): Consider 4-row variants or multiple harvesters for seasonal efficiency
Crop-Specific Recommendations
Different cotton varieties vary significantly in plant height, boll firmness, and opening characteristics. The Cotton Master 1437’s adjustable spindle speed and suction strength accommodate these variations effectively. For hybrid cotton reaching 1.2 meters height, adjust spindle rotation speed to 150–170 RPM. For desi varieties (0.8–1.0 meter), reduce speed to 130–150 RPM. Regular crop height monitoring ensures optimal picking without ground contact or stalk damage. Choose models with dual-spindle configuration for improved collection uniformity.
Budget-Wise Categorization
- Economy models (₹8.00–8.50 lakh): Standard 2-row, PTO-driven harvesters with basic features, suitable for cost-conscious small farms
- Mid-range models (₹8.50–9.50 lakh): Enhanced spindle mechanism, improved suction system, better basket capacity and cleaning
- Premium models (₹9.50–10.50 lakh): Advanced spindle control, hydraulic-assisted operation, air-conditioned cabin option, maximum efficiency and operator comfort
- Maintenance and Care
Daily: Clean picker spindles and suction tubes after operation to prevent fiber buildup; Lubricate all moving joints with appropriate grease; Check for any visible wear on spindles or seals; Empty collection basket and inspect for blockages.
Weekly: Check belt tension and bearing play; Inspect hydraulic connections and PTO shaft for leaks; Adjust suction strength if picking efficiency drops; Grease all pivot points and transmission components.
Seasonal: Replace worn spindles and felt seals; Repaint exposed surfaces to prevent rust; Inspect suction system fans and replace damaged components; Conduct complete oil change in transmission gearbox; Verify PTO shaft safety mechanism function.
Storage: Clean thoroughly after final harvest; Apply anti-corrosion grease to all metal surfaces; Cover equipment with waterproof tarpaulin; Store in dry location away from moisture; Conduct pre-season maintenance check before next harvest.
- Longevity Factors
The Shaktiman Cotton Master 1437 is engineered with high-tensile steel frames and corrosion-resistant components specifically designed for Indian field conditions and varied weather patterns. Proper maintenance extends operational lifespan to 12–15 years with sustained productivity. Periodic spindle and felt seal replacement (typically annual) ensures consistent picking performance. Shaktiman’s robust manufacturing standards, strong brand reputation, and extensive dealer service network across cotton-growing regions ensure better resale value and operational reliability. The company’s ISO 9001:2015 certification guarantees quality consistency, while availability of genuine spare parts maintains machine longevity and field efficiency.
FAQs Section
What is the HP requirement for Cotton Master 1437?
The Cotton Master 1437 requires a tractor with 45–65 HP power output. For optimal performance, a 50–60 HP tractor is recommended. Always verify compatibility with PTO 540 RPM operation and ensure adequate hydraulic capacity for auxiliary functions if needed.
What is the picking capacity and efficiency of Cotton Master 1437?
The Cotton Master 1437 offers 300–400 kg/hour picking capacity with 90–95% picking efficiency and 95–98% cotton recovery rate, minimizing boll loss, fiber damage, and contamination. Field capacity reaches 1 acre per hour under favorable conditions.
Can Cotton Master 1437 handle different cotton varieties?
Yes, the Cotton Master 1437 is suitable for Bt cotton, hybrid cotton, desi cotton, and long-staple varieties with adjustable spindle speed settings (130–170 RPM) and variable suction strength accommodating different plant heights (800–1200 mm) and boll firmness characteristics.
What are the key advantages of using Cotton Master 1437?
Main advantages include reduced labor dependency (replaces 8–12 workers), improved fiber quality through gentle spindle picking, faster harvest completion preventing weather loss, cost-effectiveness at ₹1200–1800 per hectare, and enhanced profitability through timely harvest and premium lint quality.
What is the warranty and after-sales support for Cotton Master 1437?
Standard 1-year warranty covers major components including gearbox, spindles, and suction system. Shaktiman offers authorized dealer servicing, genuine spare parts availability, operator training programs, and extended warranty options in major cotton-growing regions across India.
What is the operating cost per hectare?
Operating cost ranges from ₹1200–1800 per hectare, including fuel consumption (approximately 3–4 liters/hour), maintenance, spindle replacement, and periodic servicing. Actual cost varies based on tractor fuel efficiency, labor availability, and field conditions.
What maintenance is required for spindle efficiency?
Daily spindle cleaning prevents fiber accumulation affecting picking quality. Weekly inspection checks for spindle wear, bent tines, or seal degradation. Annual spindle replacement (every 50–60 acres) maintains picking efficiency above 90%. Proper lubrication and spindle alignment during maintenance extend component lifespan significantly.
Is Cotton Master 1437 suitable for rainfed cotton regions?
Yes, the Cotton Master 1437 performs effectively in rainfed cotton regions across Telangana, Karnataka, and central India. Ensure pre-harvest defoliation for optimal opening and collection. Monitor field conditions as muddy terrain may affect operational speed and fuel consumption.
How TractorXpert Helps Farmers Choose the Right Cotton Harvester
TractorXpert empowers Indian cotton farmers with transparent, data-driven equipment selection by providing comprehensive price comparisons, brand-wise specifications, and user-friendly performance analysis. It helps farmers evaluate models based on critical parameters including row capacity, tractor power compatibility, field size requirements, fiber quality standards, and maintenance considerations. With clear segmentation into economy (₹8–8.50 lakh), mid-range (₹8.50–9.50 lakh), and premium (₹9.50–10.50 lakh) options, farmers can strategically match harvesters to their budget constraints, field conditions, and cotton varieties. TractorXpert provides detailed transparency on after-sales service, spare parts availability, warranty support, and operator training—ensuring farmers select durable, efficient cotton harvesters that enhance yield quality, reduce labor dependence, and maximize profitability through modern mechanization. The platform bridges the information gap, enabling informed decisions that reduce investment risk and optimize farming returns across India’s diverse cotton-growing regions.
