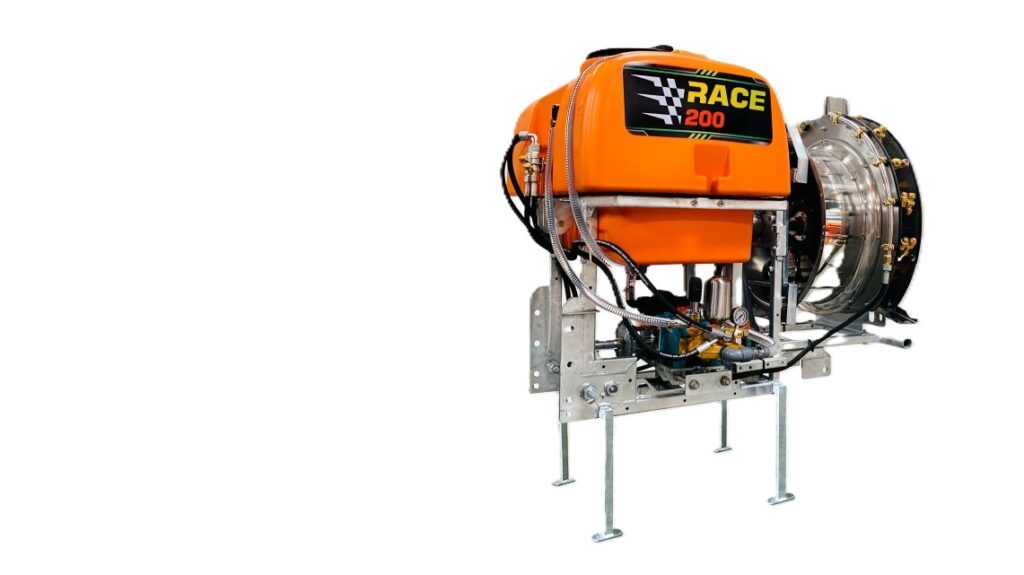

Mitra Agro Equipments Race 200L Series (550, 575, 616)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | Mitra Agro Equipment |
- About Product
| Attribute | Details |
| Brand | Mitra Agro Equipment |
| Model Name | Race 200L Series (550, 575, 616) |
| Implement Type | Air Blast Sprayer / Orchard Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 18 HP and above |
| Price Range* | Contact TractorXpert for Price* |
- Key Specification and Technology – Mitra Race 200L Series
| Specification | Race 200L 550 | Race 200L 575 | Race 200L 616 |
| Sprayer Type | Air Assisted Sprayer | Air Assisted Sprayer | Air Assisted Sprayer |
| Tank Capacity | 200 L | 200 L | 200 L |
| Pump Type | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump |
| Pump Capacity | 55 LPM | 55 LPM | 65 LPM |
| Maximum Working Pressure | Up to 40 bar | Up to 40 bar | Up to 40 bar |
| Fan Size | 550 mm | 575 mm | 616 mm |
| Fan Type | Stainless Steel Air Conveyor | Same | Same |
| Number of Nozzles | 10 | 10 | 12 |
| Nozzle Types | High-Quality Brass Nozzles (2-Way) | Same | Same |
| Air Output | 22 m/sec | 26 m/sec | 30 m/sec |
| Overall Dimensions (L×W×H) | Compact Design | Standard | Standard |
| Weight (Unladen) | Lightweight | Medium | Medium |
| Tractor Power Requirement | 18 HP and above | 18 HP and above | 18 HP and above |
| Mounting Type | 3-Point Linkage / Customized Mounting Plates | Same | Same |
| Drive System | PTO Driven (Belt Pulley Mechanism) | Same | Same |
| PTO Speed Requirement | 540 RPM Standard | 540 RPM Standard | 540 RPM Standard |
| Tank Material | Heavy-Duty HDPE with Basket Mixture | Same | Same |
| Gearbox | Single Speed / 2-Speed + 1 Neutral | Same | Same |
| Safety Devices | Pressure Relief Valve (40 bar), Rear Bumper | Same | Same |
- Technical Specifications – Mitra Race 200L Series
| Parameter | Specification |
| Application Rate Capacity | 100–400 L/ha |
| Field Coverage Efficiency | Up to 5–7 ha/day |
| Height Adjustment | Hydraulic height adjustment via tractor system for muddy conditions and canopy height |
| Pump Working Pressure | Up to 40 bar with automatic pressure relief valve |
| Agitation System | Provided for constant chemical concentration |
| Filtration System | High-quality filtration system |
| Control System | Manual 5-Mode Controller with Two-Way Nozzles |
| Operating Speed Range | 3–8 km/hr |
| Chemical Compatibility | Pesticides, Fungicides, Insecticides, Fertilizers |
| Weather Suitability | Wind ≤ 7 m/s, Temperature 5–40 °C |
| Maintenance Intervals | Regular maintenance as per manufacturer guidelines |
| Spare Parts Availability | Pan-India Dealer Network |
| Warranty & Service Support | 1 Year Warranty, Doorstep Service |
| Special Features | High air output with perfect air balancing at both sides with lowest power consumption, suitable for low-spacing vineyards, multipurpose spraying and dipping, basket mixture for dry powder mixing |
- Agricultural Benefits and Applications of Mitra Race 200L
The Mitra Race 200L delivers high air output with perfect air balancing on both sides and lowest power consumption for effective pest control, disease prevention, and crop protection in vineyards, pomegranates, and orchards. The stainless steel air conveyor system ensures uniform coverage, reduced drift, and proven chemical savings.
- Enhanced Farming Efficiency through Mitra Race 200L
The Race 200L covers up to 5–7 hectares daily with chemical, labor, and time savings. The most economical sprayer for horticulture growers offers best crop protection at affordable pricing. Perfect air balancing ensures even distribution while lowest power consumption reduces fuel costs. Gearbox options (single speed or 2-speed + neutral) allow low-speed operation during flowering to prevent flower drop.
- Versatile Crop Applications through Mitra Race 200L
Horticultural Crops: Grapes (spraying and dipping), pomegranates, oranges, mangoes, guava, custard apples
Orchard Crops: All types of orchard crops
Vineyard Applications: Low-spacing vineyards with constrained turning radius
Special Applications: Multipurpose spraying and dipping, fungicide application, insecticide spraying, fertilizer application
- Performance Specifications of Mitra Race 200L
Achieves uniform coverage with high-velocity air stream (22–30 m/sec depending on model). Proven chemical savings through accurate delivery via 5-mode controller. Best crop protection with stainless steel construction and perfect air balancing. Operating cost optimized through lowest power consumption suitable for 18 HP tractors.
- Farmer Decision Support
Farm Size Recommendations
- Small farms (under 5 acres): Race 200L 550—most economical option
- Medium farms (5–25 acres): Race 200L 575 or 616—enhanced air output
- Low-spacing vineyards: Race 200L series—compact design for maneuverability
Crop-Specific Recommendations
- Grapes: Race 200L—optimized for spraying and dipping applications
- Pomegranates: Race 200L—regular spraying specialist
- Other Orchards: Suitable for multipurpose applications
- Low-Spacing Vineyards: Compact design for constrained spaces
Budget-Wise Categorization
- Most Economical: Race 200L 550—entry-level, affordable for horticulture growers
- Mid-Range: Race 200L 575—balanced features and air output
- Best Value: Race 200L 616—maximum air output (30 m/sec) and pump capacity (65 LPM)
ROI & Financing
Payback within one season through proven chemical, labor, and time savings. Most economical sprayer for horticulture crop growers. Loan facilities available with attractive interest rates. Lowest power consumption reduces operating costs.
- Maintenance and Care of Mitra Race 200L
- Pump Maintenance: Inspect diaphragm pump (55–65 LPM) regularly; replace worn components as needed; protected by automatic pressure relief valve (40 bar)
- Nozzle Care: Clean high-quality brass 2-way nozzles after each use; calibrate monthly
- Tank Cleaning: Flush 200L HDPE tank thoroughly after each application; clean basket mixture
- Air Conveyor System: Inspect stainless steel shell assembly for durability and corrosion resistance
- Drive System: Check belt pulley mechanism; ensure proper tension; inspect gearbox (single speed or 2-speed + neutral)
- Filtration System: Clean high-quality filters regularly
- Agitation System: Check agitator for constant chemical concentration
- Safety Devices: Inspect pressure relief valve and rear bumper protection
- Seasonal Storage: Drain tank; clean all components; store in dry area
- Pre-Operation Checklist: Verify PTO shaft connection, gearbox setting, controller mode, nozzle spray patterns
- Longevity Factors of Mitra Race 200L
Stainless steel air conveyor system resists corrosion and withstands harsh environments. High-quality brass 2-way nozzles ensure wear resistance. Diaphragm pump provides reliable operation. HDPE tank with basket mixture provides durability. Safety devices (pressure relief valve, rear bumper) protect components. Durable construction suitable for agricultural equipment demands. Expected service life of 8–10 years with proper maintenance and doorstep service support.
FAQs
What tractor horsepower is required for Mitra Race 200L sprayer?
18 HP and above. Works on both 3-point linkage and with customized mounting plates.
What types of sprayers are available in Mitra Race 200L, and what are their applications?
Air-assisted sprayers available in three variants (Race 200L 550, 575, 616) with varying fan sizes and air outputs for vineyard and orchard applications including grapes (spraying and dipping), pomegranates (regular spraying), oranges, mangoes, guava, custard apples for pest control, disease prevention, and multipurpose applications.
What is the tank capacity and fan size of the Mitra Race 200L sprayer?
Tank capacity: 200 L; Fan sizes: 550 mm, 575 mm, 616 mm depending on model.
How does Mitra Race 200L sprayer help in crop protection and pest management?
Delivers high air output (22–30 m/sec) with perfect air balancing on both sides and lowest power consumption, providing uniform coverage, effective pest control, disease prevention, and proven chemical savings with accurate delivery via 5-mode manual controller.
Why is pump quality and nozzle type important in Mitra Race 200L sprayer?
Quality diaphragm pump (55–65 LPM) protected by automatic pressure relief valve (40 bar) ensures consistent pressure; high-quality brass 2-way nozzles ensure precise spray patterns and wear resistance for long service life; agitation system maintains constant chemical concentration.
Is Mitra Race 200L sprayer compatible with all tractor brands and models in India?
Yes, works on 18 HP and above tractors with 3-point linkage or customized mounting plates, compatible with Mahindra and other major brands.
What about height adjustment and spray pressure control in Mitra Race 200L sprayer?
Hydraulic height adjustment via tractor system allows adjustment as per field requirement (muddy conditions, grape canopy height); automatic pressure relief valve opens at 40 bar to protect pump; 5-mode manual controller with 2-way nozzles provides accurate chemical delivery control; gearbox options (single speed or 2-speed + neutral) for flowering stage operation.
How does Mitra Race 200L sprayer compare to other crop protection methods?
Offers chemical, labor, and time savings, uniform coverage, best crop protection, most economical pricing for horticulture growers, lowest power consumption, high air output with perfect air balancing, suitable for low-spacing vineyards compared to conventional or manual spraying methods.
What maintenance schedule should be followed for Mitra Race 200L sprayer?
Regular inspection of diaphragm pump, brass nozzles, high-quality filtration system, stainless steel air conveyor components, belt pulley mechanism, gearbox, agitation system, and safety devices; clean basket mixture and tank after each use; seasonal comprehensive maintenance with doorstep service available.
What warranty and after-sales service support is available for Mitra Race 200L?
1 year warranty with doorstep service support; pan-India dealer network; loan facilities available with attractive interest rates; safety devices included (pressure relief valve, rear bumper); most economical sprayer for horticulture crop growers.
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices, features, and benefits from different manufacturers, helping them save money, improve crop protection efficiency, reduce chemical wastage, and enhance overall farm productivity through precise and effective spraying solutions that enable farmers to protect their crops from pests, diseases, and weeds while optimizing chemical usage and ensuring uniform coverage across their fields for maximum agricultural yield and profitability.
Product General Information
Brand Name:
Mitra Agro Equipments
Model Name:
Race 200L Series (550, 575, 616)
Implement Type:
Sprayer
Category:
Crop Protection
Compatible Tractor Power:
18 HP and above
