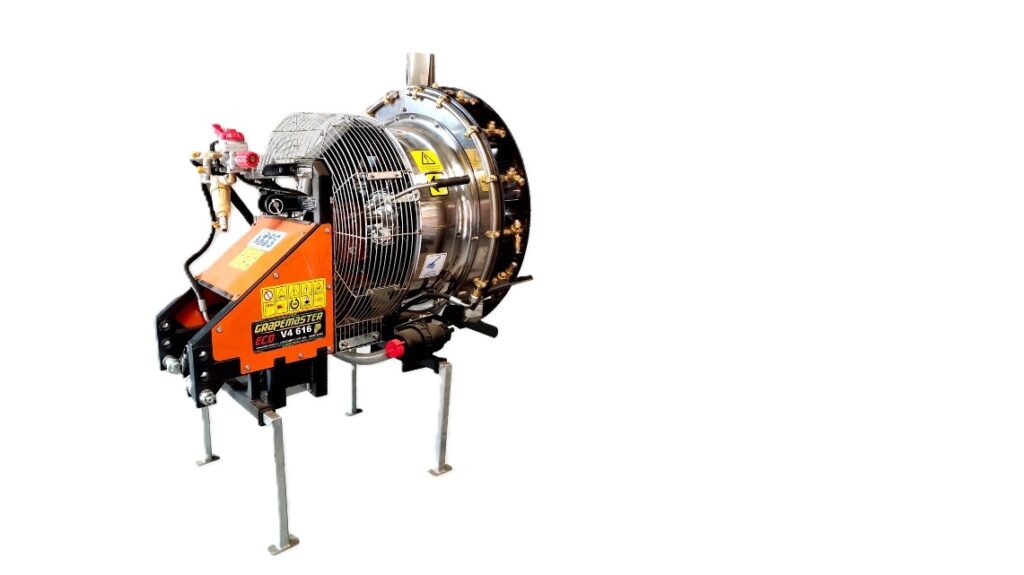

Mitra Agro Equipments Grapemaster Eco Series (550, 616)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | Mitra Agro Equipment |
- About Product
| Attribute | Details |
| Brand | Mitra Agro Equipment |
| Model Name | Grapemaster Eco Series (550, 616) |
| Implement Type | Air Blast Sprayer / Vineyard Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 18–24 HP and above |
| Price Range* | Contact TractorXpert for prices* |
- Key Specification and Technology – Mitra Grapemaster Eco Series
| Specification | Grapemaster Eco 550 | Grapemaster Eco 616 |
| Sprayer Type | Air Assisted Sprayer | Air Assisted Sprayer |
| Pump Type | Diaphragm Pump | Diaphragm Pump |
| Pump Capacity | 55 LPM | 65 LPM |
| Maximum Working Pressure | Up to 40 bar | Up to 40 bar |
| Fan Size | 550 mm | 616 mm |
| Fan Type | Rear Air Conveyor with Stainless Steel Shell | Same |
| Number of Nozzles | 10 | 12 |
| Nozzle Types | High-Quality Brass Nozzles (2-Way) | Same |
| Air Output | 22 m/sec | 28 m/sec |
| Gearbox | 2-Speed + 1 Neutral | 2-Speed + 1 Neutral |
| Tractor Power Requirement | 18 HP and above | 24 HP and above |
| Mounting Type | Tractor-Mounted with Customized Mounting Plates | Same |
| Drive System | PTO Driven | PTO Driven |
| PTO Speed Requirement | 540 RPM Standard | 540 RPM Standard |
| Extra Tank Attachment | 200/300/400/600 L Trailer Tank Option | Same |
| Safety Devices | Pressure Relief Valve (40 bar), Rear Bumper | Same |
| Shell Assembly | Stainless Steel (Shell, Fins, Backplate, Bottom Baffle, Deflectors) | Same |
- Technical Specifications – Mitra Grapemaster Eco Series
| Parameter | Specification |
| Application Rate Capacity | 100–400 L/ha |
| Field Coverage Efficiency | Up to 5–7 ha/day |
| Pump Working Pressure | Up to 40 bar with automatic pressure relief valve |
| Agitation System | Available for spraying water solution |
| Filtration System | Suction Filter (Primary), Brass Line Filter (Secondary), Nozzle Filters |
| Control System | Manual 5-Mode Controller with Two-Way Nozzles |
| Operating Speed Range | 3–8 km/hr |
| Chemical Compatibility | Pesticides, Fungicides, Insecticides |
| Weather Suitability | Wind ≤ 7 m/s, Temperature 5–40 °C |
| Maintenance Intervals | Regular maintenance as per manufacturer guidelines |
| Spare Parts Availability | Pan-India Dealer Network |
| Warranty & Service Support | 1 Year Warranty, Doorstep Service |
| Special Features | High air output with perfect air balancing on both sides, lowest power consumption, best for low-spacing vineyards, extra trailer tank attachment option |
- Agricultural Benefits and Applications of Mitra Grapemaster Eco
The Mitra Grapemaster Eco is an intricately designed high-performance grape sprayer that fulfills high expectations of vineyard owners. It delivers perfect air balancing with highest air output and lowest power consumption for exceptional grape quality, effective pest control, disease prevention, and crop protection. The required application rate, proper droplet size uniformity, and minimized ground/air spray loss make it the best grape sprayer for vineyards.
- Enhanced Farming Efficiency through Mitra Grapemaster Eco
The Grapemaster Eco covers up to 5–7 hectares daily with proven chemical savings and proven labor savings. The extra trailer tank attachment option (200/300/400/600 L) extends operational time without frequent refilling, especially useful where turning radius is constrained. Perfect air balancing with lowest power consumption reduces fuel costs while the 2-speed + 1 neutral gearbox allows operation during flowering stages.
- Versatile Crop Applications through Mitra Grapemaster Eco
Primary Application: Grapes (vineyards with low spacing)
Horticultural Crops: Fruit orchards, vineyard operations
Special Applications: Insect and disease control within canopy, fungicide application, insecticide spraying, effective and environmentally friendly chemical application
- Performance Specifications of Mitra Grapemaster Eco
Achieves uniform coverage with high-velocity air stream (22–28 m/sec). Proven chemical savings through accurate chemical delivery via 5-mode controller with 2-way nozzles. Best crop protection with stainless steel construction ensuring proper droplet size on target uniformly. Minimizes spray loss on ground and in air. Operating cost optimized through lowest power consumption and improved yield quality.
- Farmer Decision Support
Farm Size Recommendations
- Small farms (under 5 acres): Grapemaster Eco 550—compact for low-spacing vineyards
- Medium farms (5–25 acres): Grapemaster Eco 616—enhanced air output and capacity
- Large vineyards: Grapemaster Eco with extra trailer tank (200–600 L)
Crop-Specific Recommendations
- Grapes (Low-Spacing Vineyards): Grapemaster Eco—specially designed to overcome lowest turning radius
- General Vineyards: Eco 550 for 18 HP tractors; Eco 616 for 24 HP tractors
- Vineyards with Constrained Turning: Extra trailer tank attachment option
Budget-Wise Categorization
- Premium Entry-Level: Grapemaster Eco 550—affordable pricing, premium quality
- Premium Performance: Grapemaster Eco 616—maximum air output (28 m/sec) and pump capacity (65 LPM)
ROI & Financing
Payback within one season through proven chemical and labor savings, improved yield and yield quality. Premium quality at affordable prices with on-site service. Government subsidies available. Loan facilities available. Excellence in vineyard sprayers helps improve yield quality.
- Maintenance and Care of Mitra Grapemaster Eco
- Pump Maintenance: Inspect diaphragm pump (55–65 LPM) regularly; replace worn components as needed; protected by automatic pressure relief valve (40 bar)
- Nozzle Care: Clean high-quality brass 2-way nozzles after each use; calibrate monthly for proper droplet size
- Tank Cleaning: Flush main unit after each application; clean extra trailer tank if attached
- Air Conveyor System: Inspect stainless steel shell, fins, backplate, bottom baffle, and deflectors
- Gearbox: Check 2-speed + 1 neutral gearbox; use appropriate setting during flowering
- Filtration System: Clean suction filter (primary), brass line filter (secondary), and nozzle filters regularly
- Agitation System: Check agitator if installed for spraying water solution
- Safety Devices: Inspect pressure relief valve and rear bumper protection
- Seasonal Storage: Drain main unit and trailer tank; clean all components; store in dry area
- Pre-Operation Checklist: Verify PTO shaft connection, gearbox setting, controller mode, nozzle spray patterns, trailer tank connection if attached
- Longevity Factors of Mitra Grapemaster Eco
Stainless steel air conveyor system (shell, fins, backplate, bottom baffle, deflectors) resists corrosion and withstands harsh vineyard environments. High-quality brass 2-way nozzles ensure wear resistance and proper droplet size maintenance. Diaphragm pump provides reliable operation. Safety devices (pressure relief valve, rear bumper) protect components. Premium quality construction ensures durability. On-site service support extends equipment life. Expected service life of 8–10 years with proper maintenance.
FAQs
What tractor horsepower is required for Mitra Grapemaster Eco sprayer?
18 HP and above for Eco 550; 24 HP and above for Eco 616.
What types of sprayers are available in Mitra Grapemaster Eco, and what are their applications?
Air-assisted vineyard sprayers available in two variants (Grapemaster Eco 550, 616) with varying fan sizes and air outputs, specifically designed for grape vineyards with low spacing for insect and disease control within canopy, effective and environmentally friendly chemical application.
What is the tank capacity and extra tank options of the Mitra Grapemaster Eco sprayer?
Main tractor-mounted unit with option to attach extra trailer tank in 200/300/400/600 L capacity; Fan sizes: 550 mm, 616 mm.
How does Mitra Grapemaster Eco sprayer help in crop protection and pest management?
Delivers required application rate with proper droplet size on target uniformly, minimizes spray loss on ground and in air, provides high air output (22–28 m/sec) with perfect air balancing and lowest power consumption, ensuring exceptional grape quality, effective insect and disease control within canopy, and proven chemical savings.
Why is pump quality and nozzle type important in Mitra Grapemaster Eco sprayer?
Quality diaphragm pump (55–65 LPM) protected by automatic pressure relief valve (40 bar) ensures consistent application rate; high-quality brass 2-way nozzles ensure proper droplet size uniformly on target and wear resistance; filtration system (suction, brass line, nozzle filters) ensures clean spray solution.
Is Mitra Grapemaster Eco sprayer compatible with all tractor brands and models in India?
Yes, tractor-mounted with specially designed mounting plates, compatible with 18 HP and above tractors including Mahindra, Kubota, and other major brands.
What about spray pressure control and gearbox settings in Mitra Grapemaster Eco sprayer?
Automatic pressure relief valve opens at 40 bar to protect pump; 5-mode manual controller with 2-way nozzles provides accurate chemical delivery control; 2-speed + 1 neutral gearbox allows appropriate operation during flowering stage to prevent flower drop; designed to overcome lowest turning radius in low-spacing vineyards.
How does Mitra Grapemaster Eco sprayer compare to other crop protection methods?
Offers proven chemical savings, proven labor savings, uniform coverage, best crop protection, exceptional grape quality, improved yield and yield quality, high air output with perfect air balancing, lowest power consumption, proper droplet size uniformly, minimized spray loss, suitable for low-spacing vineyards compared to conventional or field crop sprayers.
What maintenance schedule should be followed for Mitra Grapemaster Eco sprayer?
Regular inspection of diaphragm pump, brass 2-way nozzles, three-stage filtration system (suction, brass line, nozzle filters), stainless steel air conveyor components (shell, fins, backplate, bottom baffle, deflectors), 2-speed + neutral gearbox, agitation system if installed, and safety devices; clean main unit and trailer tank after each use; on-site service available.
What warranty and after-sales service support is available for Mitra Grapemaster Eco?
1 year warranty with doorstep/on-site service; pan-India dealer network; government subsidies available; loan facilities available; premium quality at affordable prices; safety devices included (pressure relief valve, rear bumper); excellence in vineyard and grape sprayers with proven track record of helping vineyard owners improve yield and yield quality.
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices, features, and benefits from different manufacturers, helping them save money, improve crop protection efficiency, reduce chemical wastage, and enhance overall farm productivity through precise and effective spraying solutions that enable farmers to protect their crops from pests, diseases, and weeds while optimizing chemical usage and ensuring uniform coverage across their fields for maximum agricultural yield and profitability.
