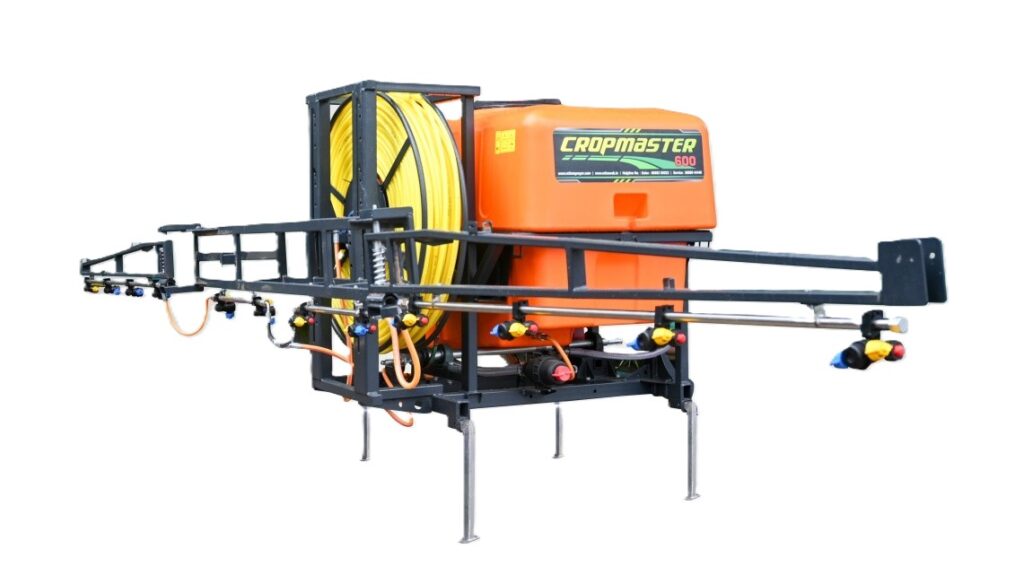

Mitra Agro Equipments Cropmaster Reel+Boom 600
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | MITRA Agro Equipment |
- About Product
| Attribute | Details |
| Brand | MITRA Agro Equipment |
| Model Name | Cropmaster Reel+Boom 600 |
| Implement Type | Boom Sprayer / Mist Blower |
| Category | Crop Protection |
| Compatible Tractor Power | 24 HP and above |
| Price Range | Contact TractorXpert for price* |
- Key Specification and Technology – Cropmaster Reel+Boom 600
| Parameter | Specification |
| Sprayer Type | Mist Blower with reel & boom |
| Tank Capacity (L) | 600 |
| Pump Type | Diaphragm pump |
| Pump Capacity (LPM) | 55 |
| Maximum Working Pressure | 20–35 bar |
| Boom Width | 20/30/40 ft (boom options available) |
| Number of Nozzles | Boom: 10–20 (variant-specific) |
| Nozzle Spacing | 50 cm standard (when using boom) |
| Nozzle Types | 2-way adjustable brass nozzles |
| Hose Length | 650 feet (reel), optional up to 1000 ft |
| Handgun | 1 imported Italian adjustable |
| Overall Dimensions (mm) | N/A (compact, 3-point linkage mount) |
| Weight (kg) | N/A |
| Tractor Power Requirement | 24 HP and above |
| Mounting Type | 3-point linkage |
| Drive System | PTO driven |
| PTO Speed Requirement | 540 RPM standard |
| Tank Material | High-density polyethylene (HDPE) |
- Technical Specifications – Cropmaster Reel+Boom 600
| Specification | Details |
| Application Rate Capacity (L/ha) | 100–500 |
| Field Coverage Efficiency (ha/hr) | 2–5 |
| Boom Height Adjustment Range | Manual (boom) up to 6 ft |
| Pump Working Pressure (bar) | Recommended 1–10 (max 20–35) |
| Agitation System | Jet agitation in tank |
| Filtration System | 50 mesh suction; 80 mesh brass filter; nozzle filter |
| Control System | Manual 5-mode controller |
| Operating Speed Range (km/hr) | 2–12 |
| Chemical Compatibility | Pesticides, herbicides, fungicides, fertilizers |
| Weather Condition Suitability | Wind ≤ 5 m/s, all Indian field temperatures |
| Maintenance Intervals | Every 100 hrs or seasonally |
| Spare Parts Availability | Readily available (diaphragm kits, nozzles, filters) |
| Warranty & Service Support | 1-year warranty, doorstep support, free service* |
- Agricultural Benefits and Applications of Cropmaster Reel+Boom 600
- Primary applications: Pest control, disease management, weed control for row crops, orchards, and tall trees.
- Precision spraying: Uniform, drift-controlled application with customizable coverage via boom or handgun.
- Versatility: Boom for field crops; reel for spot or remote spraying (orchards, tall trees). Supports resistance management and integrated pest control.
- Enhanced Farming Efficiency through Cropmaster Reel+Boom 600
- Large coverage from a single fill due to extended 650–1000 ft reel range.
- Precise, targeted chemical use means reduced wastage and lower costs.*
- Easy operation with belt-driven winding, handgun adjustment, and simple controls.
- Boosted productivity: spray more area, save on labor, and reduce exposure.
- Versatile Crop Applications through Cropmaster Reel+Boom 600
- Field crops: wheat, rice, maize, cotton, sugarcane, soybean
- Horticultural crops: orchards, vegetables, plantations
- Cash crops: cotton, sugarcane, sunflower, groundnut
- Cereal crops: wheat, barley, oats
- Special applications: defoliation, growth regulation, fertilization
- Performance Specifications of Cropmaster Reel+Boom 600
- Uniform coverage (±10%) and minimal drift
- Flexible efficiency: up to 5 ha/hr (boom) or spot coverage with reel
- Optimized droplet size for better leaf/stem penetration
- Saves labor and chemical through better targeting
- Cost per hectare remains economical, supporting higher farm ROI*
- Farmer Decision Support
- Small farms (under 5 acres): Choose models with smaller tanks and shorter booms.
- Medium farms (5–25 acres): 600 L tank and 20–30 ft boom ideal.
- Large farms (25+ acres): Use extended hoses and wide booms for quick coverage.
- Economy: Manual models for cost savings.
- Mid-range/premium: Hydraulic controls, variant booms, advanced agitation.
- ROI within 1–2 seasons, with financing and subsidy options widely available.
- Maintenance and Care of Cropmaster Reel+Boom 600
- Replace pump diaphragms/seals and check oil every 100 hrs.
- Flush and clean tank, hose, nozzles after each use.
- Maintain and lubricate reel mechanism; check boom frame and hose safety lock.
- Clean or replace filters/UI
- Pre-operation: Inspect linkage, controls, nozzles.
- Off-season: Store cleaned, dry and covered.
- Longevity Factors of Cropmaster Reel+Boom 600
- Durable HDPE tank resists chemicals
- Brass/ceramic nozzles reduce wear, easy to replace
- Galvanized frame for corrosion resistance
- Full support for wear parts, easy part replacement
- Expected service life 5–7 years with maintenance
FAQs (Farmer-Friendly)
What tractor horsepower is required for Cropmaster Reel+Boom 600 sprayer? 24 HP and above.
What types of sprayers are available in Cropmaster Reel+Boom 600, and what are their applications? Mist blower and boom sprayer suitable for both field crops (with boom) and tall trees/orchards (with reel and handgun).
What is the tank capacity and boom width of the Cropmaster Reel+Boom 600 sprayer? 600 L tank; boom options 20/30/40 ft; reel hose supports up to 1000 ft remote reach.
How does Cropmaster Reel+Boom 600 help in crop protection and pest management? Enables uniform, deep canopy and row crop coverage with less repositioning, minimizing missed spots and chemical waste.
Why is pump quality and nozzle type important in Cropmaster Reel+Boom 600 sprayer? A strong diaphragm pump ensures steady pressure for consistent droplet size; adjustable nozzles enable adaptation for any crop type.
Is Cropmaster Reel+Boom 600 sprayer compatible with all tractor brands and models in India? Yes—fits all standard tractors 24 HP and above with 3-point linkage and PTO.
What about boom height adjustment and spray pressure control in Cropmaster Reel+Boom 600 sprayer? Manual height adjustment up to 6 ft (boom); pressure is adjustable via manual controller for reel or boom mode.
How does Cropmaster Reel+Boom 600 compare to other crop protection methods? More area covered in less time, precise delivery, and highly adaptable for both row and tall crops compared to basic sprayers.
What maintenance schedule should be followed for Cropmaster Reel+Boom 600? Diaphragm and oil checks/changes every 100 hrs, clean and flush after use, check nozzles regularly.
What warranty and after-sales service support is available for Cropmaster Reel+Boom 600? 1-year warranty with doorstep support, free service*, and ready spare parts.
TractorXpert helps farmers compare and choose the best sprayer implements—by model, price*, features, and benefits—to maximize savings, improve chemical efficiency, ensure uniform protection, and boost farm productivity, making it India’s go-to platform for smart, precise agricultural spraying solutions.
