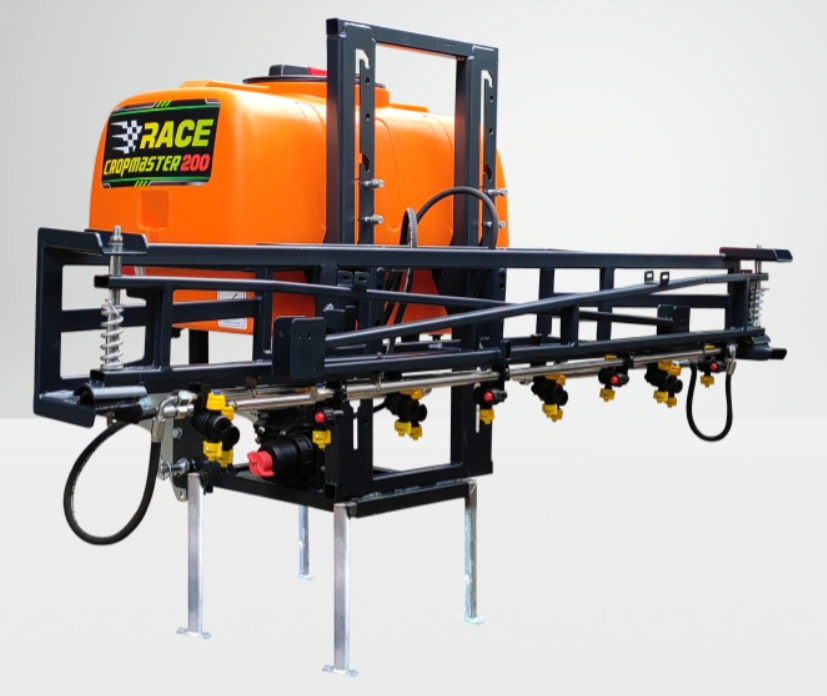

Mitra Agro Equipments Cropmaster Race Boom Sprayer 200L
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | MITRA Agro Equipment |
- About Product
| Attribute | Details |
| Brand | MITRA Agro Equipment |
| Model Name | Cropmaster Race Boom Sprayer 200L |
| Implement Type | Boom Sprayer (3-Point Linkage) |
| Category | Crop Protection / Plant Protection / Pest Control / Disease Management |
| Compatible Tractor Power | 18 HP and above (20ft variant) / 22 HP and above (30ft variant) |
| Price Range | Contact TractorXpert for price* |
- Key Specification and Technology – Cropmaster Race Boom Sprayer 200L
| Parameter | 20 ft Variant | 30 ft Variant |
| Sprayer Type | Boom Sprayer | Boom Sprayer |
| Tank Capacity (L) | 200 | 200 |
| Pump Type | Piston Pump | Piston Pump |
| Pump Capacity (LPM) | 45 | 45 |
| Maximum Working Pressure | Up to 40 bar (pressure relief valve at 40 bar) | Up to 40 bar (pressure relief valve at 40 bar) |
| Boom Width | 20 feet (6.1 m) | 30 feet (9.15 m) |
| Number of Nozzles | 12 | 18 |
| Nozzle Spacing | 50 cm standard | 50 cm standard |
| Nozzle Types | Single Nozzle (hollow cone/flat fan) or Twin Nozzle | Single Nozzle (hollow cone/flat fan) or Twin Nozzle |
| Overall Dimensions (mm) | N/A | N/A |
| Weight (kg) | N/A | N/A |
| Tractor Power Requirement | 18 HP+ | 22 HP+ |
| Mounting Type | 3-point linkage | 3-point linkage |
| Drive System | PTO driven | PTO driven |
| PTO Speed Requirement | 540 RPM standard | 540 RPM standard |
| Tank Material | Polyethylene (HDPE) | Polyethylene (HDPE) |
- Technical Specifications – Cropmaster Race Boom Sprayer 200L
| Specification | Details |
| Application Rate Capacity (L/ha) | 100–400 |
| Field Coverage Efficiency (ha/hr) | 1.5–3 |
| Boom Height Adjustment Range | 2 ft to 6 ft (winch mechanism) |
| Pump Working Pressure (bar) | Recommended 1–10; Max 40 (with relief valve) |
| Agitation System | Jet agitation inside tank |
| Filtration System | Suction filter; line filter; nozzle filters |
| Control System | Manual (butterfly valve controller); single/twin nozzle options |
| Operating Speed Range (km/hr) | 2–10 |
| Chemical Compatibility | Pesticides, herbicides, fungicides, liquid fertilizers |
| Weather Condition Suitability | Wind ≤ 5 m/s; all Indian temperature ranges |
| Maintenance Intervals | Every 100 hrs or seasonally |
| Spare Parts Availability | Readily available, cost-effective |
| Warranty & Service Support | 1-year warranty, doorstep service |
- Agricultural Benefits and Applications of Cropmaster Race Boom Sprayer 200L
- Ideal for pest control, disease prevention, and weed management in ground/row crops.
- Uniform coverage with 20ft/30ft boom for total protection and efficiency.
- Supports a wide range of crop treatments and flexible nozzle configurations for integrated pest/weed management.
- Enhanced Farming Efficiency through Cropmaster Race Boom Sprayer 200L
- Covers up to 3 hectares per hour, reducing application time.
- Chemical savings and precision minimize waste and costs.*
- Simple operation, quick mounting/dismounting, and foldable boom aid labor efficiency.
- Versatile Crop Applications through Cropmaster Race Boom Sprayer 200L
- Field crops: soybean, tur, chilli, cotton, wheat, rice, maize
- Horticultural crops: vegetable fields, plantations
- Cash crops: cotton, sugarcane, sunflower, groundnut
- Cereal crops: wheat, barley, oats
- Special uses: defoliation, growth regulation, nutrient/fertilizer spraying
- Performance Specifications of Cropmaster Race Boom Sprayer 200L
- High uniformity (±10%)
- Field capacity: 1.5–3 ha/hr
- Precise droplet management with single/twin adjustable nozzles
- Chemical utilization >90%; cost per hectare remains competitive among tractor mounted sprayers in India.
- Farmer Decision Support
- Small & medium farms (under 10–25 acres): 200L boom sprayer is ideal.
- For narrow or wide row crops, choose between 20ft and 30ft boom width.
- Economy choices: single nozzle models, basic manual control
- Premium options: twin nozzle for higher coverage, more targeted treatments
- ROI typically within 1–2 seasons; government subsidy and farm loan options available.
- Maintenance and Care of Cropmaster Race Boom Sprayer 200L
- Service piston pump every 100 hrs
- Clean nozzles/filters after use
- Rinse tank after each chemical application
- Regularly inspect winch, folding mechanism, boom frame
- Run calibration before each spray cycle
- Store pumped, dry and covered in off-seasons
- Longevity Factors of Cropmaster Race Boom Sprayer 200L
- Sturdy HDPE tank, corrosion-resistant frame
- High-wear parts (pump/nozzle/valves) are easy to access and replace
- Built for low-maintenance, long operational life (5–7 years typical with routine care)
FAQs – Farmer-Friendly Answers
What tractor horsepower (HP) is required for Cropmaster Race Boom Sprayer 200L sprayer? 18 HP and above (20ft), 22 HP and above (30ft).
What types of sprayers are available in Cropmaster Race Boom Sprayer 200L, and what are their applications? Boom sprayer for a wide range of ground and row crops, available in single and twin nozzle options for flexible spraying.
What is the tank capacity and boom width of the Cropmaster Race Boom Sprayer 200L? 200 liters; available with 20ft and 30ft boom spans.
How does Cropmaster Race Boom Sprayer 200L help in crop protection and pest management? Provides even and complete coverage of all plants for effective control of pests, diseases, and weeds.
Why is pump quality and nozzle type important in Cropmaster Race Boom Sprayer 200L? A heavy-duty piston pump guarantees steady pressure and reliability even with large tank and boom. Nozzle options let you fine-tune spray pattern and droplet size.
Is Cropmaster Race Boom Sprayer 200L compatible with all tractor brands and models in India? Yes, with standard 3-point linkage; check HP compatibility.
What about boom height adjustment and spray pressure control in Cropmaster Race Boom Sprayer 200L? Winch mechanism for height adjustment (2–6 ft); pressure relief valve to prevent pump overload (max 40 bar).
How does Cropmaster Race Boom Sprayer 200L compare to other crop protection methods? Vastly improves consistency, efficiency, and cost compared to manual/backpack sprayers, particularly for medium-holdings.
What maintenance schedule should be followed? Service piston pump every 100 hrs, clean filters/nozzles after each use, recalibrate before season.
What warranty and after-sales service support is available? 1-year warranty, easy spare availability, doorstep service support.
TractorXpert helps farmers easily select and compare the right boom sprayer by price*, specification, and feature—enabling smart chemical usage, best-in-class crop protection, and higher returns through modern, farmer-friendly agricultural spraying equipment optimized for India’s crops and climate.
