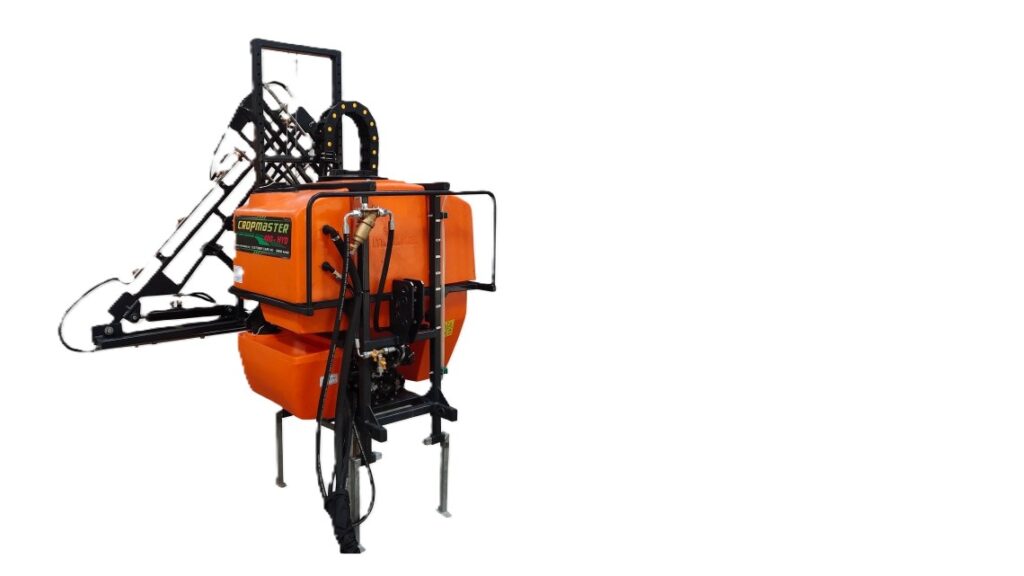

Mitra Agro Equipments CROPMASTER 400 – Hydraulic
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | MITRA Agro Equipment |
- About Product
| Attribute | Details |
| Brand | MITRA Agro Equipment |
| Model Name | CROPMASTER 400 – Hydraulic |
| Implement Type | Boom Sprayer |
| Category | Crop Protection |
| Compatible Tractor Power | 40 HP and above |
| Price Range | Contact TractorXpert for price* |
- Key Specification and Technology – CROPMASTER 400 Hydraulic
| Parameter | Specification |
| Sprayer Type | Hydraulic Boom Sprayer |
| Tank Capacity (L) | 400 |
| Pump Type | Diaphragm Pump |
| Pump Capacity (LPM) | 55 |
| Maximum Working Pressure | 20–35 bar |
| Boom Width | 24 feet |
| Number of Nozzles | 16 |
| Nozzle Spacing | Adjustable, approx 50 cm standard |
| Nozzle Types | 2-way adjustable brass nozzles |
| Overall Dimensions (mm) | Boom span 24 ft, height adj. to 6 ft |
| Weight (kg) | N/A |
| Tractor Power Requirement | 40 HP and above |
| Mounting Type | 3-point linkage |
| Drive System | PTO driven |
| PTO Speed Requirement | 540 RPM standard |
| Tank Material | High-density polyethylene (HDPE) |
- Technical Specifications – CROPMASTER 400 Hydraulic
| Specification | Details |
| Application Rate Capacity (L/ha) | 100–400 |
| Field Coverage Efficiency (ha/hr) | 3–5 |
| Boom Height Adjustment Range | Manual/hydraulic up to 6 ft |
| Pump Working Pressure (bar) | Recommended 1–10 (max 20–35) |
| Agitation System | Jet agitation in tank |
| Filtration System | Suction filter, line filter, nozzle filters |
| Control System | Manual 5-mode controller |
| Operating Speed Range (km/hr) | 2–12 |
| Chemical Compatibility | Pesticides, herbicides, fungicides, fertilizers |
| Weather Condition Suitability | Wind ≤ 5 m/s, all Indian field temperatures |
| Maintenance Intervals | Every 100 hrs or seasonally |
| Spare Parts Availability | Readily available |
| Warranty & Service Support | 1-year warranty, doorstep support, free service* |
- Agricultural Benefits and Applications of CROPMASTER 400 Hydraulic
- Best for pest control, disease prevention, weed management
- Uniform coverage means lower chemical use and safer, healthier crops
- Can be adjusted for wide or close row crops – soyabean, tur, chilli, cotton, gram, potato, etc.
- Helps prevent resistance buildup in pests by enabling targeted and timely applications
- Enhanced Farming Efficiency through CROPMASTER 400 Hydraulic
- Covers up to 5 hectares per hour, saving time and labor
- Precise application prevents chemical wastage – reduces total spray cost*
- Easy operation with winch mechanism for height and foldable boom for transport
- Reduces drift, improves target accuracy, lowers environmental impact
- Versatile Crop Applications through CROPMASTER 400 Hydraulic
- Field crops: wheat, rice, maize, cotton, sugarcane, soybean
- Horticultural crops: vegetables, plantations
- Cash crops: cotton, sugarcane, sunflower, groundnut
- Cereals: wheat, barley, oats
- Special applications: defoliation, growth regulation, foliar nutrition
- Performance Specifications of CROPMASTER 400 Hydraulic
- Uniformity: ±10% field application precision
- Coverage Efficiency: Up to 3–5 ha/hr; boom span up to 24 feet
- Drift Control: 2-way adjustable brass nozzles improve droplet control
- Chemical Utilization: Over 90% effective use, reducing wastage
- Operating Cost: Usually under ₹400–500*/ha depending on crop
- Farmer Decision Support
- Farm Size: Ideal for farms 5–25 acres (but can serve smaller or larger with more fills)
- Crop Suitability: Any row or ground crop; especially suitable for crops up to 4–6 ft tall
- Budget: Affordable sprayer implement price* with government subsidy & loan facilities
- ROI: Quick payback (1–2 seasons depending on use & crop value)
- Maintenance and Care of CROPMASTER 400 Hydraulic
- Pump: Check diaphragm, seals, oil every 100 hrs; replace as needed
- Nozzles: Clean after every use, check for wear and function
- Tank: Always wash with clean water, use rinse tank after chemicals
- Boom: Inspect folding and winch mechanisms; lubricate moving parts
- Filtration: Clean filters regularly; replace if clogged
- Storage: Drain, clean, and store in shade during the off-season
- Calibration: Verify nozzle output and boom delivery at start of each season
- Longevity Factors of CROPMASTER 400 Hydraulic
- Pump is durable, low-maintenance with few moving parts
- Nozzles made from wear-resistant brass
- Tank is HDPE – long life & resistant to most crop chemicals
- Frame allows for easy part replacement; design reduces down time
- Serviced and installed by trained engineers, with ready spare support
FAQs – Farmer-Friendly Answers
What tractor horsepower (HP) is required for CROPMASTER 400 Hydraulic sprayer?
40 HP and above.
What types of sprayers are available in CROPMASTER 400, and what are their applications?
Hydraulic boom sprayer for ground/row crops – perfect for field crops, cotton, soybean, tur, chilli, etc.
What is the tank capacity and boom width of the CROPMASTER 400 Hydraulic sprayer?
400 L capacity; 24 feet boom span.
How does CROPMASTER 400 Hydraulic sprayer help in crop protection and pest management?
It gives even coverage, prevents missed spots, and enables timely, accurate application for pest/disease control.
Why is pump quality and nozzle type important in CROPMASTER 400 sprayer?
Reliable diaphragm pump and adjustable brass nozzles give consistent pressure, controlled droplets, and less clogging.
Is CROPMASTER 400 sprayer compatible with all tractor brands in India?
Yes, fits all popular 40+ HP tractors with 3-point linkage and standard PTO.
What about boom height adjustment and spray pressure control?
Winch mechanism allows height adjustment up to 6 ft; pressure controlled via relief valve.
How does CROPMASTER 400 compare to other crop protection methods?
More uniform, faster, and more cost-effective than knapsack or small sprayers for medium/large farms.
What maintenance schedule should be followed for CROPMASTER 400?
Every 100 hrs pump service, nozzle cleaning per use, pre/post-season checks.
What warranty and after-sales service is available for CROPMASTER 400 sprayer?
1-year warranty with free service*, and doorstep installation/support.
TractorXpert helps farmers select the best tractor mounted sprayer for their needs by comparing models, prices*, and features from top brands. You save money, get better protection, reduce chemical waste, and boost yield with reliable, uniform crop spraying—making it easy to improve farm productivity and profits with the right equipment for your land and crop.
Product General Information
Brand Name:
Mitra Agro Equipments
Model Name:
CROPMASTER 400 – Hydraulic
Implement Type:
Sprayer
Category:
Crop Protection
Compatible Tractor Power:
40 HP and above
Engine
Transmission
Implement Type:
Sprayer
Category:
Crop Protection
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
