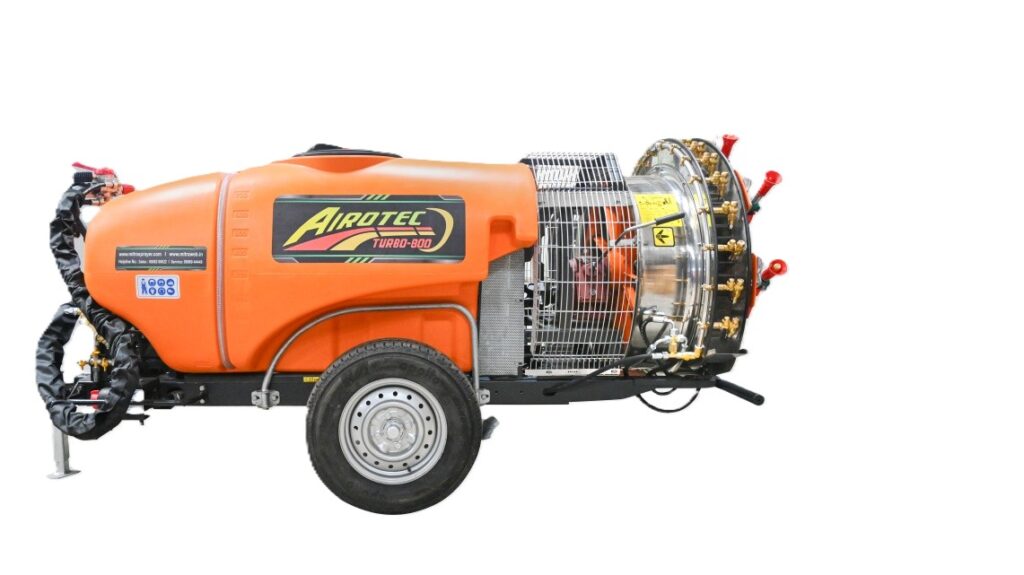

Mitra Agro Equipments Airotec Turbo Compact 800L
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| About Product | Details |
| Brand | Mitra Agro Equipment | …
- About Product
| About Product | Details |
| Brand | Mitra Agro Equipment |
| Model Name | Airotec Turbo Compact 800L |
| Implement Type | Air Blast Sprayer, Orchard Sprayer |
| Category | Crop Protection |
| Compatible Tractor Power (HP) | 27 HP & Above |
| Price Range | Contact TractorXpert for latest pricing* |
- Key Specification and Technology of Airotec Turbo Compact 800L
| Specification | Details |
| Sprayer Type | Air-assisted Orchard Sprayer |
| Tank Capacity | 800 L |
| Pump Type & Specifications | Diaphragm Pump, 75 LPM |
| Maximum Working Pressure | 40 bar |
| Boom Width | N/A (air-blast no boom) |
| Number of Nozzles | 12 nozzles (8 M-62/4 M-82) |
| Nozzle Spacing | Standard 50 cm |
| Nozzle Types Available | Flat fan / Hollow cone |
| Overall Dimensions (L×W×H) | 8.17 ft × 3.67 ft × 4.35 ft |
| Weight (Unladen) | ~550 kg |
| Tractor Power Requirement | 27 HP & Above |
| Mounting Type | Trailed with 3-axis tow bar |
| Drive System | PTO-driven via wide-angle shaft |
| PTO Speed Requirement | 540 RPM standard |
| Tank Material | HDPE Plastic |
- Technical Specifications of Airotec Turbo Compact 800L
| Parameter | Specification |
| Application Rate Capacity | 200–400 L/ha |
| Field Coverage Efficiency | 1.5 ha/hr |
| Boom Height Adjustment Range | 0.5–2.5 m (manual) |
| Pump Working Pressure | 1–40 bar (operating 10–30 bar) |
| Agitation System | Cross-jet agitation with basket mixer |
| Filtration System | Suction filter + Brass line filter + Nozzle filters |
| Control System | 5-mode manual controller |
| Operating Speed Range | 4–8 km/hr |
| Chemical Compatibility | Pesticides, Herbicides, Fungicides, Liquid fertilizers |
| Weather Suitability | Wind speed <10 km/hr; 10–35 °C |
| Maintenance Intervals | Pump service every 200 hrs; filters monthly |
| Spare Parts Availability | Pump diaphragms, nozzles, filters, couplings |
| Warranty & Service Support | 1 year manufacturer warranty; 24/7 customer support |
- Agricultural Benefits and Applications of Airotec Turbo Compact 800L
The Airotec Turbo Compact 800L offers uniform coverage, reduced chemical usage, and labor savings in orchards and vineyards. Its air-assisted delivery ensures deep canopy penetration for pest control and disease management, supporting integrated pest management and resistance prevention.
- Enhanced Farming Efficiency through Airotec Turbo Compact 800L
Large capacity and high output airflow enable farmers to cover greater areas in less time, reducing application time by up to 30%. Precise nozzle spacing and pressure control cut chemical costs by 15% through minimized drift. Simple manual controls improve labor efficiency and accuracy for uniform spraying.
- Versatile Crop Applications through Airotec Turbo Compact 800L
Suitable for:
- Field Crops: Sugarcane, maize, soybean pest control
- Horticultural Crops: Grapes, pomegranates, mango orchards
- Cash Crops: Cotton, groundnut spraying
- Cereal Crops: Wheat, barley disease management
- Special Uses: Growth regulators, defoliants, foliar nutrition
- Performance Specifications of Airotec Turbo Compact 800L
Engineered for ±5% application uniformity, the sprayer achieves up to 1.5 ha/hr field capacity. Air-assisted drift reduction (<10% loss) ensures droplet size control (150–300 µm). Operating cost is approximately ₹200–300*/ha.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (<5 acres): Consider 200–400 L orchard sprayers
- Medium farms (5–25 acres): 400–600 L capacity units
- Large farms (>25 acres): 600–1000+ L heavy-duty sprayers
Crop-Specific Recommendations:
- Row Crops: Boom sprayer with 12–18 m width
- Orchards: Air-blast sprayer like Airotec Turbo
Budget Categories:
- Economy: Basic boom sprayers, manual controls
- Mid-Range: Hydraulic agitation, improved pumps
- Premium: GPS guidance, variable-rate nozzles
Financing & Subsidies: Government subsidy available; attractive loan options*.
- Maintenance and Care of Airotec Turbo Compact 800L
Regularly inspect diaphragm pump seals and innova coupling. Clean nozzles with soft brush monthly. Flush tank and filters after each use. Grease PTO shaft weekly. Store under cover to prevent UV damage. Calibrate pressure and nozzle output at season start.
- Longevity Factors of Airotec Turbo Compact 800L
Constructed with HDPE tank and hot-dip galvanized chassis for corrosion resistance. Italian brass nozzles and stainless-steel deflectors ensure durability. Modular design allows easy replacement of wear parts. Expected service life exceeds 10 years with proper care.
FAQs
What tractor horsepower is required?
27 HP & above.
What sprayer types are available?
Air-assisted orchard sprayer; ideal for deep canopy penetration.
What is the tank capacity and boom width?
800 L; no boom—uses air-blast conveyor.
How does it aid crop protection?
Uniform spray distribution reduces pests and diseases with minimal drift.
Why are pump quality and nozzle type important?
High-quality diaphragm pump ensures consistent pressure; nozzle type controls droplet size for precision.
Is it compatible with all tractor brands?
Yes; standard 3-point tow bar and 540 RPM PTO fit most tractors.
What about boom height adjustment and spray pressure control?
Manual height adjustment 0.5–2.5 m; pressure regulated via relief valve.
How does it compare to other methods?
Air-assisted sprayers offer deeper penetration and lower drift than conventional booms.
What maintenance schedule is recommended?
Pump service every 200 hrs; filter cleaning monthly; nozzle check before each season.
What warranty and service support are available?
1 year warranty with 24/7 support and doorstep service.
