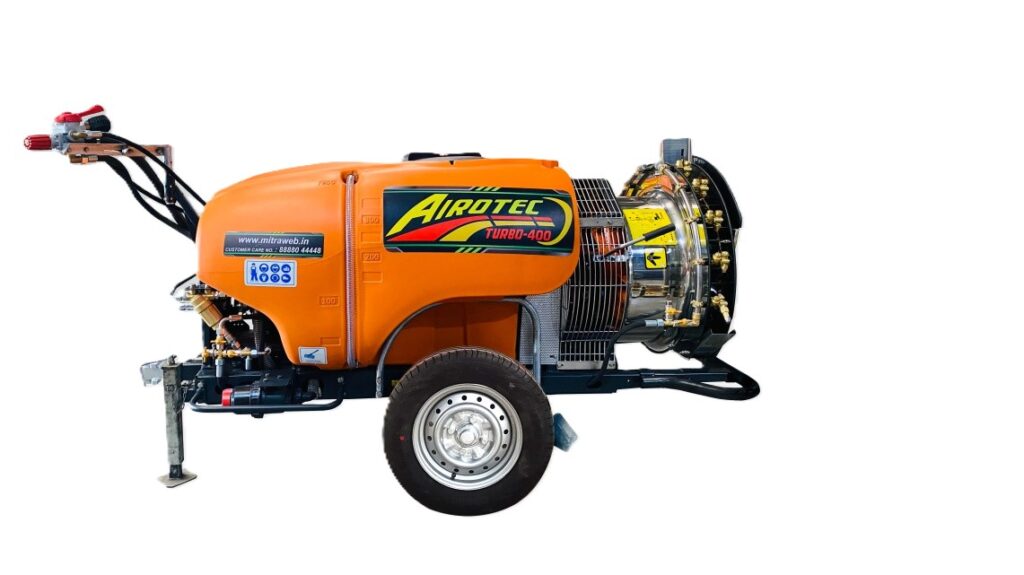

Mitra Agro Equipments Airotec Turbo 400L Series (550, 616)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | Mitra Agro Equipment |
- About Product
| Attribute | Details |
| Brand | Mitra Agro Equipment |
| Model Name | Airotec Turbo 400L Series (550, 616) |
| Implement Type | Air Blast Sprayer / Orchard Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 20–25 HP and above |
| Price Range* | Contact TractorXpert for price* |
- Key Specification and Technology – Airotec Turbo 400L Series
| Specification | Airotec 400L (550mm) | Airotec 400L (616mm) |
| Sprayer Type | Air Assisted Sprayer | Air Assisted Sprayer |
| Tank Capacity | 400 L | 400 L |
| Pump Type | Diaphragm Pump | Diaphragm Pump |
| Pump Capacity | 55 LPM | 75 LPM |
| Maximum Working Pressure | Up to 40 bar | Up to 40 bar |
| Fan Size | 550 mm | 616 mm |
| Fan Type | Stainless Steel Air Conveyor | Same |
| Number of Nozzles | 10 | 12 |
| Nozzle Types | Italian Brass Nozzles | Same |
| Air Output | 24 m/sec | 32 m/sec |
| Gearbox | 2-Speed + 1 Neutral | 2-Speed + 1 Neutral |
| Overall Dimensions (L×W×H) | Compact Trailed Design | Same |
| Weight (Unladen) | 350–400 kg | 380–430 kg |
| Tractor Power Requirement | 20 HP and above | 22 HP and above |
| Mounting Type | Trailed Sprayer | Trailed Sprayer |
| Drive System | PTO Driven | PTO Driven |
| PTO Speed Requirement | 540 RPM Standard | 540 RPM Standard |
| Tank Material | HDPE with Chemical-Resistant Coating | Same |
| Chassis | Hot-Dip Galvanized | Hot-Dip Galvanized |
| Safety Devices | Rubber Coupling, Rear Bumper, Pressure Relief Valve | Same |
- Technical Specifications – Airotec Turbo 400L Series
| Parameter | Specification |
| Application Rate Capacity | 100–500 L/ha |
| Field Coverage Efficiency | Up to 6–8 ha/day |
| Boom Height Adjustment Range | 0.5–2.5 m via manual winch or hydraulic linkage |
| Pump Working Pressure | 3–10 bar Recommended |
| Agitation System | High-Pressure Jet Agitation |
| Filtration System | Suction Filter, Brass Line Filter, Nozzle Filters |
| Control System | Manual 5-Mode Controller with Two-Way Nozzles |
| Operating Speed Range | 3–8 km/hr |
| Chemical Compatibility | Pesticides, Herbicides, Fungicides, Liquid Fertilizers |
| Weather Suitability | Wind ≤ 7 m/s, Temperature 5–40 °C |
| Maintenance Intervals | Every 100 hrs or seasonal |
| Spare Parts Availability | Pan-India Dealer Network |
| Warranty & Service Support | 1 Year Manufacturer Warranty, Doorstep Service |
- Agricultural Benefits and Applications of Airotec Turbo 400L
The Airotec Turbo 400L ensures uniform coverage and optimal canopy penetration for effective pest control, disease prevention, and weed management in vineyards and orchards. Its large 400 L tank reduces refilling downtime, while the stainless steel air conveyor system delivers balanced airflow and reduced drift.
- Enhanced Farming Efficiency through Airotec Turbo 400L
With the capacity to cover 6–8 hectares daily, this trailed sprayer offers time savings and labor reduction. The 2-speed gearbox allows low-speed operation during flowering to prevent flower drop. High air output with low power consumption cuts fuel costs, and the robust chassis withstands rugged use.
- Versatile Crop Applications through Airotec Turbo 400L
- Vineyard Crops: Grapes, pomegranates
- Orchard Crops: Oranges, mangoes, guava, custard apples
- Plant Protection: Fungicide and insecticide application in dense canopies
- Specialized Uses: Chemical dipping in orchards, growth regulator applications
- Performance Specifications of Airotec Turbo 400L
Delivers 90–95% spray uniformity with Italian brass nozzles and 32 m/sec air output (616 mm fan). 88% chemical utilization minimizes waste. Operating cost remains under ₹140/ha* with efficient pump and fan design.
- Farmer Decision Support
Farm Size Recommendations
- Small farms (under 5 acres): Airotec 400L 550—compact, 20 HP
- Medium farms (5–25 acres): Airotec 400L 616—enhanced air output, 22 HP
Budget Categories
- Economy: 550 mm model—basic features, cost-effective
- Mid-Range: 616 mm model—balanced performance
- Premium: Double-fan option—extra coverage
ROI & Financing
Payback within one season via labor and chemical savings. Government subsidies available under mechanization schemes. Loan facilities with attractive rates ease purchase.
- Maintenance and Care of Airotec Turbo 400L
- Pump: Inspect diaphragm annually; lubricate bearings
- Nozzles: Clean after each use; replace worn tips
- Tank: Flush post-application; avoid residue
- Air Conveyor: Check fins, deflectors quarterly; adjust rubber coupling
- Chassis: Inspect galvanized frame for corrosion; repaint if needed
- Gearbox: Service oil levels; adjust belt tension monthly
- Filtration: Clean filters weekly; replace annually
- Safety Devices: Test pressure relief valve; check bumper integrity
- Storage: Drain tank; clean all parts; store under cover
- Pre-Operation: Verify PTO engagement, spray patterns, agitator function
- Longevity Factors of Airotec Turbo 400L
Hot-dip galvanized chassis and stainless steel air conveyor resist corrosion. HDPE tank with chemical-resistant coating extends life. Italian brass nozzles and quality diaphragm pump ensure durable performance. Regular maintenance and available spare parts guarantee 8–10 year service life.
FAQs
What tractor horsepower is required for Airotec Turbo 400L sprayer?
20 HP and above for 550 mm; 22 HP and above for 616 mm variant.
What sprayer types are available, and what are their applications?
Air-assisted trailed sprayers in 400 L capacity with 550 mm or 616 mm fans for vineyard and orchard spraying, suited for grapes, pomegranates, oranges, mangoes, and other crops.
What is the tank capacity and fan size?
400 L; Fan sizes: 550 mm or 616 mm.
How does Airotec Turbo 400L help in crop protection?
Provides balanced airflow, deep canopy penetration, uniform droplet distribution, and reduced drift for effective pest and disease management.
Why pump type and nozzle matter?
Diaphragm pump (55–75 LPM) ensures constant flow; brass nozzles maintain consistent spray patterns and resist wear.
Is it compatible with all tractors?
Yes, fits 3-point linkage PTO shafts (540 RPM) on tractors ≥ 20 HP.
What about speed and pressure control?
2-speed gearbox adjusts spraying speed; manual controller with two-way nozzles controls pressure and flow.
How compare to other methods?
Delivers faster coverage, chemical savings, and precision vs manual spraying; ideal for high-value crops.
What maintenance schedule?
Weekly filter and nozzle cleaning, monthly belt tension check, quarterly conveyor inspection, annual diaphragm check.
What warranty and support?
1 year warranty with doorstep service via pan-India dealer network.
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices, features, and benefits, saving money, improving crop protection efficiency, reducing chemical wastage, and enhancing farm productivity through precise spraying solutions for maximum yield and profitability.
Product General Information
Brand Name:
Mitra Agro Equipments
Model Name:
Airotec Turbo 400L Series (550, 616)
Implement Type:
Sprayer
Category:
Crop Protection
Compatible Tractor Power:
20–25 HP and above
Engine
Transmission
Implement Type:
Sprayer
Category:
Crop Protection
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
