| Attribute | Details |
| Brand | MITRA Agro Equipment |
| Attribute | Details |
| Brand | MITRA Agro Equipment |
| Model Name | AIROTEC Cyclone 1500 |
| Implement Type | Trailed / Orchard Sprayer |
| Category | Crop Protection |
| Compatible Tractor Power | 40 HP and above |
| Price Range | Contact TractorXpert for price* |
| Parameter | Specification |
| Sprayer Type | Air-assisted Trailed (Orchard) Sprayer |
| Tank Capacity (L) | 1500 |
| Pump Type | Diaphragm pump |
| Pump Capacity (LPM) | 75 |
| Maximum Working Pressure | Up to 40 bar |
| Boom Width | N/A |
| Number of Nozzles | 16 |
| Nozzle Spacing | Standard 50 cm |
| Nozzle Types | Two-way adjustable brass nozzles |
| Overall Dimensions (L×W×H mm) | Compact orchard-fit; hydraulic conveyor |
| Weight (kg) | 675 (dry) |
| Tractor Power Requirement | 40 HP and above |
| Mounting Type | Trailed |
| Drive System | PTO driven (Wide/straight angle PTO) |
| PTO Speed Requirement | 540 RPM standard |
| Tank Material | HDPE with cross agitation; 115L rinse |
| Specification | Details |
| Application Rate Capacity (L/ha) | 100–500 |
| Field Coverage Efficiency (ha/hr) | 4–8 |
| Boom Height Adjustment Range | Hydraulic direction adjustment – both ducts |
| Pump Working Pressure (bar) | 1–10 (adjustable, max 40) |
| Agitation System | Cross agitation and basket mixer in tank |
| Filtration System | Suction filter, brass line filter, nozzle filter |
| Control System | Manual 5-mode controller |
| Operating Speed Range (km/hr) | 3–12 |
| Chemical Compatibility | Pesticides, herbicides, fungicides, fertilizers |
| Weather Condition Suitability | Wind ≤ 5 m/s; field suitability in hills |
| Maintenance Intervals | Every 100 hrs / seasonal |
| Spare Parts Availability | Diaphragm kits, nozzles, filters in stock |
| Warranty & Service Support | 1-year warranty, free service*, doorstep support |

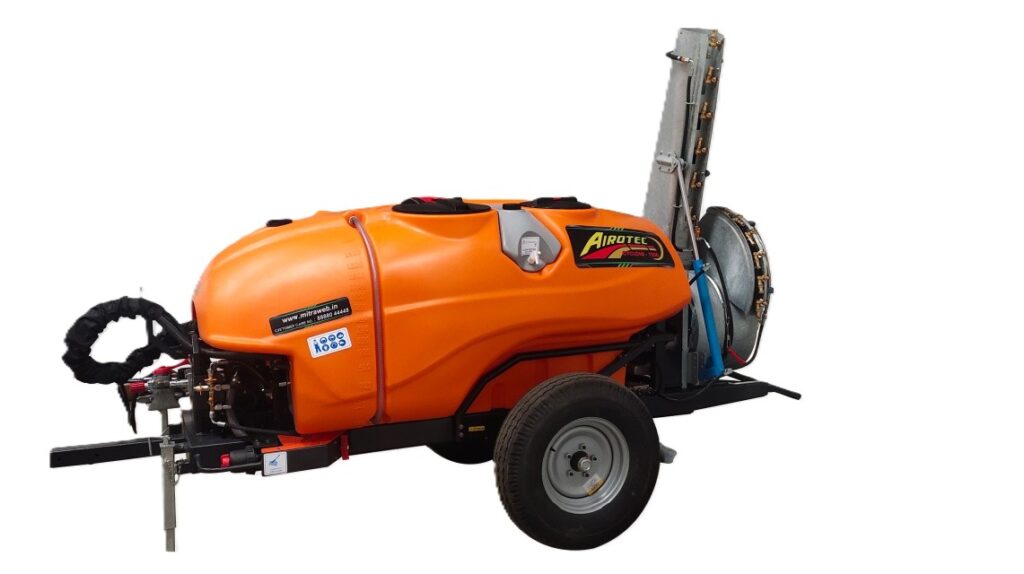

The AIROTEC Cyclone 1500 provides deep, uniform coverage for tall and wide trees like mango, coconut, and date palms. Its adjustable air conveyor and double agitation ensure precise application, leading to effective pest control, disease management, and herbicide/fertilizer delivery while reducing chemical use and labor cost.
High area coverage (up to 8 ha/hr) means jobs get done faster. Accurate, targeted spraying reduces chemical waste and operational costs. Hydraulic controls, safety features, and constant agitation all simplify function, making it a reliable “best sprayer for tractor” for large orchards and plantations.
Farm Size Recommendations:
Crop & Budget Guidance:
ROI: Fast payback in 1–2 seasons; government subsidy and low-interest financing available
Check and replace diaphragm pump seals every 100 hours, clean nozzles after use, rinse entire system using built-in rinse tank, inspect filtration and agitation systems, lubricate PTO and check safety features. Store with tank, filters, and pipes clean and dry off-season.
FAQs (Farmer-Friendly)
What tractor horsepower (HP) is required for AIROTEC Cyclone 1500 sprayer?
40 HP and above
What types of sprayers are available in AIROTEC Cyclone 1500, and what are their applications?
Air-assisted trailed/orchard sprayer, ideal for tall trees (mango, coconut, date palm) and wide orchards
What is the tank capacity and boom width of the AIROTEC Cyclone 1500 sprayer?
1500 L tank; no boom (uses adjustable air conveyor and 16 nozzles)
How does AIROTEC Cyclone 1500 help in crop protection and pest management?
Ensures uniform, deep canopy spray for better pest and disease control using less chemical.
Why is pump quality and nozzle type important in AIROTEC Cyclone 1500?
The diaphragm pump and adjustable nozzles guarantee even droplet size and spray pattern, so every branch and leaf gets treated.
Is AIROTEC Cyclone 1500 sprayer compatible with all tractor brands and models in India?
Yes, fits standard PTO tractors of 40 HP and above.
What about boom height adjustment and spray pressure control?
Hydraulic system enables spray direction adjustment; pressure is adjustable up to 40 bar, operated by a 5-mode controller.
How does AIROTEC Cyclone 1500 compare to other crop protection methods?
Much faster, more uniform, and economical than manual knapsack or conventional boom sprayers for tall orchards.
What maintenance schedule should be followed for AIROTEC Cyclone 1500 sprayer?
Pump and filters every 100 hours, nozzle cleaning after use, rinse system after each load, check safety valves and agitation regularly.
What warranty and after-sales service support is available for AIROTEC Cyclone 1500?
1-year warranty with free service*, government subsidy and doorstep service/training from MITRA.
