Maschio Gaspardo VIRAT SP Series (VIRAT SP 125, 145, 165, 185, 205, 230, 275, 305)
{{ galleryProps.activeIndex + 1 }}/1
Description

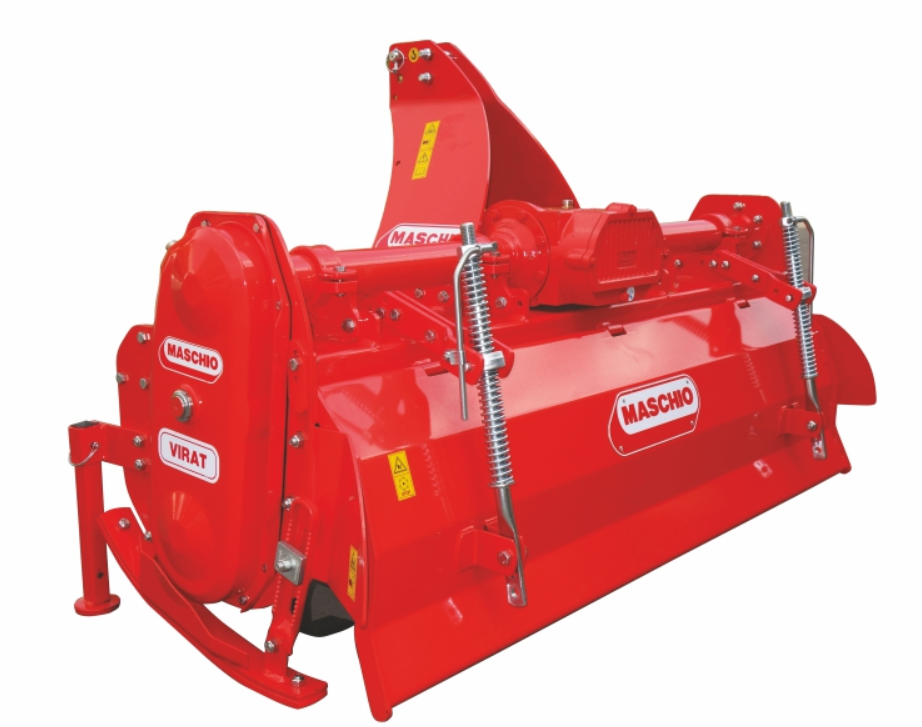

Maschio VIRAT SP Rotavator – Complete Agricultural Guide
The Maschio VIRAT SP Series is engineered for demanding applications in very…
Maschio VIRAT SP Rotavator – Complete Agricultural Guide
The Maschio VIRAT SP Series is engineered for demanding applications in very sticky or moist soils. Its robust structure and multi-speed gearbox allow use with tractors up to 110 HP, making it ideal for specialized secondary tillage across a wide range of farm sizes.
Key Features and Technology
VIRAT SP rotavators feature a center-fixed multi-speed gearbox with straight bevel gear drive, delivering optimal rotor speeds at both 540 RPM and 1,000 RPM PTO inputs. Special rotors and L-type blades provide superior soil cutting in sticky conditions. Heavy-duty construction, waterproof seals, and oil-bath lubrication ensure durability and low maintenance under continuous operation.
Technical Specifications and Model Variants
| Model | Working Width | Total Width | Tractor HP | Weight (Kg) | Blades | Rotor RPM @540 PTO | Price Range |
| VIRAT SP 125 | 4.1 ft (1.25 m) | 4.75 ft (1.45 m) | 30–35 HP | 355 | 30 | 185 RPM | Rs. 1,10,000*–1,32,000* |
| VIRAT SP 145 | 4.75 ft (1.45 m) | 5.41 ft (1.65 m) | 35–40 HP | 378 | 36 | 185 RPM | Rs. 1,15,000*–1,40,000* |
| VIRAT SP 165 | 5.41 ft (1.65 m) | 6.08 ft (1.85 m) | 40–45 HP | 420 | 42 | 185 RPM | Rs. 1,20,000*–1,50,000* |
| VIRAT SP 185 | 6.08 ft (1.85 m) | 6.72 ft (2.05 m) | 45–50 HP | 445 | 48 | 185 RPM | Rs. 1,25,000*–1,58,000* |
| VIRAT SP 205 | 6.72 ft (2.05 m) | 7.38 ft (2.25 m) | 50–65 HP | 500 | 54 | 185 RPM | Rs. 1,30,000*–1,68,000* |
| VIRAT SP 230 | 7.54 ft (2.30 m) | 8.20 ft (2.50 m) | 65–75 HP | 535 | 60 | 227 RPM | Available on enquiry |
| VIRAT SP 275 | 9.02 ft (2.75 m) | 9.67 ft (2.95 m) | 75–95 HP | 685 | 72 | 189 RPM | Available on enquiry |
| VIRAT SP 305 | 10.0 ft (3.05 m) | 10.66 ft (3.25 m) | 90–110 HP | 715 | 78 | 189 RPM | Available on enquiry |
Universal Specifications Across All Models of VIRAT SP
- Gearbox: Center-fixed, multi-speed (17×19 or 16×19 gear sets)
- Transmission: Side gearbox drive, oil bath lubrication
- Blade Type: L-type standard; optional C-type blades available
- Working Depth: 8.5 inches (22 cm)
- PTO Speed: 540 RPM (optional 1,000 RPM)
- Hitch: Cat-II three-point
- Oil Capacities: Gearbox 1 L, side transmission 2 L
Agricultural Benefits and Applications
VIRAT SP excels in secondary tillage and soil refinement where sticky or wet soils challenge conventional tillers. It pulverizes clods, mixes residues evenly, and creates a uniform seedbed—essential for high-value horticultural crops, sugarcane inter-culture, and orchard maintenance.
Enhanced Farming Efficiency
Multi-speed capability allows selection of ideal rotor speed for soil condition and crop needs, reducing passes and fuel consumption. Heavy-duty gearbox and robust frame minimize downtime, while straightforward maintenance ensures high availability during peak seasons.
Versatile Crop Applications
With blade configurations suited for sticky and moist soils, VIRAT SP is ideal for rice paddies, sugarcane fields, orchards, and vegetable beds. Its adjustable working widths match tractors of various sizes, enabling precise cultivation even in narrow rows.
Performance Specifications
Uniform blade tip speed and optimized gear ratios deliver consistent soil cutting force. High blade counts (up to 78) provide finer milling capacity for larger models, ensuring thorough residue incorporation and soil crumbling in a single pass.
Depth and Width Capabilities
All models maintain 8.5 inch working depth with side skids for depth control. Working widths from 4.1 ft to 10.0 ft allow tailoring to field size and labor availability, maximizing daily coverage.
Pricing and Value Proposition
VIRAT SP offers competitive price points starting at Rs. 1,10,000* for the 1.25 m model up to Rs. 1,68,000* for the 2.05 m variant. Italian engineering quality, multi-speed flexibility, and robust construction deliver long-term value through lower fuel and maintenance costs.
Maintenance and Care
Regularly check and change gearbox oil every 50 hours, inspect blade wear, and replace blades when cutting efficiency drops. Grease all fittings every 40 hours. Inspect seals and bearings annually; address any leaks immediately to preserve gearbox life.
Longevity Factors
Heavy-duty bevel gears operating in oil bath and waterproof seals protect critical components from moisture and debris. Using genuine blades and timely maintenance extends equipment life beyond 10 years under moderate use.
FAQs
1) What tractor horsepower (HP) is required for VIRAT SP rotavator?
VIRAT SP models match tractor HP as follows: SP 125 (30–35 HP), SP 145 (35–40 HP), SP 165 (40–45 HP), SP 185 (45–50 HP), SP 205 (50–65 HP), SP 230 (65–75 HP), SP 275 (75–95 HP), SP 305 (90–110 HP).
2) Which type of blades are available in VIRAT SP, what they do?
Standard L-type blades deliver low power consumption and smooth operation in sticky soils. Optional C-type blades improve penetration and aeration in harder patches, ensuring fine seedbed finish.
3) What is the width of the VIRAT SP rotavator?
Working widths range from 4.1 ft (SP 125) up to 10.0 ft (SP 305), with total widths slightly larger to accommodate guards and frame.
4) How deep can VIRAT SP rotavator cultivate in single pass?
All VIRAT SP models deliver up to 8.5 inches (22 cm) maximum working depth in a single pass.
5) How important is blade hardness and quality in VIRAT SP?
High-hardness, tempered steel blades are critical for wear resistance in sticky soils. Quality blades maintain cutting efficiency longer, reducing downtime and replacement costs.
6) Are VIRAT SP rotavators compatible with all tractor brands/models?
Yes. Universal Cat-II three-point hitch design ensures compatibility with most major tractor brands, provided the tractor meets the specified HP and PTO speed requirements.
7) What about maintenance and warranty in VIRAT SP?
Regular gearbox oil changes, blade inspections, and grease intervals ensure optimal performance.
How TractorXpert Helps You Find the Right Farm Implement
TractorXpert’s advanced implement-finder analyzes farm size, soil type, tractor HP, and crop rotation to recommend the ideal VIRAT SP model. It provides transparent price comparisons, dealer availability, and financing options, empowering farmers to secure the right rotavator for maximum productivity and profitability.
Product General Information
Brand Name:
Maschio Gaspardo
Model Name:
VIRAT SP Series (VIRAT SP 125, 145, 165, 185, 205, 230, 275, 305)
Implement Type:
Rotavator
Category:
Tillage
Compatible Tractor Power:
30–110 HP (varies by model)
