Maschio Gaspardo VIRAT PLUS Series (VIRAT PLUS 125, 145, 165, 185, 205, 230)
{{ galleryProps.activeIndex + 1 }}/1
Description

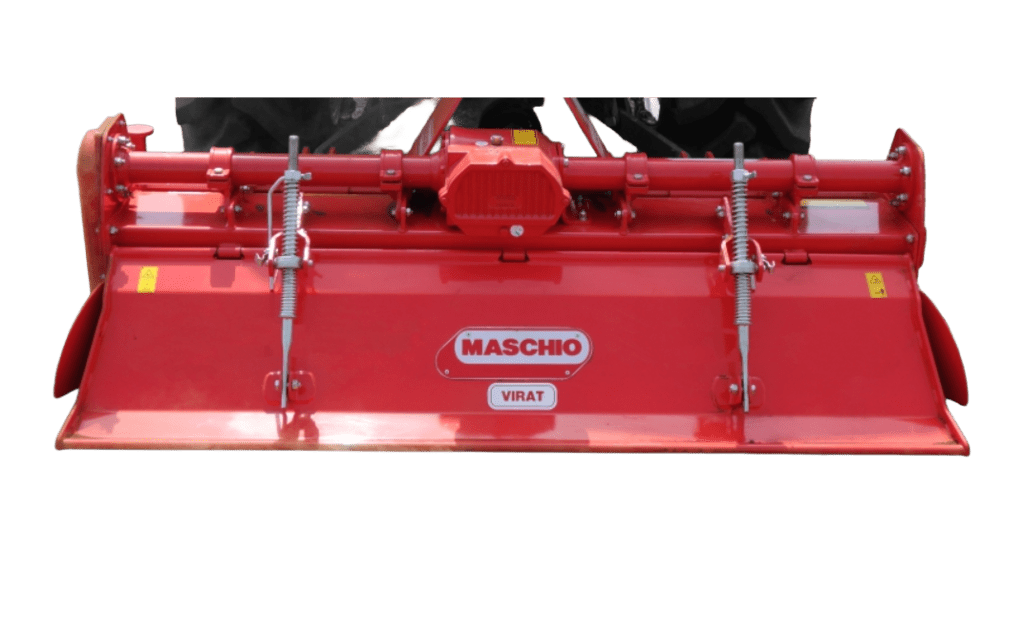

Maschio VIRAT PLUS Rotavator - Complete Agricultural Guide
The Maschio VIRAT PLUS Series represents a middle-range rotary tiller that combines…
Maschio VIRAT PLUS Rotavator – Complete Agricultural Guide
The Maschio VIRAT PLUS Series represents a middle-range rotary tiller that combines many features of high-end machines with standard-duty performance. This multi-speed rotary tiller belongs to the standard-duty gearbox category and has a structure that allows use with tractors up to 75 HP for the largest model. The series is engineered for demanding applications in soft to medium soil conditions, making it ideal for versatile farming operations.
Key Features and Technology
The VIRAT PLUS rotavator incorporates advanced multi-speed technology with a center-fixed gearbox design. The machine features a multi-speed gearbox with straight bevel gear configuration for models up to 205cm, while the VIRAT PLUS 230 uses spiral bevel gears for heavy-duty applications. The implement provides four different rotor speeds at 540 RPM PTO: 166, 185, 230, and 258 RPM for optimal soil preparation across varying conditions.
Key technological advantages include waterproof sealing to prevent soil entry, rear bonnet adjustment with spring regulation tubes for precise depth control, and best quality Italian Boron steel blades for superior durability and cutting performance. The implement features Cat-II three-point hitch compatibility and gear drive side transmission for reliable power transfer.
Technical Specifications and Model Variants
| Model | Working Width | Total Width | Tractor HP | Weight | Blades | Gearbox Oil | Price Range |
| VIRAT PLUS 125 | 4.1 feet (125cm) | 4.75 feet | 30-35 HP | 365 kg | 36 | 2.75L | Rs. 1,10,000* – 1,32,000* |
| VIRAT PLUS 145 | 4.75 feet (145cm) | 5.41 feet | 35-40 HP | 388 kg | 42 | 2.75L | Rs. 1,04,700* – 1,40,000* |
| VIRAT PLUS 165 | 5.41 feet (165cm) | 6.08 feet | 40-45 HP | 415 kg | 48 | 2.75L | Rs. 1,12,000* – 1,34,400* |
| VIRAT PLUS 185 | 6.08 feet (185cm) | 6.72 feet | 45-50 HP | 451 kg | 54 | 2.75L | Rs. 1,25,000* – 1,50,000* |
| VIRAT PLUS 205 | 6.72 feet (205cm) | 7.38 feet | 50-60 HP | 484 kg | 60 | 2.75L | Rs. 1,20,825* – 1,50,000* |
| VIRAT PLUS 230 | 7.54 feet (230cm) | 8.20 feet | 65-75 HP | 503 kg | 60 | 3.5L | Available on inquiry |
Universal Specifications Across All Models of VIRAT PLUS
All VIRAT PLUS rotavators share standardized specifications ensuring consistent performance across the entire range. Universal features include 18-22cm (7-8.5 inch) working depth capability, multi-speed gearbox configuration, and 473mm rotor swing diameter for models up to 205cm.
The series maintains 540 RPM PTO speed requirement with variable rotor speeds and gear drive side transmission. Each model features center-fixed gearbox alignment, 3 liter side transmission oil capacity, and 6 blades on central flanges with 3 blades on end flanges configuration. The VIRAT PLUS 230 model features enhanced specifications with spiral bevel gears and increased gearbox oil capacity.
Agricultural Benefits and Applications
The VIRAT PLUS rotavator delivers comprehensive agricultural benefits designed for medium-intensity farming operations. The implement excels in soil conditioning, seedbed preparation, and secondary tillage operations in soft to medium soil conditions. The multi-speed capability allows farmers to optimize performance based on specific soil conditions and crop requirements.
The rotavator effectively cuts, pulverizes, mixes, and levels soil in a single pass, ensuring proper seedbed preparation for optimal crop establishment. It breaks up soil clods while promoting adequate aeration, creating ideal conditions for seed germination and root development. The implement efficiently incorporates crop residues and organic matter into soil, enhancing fertility and structure.
Enhanced Farming Efficiency
VIRAT PLUS rotavators dramatically enhance farming efficiency through intelligent multi-speed technology and robust construction. The four-speed gearbox enables farmers to select optimal rotor speeds for specific soil conditions, crop residue levels, and desired seedbed quality, maximizing fuel efficiency and work quality.
The center-fixed gearbox design provides excellent stability during operation, enabling precise depth control and uniform soil preparation across varying field conditions. The gear drive transmission ensures smooth power transfer with minimal maintenance requirements, allowing consistent operation throughout demanding work seasons.
Versatile Crop Applications
The VIRAT PLUS rotavator demonstrates exceptional versatility across diverse agricultural applications. It excels in preparing seedbeds for cereals, vegetables, cash crops, and specialty crops in soft to medium soil conditions. The implement is particularly effective for secondary tillage operations where controlled soil preparation is essential.
For row crop cultivation, the rotavator provides uniform soil preparation essential for consistent plant emergence. In mixed farming systems, it adapts well to varying crop requirements and soil conditions. The implement also performs excellently in incorporating fertilizers and soil amendments, ensuring even distribution throughout the tilled zone.
Performance Specifications
The VIRAT PLUS rotavator operates with superior performance characteristics through its multi-speed capability. At standard 540 RPM PTO speed, the implement delivers four rotor speed options: 166 RPM for gentle mixing, 185 RPM for standard operations, 230 RPM for increased soil breaking, and 258 RPM for intensive soil pulverization.
Performance characteristics include consistent 18-22cm working depth across all models, excellent soil refinement quality, and superior fuel efficiency due to optimized gear ratios. The implement maintains steady performance across diverse soil types while providing reliable operation under continuous use conditions.
Depth and Width Capabilities
All VIRAT PLUS models provide consistent 18-22cm (7-8.5 inch) maximum working depth, suitable for most secondary tillage and seedbed preparation applications. The depth may vary according to soil type and condition, with optimal performance achieved in soft to medium soil environments.
Width capabilities range from 4.1 feet (VIRAT PLUS 125) to 7.54 feet (VIRAT PLUS 230), allowing farmers to select implements matching their tractor power and operational requirements. The multi-speed capability provides flexibility to adjust working intensity across the implement width for optimal results.
Pricing and Value Proposition
VIRAT PLUS rotavators offer exceptional value proposition with competitive pricing ranging from Rs. 1,04,700* for the VIRAT PLUS 145 to Rs. 1,50,000* for larger models. The VIRAT PLUS 205, one of the most popular models, starts at Rs. 1,20,825* and provides excellent performance for 50-60 HP tractors.
The competitive pricing combined with Italian engineering quality, multi-speed technology, and robust construction makes these rotavators attractive investments for progressive farmers. The implements provide long-term value through reduced fuel consumption, consistent performance, and lower maintenance costs compared to single-speed alternatives.
Maintenance and Care
Proper maintenance ensures optimal VIRAT PLUS rotavator performance and extends operational life significantly. Essential maintenance tasks include regular lubrication of all grease points, maintaining proper gearbox oil levels (2.75L for most models, 3.5L for VIRAT PLUS 230), and checking side transmission oil levels (3L capacity).
The multi-speed gearbox requires periodic inspection and oil changes every 100-150 operating hours depending on operating conditions. Regular blade inspection and timely replacement maintain soil preparation quality and prevent excessive wear on drive components. The gear drive system requires less maintenance than chain drive alternatives.
Regular cleaning after each use prevents soil buildup and corrosion, particularly important for maintaining the multi-speed gearbox efficiency. Proper storage in dry conditions prevents component deterioration and extends service life significantly.
Longevity Factors
Several critical factors contribute to VIRAT PLUS rotavator longevity and reliable performance. The robust construction using high-grade Italian materials ensures durability under demanding field conditions. The multi-speed gearbox design distributes loads effectively, reducing stress concentrations and extending drivetrain life.
Proper maintenance practices including regular lubrication, oil changes, and component inspection significantly extend implement service life. The gear drive transmission provides superior reliability compared to chain drive systems, reducing maintenance requirements and extending operational life.
Using genuine Italian Boron steel blades maintains performance standards and prevents premature wear. Operator training ensures proper speed selection and operating techniques, reducing unnecessary stress on components and maximizing implement longevity.
FAQs
- What tractor horsepower (HP) is required for VIRAT PLUS rotavator?
VIRAT PLUS rotavators require specific tractor HP matching each model’s design specifications. The VIRAT PLUS 125 works with 30-35 HP tractors, VIRAT PLUS 145 requires 35-40 HP, VIRAT PLUS 165 needs 40-45 HP, VIRAT PLUS 185 requires 45-50 HP, VIRAT PLUS 205 works with 50-60 HP tractors, and VIRAT PLUS 230 needs 65-75 HP tractors. The multi-speed gearbox allows optimal power utilization across the entire HP range.
- Which type of blades are available in VIRAT PLUS, what they do?
VIRAT PLUS rotavators primarily use L-type blades as standard configuration, optimized for soft to medium soil conditions and efficient soil preparation. L-type blades provide low power consumption, smooth operation, and excellent soil mixing capability. They feature Italian Boron steel construction for superior durability and self-sharpening properties. Optional C-type blades may be available for specific soil conditions requiring enhanced penetration.
- What is the width of the VIRAT PLUS rotavator?
VIRAT PLUS rotavators are available in six different working widths to accommodate various farming requirements. The VIRAT PLUS 125 has 4.1 feet working width, VIRAT PLUS 145 offers 4.75 feet, VIRAT PLUS 165 provides 5.41 feet, VIRAT PLUS 185 delivers 6.08 feet, VIRAT PLUS 205 gives 6.72 feet, and VIRAT PLUS 230 provides 7.54 feet working width. Total widths are proportionally larger to accommodate structural components.
- How deep can VIRAT PLUS rotavator cultivate in single pass?
All VIRAT PLUS rotavator models provide consistent 18-22cm (7-8.5 inch) maximum working depth in a single pass. The actual working depth may vary according to soil type and condition, with optimal performance achieved in soft to medium soil environments. The multi-speed gearbox allows farmers to adjust rotor speed to achieve desired tillage depth and soil finish quality.
- How important is blade hardness and quality in VIRAT PLUS?
Blade hardness and quality are extremely critical for VIRAT PLUS rotavator performance and operational economics. The implements feature best quality, long-lasting Italian Boron steel blades with superior hardness ratings and wear resistance. High-quality Boron steel blades maintain cutting efficiency significantly longer than standard blades, reducing replacement frequency and operational costs. The superior metallurgy ensures consistent soil preparation quality while minimizing fuel consumption.
- Are VIRAT PLUS rotavators compatible with all tractor brands/models?
VIRAT PLUS rotavators feature universal Cat-II three-point hitch compatibility, making them suitable for most tractor brands within the specified HP ranges. The implements work effectively with all major Indian and international tractor brands including Mahindra, John Deere, Sonalika, Swaraj, New Holland, and others. Compatibility depends on matching tractor HP with implement specifications and ensuring proper 540 RPM PTO speed capability.
- What about maintenance and warranty in VIRAT PLUS?
VIRAT PLUS rotavators require systematic maintenance including gearbox oil changes (2.75L capacity for most models) every 100-150 operating hours, side transmission oil maintenance (3L capacity), and regular blade inspection. Most authorized dealers provide warranty coverage ranging from 6 months to 2 years depending on specific terms and usage conditions. Regular maintenance ensures warranty compliance and maximizes implement service life. Genuine spare parts are readily available through authorized Maschio Gaspardo dealer networks across India.
