Maschio Gaspardo VIRAT J Series (VIRAT J 125, 145, 165, 175, 185, 205)
{{ galleryProps.activeIndex + 1 }}/1
Description

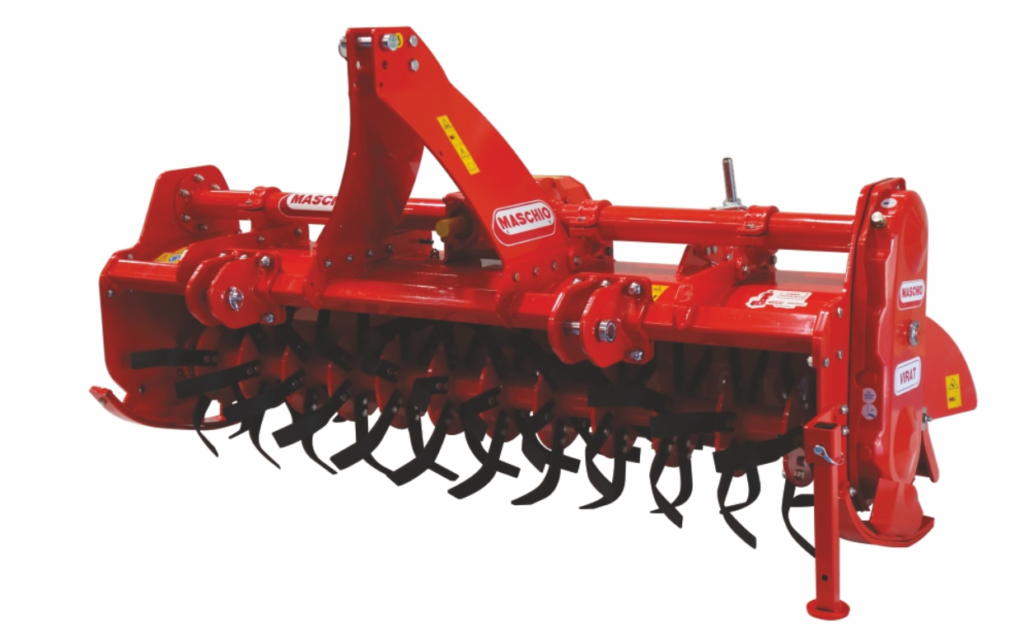

Maschio VIRAT J Rotavator - Complete Agricultural Guide
The Maschio VIRAT J Series represents specialized rotary tiller technology designed for…
Maschio VIRAT J Rotavator – Complete Agricultural Guide
The Maschio VIRAT J Series represents specialized rotary tiller technology designed for potato and other tuber root crops with high mixing level of crop residues. This multi-speed central gearbox rotary tiller features rigid frame with J-type blade mounted specifically for wet land puddling and paddy cultivation. The structure allows use with tractors up to 60 HP, making it ideal for specialized applications in waterlogged and sticky soil conditions.
Key Features and Technology
The VIRAT J rotavator incorporates advanced multi-speed central gearbox technology with rigid frame construction specifically designed for wet land applications. The machine features multi-speed gearbox with straight bevel gear configuration, providing four rotor speeds at 540 RPM PTO: 166, 185, 230, and 258 RPM for optimal performance in wet and sticky conditions.
Key technological advantages include J-type blade mounting specifically designed for wet land puddling, high mixing level capability for crop residues, gear drive side transmission for reliable power transfer, and Cat-II three-point hitch compatibility. The implement features waterproof sealing systems and specialized rotor design for effective operation in paddy fields and waterlogged conditions.
Technical Specifications and Model Variants
| Model | Working Width | Total Width | Tractor HP | Weight | Blades | Price Range |
| VIRAT J 125 | 4.1 feet (125cm) | 4.75 feet | 30-35 HP | 347 kg | 54 | Rs. 1,00,400* to Rs. 1,42,000* |
| VIRAT J 145 | 4.75 feet (145cm) | 5.41 feet | 35-40 HP | 374 kg | 60 | Rs. 1,00,400* to Rs. 1,42,000* |
| VIRAT J 165 | 5.41 feet (165cm) | 6.08 feet | 45-50 HP | 399 kg | 66 | Rs. 1,00,400* to Rs. 1,42,000* |
| VIRAT J 175 | 5.74 feet (175cm) | 6.4 feet | 45-55 HP | 414 kg | 66 | Rs. 1,00,400* to Rs. 1,42,000* |
| VIRAT J 185 | 6.08 feet (185cm) | 6.72 feet | 50-55 HP | 421 kg | 72 | Rs. 1,00,400* to Rs. 1,42,000* |
| VIRAT J 205 | 6.72 feet (205cm) | 7.38 feet | 55-60 HP | 440 kg | 78 | Rs. 1,00,400* to Rs. 1,42,000* |
Universal Specifications Across All Models
All VIRAT J rotavators share standardized specifications ensuring consistent performance across the entire range. Universal features include 18-22cm (7-8.5 inch) working depth capability, multi-speed central gearbox configuration, and 515mm rotor swing diameter for optimal wet land performance.
The series maintains 540 RPM PTO speed requirement with multi-speed rotor operation at 166, 185, 230, and 258 RPM. Each model features gear drive side transmission, 2L side transmission oil capacity, and center-fixed gearbox alignment. The implement accommodates 6 blades on central flanges with 3 blades on end flanges configuration specifically for J-type blade mounting.
Agricultural Benefits and Applications
The VIRAT J rotavator delivers specialized agricultural benefits designed for wet land applications and paddy cultivation. The implement excels in puddling operations, seedbed preparation in waterlogged conditions, and high-level mixing of crop residues in potato and tuber root crops. The J-type blades are specifically designed for wet and sticky soils, preventing clogging and ensuring effective operation.
The specialized design enables farmers to work effectively in paddy fields, breaking hardpan layers and improving drainage while maintaining soil structure. The high mixing capability ensures thorough incorporation of crop residues, enhancing soil fertility and organic matter content in wet conditions.
Enhanced Farming Efficiency
VIRAT J rotavators dramatically enhance farming efficiency in wet land applications through specialized J-type blade technology and multi-speed capability. The J-type blades handle sticky, waterlogged soils effortlessly and are specially designed to avoid clogging, ensuring continuous operation in challenging conditions.
The multi-speed central gearbox enables farmers to optimize rotor speed for specific wet land conditions and crop requirements, maximizing fuel efficiency and work quality. The rigid frame construction provides stability in soft, wet soils while maintaining consistent performance.
Versatile Crop Applications
The VIRAT J rotavator demonstrates exceptional versatility in specialized crop applications requiring wet land preparation. It excels in paddy cultivation, potato field preparation, and other tuber root crops where wet soil conditions are prevalent. The implement is particularly effective for puddling operations essential for rice production.
For specialty applications, the rotavator performs excellently in wet land reclamation, marsh land cultivation, and areas with high moisture content. The J-type blades ensure better soil aeration and reduce clogging in wet conditions, making it ideal for challenging agricultural environments.
Performance Specifications
The VIRAT J rotavator operates with superior performance characteristics in wet land conditions through its specialized J-type blade configuration. The multi-speed gearbox provides four rotor speed options: 166 RPM for gentle mixing, 185 RPM for standard puddling, 230 RPM for intensive mixing, and 258 RPM for maximum soil pulverization.
Performance characteristics include consistent 18-22cm working depth across all models, superior performance in wet and sticky conditions, and excellent fuel efficiency considering the challenging operating environment. The implement maintains steady performance under waterlogged conditions while minimizing power requirements.
Depth and Width Capabilities
All VIRAT J models provide consistent 18-22cm (7-8.5 inch) maximum working depth, suitable for puddling and wet land preparation applications. The depth capability varies according to soil moisture and condition, with optimal performance achieved in waterlogged and sticky soil environments.
Width capabilities range from 4.1 feet (VIRAT J 125) to 6.72 feet (VIRAT J 205), allowing farmers to select implements matching their tractor power and field size requirements. The specialized design ensures uniform performance across the entire working width even in challenging wet conditions.
Pricing and Value Proposition
VIRAT J rotavators offer exceptional value proposition for specialized wet land applications with competitive pricing. The VIRAT J 175 and 185 models are priced between Rs. 1,00,400* to Rs. 1,23,360*, while the VIRAT J 205 starts at Rs. 1,42,000* for specialized paddy cultivation operations.
The competitive pricing combined with Italian engineering quality, J-type blade technology, and proven performance in wet conditions makes these rotavators attractive investments for rice farmers and wet land agriculture. The implements provide long-term value through specialized design and consistent performance in challenging conditions.
Maintenance and Care
Proper maintenance ensures optimal VIRAT J rotavator performance in wet land conditions and extends operational life significantly. Essential maintenance tasks include regular cleaning after each use to remove mud and debris, maintaining proper gearbox oil levels (1.5L capacity), and checking side transmission oil levels (2L capacity).
Daily maintenance includes thorough washing to prevent soil buildup, checking J-type blade condition for wear and damage, and inspecting sealing systems for water intrusion. Weekly maintenance involves greasing all fittings and checking for loose bolts or connections.
The specialized application in wet conditions requires particular attention to cleaning and drying to prevent corrosion and component deterioration. Proper storage in dry conditions after thorough cleaning prevents moisture-related damage.
Longevity Factors
Several critical factors contribute to VIRAT J rotavator longevity in wet land applications. The rigid frame construction and waterproof sealing systems ensure durability in challenging wet conditions. The multi-speed gearbox design distributes loads effectively, extending drivetrain life under continuous wet operation.
Proper maintenance practices including thorough cleaning, regular lubrication, and component inspection significantly extend implement service life in wet conditions. The J-type blade design reduces stress on drive components by preventing clogging and maintaining smooth operation.
Using genuine J-type blades with proper design specifications maintains cutting efficiency and prevents excessive wear. Quality blade selection specifically designed for wet conditions directly impacts operational costs and implement longevity.
FAQs
- What tractor horsepower (HP) is required for VIRAT J rotavator?
VIRAT J rotavators require specific tractor HP matching each model’s wet land design specifications. The VIRAT J 125 works with 30-35 HP tractors, VIRAT J 145 requires 35-40 HP, VIRAT J 165 needs 45-50 HP, VIRAT J 175 requires 45-55 HP, VIRAT J 185 works with 50-55 HP, and VIRAT J 205 needs 55-60 HP tractors. The multi-speed gearbox allows efficient power utilization across the entire HP range for wet land applications.
- Which type of blades are available in VIRAT J, what they do?
VIRAT J rotavators exclusively use J-type blades, specially designed for wet and sticky soil conditions. J-type blades are curved like the letter ‘J’ and are specifically engineered for wet land puddling and paddy cultivation. These blades handle sticky, waterlogged soils effortlessly and are specially designed to avoid clogging. They’re excellent for breaking hardpan layers, improving drainage in paddy fields, and ensuring better soil aeration in wet conditions.
- What is the width of the VIRAT J rotavator?
VIRAT J rotavators are available in six different working widths to accommodate various wet land farming requirements. The VIRAT J 125 has 4.1 feet working width, VIRAT J 145 offers 4.75 feet, VIRAT J 165 provides 5.41 feet, VIRAT J 175 gives 5.74 feet, VIRAT J 185 delivers 6.08 feet, and VIRAT J 205 provides 6.72 feet working width. Total widths are proportionally larger to accommodate structural components and guards.
- How deep can VIRAT J rotavator cultivate in single pass?
All VIRAT J rotavator models provide consistent 18-22cm (7-8.5 inch) maximum working depth in a single pass. The actual working depth may vary according to soil moisture and condition, with optimal performance achieved in waterlogged and wet soil environments. The multi-speed gearbox allows farmers to adjust rotor speed to achieve desired puddling depth and soil mixing quality in wet conditions.
- How important is blade hardness and quality in VIRAT J?
Blade hardness and quality are extremely critical for VIRAT J rotavator performance in wet land applications. The J-type blades must maintain proper hardness ratings while being designed specifically for wet conditions to prevent clogging and ensure effective puddling. High-quality J-type blades with appropriate curvature and hardness maintain cutting efficiency in sticky soils, reducing replacement frequency and operational costs. In wet conditions, blade quality directly impacts puddling effectiveness and implement longevity.
- Are VIRAT J rotavators compatible with all tractor brands/models?
VIRAT J rotavators feature universal Cat-II three-point hitch compatibility, making them suitable for most tractor brands within the specified HP ranges. The implements work effectively with all major Indian and international tractor brands including Mahindra, John Deere, Sonalika, Swaraj, New Holland, and others. Compatibility depends on matching tractor HP with implement specifications and ensuring proper 540 RPM PTO speed capability for wet land operations.
- What about maintenance and warranty in VIRAT J?
VIRAT J rotavators require specialized maintenance including daily cleaning to remove mud and debris, gearbox oil changes (1.5L capacity) every 100-150 operating hours, and side transmission oil maintenance (2L capacity). Regular inspection of J-type blades and waterproof seals is essential due to wet operating conditions. Most authorized dealers provide warranty coverage ranging from 6 months to 2 years depending on specific terms. Regular maintenance ensures warranty compliance and maximizes implement service life. Genuine spare parts are readily available through authorized Maschio Gaspardo dealer networks across India.
How TractorXpert Helps You Find the Right Farm Implement
TractorXpert serves as India’s premier digital platform connecting farmers with precisely matched agricultural implements for their specialized wet land farming requirements. The platform utilizes advanced decision support system technology to analyze critical farm parameters including soil moisture conditions, crop patterns, land size, tractor specifications, and operational requirements to recommend perfectly suitable implements like the VIRAT J series for wet land applications.
The platform’s comprehensive implement finder service provides detailed specifications, transparent price comparisons, expert recommendations, and user reviews specifically for wet land equipment to help farmers make informed purchasing decisions. By maintaining partnerships with multiple authorized dealers and manufacturers nationwide, TractorXpert ensures farmers have access to genuine specialized implements at competitive market prices with comprehensive after-sales support.
TractorXpert’s decision support system calculates optimal implement selection based on wet land conditions, puddling requirements, and tractor compatibility, ensuring maximum performance and return on investment in challenging farming conditions. The platform also provides flexible financing options, connects farmers with local dealers for technical support, and offers comprehensive maintenance guidance specifically for wet land applications, making specialized farm mechanization accessible and economically viable for farmers across India’s diverse agricultural landscape.
Product General Information
Brand Name:
Maschio Gaspardo
Model Name:
VIRAT J Series (VIRAT J 125, 145, 165, 175, 185, 205)
Implement Type:
Rotavator
Category:
Tillage
Compatible Tractor Power:
30-60 HP (varies by model)
Engine
Transmission
Implement Type:
Rotavator
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
