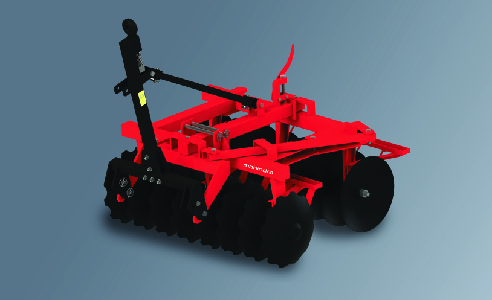

Mahindra Compact Disc Harrow
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Mahindra Compact Disc Harrow price* in India, specifications, working width, depth & disc details.…
- About Product
Mahindra Compact Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Mahindra Compact Disc Harrow Variants
| Parameter | 8×8 Offset 22″ HC | 8×8 Offset 24″ HC | 8×8 Offset 26″ HC | 8×8 Offset 22″ DS | 8×8 Offset 24″ DS | 8×8 Offset 26″ DS |
| Number of Discs | 16 | 16 | 16 | 16 | 16 | 16 |
| Disc Diameter (mm) | 560 | 610 | 660 | 560 | 610 | 660 |
| Disc Type | 100×100 sq. pipe | 100×100 sq. pipe | 100×100 sq. pipe | Front: Notched; Rear: Plain | Front: Notched; Rear: Plain | Front: Notched; Rear: Plain |
| Disc Spacing (mm) | 230 | 230 | 230 | 230 | 230 | 230 |
| Maximum Depth (mm) | 150–200 | 150–200 | 150–200 | 150–200 | 150–200 | 150–200 |
| Gang Axle (mm) | 32 sq. bar | 32 sq. bar | 32 sq. bar | 32 sq. bar | 32 sq. bar | 32 sq. bar |
| Width of Cut (mm) (Adjustable) | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Weight (kg) | 730 | 730 | 730 | 682 | 730 | 778 |
| Bearings Hub | 6 | 6 | 6 | 6 | 6 | 6 |
| Mounting Type | 3-point hitch (CAT II) | 3-point hitch (CAT II) | 3-point hitch (CAT II) | 3-point hitch (CAT II) | 3-point hitch (CAT II) | 3-point hitch (CAT II) |
| Frame Material | 100×100 sq. pipe | 100×100 sq. pipe | 100×100 sq. pipe | 100×100 sq. pipe | 100×100 sq. pipe | 100×100 sq. pipe |
| Suitable Tractor Power (HP) | 50–55 | 50–55 | 50–55 | 50–55 | 50–55 | 50–55 |
HC = High Carbon Disc; DS = Bellota Boron Disc
- Technical Specifications – Mahindra Compact Disc Harrow
- Soil Compatibility: Light, medium, heavy, clay, rocky fields
- Field Efficiency: Covers up to 1.2 ha/hr at 4–6 km/hr
- Fuel Impact: Efficient slicing reduces tractor load by up to 10%
- Build Quality: Robust angle-frame construction with high-carbon or boron steel discs
- Bearings & Seals: Industrial-grade hubs with waterproof/dustproof seals
- Maintenance: Grease bearings every 50 hrs; inspect discs and axle quarterly
- Spare Parts: Available through Mahindra network; competitive blade replacement cost
- Warranty: 12 months or 1 000 hrs; nationwide service support
- Weather Suitability: Operates in wet and dry conditions
- Crop Seasons: Ideal pre-sowing for cereals, pulses, oilseeds, vegetables
- Agricultural Benefits and Applications
Mahindra Compact Disc Harrow excels at:
- Primary Tillage: Breaking clods, loosening compact layers
- Secondary Tillage: Refining seedbed, leveling soil surface
- Weed Control: Cutting and mixing crop residues
- Soil Structure: Improves aeration and water infiltration
- Enhanced Farming Efficiency
- Time Saving: Single-pass soil tillage and leveling
- Fuel Efficiency: Up to 10% savings versus multiple implements
- Labor Reduction: Easy hitch-up and adjustment
- Productivity: Uniform soil preparation boosts germination
- Versatile Crop Applications
Suitable for:
- Cereals: Wheat, barley, oats, rice
- Cash Crops: Cotton, sugarcane, maize, sunflower
- Pulses: Chickpea, lentils, pigeon pea
- Vegetables: Potato, onion, tomato
- Plantations: Orchards, vineyards
- Performance Specifications
- Operating Speed: 4–6 km/hr
- Ground Pressure: Even distribution prevents compaction
- Penetration Capability: 150–200 mm depth in varied soils
- Finish Quality: Consistent, level seedbed for optimal germination
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): 8×8 HC 22″ offset model
- Medium farms (5–25 acres): 8×8 HC/DS 24″ offset models
- Large farms (> 25 acres): 8×8 HC/DS 26″ offset models
Soil-Specific Advice:
- Light soils: 560 mm discs, shallow depth
- Medium soils: 610 mm discs, moderate depth
- Heavy/clay soils: 660 mm discs, full 200 mm depth
Budget Categories:
- Economy: HC 22″ offset*
- Mid-Range: DS 24″ offset*
- Premium: DS 26″ offset*
ROI & Financing:
- Payback in 1–2 seasons via improved efficiency
- Eligible for Finance & government farm mechanization subsidies
- Maintenance and Care
- Discs: Check for wear every 100 hrs; replace individual discs easily
- Bearings: Lubricate hubs every 50 hrs; inspect seals quarterly
- Frame: Tighten bolts and touch-up paint annually
- Storage: Keep in covered, dry location to prevent rust
- Pre-Operation Checklist: Verify hitch pins, bearing grease, disc alignment
- Longevity Factors
- Disc Material: High-carbon or boron steel for superior wear resistance
- Wear Resistance: Typical disc life of 800–1 000 hrs
- Frame Strength: Heavy-duty square pipe withstands rough use
- Service Life: Expected 7–10 years with proper maintenance
FAQs – Mahindra Compact Disc Harrow
What HP is required for Mahindra Compact Disc Harrow?
50–55 HP tractors.
What disc types are available and what do they do?
High-carbon discs slice soil, boron discs offer added strength and durability.
What is the working width and depth?
Adjustable width of 1.9 m; depth range of 150–200 mm.
How does it help seedbed preparation?
Cuts and levels soil, incorporates residues for uniform tilth.
Why is disc quality important?
High-carbon or boron steel discs resist wear and ensure consistent cutting.
Is it compatible with all tractor brands?
Yes, fits CAT II three-point hitches standard on Indian tractors.
What about gang angle and depth control?
Fixed offset design with easy skid adjustment for depth regulation.
How does it compare to cultivators and rotavators?
Offers lighter draft than rotavators and finer finish than spring-tooth cultivators.
What maintenance schedule is recommended?
Grease hubs every 50 hrs, inspect discs quarterly, replace worn discs as needed.
What warranty and service support are available?
12 months or 1 000 hrs warranty; Mahindra’s nationwide service network.
TractorXpert empowers farmers by comparing implement models, prices*, specifications, and benefits—helping choose the ideal harrow, save costs, improve seedbed quality, reduce operations, and boost farm productivity.
