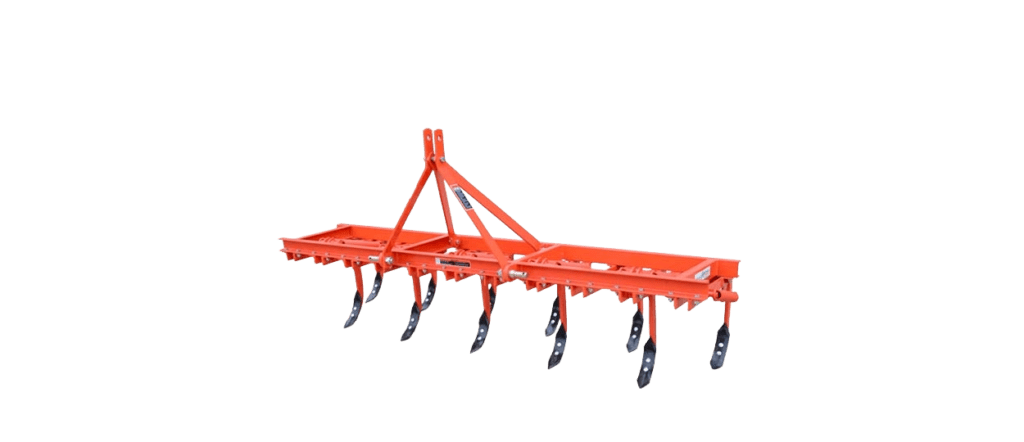

Landforce Spring Cultivator Standard Duty (CVS9S, CVS11S, CVS13S variants)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Brand: Landforce
Model Name: Spring Cultivator Standard Duty (CVS9S, CVS11S, CVS13S variants)
Implement Type:…
- About Product
Brand: Landforce
Model Name: Spring Cultivator Standard Duty (CVS9S, CVS11S, CVS13S variants)
Implement Type: Cultivator
Category: Tillage
Compatible Tractor Power: 35–55 HP Range
- Key specifications and Technology Landforce Spring Cultivator Standard Duty
CVS9S Variant:
- Type of cultivator: Spring-loaded tyne cultivator
- Number of tynes: 9 tynes
- Working width: 2.03 m (6.7 ft)
- Working depth: Up to 8 in (20 cm)
- Overall dimensions: 2.03 m (L) × 0.90 m (W) × 1.10 m (H)
- Weight: 210 kg
- Tractor power requirement: 35–40 HP
- Mounting type: 3-point linkage, Category II
- Frame material: Channel 75×40×5 mm
CVS11S Variant:
- Type of cultivator: Spring-loaded tyne cultivator
- Number of tynes: 11 tynes
- Working width: 2.49 m (8.2 ft)
- Working depth: Up to 8 in (20 cm)
- Overall dimensions: 2.49 m (L) × 0.90 m (W) × 1.10 m (H)
- Weight: 255 kg
- Tractor power requirement: 45–50 HP
- Mounting type: 3-point linkage, Category II
- Frame material: Channel 75×40×5 mm
CVS13S Variant:
- Type of cultivator: Spring-loaded tyne cultivator
- Number of tynes: 13 tynes
- Working width: 2.95 m (9.7 ft)
- Working depth: Up to 8 in (20 cm)
- Overall dimensions: 2.95 m (L) × 0.90 m (W) × 1.10 m (H)
- Weight: 320 kg
- Tractor power requirement: 50–55 HP
- Mounting type: 3-point linkage, Category II
- Frame material: Channel 100×50×5 mm
- Technical Specifications Landforce Spring Cultivator Standard Duty
- Soil type compatibility: Light to medium soils, stone- and root-obstructed fields
- Field efficiency percentage: 80–90% in primary tillage
- Fuel consumption impact: Minimal increase due to efficient spring-loaded design
- Durability rating and build quality: Heavy-duty frame and hardened boron steel shovels
- Maintenance requirements and frequency: Low maintenance; inspect springs and tines quarterly
- Spare parts availability and cost: Widely available through Landforce dealer network
- Warranty details and service support: Standard manufacturer warranty with nationwide service
- Weather condition suitability: Suitable for normal to slightly challenging conditions
- Crop compatibility and recommended uses: Wheat, maize, pulses, sugarcane, vegetables
- Agricultural Benefits and Applications of Landforce Spring Cultivator Standard Duty
The implement excels at primary tillage in stony or root-obstructed soils. Its spring-loaded tynes absorb shocks, preventing damage when encountering hidden objects. The cultivator loosens soil uniformly, breaks clods, and prepares seedbeds in a single pass.
- Enhanced Farming Efficiency through Landforce Spring Cultivator Standard Duty
With independent spring-loaded tynes, this cultivator reduces pass count and fuel consumption. It lowers labor needs by enabling faster field coverage and minimizing downtime from tine breakage or frame damage.
- Versatile Crop Applications through Landforce Spring Cultivator Standard Duty
Ideal for preparing land for paddy, wheat, maize, sugarcane, pulses, and vegetable crops. Its robust design makes it suitable for fields with moderate stones and roots, ensuring consistent soil aeration and preparation.
- Performance Specifications of Landforce Spring Cultivator Standard Duty
Forged tines with spring assembly (OD-50 mm, wire dia 10 mm) provide shock absorption and consistent penetration. Heavy-duty channels and angle construction ensure frame rigidity and vibration resistance.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (under 5 acres): CVS9S variant for compact fields
- Medium farms (5–25 acres): CVS11S variant for balanced coverage
- Large farms (above 25 acres): CVS13S variant for maximum efficiency
Soil-specific recommendations: Best for light to medium soils with stones or roots; avoid extremely heavy clay.
Budget-wise categorization: Economy to mid-range; premium frame options on CVS13S.
ROI calculation guidance: Payback within 2–3 seasons through labor and fuel savings.
Financing options and subsidy information: Subsidies of 40–80% under SMAM and state schemes; tractor implement loans available.
- Maintenance and Care of Landforce Spring Cultivator Standard Duty
Check spring tension and tine condition every season. Lubricate pivot points monthly. Replace shovels when wear exceeds 15 mm. Store in a dry, sheltered area.
- Longevity Factors of Landforce Spring Cultivator Standard Duty
Durable channel frames (75×40×5 mm and 100×50×5 mm) and hardened boron steel shovels extend service life to 10–15 years. Quality springs reduce stress on the frame and tines, minimizing wear.
FAQs Section (Farmer-Friendly Answers)
- Q: What tractor horsepower (HP) is required for Landforce Spring Cultivator Standard Duty cultivator?
Ans: Requires 35–55 HP tractors depending on the variant: CVS9S needs 35–40 HP, CVS11S requires 45–50 HP, and CVS13S needs 50–55 HP.
- Q: What types of tynes/blades are available in Landforce Spring Cultivator Standard Duty, and what do they do?
Ans: Features forged spring-loaded tynes and hardened boron steel shovels that penetrate soil, break clods, and absorb shocks when hitting stones or roots.
- Q: What is the working width of the Landforce Spring Cultivator Standard Duty cultivator?
Ans: Working widths are 2.03 m (CVS9S), 2.49 m (CVS11S), and 2.95 m (CVS13S).
- Q: How deep can the Landforce Spring Cultivator Standard Duty cultivate in a single pass?
Ans: Up to 8 in (20 cm), making it ideal for primary tillage.
- Q: Why is tyne/blade hardness and quality important in Landforce Spring Cultivator Standard Duty?
Ans: Hardened boron steel shovels and high-tensile springs ensure deep penetration, reduce wear, and prevent breakage when encountering hard soil obstacles.
- Q: Is Landforce Spring Cultivator Standard Duty compatible with all tractor brands and models in India?
Ans: Yes; it uses a standard Category II 3-point linkage compatible with most 35–55 HP tractors.
- Q: What about maintenance, warranty, and after-sales service for Landforce Spring Cultivator Standard Duty?
Ans: Comes with standard manufacturer warranty and nationwide service support. Low maintenance design reduces servicing costs.
TractorXpert helps farmers choose the right cultivator by comparing models, prices, features, and benefits from different manufacturers. Our platform provides detailed specifications, current prices, subsidy guidance, and financing options so farmers can make informed decisions, save money, and boost their farm efficiency.
Product General Information
Brand Name:
Landforce
Model Name:
Spring Cultivator Standard Duty (CVS9S, CVS11S, CVS13S variants)
Implement Type:
Cultivator
Category:
Tillage
Compatible Tractor Power:
35–55 HP Range
Engine
Transmission
Implement Type:
Cultivator
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
