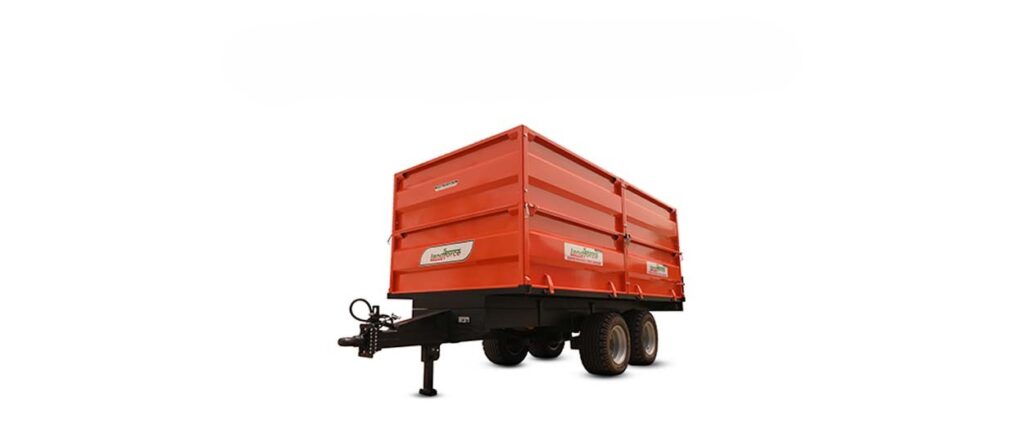

Landforce Medium Duty Trailer (TRAM Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Brand: Landforce
Model Name: Medium Duty Trailer (TRAM Series)
Implement Type: Tipping Trailer
…
- About Product
Brand: Landforce
Model Name: Medium Duty Trailer (TRAM Series)
Implement Type: Tipping Trailer
Category: Transportation / Haulage
Compatible Tractor Power: 40–70 HP
Price Range: ₹ 90,000*–₹ 140,000* - Key Specification and Technology Landforce Medium Duty Trailer
|
Variant |
TRAM 2 | TRAM 5 |
|
Trailer Type |
Tipping | Tipping |
|
Loading Capacity |
2 T |
5 T |
|
Body Dimensions |
8 ft × 4.6 ft × 1.5 ft | 10.5 ft × 6.5 ft × 1.5 ft |
|
Tipping Mechanism |
Telescopic 2-stage (5 T cylinder) | Telescopic 2-stage (10 T cylinder) |
|
Number of Axles |
Single axle | Single axle |
|
Tyre Specifications |
10.0/75–15.3–14 PR BKT tubeless | 10.0/75–15.3–14 PR BKT tubeless |
|
Unladen Weight |
750 kg |
990 kg |
| Tractor Power Req. | 40–50 HP |
50–70 HP |
| Mounting Type | Ring hitch 50 mm diameter |
Ring hitch 50 mm diameter |
| Body Material | Heavy channel chassis 125 × 65 mm |
Heavy channel chassis 125 × 65 mm |
| Side Wall Height | 1.6 mm corrugated panels |
1.6 mm corrugated panels |
| Floor Sheet | 3 mm |
3 mm |
| Brake System | N/A |
Hydraulic brakes provided |
- Technical Specifications Landforce Medium Duty Trailer
- Payload & Distribution: Designed for uniform weight distribution.
- Axle Rating: Heavy-duty taper roller axle bearings (32210 inner & 32208 outer).
- Suspension: Rigid frame; optional leaf spring kit.
- Braking System: Hydraulic brakes on 5 T model; mechanical parking lock on 2 T.
- Bearings & Hubs: High-capacity taper roller bearings.
- Frame Construction: Welded heavy channel frame with reinforced joints.
- Maintenance: Lubricate hinge pins and axle bearings every 100 hrs.
- Spare Parts: Readily available with competitive costs.
- Warranty & Support: 12-month manufacturer warranty; nationwide service network.
- Corrosion Treatment: Industrial primer and powder-coat finish for durability.
- Compliance: Meets all RTO specifications for farm trailers.
- Agricultural Benefits and Applications of Landforce Medium Duty Trailer
- Efficient bulk crop hauling during harvest peak.
- Ideal for loading and transporting sand, manure, and fertilizers.
- Smooth field-to-storage movement of grains and produce.
- Facilitates livestock feed distribution across farm zones.
- Enhanced Farming Efficiency through Landforce Medium Duty Trailer
- Faster unloading via hydraulic tip reduces downtime.
- Cuts labor cost with single-operator tipping control.
- Improves fuel economy through balanced axle load design.
- Increases trip efficiency with quick tip cycle (10–15 sec).
- Reduces spillage and crop damage on rough terrain.
- Versatile Agricultural Applications through Landforce Medium Duty Trailer
- Cereal crop transport: wheat, rice, barley.
- Cash crop logistics: cotton, sugarcane, oilseeds.
- Vegetable & fruit haulage: potatoes, onions, tomatoes.
- Livestock feed delivery: hay, silage, feed concentrates.
- Farm input movement: fertilizer, seed bags, chemicals.
- Small machinery & equipment transport.
- Performance Specifications of Landforce Medium Duty Trailer
- Tipping Speed: Full tip in 12 – 18 sec under load.
- Hydraulic System: 120 bar rated cylinder; corrosion-resistant seals.
- Ground Clearance: 260 mm for uneven fields.
- Stability: Low center of gravity for safe unloading.
- Maneuverability: 4 m turning radius enables tight-field operation.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): TRAM 2 (2 T capacity)
- Medium farms (5 – 25 acres): TRAM 5 (5 T capacity)
Application-specific:
- Grain farms: TRAM 5 for bulk transport
- Livestock units: TRAM 2 for feed delivery
Budget-wise:
- Economy: TRAM 2 without brakes
- Mid-range: TRAM 5 with hydraulic brakes
ROI Guidance:
Recovery within one season through labor and fuel savings; eligible for farm mechanization subsidies.
- Maintenance and Care of Landforce Medium Duty Trailer
- Hydraulic System: Check fluid level monthly; inspect seals for leaks.
- Axles & Bearings: Grease every 50 hrs; inspect taper bearings quarterly.
- Body & Frame: Wash and repaint scratches after harvest.
- Tyres: Check pressure (20–25 psi) before each use; monitor wear.
- Brakes: Adjust hydraulic linkage every 100 hrs.
- Storage: Store under shade; drain hydraulics if idle > 1 month.
- Pre-operation Checklist: Verify hitch ring, tyre bolts, cylinder connections.
- Longevity Factors of Landforce Medium Duty Trailer
- Heavy channel chassis with anti-corrosive treatment.
- Durable telescopic cylinders rated for frequent tipping.
- Replaceable wear pads and easy-access greasing points.
- Expected service life: 7–10 years with routine maintenance.
FAQs
What tractor horsepower (HP) is required for Landforce Medium Duty Trailer?
Compatible with 40–70 HP tractors according to variant.
What types of trailers are available in Landforce Medium Duty Trailer, and what are their advantages?
TRAM 2 and TRAM 5 tipping trailers; hydraulic telescopic tip ensures rapid, complete unloading.
What is the loading capacity and body dimensions of the Landforce Medium Duty Trailer?
TRAM 2: 2 T, 8 × 4.6 × 1.5 ft; TRAM 5: 5 T, 10.5 × 6.5 × 1.5 ft.
How does Landforce Medium Duty Trailer help in farm transportation and material handling efficiency?
Hydraulic tipping and uniform load distribution cut turnaround time and reduce labor.
Why is hydraulic system quality and tipping mechanism important in Landforce Medium Duty Trailer?
Ensures smooth, reliable operation under heavy loads and extends cylinder life.
Is Landforce Medium Duty Trailer compatible with all tractor brands and models in India?
Yes, fits standard 50 mm ring hitch and 40–70 HP tractor range.
What about tipping angle control and hydraulic operation in Landforce Medium Duty Trailer?
Telescopic 2-stage cylinder offers stable tipping up to 45° for full discharge.
How does Landforce Medium Duty Trailer compare to other transportation methods in farming?
Delivers faster unloading and safer operation than manual dump trolleys.
What maintenance schedule should be followed for Landforce Medium Duty Trailer?
Monthly hydraulic checks, bi-monthly greasing of bearings, quarterly frame inspection.
What warranty and after-sales service support is available for Landforce Medium Duty Trailer?
12-month manufacturer warranty with nationwide service centers and spare parts availability.
How TractorXpert Helps:
TractorXpert presents side-by-side comparisons of trailer models, prices, and features—helping farmers select the ideal implement for their acreage and budget. By detailing loading capacities, hydraulic tipping performance, and maintenance needs, TractorXpert ensures cost savings, enhanced transport efficiency, and optimal farm productivity with reliable material handling solutions.
