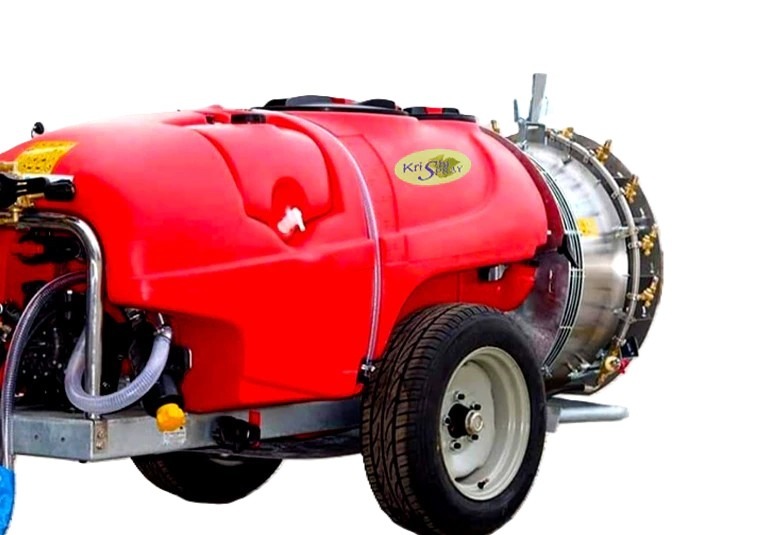

Krishi Spray KX600V700 DRG-FX
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Specification | Details |
| Brand | Krishispray |
| Model Name | …
- About Product
| Specification | Details |
| Brand | Krishispray |
| Model Name | KX600V700 DRG-FX |
| Implement Type | Trailed Sprayer / Air Blast Sprayer |
| Category | Crop Protection |
| Compatible Tractor Power | 24+ HP |
| Price Range | ₹2,80,000* – ₹3,50,000* |
- Key Specification and Technology Krishispray KX600V700 DRG-FX
| Parameter | Specification |
| Sprayer Type | Air-assisted trailed sprayer |
| Tank Capacity | 600 L main + hand wash + circuit cleaning tanks |
| Pump Type | M73 Imovilli diaphragm pump |
| Pump Capacity | 60 L/min |
| Maximum Working Pressure | 40 bar |
| Fan Diameter | SS Dragone single fan, 700 mm |
| Nozzles | 12 pc M82 Braglia Italian nozzles |
| Spray Tips | Albuz ceramic (ATR optional) |
| Overall Dimensions | Robust trailed design |
| Unladen Weight | 520 kg (approx.) |
| Tractor Power Requirement | 24+ HP |
| Mounting Type | Trailed via PTO |
| Drive System | PTO driven |
| PTO Speed Requirement | 540 RPM |
| Tank Material | High-grade polyethylene |
- Technical Specifications Krishispray KX600V700 DRG-FX
| Technical Parameter | Specification |
| Application Rate Capacity | 150–400 L/ha |
| Field Coverage Efficiency | 1.0–2.0 ha/hr |
| Boom/Nozzle Height Adj. | 0.5–2.5 m |
| Pump Working Pressure | 1–10 bar |
| Agitation System | Braglia tank mixers |
| Filtration System | Suction filter + line filter |
| Control System | M170 OT Braglia brass controller |
| Operating Speed Range | 2–8 km/hr |
| Chemical Compatibility | Pesticides, herbicides, fungicides, liquid fertilizers |
| Weather Suitability | Wind <5 km/hr, 10–35 °C |
| Maintenance Intervals | Monthly pump/nozzle checks |
| Spare Parts Availability | Authorized dealer network |
| Warranty Coverage | 1 year standard |
- Agricultural Benefits and Applications
The KX600V700 DRG-FX’s 700 mm fan delivers superior canopy coverage in high-density plantations. Ideal for grapes, pomegranate, banana, mango, citrus, papaya, sapota, and guava, it ensures deep penetration and uniform distribution for pest, disease, and weed control.
- Enhanced Farming Efficiency
600 L capacity reduces refill stops. The 700 mm fan and 60 L/min pump cover 1–2 ha/hr, lowering application time. Trailed design and tubeless tyres enhance mobility, while PTO-driven system ensures consistent operation.
- Versatile Crop Applications
Suited for high-density orchards and plantations:
- Grapes, pomegranate, banana, mango, citrus, papaya, sapota, guava
- Performance Specifications
700 mm fan optimizes droplet size for minimal drift. Twelve nozzles spaced at 50 cm ensure uniform coverage. Field efficiency of 75–85% under standard conditions guarantees reliable results.
- Farmer Decision Support
Farm Size Recommendations:
- Medium orchards (5–25 acres): KX600V700 DRG-FX for dense canopies
- Large plantations (25+ acres): Multiple units for full coverage
Budget Options:
- Premium double-fan model at ₹2,80,000*–₹3,50,000*
- ROI: Payback in 2–3 seasons via efficiency gains
Financing: Available through loans and subsidies.
- Maintenance and Care
Monthly pump seal checks, weekly nozzle and filter cleaning, quarterly fan bearing inspection, and seasonal tank flush ensure long-term reliability.
- Longevity Factors
Durable polyethylene tank, galvanized chassis, and wide-angle PTO shaft resist field wear. Replaceable Italian nozzles and pump components support 8–12 years of service.
FAQs Section
What tractor horsepower is required?
24+ HP with 540 RPM PTO.
What sprayer type is it?
700 mm single-fan air-assisted trailed sprayer.
What is the tank capacity and fan size?
600 L with 700 mm Dragone fan.
How does it help in pest management?
Deep canopy penetration with high-capacity fan and adjustable nozzles for uniform treatment.
Why are pump and nozzle quality important?
60 L/min pump and Italian nozzles ensure consistent flow and precise droplet formation for effective coverage.
Is it compatible with all tractors?
Yes, any 24+ HP tractor with PTO linkage.
What about height adjustment and pressure control?
Height 0.5–2.5 m; pressure 1–10 bar via brass controller.
How does it compare to manual methods?
Covers 1–2 ha/hr vs. 0.2 ha/hr manually, saving chemicals up to 30%.
What maintenance is needed?
Monthly pump/nozzle checks, weekly filter cleaning, seasonal tank flush.
What warranty and service support is available?
1-year warranty with dealer network support.
