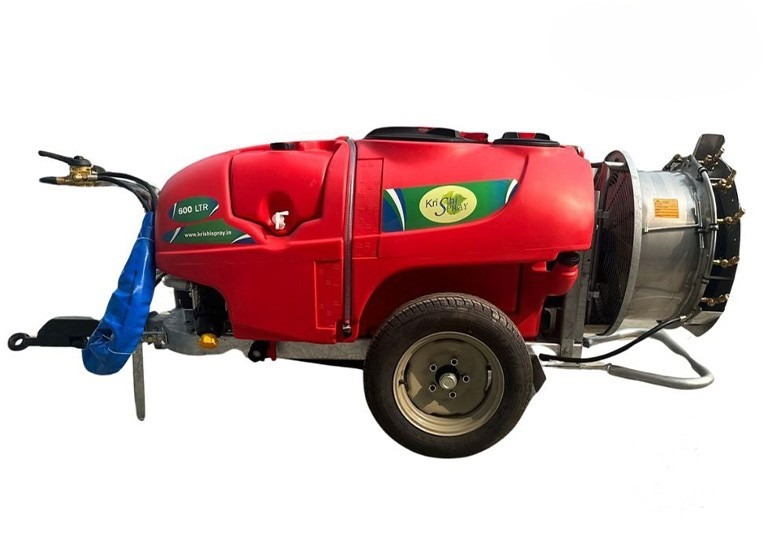

Krishi Spray KX600V600-FX Double Fan
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Specification | Details |
| Brand | Krishi Spray |
| Model… |
- About Product
| Specification | Details |
| Brand | Krishi Spray |
| Model Name | KX600V600-FX Double Fan |
| Implement Type | Trailed Sprayer / Air Blast Sprayer |
| Category | Crop Protection |
| Compatible Tractor Power | 24+ HP |
| Price Range | ₹2,50,000* – ₹3,50,000* |
- Key Specification and Technology Krishi Spray KX600V600-FX Double Fan
| Parameter | Specification |
| Sprayer Type | Air-assisted trailed sprayer |
| Tank Capacity | 600 L main + hand wash + circuit cleaning tanks |
| Pump Type | M73 Imovilli diaphragm pump |
| Pump Capacity | 60 L/min |
| Maximum Working Pressure | 40 bar |
| Fan Diameter | 600 mm (SS Dragone double fan counter-rotating) |
| Nozzles | 10 pc Braglia Italian M82 nozzles |
| Spray Tips | Albuz ceramic (ATR optional) |
| Overall Dimensions | Robust trailed design |
| Unladen Weight | 500 kg (approx.) |
| Tractor Power Requirement | 24+ HP |
| Mounting Type | Trailed via PTO |
| Drive System | PTO driven |
| PTO Speed Requirement | 540 RPM |
| Tank Material | High-grade polyethylene |
- Technical Specifications Krishi Spray KX600V600-FX Double Fan
| Technical Parameter | Specification |
| Application Rate Capacity | 150–400 L/ha |
| Field Coverage Efficiency | 1.0–2.0 ha/hr |
| Boom/Nozzle Height Adjustment | 0.5–2.0 m |
| Pump Working Pressure | 1–10 bar |
| Agitation System | Braglia tank mixers |
| Filtration System | Suction filter + line filter |
| Control System | M170 OTC Braglia brass controller |
| Operating Speed Range | 2–8 km/hr |
| Chemical Compatibility | Pesticides, herbicides, fungicides, liquid fertilizers |
| Weather Condition Suitability | Wind <5 km/hr, 10–35 °C |
| Maintenance Intervals | Monthly pump/nozzle checks |
| Spare Parts Availability | Authorized dealer network |
| Warranty Coverage | 1 year standard |
- Agricultural Benefits and Applications
The KX600V600-FX double fan model delivers superior canopy penetration in orchards and field crops. Dual counter-rotating fans ensure even air distribution both sides of the tractor, ideal for grapes, pomegranate, banana, citrus, papaya, guava, custard apple, lychee, and mango. Italian nozzles and high-pressure pump deliver effective pest, disease, and weed control.
- Enhanced Farming Efficiency
Large 600 L tank reduces refill frequency. Dual 600 mm fans and 60 L/min pump cover 1–2 ha/hr, cutting application time. PTO-driven trailed design simplifies operation; tubeless tyres and ADR axle ensure stability and maneuverability.
- Versatile Crop Applications
Suitable for:
- Orchards: grapes, pomegranate, banana, citrus, papaya, guava, custard apple, lychee, mango
- Field crops: soybean, tur, chilli, cotton, rice, sugarcane, cereals, pulses
- Performance Specifications
Dual 600 mm fans produce optimal droplet sizes for minimal drift. Ten Braglia nozzles spaced at 50 cm provide uniform distribution. Field efficiency of 75–85% under standard conditions ensures reliable coverage.
- Farmer Decision Support
Farm Size Recommendations:
- Medium orchards (5–25 acres): KX600V600-FX double fan for uniform coverage
- Large plantations (25+ acres): Multiple units or extended hours for continuous operation
Budget Options:
- Premium double fan model at ₹2,50,000*–₹3,50,000*
- ROI: Payback in 2–3 seasons via chemical savings and efficiency
Financing: Equipment loans and subsidies available.
- Maintenance and Care
Inspect pump diaphragms monthly. Clean nozzles and filters weekly. Check fan bearings and belts quarterly. Flush tanks after use and store under shelter. Inspect chassis, axle, and tyres regularly.
- Longevity Factors
Polyethylene tank resists chemicals. Galvanized chassis and wide-angle PTO shaft ensure durability. Counter-rotating fans reduce wear. Replaceable Italian nozzles and pump components support 8–12 years of service.
FAQs Section
What tractor horsepower is required?
24+ HP with 540 RPM PTO.
What sprayer type is it?
Dual-fan air-assisted trailed sprayer.
What is the tank capacity and fan size?
600 L plus cleaning tanks; dual 600 mm fans.
How does it help in pest management?
Dual fans ensure even canopy coverage; high-pressure pump delivers precise droplets.
Why are pump and nozzle quality important?
60 L/min pump and Italian nozzles ensure consistent flow and droplet size for effective coverage and minimal drift.
Is it compatible with all tractors?
Yes, any 24+ HP tractor with PTO linkage.
What about height adjustment and pressure control?
Nozzle height 0.5–2.0 m; pressure 1–10 bar via brass controller.
How does it compare to manual methods?
Covers 1–2 ha/hr vs. 0.2 ha/hr manually, with up to 30% chemical savings.
What maintenance schedule is recommended?
Monthly pump checks, weekly nozzle/filter cleaning, quarterly fan inspection, seasonal tank flush.
What warranty and service support is available?
1-year warranty with dealer support and authorized spare parts.
