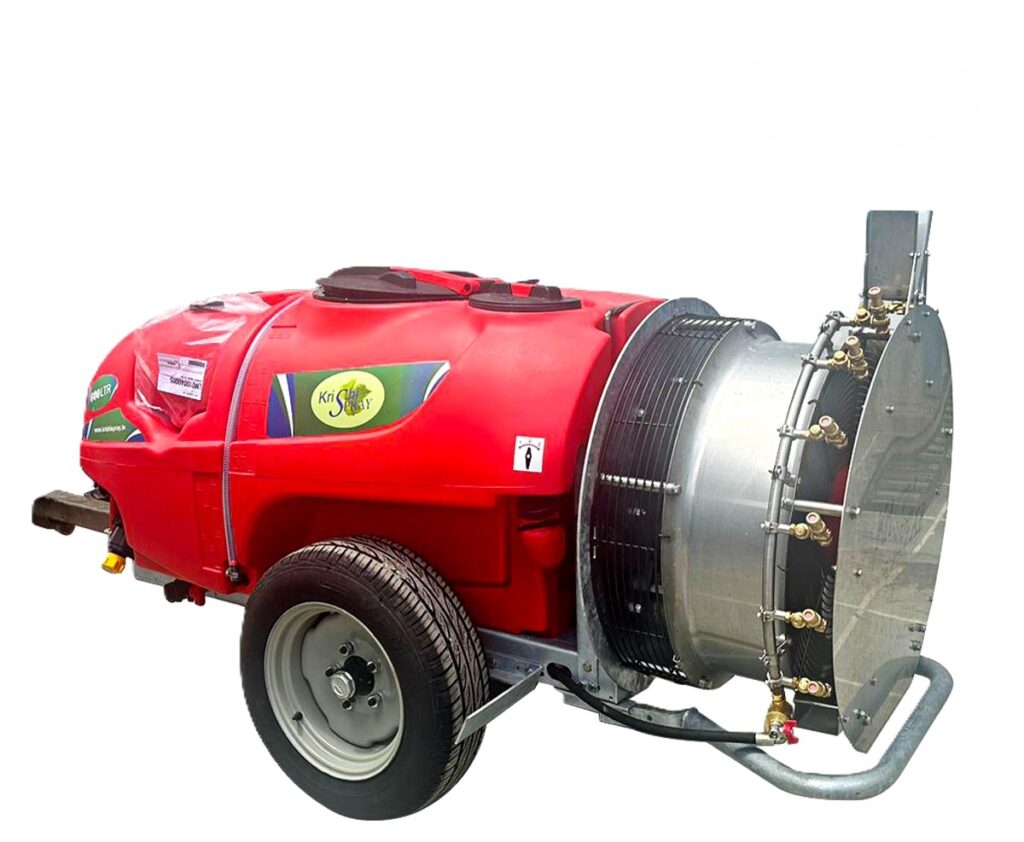

Krishi Spray Krishispray KX600V700-FXT
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Specification | Details |
| Brand | Krishispray |
| Model Name | …
- About Product
| Specification | Details |
| Brand | Krishispray |
| Model Name | Krishispray KX600V700-FXT |
| Implement Type | Trailed Sprayer |
| Category | Crop Protection |
| Compatible Tractor Power | 24+ HP |
| Price Range | ₹2,90,000* – ₹3,80,000* |
- Key Specification and Technology Krishispray KX600V700-FXT
| Parameter | Specification |
| Sprayer Type | Air-assisted trailed sprayer |
| Tank Capacity | 600 L main + hand wash & circuit cleaning tanks |
| Pump Type | M73 / AR713 Imovilli diaphragm pump |
| Pump Capacity | 60 L/min |
| Maximum Working Pressure | 40 bar |
| Fan Diameter | 700 mm SS Dragone fan |
| Nozzles | 12 pc M82 Braglia Italian nozzles |
| Spray Tips | Albuz ceramic (ATR optional) |
| Overall Dimensions | Heavy-duty trailed design |
| Unladen Weight | 530 kg (approx.) |
| Tractor Power Requirement | 24+ HP |
| Mounting Type | Trailed via PTO |
| Drive System | PTO driven |
| PTO Speed Requirement | 540 RPM |
| Tank Material | High-grade polyethylene |
- Technical Specifications Krishispray KX600V700-FXT
| Technical Parameter | Specification |
| Application Rate Capacity | 150–400 L/ha |
| Field Coverage Efficiency | 1.0–2.0 ha/hr |
| Boom/Nozzle Height Adjustment | 0.5–2.5 m |
| Pump Working Pressure | 1–10 bar |
| Agitation System | Braglia tank mixers |
| Filtration System | Suction filter + line filter |
| Control System | M170 OT Braglia brass controller |
| Operating Speed Range | 2–8 km/hr |
| Chemical Compatibility | Pesticides, herbicides, fungicides, liquid fertilizers |
| Weather Suitability | Wind <5 km/hr, 10–35 °C |
| Maintenance Intervals | Monthly pump/nozzle checks |
| Spare Parts Availability | Authorized dealer network |
| Warranty Coverage | 1 year standard |
- Agricultural Benefits and Applications
The KX600V700-FXT excels in high-density plantations, providing deep canopy penetration for grapes, pomegranate, banana, mango, citrus, sapota, papaya, and guava. Its 700 mm fan and high-pressure pump ensure uniform distribution, improving pest, disease, and weed control.
- Enhanced Farming Efficiency
600 L tank reduces refill stops. The 700 mm fan and 60 L/min pump deliver 1–2 ha/hr coverage, cutting application time. Tubeless tyres, ADR axle, and PTO drive simplify operation and enhance stability on varied terrain.
- Versatile Crop Applications
Ideal for high-density orchards and plantations:
- Grapes, pomegranate, banana, mango, citrus, papaya, sapota, guava
- Performance Specifications
700 mm fan optimizes droplet size for minimal drift. Twelve nozzles spaced at 50 cm ensure uniform placement. Field efficiency of 75–85% under standard conditions guarantees reliable performance.
- Farmer Decision Support
Farm Size Recommendations:
- Medium orchards (5–25 acres): KX600V700-FXT for dense canopies
- Large plantations (25+ acres): Multiple units for continuous coverage
Budget Options:
- Premium model at ₹2,90,000*–₹3,80,000*
- ROI: Payback in 2–3 seasons via chemical savings and efficiency
Financing: Equipment loans and subsidy programs available.
- Maintenance and Care
Inspect pump diaphragms monthly. Clean nozzles and filters weekly. Check fan bearings quarterly. Flush tanks after use. Store under cover to protect polyethylene.
- Longevity Factors
Durable polyethylene tank resists chemicals. Galvanized chassis and wide-angle PTO ensure rugged performance. Replaceable Italian nozzles and pump parts support 8–12 years of service.
FAQs Section
What tractor horsepower is required?
24+ HP with 540 RPM PTO.
What sprayer type is it?
700 mm single-fan air-assisted trailed sprayer.
What is the tank capacity and fan size?
600 L with 700 mm SS Dragone fan.
How does it help in pest management?
Deep canopy penetration ensures uniform chemical delivery for effective control.
Why are pump and nozzle quality important?
60 L/min pump and Italian nozzles ensure consistent flow and precise droplets for minimal drift.
Is it compatible with all tractors?
Yes, compatible with any 24+ HP tractor with PTO linkage.
What about height adjustment and pressure control?
Height 0.5–2.5 m; pressure 1–10 bar via brass controller.
How does it compare to manual methods?
Covers 1–2 ha/hr vs. 0.2 ha/hr manually, saving chemicals by up to 30%.
What maintenance is needed?
Monthly pump checks, weekly nozzle/filter cleaning, seasonal tank flush.
What warranty and service support is available?
1-year warranty with dealer support.
