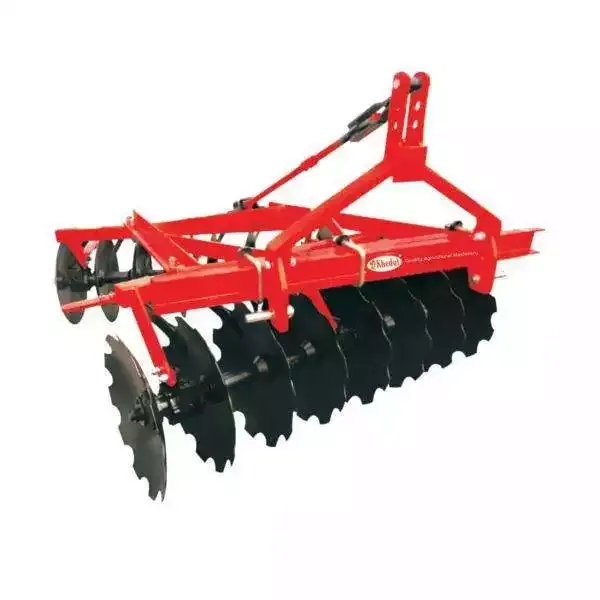

Khedut Mounted Offset Disc Harrow (KAMODH Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Khedut Mounted Offset Disc Harrow price* in India, specifications, working width, depth & disc…
- About Product
Khedut Mounted Offset Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Khedut KAMODH Series Variants
| Model | KAMODH 12 | KAMODH 14 | KAMODH 16 | KAMODH 18 | KAMODH 20 | KAMODH 22 | KAMODH 24 |
| Frame (mm) | 75×10 (Angle) & 100×50 (Channel) | 75×10 (Angle) & 100×50 (Channel) | 75×10 (Angle) & 100×50 (Channel) | 75×10 (Angle) & 100×50 (Channel) | 75×10 (Angle) & 100×50 (Channel) | 75×10 (Angle) & 100×50 (Channel) | 75×10 (Angle) & 100×50 (Channel) |
| Axle (mm) | 28 solid sq. rod | 28 solid sq. rod | 28 solid sq. rod | 28 solid sq. rod | 28 solid sq. rod | 28 solid sq. rod | 28 solid sq. rod |
| Disc Type | Notched front gang & plain rear gang | Notched front gang & plain rear gang | Notched front gang & plain rear gang | Notched front gang & plain rear gang | Notched front gang & plain rear gang | Notched front gang & plain rear gang | Notched front gang & plain rear gang |
| Disc Diameter (mm) | 560×4 / 610×6 | 560×4 / 610×6 | 560×4 / 610×6 | 560×4 / 610×6 | 560×4 / 610×6 | 560×4 / 610×6 | 560×4 / 610×6 |
| Bearing Hubs | 4 | 4 | 6 | 6 | 8 | 8 | 8 |
| Disc Spacing (mm) | 228 | 228 | 228 | 228 | 228 | 228 | 228 |
| Working Width (mm) | 1420 | 1630 | 1850 | 2060 | 2280 | 2500 | 2700 |
| Working Width (m) | 1.42 | 1.63 | 1.85 | 2.06 | 2.28 | 2.50 | 2.70 |
| Weight (kg) | 400 | 440 | 510 | 590 | 620 | 680 | 740 |
| Tractor HP Required | 35–55 | 35–55 | 55–75 | 55–75 | 75–95 | 75–95 | 95–125 |
| Mounting Type | CAT-II 3-point linkage; mounted offset design | CAT-II 3-point linkage; mounted offset design | CAT-II 3-point linkage; mounted offset design | CAT-II 3-point linkage; mounted offset design | CAT-II 3-point linkage; mounted offset design | CAT-II 3-point linkage; mounted offset design | CAT-II 3-point linkage; mounted offset design |
- Technical Specifications
- Soil Compatibility: Light, medium, heavy, clay, rocky soils
- Field Efficiency: Up to 1.2 ha/hr at 5–7 km/hr
- Fuel Consumption: Reduces draft need by 10–15%
- Durability: Robust angle-channel frame withstands tough conditions
- Bearings & Seals: Sealed hubs with waterproof and dustproof protection
- Maintenance: Grease bearing hubs every 50 hrs; check discs every 100 hrs
- Spare Parts: Available through Khedut dealers nationwide
- Warranty: 12 months or 1,000 hrs with service support
- Weather Suitability: Operates in wet and dry fields
- Crop Compatibility: Suitable for cereals, pulses, oilseeds, vegetables
- Agricultural Benefits and Applications
- Primary Tillage: Breaks clods and loosens compacted soil
- Secondary Tillage: Levels and refines seedbed for optimal sowing
- Weed Control: Cuts and buries weeds while mixing residues
- Soil Structure: Enhances aeration and water infiltration
- Enhanced Farming Efficiency
- Time Saving: Single-pass offset design reduces field prep time
- Fuel Efficiency: Lower power draw than traditional disc harrows
- Labor Reduction: Easy hitching and mounted transport
- Productivity: Wide working widths boost coverage
- Versatile Crop Applications
Suitable for:
- Cereals: Wheat, barley, oats, rice
- Cash Crops: Cotton, sugarcane, maize, sunflower
- Pulses: Chickpea, lentils, pigeon pea
- Vegetables: Potato, onion, tomato
- Orchards: Inter-cultivation in orchards and vineyards
- Performance Specifications
- Operating Speed: 5–7 km/hr depending on model and soil
- Ground Pressure: Even distribution prevents rutting
- Penetration: Effective up to 200 mm depth
- Finish Quality: Uniform, level seedbed for consistent germination
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (<5 acres): KAMODH 12, 14*
- Medium farms (5–25 acres): KAMODH 16, 18*
- Large farms (>25 acres): KAMODH 20, 22, 24*
Soil-Specific Advice:
- Light soils: 12–14 disc models at shallow depth
- Medium soils: 16–18 disc models at standard depth
- Heavy clay: 20–24 disc models at maximum depth
Budget Categories:
- Economy: KAMODH 12, 14*
- Mid-Range: KAMODH 16, 18*
- Premium: KAMODH 20, 22, 24*
ROI & Financing:
- Payback in 1–2 seasons through saved fuel and labor
- Eligible for farm mechanization subsidies up to 50%*
- Maintenance and Care
- Disc Maintenance: Rotate and replace discs every 800–1,000 hrs
- Bearing Care: Grease hubs every 50 hrs; inspect seals quarterly
- Frame Care: Tighten bolts and apply anti-rust coating annually
- Storage: Clean and cover when not in use to prevent corrosion
- Pre-Operation Checklist: Verify linkage pins, disc alignment, hub lubrication
- Longevity Factors
- Material Quality: High-tensile steel discs with heat treatment
- Wear Resistance: Disc life expectancy of 800–1,000 hrs
- Structural Durability: Angle-channel frame resists heavy use
- Component Replaceability: Modular design for easy part replacement
FAQs – Khedut Mounted Offset Disc Harrow
What HP is required?
35–55 HP for KAMODH 12–14; 55–75 HP for KAMODH 16–18; 75–95 HP for KAMODH 20–22; 95–125 HP for KAMODH 24.
What harrow type is used?
Mounted offset disc harrow with notched front and plain rear discs for efficient soil cutting and mixing.
What is the working width and depth?
Working widths range from 1.42–2.70 m; depth adjustable to 200 mm.
How does it aid seedbed preparation?
Creates a level, clod-free seedbed by cutting, mixing, and leveling in one pass.
Why disc quality matters?
High-tensile steel discs maintain sharpness and durability in tough soils.
Compatibility with tractors?
Fits CAT-II 3-point linkage on all major Indian tractor brands.
What about depth control?
Axle settings allow field-adjustable depth; offset design enhances soil coverage.
How does it compare to rotavators?
Lower power draw than rotavators and better residue handling than cultivators.
Maintenance schedule?
Grease hubs every 50 hrs; inspect discs and frame quarterly.
Warranty and support?
12 months or 1,000 hrs warranty; service via Khedut’s nationwide dealer network.
TractorXpert helps farmers compare harrow implement prices*, specifications, and benefits from leading brands like Khedut. Our platform enables informed decisions on disc harrow for farming—matching farm size, soil type, and budget to the ideal implement, boosting soil preparation efficiency, reducing tillage operations, improving seedbed quality, and enhancing overall farm productivity.
