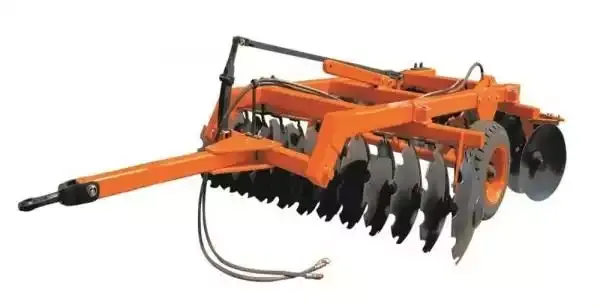

Khedut Hydraulic Heavy Duty Disc Harrow (KAHHDDH Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Khedut Hydraulic Heavy Duty Disc Harrow price* in India, specifications, working width, depth &…
- About Product
Khedut Hydraulic Heavy Duty Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Khedut Hydraulic Heavy Duty Disc Harrow Variants
| Model | KAHHDDH 18 | KAHHDDH 20 | KAHHDDH 22 | KAHHDDH 24 | KAHHDDH 28 |
| Frame (mm) | 100×100×6 | 100×100×6 | 100×100×6 | 100×100×6 | 100×100×6 |
| Axle (mm) | 40 | 40 | 40 | 40 | 40 |
| Type of Disc | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang | Notched Disc in Front Gang & Plain Disc in Rear Gang |
| Disc Diameter (mm) | 610×10 / 660×6 | 610×10 / 660×6 | 610×10 / 660×6 | 610×10 / 660×6 | 610×10 / 660×6 |
| Bearing Hubs | 6 | 6 | 6 | 8 | 8 |
| Distance Between Discs (mm) | 228 | 228 | 228 | 228 | 228 |
| Working Width (mm) | 2100 | 2300 | 2500 | 2700 | 3100 |
| Weight (kg) | 1550 | 1590 | 1720 | 1800 | 1980 |
| Tractor Power (HP) | 75–95 | 75–95 | 75–95 | 95–125 | 95–125 |
Common Specifications:
- Mounting Type: CAT-II 3-point linkage with hydraulic folding
- Central Tyre: Heavy-duty pneumatic tyre for transport and depth control
- Hydraulic System: Advanced hydraulic controls for depth and gang angle adjustment
- Gang Configuration: Split gang design with notched front and plain rear discs
- Technical Specifications – Khedut Hydraulic Heavy Duty Disc Harrow
- Soil Type Compatibility: All soil types including heavy clay, rocky, and waterlogged conditions
- Field Efficiency: Up to 2.0 ha/hr depending on model and field conditions
- Fuel Consumption Impact: Reduces fuel usage by 20–25% through hydraulic precision
- Durability Rating: Heavy-duty construction rated for 1,500+ operating hours
- Bearing Quality: Sealed heavy-duty bearings (6–8 hubs) with IP65 waterproof protection
- Maintenance Requirements: Hydraulic system service every 250 hrs; disc inspection every 150 hrs
- Spare Parts Availability: Comprehensive parts network through Khedut dealers
- Warranty Details: 18 months or 1,500 hrs with extended service support
- Weather Suitability: All-weather operation including monsoon conditions
- Crop Compatibility: Suitable for intensive farming across all crop types
- Agricultural Benefits and Applications of Khedut Hydraulic Heavy Duty Disc Harrow
- Primary Tillage: Deep breaking of hardpan layers with hydraulic power assistance
- Secondary Tillage: Precision seedbed preparation with adjustable depth control
- Weed Control: Effective burial of weeds and crop residues through adjustable gang angles
- Soil Structure Enhancement: Improves soil porosity and reduces compaction significantly
- Enhanced Farming Efficiency through Khedut Hydraulic Heavy Duty Disc Harrow
- Time-Saving Benefits: Single-pass deep tillage eliminates multiple field operations
- Fuel Efficiency Gains: Hydraulic system optimizes power utilization for maximum fuel savings
- Labor Reduction: Automated hydraulic controls minimize operator fatigue
- Field Productivity: Central tyre system enables quick field-to-field transport
- Versatile Crop Applications through Khedut Hydraulic Heavy Duty Disc Harrow
- Cereal Crops: Wheat, barley, oats, rice, and millet cultivation
- Cash Crops: Cotton, sugarcane, maize, sunflower, and mustard production
- Pulse Crops: Chickpea, lentils, pigeon pea, and soybean farming
- Vegetable Cultivation: Potato, onion, tomato, and other high-value crops
- Orchard Applications: Inter-cultivation in fruit orchards and plantation crops
- Performance Specifications of Khedut Hydraulic Heavy Duty Disc Harrow
- Operating Speed: 8–12 km/hr depending on soil conditions and model
- Ground Pressure Distribution: Central tyre ensures uniform pressure distribution
- Penetration Capability: Hydraulic power enables deep tillage in all soil types
- Levelness Quality: Superior seedbed finish with adjustable gang angles
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (<5 acres): KAHHDDH 18 model*
- Medium farms (5–25 acres): KAHHDDH 20, KAHHDDH 22 models*
- Large farms (>25 acres): KAHHDDH 24, KAHHDDH 28 models*
Soil-Specific Recommendations:
- Light soils: KAHHDDH 18–20 with moderate hydraulic settings
- Medium soils: KAHHDDH 20–22 with standard operation parameters
- Heavy clay soils: KAHHDDH 24–28 with maximum hydraulic power
Budget-Wise Categorization:
- Economy: KAHHDDH 18 (1550 kg, basic hydraulic features)*
- Mid-Range: KAHHDDH 20–22 (1590–1720 kg, balanced performance)*
- Premium: KAHHDDH 24–28 (1800–1980 kg, maximum coverage)*
ROI & Financing:
- Payback period: 1.5–2 seasons through reduced operational costs
- Available under government farm mechanization subsidies up to 50%*
- Maintenance and Care of Khedut Hydraulic Heavy Duty Disc Harrow
- Disc Maintenance: Inspect and replace discs every 1,000–1,200 operating hours
- Hydraulic System: Check fluid levels weekly; service every 250 operating hours
- Central Tyre Care: Maintain proper inflation; inspect for damage regularly
- Frame Maintenance: Lubricate hydraulic cylinders monthly; check structural integrity
- Seasonal Storage: Clean thoroughly after use; store in covered facility
- Longevity Factors of Khedut Hydraulic Heavy Duty Disc Harrow
- Material Quality: High-tensile steel discs (610×10 mm / 660×6 mm options)
- Wear Resistance: Premium disc life expectancy of 1,000–1,200 operating hours
- Hydraulic Durability: Industrial-grade hydraulic components ensure long service life
- Component Replaceability: Modular design allows easy field repairs and part replacement
FAQs – Khedut Hydraulic Heavy Duty Disc Harrow
What tractor horsepower (HP) is required for Khedut Hydraulic Heavy Duty Disc Harrow?
75–95 HP for KAHHDDH 18–22 models; 95–125 HP for KAHHDDH 24–28 models.
What types of harrows are available in Khedut Hydraulic Heavy Duty Disc Harrow?
Five models (18–28 discs) with notched front discs for cutting and plain rear discs for mixing.
What is the working width and depth capacity of Khedut Hydraulic Heavy Duty Disc Harrow?
Working widths from 2.1m to 3.1m; hydraulically adjustable depth up to 250mm.
How does Khedut Hydraulic Heavy Duty Disc Harrow help in seedbed preparation?
Hydraulic depth control creates uniform tilth while central tyre ensures consistent field finish.
Why is disc quality important in Khedut Hydraulic Heavy Duty Disc Harrow?
610×10mm or 660×6mm high-tensile steel discs provide superior cutting performance and durability.
Is Khedut Hydraulic Heavy Duty Disc Harrow compatible with all tractor brands?
Compatible with CAT-II tractors having hydraulic systems from all major manufacturers.
What about gang angle adjustment and depth control in Khedut Hydraulic Heavy Duty Disc Harrow?
Advanced hydraulic system provides precise gang angle and depth adjustments from operator seat.
How does Khedut Hydraulic Heavy Duty Disc Harrow compare to standard harrows?
Offers superior hydraulic precision, heavier construction (1550–1980 kg), and central tyre transport.
What maintenance schedule should be followed for Khedut Hydraulic Heavy Duty Disc Harrow?
Weekly hydraulic checks, 150-hour disc inspection, 250-hour hydraulic service, annual frame inspection.
What warranty and after-sales service support is available for Khedut Hydraulic Heavy Duty Disc Harrow?
18 months or 1,500 hrs warranty with comprehensive Khedut dealer network support across India.
TractorXpert serves as India’s leading platform for comparing harrow implement prices* and specifications from manufacturers like Khedut. Our detailed database helps farmers select the ideal disc harrow for farming based on their specific requirements, from compact KAHHDDH 18 (1550 kg) for small farms to heavy-duty KAHHDDH 28 (1980 kg) for large commercial operations. Through comprehensive technical comparisons, farmers can make informed decisions about agricultural harrow equipment that maximizes soil preparation efficiency, reduces tillage operations, and enhances farm productivity while ensuring excellent return on investment through cost-effective farming solutions.
Product General Information
Brand Name:
Khedut
Model Name:
Hydraulic Heavy Duty Disc Harrow (KAHHDDH Series)
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
75–125 HP (model dependent)
