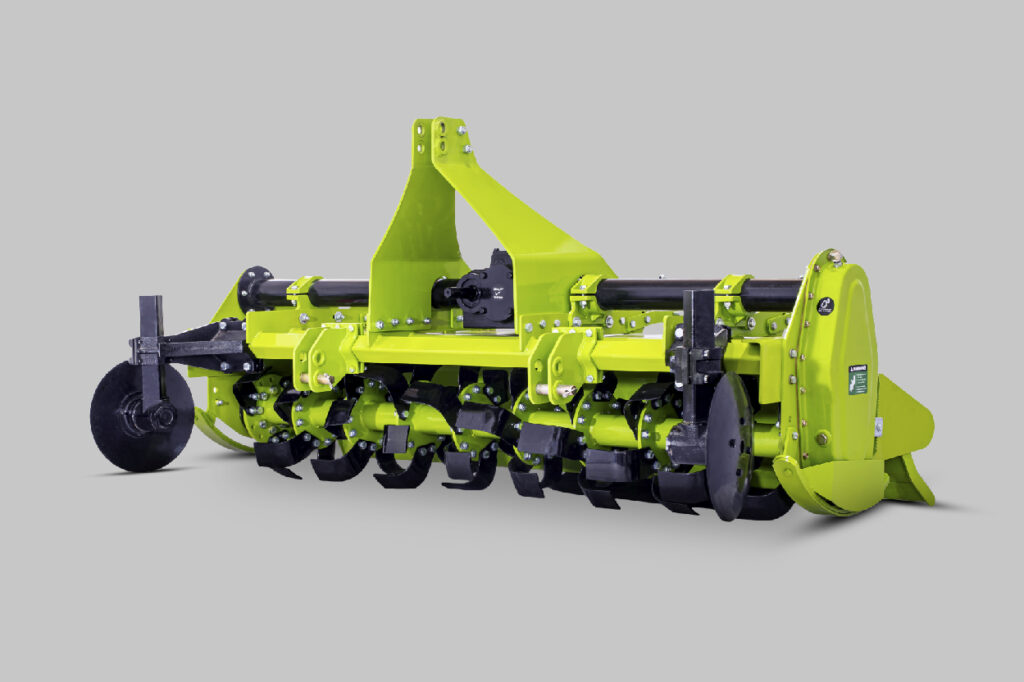

Jagatjit Group Jagatjit Rotavator (Regular Series & Jagro H2 Series)
{{ galleryProps.activeIndex + 1 }}/2
Description
Jagatjit Rotavator - Best Rotavator Price & Specifications in India | TractorXpert
Discover Jagatjit Rotavator models with complete specifications, prices…
Jagatjit Rotavator – Best Rotavator Price & Specifications in India | TractorXpert
Discover Jagatjit Rotavator models with complete specifications, prices starting from ₹98,000*. Find the best rotavator for farming with expert reviews and compare features at TractorXpert.
Key Features and Technology
Jagatjit Rotavators are engineered with advanced agricultural equipment for soil preparation that ensures superior performance in Indian farming conditions. The key technological features include:
Side Gear Drive Technology: Features side gear drive in an oil bath which produces less friction and smooth operation, making it an efficient farm implement
Heavy-Duty PTO Shaft: Equipped with heavy-duty PTO shaft with shear bolt for overload protection, ensuring reliable performance under varying soil conditions
Advanced Spring Assembly: Heavy duty spring assembly in plank ensures perfectly levelled and finished seedbed preparation
Multi-Speed Gearbox: The Jagro H2 series features heavy duty multi-speed gear box with 13×23 pinion-crown for enhanced power transmission
Robust Frame Design: Double pipe structure provides extra strength and durability for long-term agricultural use
Technical Specifications and Model Variants
Jagatjit offers comprehensive rotavator models ranging from 4 feet to 10 feet working widths, catering to diverse farming requirements:
| Working Width | 4 Ft | 5 Ft | 6 Ft | 7 Ft | 8 Ft | 9 Ft | 10 Ft |
| Working Width (mm) | 1188 | 1424 | 1805 | 2000 | 2390 | 2585 | 2935 |
| Tractor Power (HP) | 35-40 | 40-45 | 45-50 | 50-55 | 55-60 | 60-75 | 60-75 |
| Weight (Kg) | 390 | 410 | 440 | 500 | 590 | 630 | 670 |
| Price Range | ₹98,000*-₹1,65,000* | ₹98,000*-₹1,65,000* | ₹98,000*-₹1,65,000* | ₹98,000*-₹1,65,000* | ₹98,000*-₹1,65,000* | ₹98,000*-₹1,65,000* | ₹98,000*-₹1,65,000* |
Universal Specifications Across All Models of Jagatjit Rotavator
Blade Thickness: 7mm across all models
Blade Types Available: L, C, J, and LJF Type blades
Cultivation Depth: Up to 6 inches deep soil penetration
Overall Height: 1200mm standard height
Mounting System: 3-point linkage system
Agricultural Benefits and Applications
Enhanced Farming Efficiency
Jagatjit Rotavators deliver significant improvements in farming efficiency through multiple mechanisms:
Fuel Savings: The rotavator puts less load on the tractor, making tillage fast and economical
Time Reduction: Covers larger areas in single passes, reducing overall field preparation time
Soil Health Enhancement: Loosens and aerates soil up to 6 inches deep, improving soil structure
Reduced Labor Cost: Mechanizes soil preparation, eliminating manual labor requirements
Versatile Crop Applications
These rotavators are highly effective for various crop applications including:
- Paddy Fields: Excellent for wet land preparation and stubble management
- Wheat Cultivation: Perfect for post-harvest residue management
- Vegetable Farming: Ideal for fine seedbed preparation
- Sugarcane Fields: Effective for inter-row cultivation
- Cotton and Maize: Suitable for both pre and post-planting operations
Performance Specifications
Depth and Width Capabilities
Cultivation Depth: 6 inches maximum depth capacity for effective soil preparation
Working Width Range: Available from 1188mm (4 feet) to 2935mm (10 feet)
Blade Configuration: 30-72 blades depending on model size
Rotavator Blade Types: L-type for general farming, C-type for hard soil, J-type for wet conditions, and LJF-type for versatile applications
Pricing and Value Proposition
Jagatjit Rotavators offer exceptional value-for-money farm implement solutions with affordable rotavator price starting from ₹98,000*. The pricing structure reflects:
- Budget-Friendly Options: Entry-level models accessible to small farmers
- Premium Features: Advanced technology at competitive prices
- Long-term Value: Durable construction ensures extended service life
- Financing Support: Easy implement loan facilities available
Maintenance and Care
Blade Care
Regular inspection and replacement of rotavator blades ensures optimal performance. The 7mm thick blades are designed for durability but require periodic sharpening for maintaining cutting efficiency.
Lubrication Requirements
The side gear drive system operates in oil bath, requiring regular oil level checks and periodic oil changes as per manufacturer guidelines.
Servicing Schedule
Routine maintenance includes PTO shaft inspection, spring assembly checking, and overall implement alignment verification.
Longevity Factors
Durability Features
- Heavy-duty construction with robust materials
- Blade Hardness: High-grade steel blades with optimal hardness for extended wear resistance
- Gearbox Strength: Multi-speed gearbox designed for heavy-duty applications
- Frame Integrity: Double pipe structure ensures structural longevity
Warranty Support
Jagatjit rotavators come with 2-year warranty coverage, demonstrating manufacturer confidence in product quality and providing peace of mind to farmers.
FAQs Section
What tractor horsepower (HP) is required for Jagatjit Rotavator?
Jagatjit Rotavators require tractors ranging from 35 HP to 75 HP depending on the model size. Smaller 4-5 feet models work with 35-45 HP tractors, while larger 8-10 feet models need 55-75 HP tractors for optimal performance.
Which types of blades are available in Jagatjit Rotavator, and what do they do?
Jagatjit Rotavators offer four blade types: L-type blades for general soil conditions and mixing, C-type blades for hard and dry soil penetration, J-type blades for wet and sticky soil conditions, and LJF-type blades for versatile applications. All blades are 7mm thick for enhanced durability.
What is the working width of the Jagatjit Rotavator?
Jagatjit Rotavator working width ranges from 1188mm (4 feet) to 2935mm (10 feet), offering options for different farm sizes and tractor compatibility requirements.
How deep can the Jagatjit Rotavator cultivate in single pass?
Jagatjit Rotavators can cultivate up to 6 inches deep in a single pass, effectively loosening and aerating the soil for optimal seedbed preparation.
How important is blade hardness and quality in Jagatjit Rotavator?
Blade hardness and quality are crucial factors in Jagatjit Rotavators. The 7mm thick high-grade steel blades provide excellent durability and cutting efficiency. Proper blade hardness ensures longer service life, reduced maintenance costs, and consistent performance across different soil conditions.
Are Jagatjit Rotavators compatible with all tractor brands and models in India?
Yes, Jagatjit Rotavators feature universal 3-point linkage system making them compatible with all major tractor brands in India including Mahindra, Sonalika, New Holland, John Deere, and others, provided the HP requirement matches the rotavator specifications.
What about maintenance and warranty in Jagatjit Rotavator?
Jagatjit Rotavators come with comprehensive 2-year warranty coverage. Maintenance includes regular oil level checks for the gear drive system, blade inspection and replacement, and periodic PTO shaft servicing. The company provides accessible parts and clear maintenance instructions for easy upkeep.
How TractorXpert Helps You Find the Right Farm Implement
TractorXpert serves as your comprehensive digital companion for selecting the perfect agricultural equipment for soil preparation. Our platform revolutionizes farm mechanization in India by providing detailed comparisons of heavy-duty rotavator models, specifications, and rotavator depth and width capacity across multiple brands.
Through TractorXpert, farmers can compare tractor power compatibility requirements, analyze rotavator maintenance and durability factors, and access real-time pricing information with the convenience of affordable rotavator price filtering options. Our expert reviews help you understand which rotavator blade types work best for your specific crops – whether you’re cultivating paddy, wheat, or vegetables.
Product General Information
Brand Name:
Jagatjit Group
Model Name:
Jagatjit Rotavator (Regular Series & Jagro H2 Series)
Implement Type:
Rotavator
Category:
Tillage
Compatible Tractor Power:
35-75 HP
