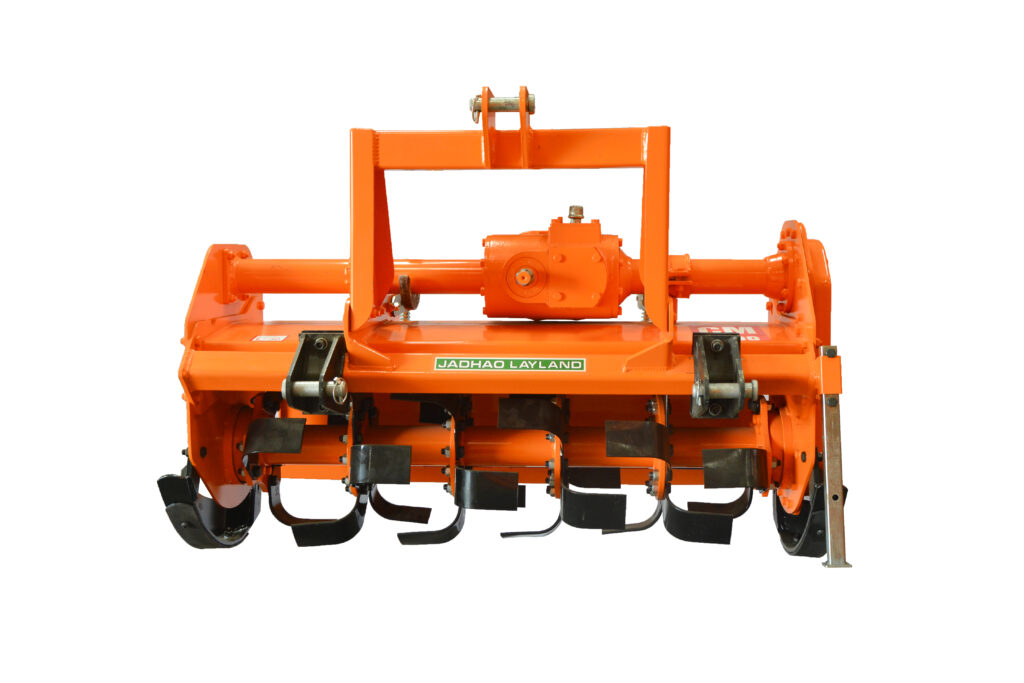

JADHAOLAYLAND CM1200 Rotavator | Best Rotavator for Farming | Rotavator Price & Specification in India
Discover JADHAOLAYLAND CM1200 Rotavator: 1.2…
JADHAOLAYLAND CM1200 Rotavator | Best Rotavator for Farming | Rotavator Price & Specification in India
Discover JADHAOLAYLAND CM1200 Rotavator: 1.2 m width, 20 blades, 25–40 HP compatibility, robust gearbox, affordable rotavator price in India.
Key Features and Technology
- Heavy-Duty Construction: Sturdy steel frame and high-torque gearbox built for heavy-duty rotavator models.
- 20 L-Blades: Hardened steel blades for superior soil cutting, mixing, and residue incorporation.
- Efficient Power Transmission: Single-speed oil-bath gearbox reduces PTO shock and delivers continuous Rotavator depth and width capacity.
- Fuel Savings: Optimized blade profile lowers tractor load, cutting fuel use and advancing farm mechanization in India.
- Sealed Bearings & Gearbox: Oil-bath lubrication and sealed bearings ensure minimal Rotavator maintenance and durability.
- Depth Control Mechanism: Adjustable skid shoes and spring-loaded linkages for precise working depth.
Technical Specifications and Model Variant
| Specification | CM1200 |
| Working Width | 1.2 m (4 Feet) |
| Inner Length (L) | 1200 mm |
| Number of L-Blades | 20 |
| Tractor Power Compatibility | 25–40 HP |
| PTO Speed | 540 RPM |
| Gearbox Type | Single-Speed, Oil-Bath |
| Net Weight | 260 kg |
Agricultural Benefits and Applications
Enhanced Farming Efficiency
The CM1200 Rotavator prepares a fine tilth by pulverizing and leveling soil in a single pass, saving up to 35% field prep time. Less labor and lower fuel costs make this agricultural equipment for soil preparation an economical choice.
Versatile Crop Applications
Perfect for paddy, wheat, maize, sugarcane, cotton, and vegetables, it ensures uniform soil aeration and residue mixing for healthier crop emergence.
Performance Specifications
Depth and Width Capabilities
- Working Width: 1.2 m (4 Feet)
- Working Depth: Up to 200 mm (adjustable)
Maintenance and Care
- Blade Care: Inspect blades quarterly; replace worn blades to maintain performance.
- Lubrication: Oil-bath gearbox requires periodic oil checks; grease PTO and blade shafts.
- Servicing: Accessible design simplifies gearbox inspection and blade changes.
Longevity Factors
- Durability: Reinforced frame resists bending in rocky soil conditions.
- Wear Resistance: Oil-bath lubrication minimizes friction, extending gearbox life.
- Blade Hardness: Hardened steel retains sharpness, reducing replacement frequency.
FAQs
What tractor horsepower is required for the JADHAOLAYLAND CM1200 rotavator?
A 25–40 HP tractor ensures optimal performance and uniform soil cutting.
Which types of blades are available in JADHAOLAYLAND CM1200, and what do they do?
It has 20 hardened L-shaped blades for cutting, churning, and mixing soil and residues.
What is the working width of the JADHAOLAYLAND CM1200 rotavator?
1.2 meters (4 Feet) for broad coverage and efficient land preparation.
How deep can the JADHAOLAYLAND CM1200 rotavator cultivate in a single pass?
Adjustable up to 200 mm to suit different soil types and crop requirements.
How important is blade hardness and quality in JADHAOLAYLAND CM1200?
Essential—high blade hardness ensures long service life, consistent depth, and reduced maintenance.
Are JADHAOLAYLAND CM1200 rotavators compatible with all tractor brands and models in India?
Yes, any standard 25–40 HP tractor with a 540 RPM PTO shaft can mount the CM1200.
What about maintenance and warranty in JADHAOLAYLAND CM1200?
Sealed gearbox reduces maintenance intervals; warranty details available through authorized dealers.
How TractorXpert Helps You Choose
TractorXpert guides farmers to the best rotavator for farming by comparing Tractor Rotavator specifications, prices, blade counts, and durability across leading models. Our comparison charts highlight rotavator depth and width capacity, tractor power compatibility, and affordable rotavator price*. With real-world performance data and expert reviews, TractorXpert ensures you select the ideal farm implement for maximum efficiency, lower costs, and healthier fields.
