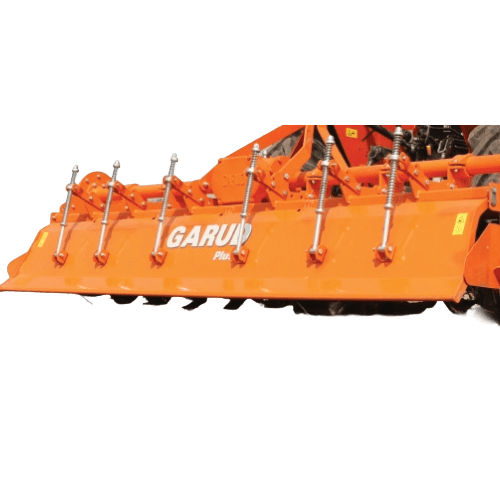

GARUD Implements Plus Rotary Tiller/Rotavator (GRTG/GRTC series)
{{ galleryProps.activeIndex + 1 }}/1
Description
GARUD Plus Rotary Tiller/Rotavator: High-Performance, Multi-Speed Farm Implement for Indian Agriculture | Price & Specs | Best Rotavator for Farming…
GARUD Plus Rotary Tiller/Rotavator: High-Performance, Multi-Speed Farm Implement for Indian Agriculture | Price & Specs | Best Rotavator for Farming India | TractorXpert
Discover GARUD Plus Rotavator price, multi-speed specifications, and advanced features. Heavy-duty agricultural equipment for soil preparation and versatility. Compare on TractorXpert.
About Product
The GARUD Plus Rotary Tiller/Rotavator is a performance-centric, heavy-duty farm implement engineered for fast and economical tillage. With multi-speed gearbox options, helical blade arrangement, and robust construction, the Plus series delivers superior rotavator depth and width capacity while minimizing tractor load for maximum fuel savings.
Key Features and Technology
- Single & Multi-Speed Gearboxes: Works with 540 and 1000 PTO RPM, offering flexible Tractor Rotavator specifications for varied soil and crop conditions.
- Helical Blade Arrangement: Reduces tractor load and diesel consumption while ensuring uniform soil mixing.
- Blade Types: Available in L-type, C-type, and J-type configurations to suit soft, medium, and heavy soils.
- Sealed Bearings & Dust Covers: Prevent moisture and mud entry for extended bearing life and reduced rotavator maintenance.
- Heavy-Duty PTO Shaft: Shear-bolt overload protection safeguards the gearbox under demanding conditions.
- Wide Gear Drive Range: Models span from 3 ft (900 mm) up to 10 ft (3000 mm) working widths for small to large-scale operations.
Technical Specifications and Model Variants
| Model (GRTG/GRTC) | Width (mm) | Gearbox | Blades (No.) | Blade Type | Weight (kg) | Tractor HP |
| 10024 | 1060 | Single/Multi | 24/36 | L-Type | 375 | 30–35 |
| 12530 | 1312 | Single/Multi | 30/42 | L-Type | 390 | 35–40 |
| 15036 | 1562 | Single/Multi | 36/48 | L-Type | 405 | 40–45 |
| 17542 | 1806 | Single/Multi | 42/54 | L-Type | 420 | 45–50 |
| 20048 | 2053 | Single/Multi | 48/60 | L-Type | 435 | 50–55 |
| 22554 | 2302 | Single/Multi | 54/66 | L & J-Type | 460 | 55–60 |
| 25060 | 2601 | Single/Multi | 60/72 | L & J-Type | 485 | 60–75 |
| 27566 | 2900 | Single/Multi | 66/78 | L & J-Type | 510 | 60–75 |
Agricultural Benefits and Applications
Enhanced Farming Efficiency
- Fuel Savings: Helical blades and optimized gear ratios reduce drawbar pull by up to 30%.
- Time Reduction: Multi-speed operation allows high-speed finishing and low-speed deep tillage in one implement.
- Soil Health: Uniform soil aeration and residue mixing enhance nutrient availability and water retention.
- Labor Savings: Single-pass operation cuts down manual labor and tractor passes.
Versatile Crop Applications
- Paddy & Rice: 3-speed capability for wetland puddling and transplant bed preparation.
- Wheat & Barley: Deep primary tillage and seedbed refinement in dryland conditions.
- Cotton & Sugarcane: Effective residue management and inter-row cultivation.
- Vegetables & Maize: Precision soil bed preparation for vegetables and maize planting.
Performance Specifications
- Depth Capability: Adjustable tillage depth up to 8–10 inches (20–25 cm) per pass.
- Speed Range: 150–300 RPM rotor speeds via multi-speed gearbox for varied soil types.
- Working Widths: 1060–2900 mm to accommodate tractors from 30 HP to 75 HP.
Pricing and Value Proposition
The GARUD Plus series delivers affordable rotavator price* in the heavy-duty segment. Prices range from Rs. 1,20,000* for 1060 mm models up to Rs. 2,00,000* for 2900 mm variants, offering unbeatable value for large-scale and high-throughput farming.
Maintenance and Care
- Blade Maintenance: Clean debris and sharpen blades every 60 hours; replace as needed.
- Gearbox Service: Change oil every 200 hours; inspect and tighten gearbox bolts regularly.
- Seal & Bearing Checks: Re-grease sealed bearings every 100 hours to prevent wear.
Longevity Factors
- Blade Hardness: Hardened steel blades rated 65–68 HRC ensure 500+ hours of service in heavy soils.
- Robust Gearbox: High-strength gears and shafts designed for continuous commercial use.
- Sealed Components: Dust covers and advanced seals protect internal parts, extending service life.
FAQs
What tractor horsepower (HP) is required for GARUD Plus rotavator?
Models support 30–75 HP tractors, matching the working width to tractor capacity for optimal performance.
Which blade types are available in GARUD Plus, and what do they do?
Available in L-type for soft soils, C-type for medium soils, and J-type for heavy clay conditions, ensuring versatile rotavator blade types for all soil types.
What is the working width of the GARUD Plus rotavator?
Working widths range from 1060 mm (3.5 ft) to 2900 mm (9.5 ft) to suit small to large farm operations.
How deep can the GARUD Plus rotavator cultivate in a single pass?
Adjustable tillage depth up to 8–10 inches per pass, thanks to the robust multi-speed gearbox and helical blade design.
How important is blade hardness and quality in GARUD Plus?
High-hardness (65–68 HRC) blades ensure long life, consistent cutting, and lower operational costs in heavy-duty applications.
Are GARUD Plus rotavators compatible with all tractor brands and models in India?
Yes. The Plus series uses universal Cat-I and Cat-II 3-point linkage and supports 540/1000 RPM PTO on all major tractor brands.
What about maintenance and warranty in GARUD Plus?
GARUD Implements offers comprehensive warranty coverage and nationwide after-sales support. Adhering to periodic blade checks, gearbox oil changes, and bearing lubrication maximizes equipment uptime and longevity.
How TractorXpert Helps You Choose the Right Farm Implement
TractorXpert offers side-by-side comparisons of Tractor Rotavator specifications, live Rotavator price in India*, and user reviews to help you select the best rotavator for farming. Filter by tractor HP, blade type, working width, and price to make an informed investment in farm mechanization in India, ensuring maximum productivity, durability, and return on investment.
