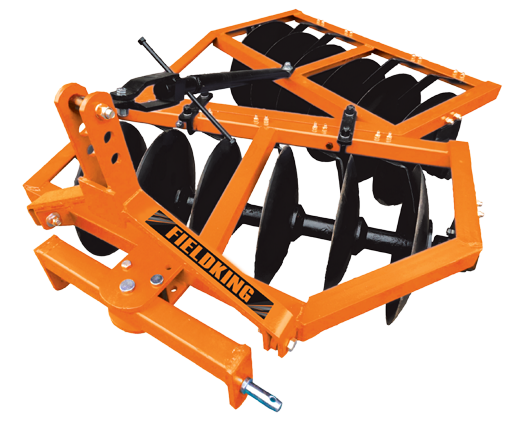

Fieldking UP Model Disc Harrow
{{ galleryProps.activeIndex + 1 }}/1
Description
Meta Description:
- About Product
Fieldking UP Model Disc Harrow price* in India, specifications, working width, depth &…
Meta Description:
- About Product
Fieldking UP Model Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | UPDH-10 | UPDH-12 | UPDH-14 | UPDH-16 |
| Number of Discs | 10 | 12 | 14 | 16 |
| Disc Diameter | 508×4T (20″) | 508×4T (20″) | 560×4T (22″) | 560×4T (22″) |
| Disc Spacing | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) |
| Working Width | 1.25 m (49″) | 1.5 m (59″) | 1.75 m (69″) | 2.0 m (79″) |
| Working Depth | 100–150 mm (4–6″) | 100–150 mm (4–6″) | 100–150 mm (4–6″) | 100–150 mm (4–6″) |
| Weight | 480 kg | 580 kg | 680 kg | 780 kg |
| Tractor Power Requirement | 20–30 HP | 30–40 HP | 40–50 HP | 50–60 HP |
| Mounting Type | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage |
| Frame Material | Heavy-duty angle/square tube | Heavy-duty angle/square tube | Heavy-duty angle/square tube | Heavy-duty angle/square tube |
| Gang Angle Adjustment | 0–30° | 0–30° | 0–30° | 0–30° |
- Technical Specifications
- Soil Compatibility: Light / Medium soils
- Field Efficiency: 0.8–1.2 ha/hr at 6–10 km/hr
- Fuel Impact: Low HP design reduces diesel consumption
- Build Quality: Boron steel discs with high hardness
- Bearings: Sealed, waterproof rated
- Maintenance: Grease every 50 hrs; check bolts monthly
- Spare Parts: Easy availability via dealer network
- Warranty: 12-month frame and bearing warranty
- Weather Suitability: Operates in wet and dry fields
- Crop Compatibility: Ideal for cereals, pulses, vegetables
- Agricultural Benefits and Applications
- Secondary Tillage: Refines ploughed soil into fine tilth
- Residue Management: Mixes and buries stubble evenly
- Weed Control: Uproots weeds for natural decomposition
- Soil Structure: Improves aeration and reduces compaction
- Enhanced Farming Efficiency
- Time Saving: Single-pass coverage with compact width
- Fuel Efficiency: Optimized HP range lowers fuel use
- Labor Reduction: Simple linkage and minimal setup
- Productivity: Uniform seedbed boosts germination
- Versatile Crop Applications
- Cereals: Wheat, Barley, Oats, Rice
- Cash Crops: Cotton, Maize, Sunflower
- Pulses: Chickpea, Lentils, Pigeon Pea
- Vegetables: Potato, Onion, Tomato
- Orchards: Pre-planting soil conditioning
- Performance Specifications
- Operating Speed: 6–12 km/hr
- Ground Pressure: Even load prevents excessive rutting
- Penetration Capability: Consistent depth via gang angle
- Finish Quality: Smooth, level seedbed ready for sowing
- Farmer Decision Support
Farm Size Recommendations:
- Very Small (<2 acres): UPDH-10
- Small (2–5 acres): UPDH-12
- Medium (5–10 acres): UPDH-14
- Larger (>10 acres): UPDH-16
Soil-Specific Recommendations:
- Light soils: Lower disc angle, higher speed
- Medium soils: Standard settings
- Heavy soils: Not recommended; upgrade to heavier model
Budget Categories:
- Economy: UPDH-10/12
- Mid-Range: UPDH-14
- Premium: UPDH-16
ROI & Financing:
- Payback in 1–2 seasons through fuel and labor savings
- Available under mechanization subsidy schemes
- Maintenance and Care
- Disc Maintenance: Replace when worn >10% diameter
- Bearing Lubrication: Grease every 50 hrs
- Frame Care: Tighten bolts monthly; inspect for wear
- Storage: Clean discs; coat frame to prevent rust
- Pre-Operation: Check linkage pins, disc alignment
- Longevity Factors
- Material Quality: Heat-treated boron steel discs
- Wear Resistance: Thicker discs and sealed hubs
- Structural Durability: Reinforced tube frame design
- Replaceability: Standardized discs and bearings
- Service Life: Up to 8 years with proper maintenance
FAQs
What tractor horsepower is required for UP Model Disc Harrow?
20–60 HP depending on model variant.
What disc configurations are available?
10–16 disc options with 20″ or 22″ diameter for varied soil conditions.
What is the working width and depth?
1.25–2.0 m width; 100–150 mm depth adjustable via gang angle.
How does it help in seedbed preparation?
Breaks clods, mixes residues, and levels field in a single pass.
Why is disc quality important?
High-grade boron steel ensures penetration and long service life.
Is it compatible with all tractor brands?
Yes; fits standard 3-point linkages on major tractors in the HP range.
What about gang angle adjustment and depth control?
Angle adjustable 0–30°; depth controlled via top link and draft link.
How does it compare to cultivators and rotavators?
Offers finer finishing than cultivators; gentler soil action than rotavators.
What maintenance schedule should be followed?
Grease every 50 hrs; monthly inspection; annual full service.
What warranty and service support is available?
12-month warranty with dealer network support across India.
TractorXpert helps farmers choose the right harrow implement by comparing models, prices*, features, and benefits from leading manufacturers. With tailored advice for farm size, soil type, and budget, TractorXpert ensures efficient seedbed preparation, reduced tillage operations, and enhanced farm productivity through the best tractor harrow implements available in India.
Product General Information
Brand Name:
Fieldking
Model Name:
UP Model Disc Harrow
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
20–60 HP
