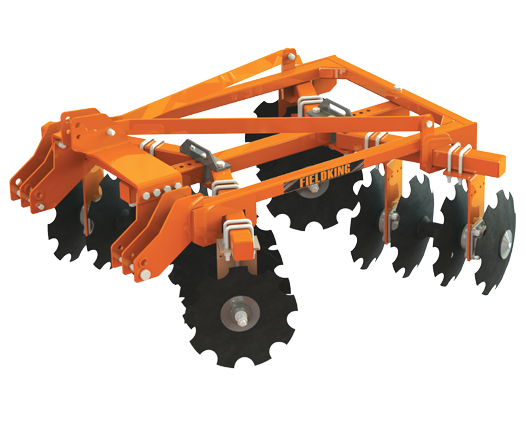

Fieldking Tandem Disc Harrow Light Duty
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Tandem Disc Harrow Light Duty price* in India, specifications, working width, depth &…
- About Product
Fieldking Tandem Disc Harrow Light Duty price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | TDL-16 | TDL-20 | TDL-24 |
| Number of Discs | 16 | 20 | 24 |
| Disc Configuration | Tandem gangs, notched front, plain rear | Tandem gangs, notched front, plain rear | Tandem gangs, notched front, plain rear |
| Disc Diameter | 508×4T (20″) | 508×4T (20″) | 560×4T (22″) |
| Disc Spacing | 228 mm (9″) | 250 mm (9.8″) | 250 mm (9.8″) |
| Working Width | 1.6 m (63″) | 2.0 m (79″) | 2.4 m (94″) |
| Working Depth | 100–150 mm (4–6″) | 100–150 mm (4–6″) | 100–150 mm (4–6″) |
| Weight | 1250 kg | 1650 kg | 2000 kg |
| Tractor Power Requirement | 40–60 HP | 60–70 HP | 70–80 HP |
| Mounting Type | Trailed, hydraulic lift | Trailed, hydraulic lift | Trailed, hydraulic lift |
| Frame Material | Heavy-duty box section | Heavy-duty box section | Heavy-duty box section |
| Gang Angle Adjustment | 0–30° | 0–30° | 0–30° |
- Technical Specifications
- Soil Compatibility: Light / Medium / Heavy soils
- Field Efficiency: Up to 1.8 ha/hr at 8–12 km/hr
- Fuel Impact: Tandem design reduces passes and fuel use
- Build Quality: Boron steel discs, sealed bearings, powder-coated frame
- Maintenance: Grease bearings every 50 hrs; inspect quarterly
- Spare Parts: Available through dealer network
- Warranty: 12-month frame and bearing warranty
- Weather Suitability: Wet and dry field use
- Crop Compatibility: All cereals, cash crops, pulses, vegetables
- Agricultural Benefits and Applications
- Secondary Tillage: Refines clods post-ploughing for seedbed readiness
- Residue Management: Mixes stubble evenly into soil
- Weed Control: Uproots weeds for natural breakdown
- Soil Enhancement: Improves aeration and prevents compaction
- Enhanced Farming Efficiency
- Time Saving: Tandem gangs cover large area in one pass
- Fuel Efficiency: Fewer tractor hours lower diesel costs
- Labor Reduction: Easy hitching and adjustments
- Productivity: Uniform seedbed improves germination rates
- Versatile Crop Applications
- Cereals: Wheat, Barley, Oats, Rice
- Cash Crops: Cotton, Sugarcane, Maize, Sunflower
- Pulses: Chickpea, Lentils, Pigeon Pea
- Vegetables: Potato, Onion, Tomato
- Orchards & Plantations: Pre-planting and intercultural tillage
- Performance Specifications
- Operating Speed: 8–14 km/hr
- Ground Pressure: Even load distribution prevents ruts
- Penetration Capability: Consistent depth via gang adjustment
- Finish Quality: Smooth seedbed ready for sowing
- Farmer Decision Support
Farm Size Recommendations:
- Small (under 5 acres): TDL-16
- Medium (5–25 acres): TDL-20
- Large (above 25 acres): TDL-24
Soil-Specific Recommendations:
- Light: Lower depth, higher speed
- Medium: Standard settings
- Heavy: Increase depth, moderate speed
Budget Categories:
- Economy: TDL-16
- Mid-range: TDL-20
- Premium: TDL-24
ROI & Financing:
- Payback in 1–2 seasons via reduced costs
- Eligible for mechanization subsidies
- Maintenance and Care
- Disc Maintenance: Replace when worn or deform ≥10%
- Bearing Lubrication: Grease every 50 hrs
- Frame Care: Tighten bolts post initial use, then monthly
- Seasonal Storage: Clean, lubricate, store sheltered
- Pre-Operation: Inspect discs, bearings, frame
- Longevity Factors
- Material Quality: Heat-treated boron steel discs
- Structural Durability: Reinforced box section frame
- Component Replaceability: Standardized discs, bearings
- Service Life: 8–10 years with care
FAQs
What tractor horsepower is required for Tandem Disc Harrow Light Duty?
40–80 HP depending on model and soil.
What harrow types are available in this series?
Tandem disc gangs with notched and plain discs for effective tillage.
What is the working width and depth capacity?
Width 1.6–2.4 m; depth 100–150 mm adjustable.
How does it help in seedbed preparation and soil finishing?
Breaks clods, levels soil, and mixes residues for uniform tilth.
Why is disc quality and tine strength important?
High-hardness discs ensure consistent penetration and durability.
Is it compatible with all tractor brands?
Yes; standard hydraulic lift and trailed mount fit major tractors.
What about gang angle adjustment and depth control?
Angle adjustable 0–30°; depth via hydraulic draft and gang settings.
How does it compare to cultivators and rotavators?
Provides deeper, wider coverage than cultivators; gentler action than rotavators.
What maintenance schedule should be followed?
Grease bearings every 50 hrs; inspect hardware quarterly; annual service.
What warranty and service support is available?
12-month warranty on frame and bearings, backed by dealer network.
TractorXpert helps farmers choose the right harrow implement by comparing models, prices*, features, and benefits. With tailored guidance for farm size, soil type, and budget, TractorXpert ensures efficient seedbed preparation, reduced tillage operations, and enhanced farm productivity through the best tractor harrow implements available in India.
Product General Information
Brand Name:
Fieldking
Model Name:
Tandem Disc Harrow Light Duty
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
40–80 HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
