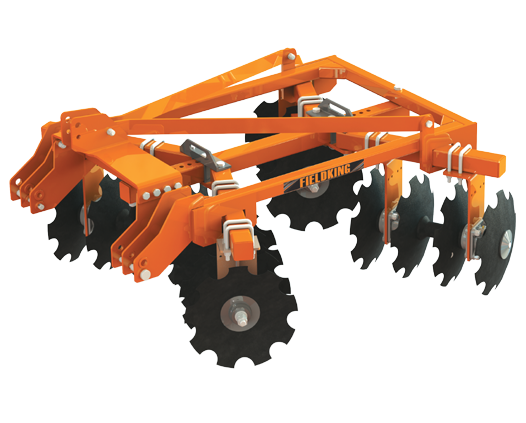

Fieldking Tandem Disc Harrow Heavy Duty
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Tandem Disc Harrow Heavy Duty price* in India, specifications, working width, depth &…
- About Product
Fieldking Tandem Disc Harrow Heavy Duty price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | TDH-24 | TDH-28 | TDH-32 | TDH-36 |
| Number of Discs | 24 | 28 | 32 | 36 |
| Disc Configuration | Offset tandem gangs, notched front, plain rear | Offset tandem gangs, notched front, plain rear | Offset tandem gangs, notched front, plain rear | Offset tandem gangs, notched front, plain rear |
| Disc Diameter | 560×4T (22″) | 560×4T (22″) | 610×4T (24″) | 610×4T (24″) |
| Disc Spacing | 250 mm (9.8″) | 250 mm (9.8″) | 270 mm (10″) | 270 mm (10″) |
| Working Width | 2.5 m (98″) | 2.8 m (110″) | 3.2 m (126″) | 3.6 m (142″) |
| Working Depth | 150–200 mm (6–8″) | 150–200 mm (6–8″) | 150–200 mm (6–8″) | 150–200 mm (6–8″) |
| Weight | 2200 kg | 2550 kg | 2950 kg | 3350 kg |
| Tractor Power Requirement | 90–110 HP | 110–130 HP | 130–160 HP | 160–200 HP |
| Mounting Type | Trailed, hydraulic lift | Trailed, hydraulic lift | Trailed, hydraulic lift | Trailed, hydraulic lift |
| Frame Material | Heavy-duty box section | Heavy-duty box section | Heavy-duty box section | Heavy-duty box section |
| Gang Angle Adjustment | 0–30° | 0–30° | 0–30° | 0–30° |
- Technical Specifications
- Soil Compatibility: Light / Medium / Heavy / Clay / Rocky soils
- Field Efficiency: Up to 3.0 ha/hr at 10–14 km/hr
- Fuel Impact: High-speed tandem design reduces passes and fuel use
- Build Quality: Boron steel discs (48–52 HRC), sealed bearings, powder-coated frame
- Bearings & Seals: Waterproof and dustproof for extended life
- Maintenance: Grease bearings every 50 hrs; inspect disc gangs quarterly
- Spare Parts: Readily available through Fieldking dealer network
- Warranty: 12-month warranty on frame and bearings
- Weather Suitability: Operable in wet and dry conditions
- Crop Compatibility: All cereals, cash crops, pulses, vegetables, orchards
- Agricultural Benefits and Applications
- Primary & Secondary Tillage: Efficient soil cutting and clod reduction
- Residue Management: Mixes and buries crop residues evenly
- Weed Control: Uproots and incorporates weeds for natural decay
- Soil Structure Improvement: Promotes aeration and prevents compaction
- Enhanced Farming Efficiency
- Time Saving: Single-pass tandem operation covers large area
- Fuel Efficiency: Fewer tractor hours and lower diesel consumption
- Labor Reduction: Hydraulic lift and transport mode simplify operation
- Productivity: Uniform seedbed finish enhances germination rates
- Versatile Crop Applications
- Cereals: Wheat, Barley, Oats, Rice
- Cash Crops: Cotton, Sugarcane, Maize, Sunflower
- Pulses: Chickpea, Lentils, Pigeon Pea
- Vegetables: Potato, Onion, Tomato
- Orchards & Plantations: Pre-planting and intercultural tillage
- Performance Specifications
- Operating Speed: 8–14 km/hr
- Ground Pressure Distribution: Even load across tandem gangs prevents ruts
- Penetration Capability: Consistent depth control via hydraulic draft link
- Finish Quality: Smooth, leveled seedbed ready for sowing
- Farmer Decision Support
Farm Size Recommendations:
- Medium (5–25 acres): TDH-24, TDH-28 for balanced power and coverage
- Large (25+ acres): TDH-32, TDH-36 for maximum area efficiency
Soil-Specific Recommendations:
- Light soils: Lower gang angle, higher speed
- Medium soils: Standard settings
- Heavy soils: Increased depth, moderate speed
Budget Categories:
- Economy: TDH-24 (basic features, cost-effective)
- Mid-Range: TDH-28, TDH-32 (balanced performance)
- Premium: TDH-36 (maximum coverage, heavy-duty build)
ROI Guidance & Financing:
- Payback in 1–2 seasons through reduced tillage costs
- Eligible for farm mechanization subsidies
- Maintenance and Care
- Disc Maintenance: Replace discs when wear reduces diameter by 10%
- Bearing Lubrication: Grease all bearings every 50 hrs with high-quality grease
- Frame Care: Check and tighten bolts after 10 hrs of initial use, then monthly
- Hydraulic System: Inspect hoses and cylinders regularly for leaks
- Seasonal Storage: Clean thoroughly, coat critical parts with anti-rust oil
- Longevity Factors
- Material Quality: Heat-treated boron steel discs for extended wear life
- Structural Durability: Heavy-duty frame with reinforced welds
- Wear Resistance: Sealed gang bearings and scrapers protect discs
- Service Life: Designed for 8–12 years of heavy field use with proper maintenance
FAQs
What tractor horsepower is required for Tandem Disc Harrow Heavy Duty?
90–200 HP, depending on model size and soil conditions.
What types of harrows are available in this series?
Offset tandem disc harrows with notched front and plain rear gangs for deep tillage and residue mixing.
What is the working width and depth capacity?
Working width from 2.5–3.6 m; depth 150–200 mm adjustable hydraulically.
How does it help in seedbed preparation?
Breaks clods, level fields, and mixes residues in a single pass for a fine seedbed.
Why is disc quality important?
High-hardness boron steel discs ensure consistent penetration and long service life.
Is it compatible with all tractor brands?
Yes; standard hydraulic draft link and PTO requirements fit most tractors.
What about gang angle adjustment and depth control?
Gang angle adjustable 0–30°; depth controlled via tractor hydraulic link for precision.
How does it compare to cultivators and rotavators?
Provides faster field coverage and better residue incorporation than cultivators; less soil pulverization than rotavators.
What maintenance schedule is recommended?
Grease bearings every 50 hrs; quarterly inspection of gangs; annual full service.
What warranty and service support is available?
12-month warranty on frame and bearings with nationwide dealer support.
TractorXpert helps farmers choose the right harrow implement by comparing models, prices*, features, and benefits across manufacturers. With tailored guidance for farm size, soil type, and budget, TractorXpert ensures cost-effective decisions, improved seedbed quality, reduced tillage operations, and enhanced farm productivity through efficient soil preparation solutions.
Product General Information
Brand Name:
Fieldking
Model Name:
Tandem Disc Harrow Heavy Duty
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
90–200 HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
