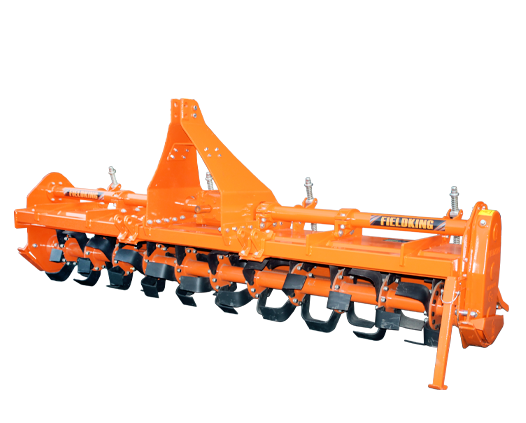

FieldKing Robust Multi Speed Rotavator (FKDRTMG Series)– Complete Guide for Farmers
FieldKing’s Robust Multi Speed Rotavator (FKDRTMG Series) is engineered…
FieldKing Robust Multi Speed Rotavator (FKDRTMG Series)– Complete Guide for Farmers
FieldKing’s Robust Multi Speed Rotavator (FKDRTMG Series) is engineered for demanding soil conditions and large-scale operations. Its four-speed gearbox and heavy-duty construction deliver versatile performance, making deep tillage and residue management easier and more efficient.
Key Features and Technology
- Multi-Speed Gearbox: Four gear ratios allow rotor speeds of approximately 217 RPM (at 540 PTO) up to 229 RPM (at 1,000 PTO), letting you match speed to soil hardness.
- Heavy-Duty Gear Drive: Side gear drive in an oil bath ensures reliable power transfer and long service life under tough conditions.
- Boron Steel Blades: L-, C- and J-type blades made of Boron steel last 50% longer than standard Hi-Carbon blades and resist wear in rocky fields.
- Overload Protection: Shear bolt or slip clutch protects the gearbox and driveline from shock loads.
- Sealed Bearings: Keep out moisture and mud, reducing maintenance and extending component life.
- Spring Plank Assembly: Heavy-duty springs deliver a level seedbed finish even at high speeds.
Technical Specifications and Model Variants
|
Model |
Working Width (cm/in) | Tractor HP | Blades (L/C/J) | Flanges | Weight (kg) | Price (₹) |
|
FKDRTMG-125 |
125 / 49″ | 35–40 | 30 / 30 / 48 | 5 / 5 / 8 | 450 | 2,41,000* |
|
FKDRTMG-150 |
150 / 59″ | 40–45 | 36 / 36 / 60 | 6 / 6 / 10 | 480 | 2,60,000* |
|
FKDRTMG-175 |
175 / 69″ | 45–50 | 42 / 42 / 72 | 7 / 7 / 12 | 510 | 3,53,000* |
| FKDRTMG-200 | 200 / 79″ | 50–60 | 48 / 48 / 84 | 8 / 8 / 14 | 540 |
3,90,000* |
| FKDRTMG-225 | 225 / 89″ | 60–70 | 54 / 54 / 96 | 9 / 9 / 16 | 570 |
4,46,000* |
| FKDRTMG-250 | 250 / 98″ | 70–80 | 60 / 60 / 108 | 10 / 10 / 18 | 600 |
5,01,000* |
| FKDRTMG-275 | 275 / 108″ | 80–90 | 66 / 66 / 120 | 11 / 11 / 20 | 630 |
5,58,000* |
Universal Specifications Across All Models
- Gearbox: Multi-speed (4 gears), center-aligned
- PTO Speed Compatibility: 540 RPM and 1,000 RPM
- Transmission: Heavy-duty side gear drive in oil bath
- Blade Types: L-type (soft/medium soil), C-type (hard/dry soil), J-type (wet/sticky soil)
- Overload Protection: Shear bolt or slip clutch
- Bearings: Sealed for moisture and mud protection
- Depth Control: Adjustable skid assembly (2–17 cm)
Agricultural Benefits and Applications
- Deep Tillage: Loosens and aerates soil up to 17 cm in a single pass, improving root penetration.
- Residue Management: Pulverizes crop residues and controls weeds for a clean seedbed.
- Soil Health: Uniformly integrates organic matter and crop residues, enhancing moisture retention and nutrient distribution.
Enhanced Farming Efficiency
- Adaptable Rotor Speed: Four speeds let you adjust power draw and soil finish to conditions.
- Fuel Savings: Helical blade arrangement reduces tractor load and fuel consumption.
- Single-Pass Operation: Eliminates multiple tillage passes, saving time and labor.
Versatile Crop Applications
Effective for:
- Field Crops: Wheat, rice, sugarcane, cotton
- Vegetables: Fine seedbeds for vegetables and pulses
- Orchards & Vineyards: Inter-row cultivation and weed control
- All Soil Types: From dry, compact fields to waterlogged paddy soils
Performance Specifications
- Rotor Speed: ~217 RPM at 540 PTO, ~229 RPM at 1,000 PTO
- Coverage: Up to 1 acre/hour, depending on tractor speed and soil conditions
- Gear Ratios: 17×19 (540 PTO) and 14×22 (1,000 PTO) for optimal torque
Depth and Width Capabilities
- Working Depth: Adjustable 2–17 cm
- Working Widths: 125 cm to 275 cm models available
- Field Coverage: Larger widths cover more ground per pass for high-capacity needs
Pricing and Value Proposition
- Investment Range: ₹2.41 Lakh to ₹5.58 Lakh*
- ROI: Durable parts, lower maintenance, and fuel savings deliver strong long-term value
- Financing: Implement loans and EMI options make upgrades affordable for all farmers
Maintenance and Care
- Daily Checks: Blade tightness, grease points, gearbox oil level
- Every 25 Hrs: Inspect blades, gearbox oil level, bearings
- Every 100 Hrs: Drain/refill gearbox oil, grease all fittings
- Every 150 Hrs: Full inspection of driveline, clutch, and gearbox
Longevity Factors
- Robust Frame: Heavy-duty construction and quality welding resist field stresses
- Premium Components: Sealed bearings and high-hardness shafts extend service life
- Service Network: Authorized dealers provide genuine spares and warranty support
How TractorXpert Helps You Find the Right Farm Implement
TractorXpert offers:
- Comprehensive Catalog: Detailed specs, prices, and user reviews for implements across brands
- Comparison Tools: Side-by-side evaluation of models by HP, width, blades, and cost
- Compatibility Checker: Match implements to your tractor’s HP, PTO speed, and hitch type
- Expert Guidance: Recommendations based on your farm size, soil type, and crop plan
- Dealer Locator: Connect with nearby dealers for demos, finance, and after-sales service
- Financing Assistance: Information on loans, subsidies, and EMI options
Frequently Asked Questions (FAQs)
1) What tractor horsepower (HP) is required for rotavator?
Choose the model matching your tractor’s HP: 35–40 HP for 125 cm, 40–45 HP for 150 cm, 45–50 HP for 175 cm, 50–60 HP for 200 cm, 60–70 HP for 225 cm, 70–80 HP for 250 cm, and 80–90 HP for 275 cm.
2) Which type of blades are available, and what do they do?
- L-Type: Soft/medium soils, fine seedbeds, low power draw.
- C-Type: Hard/dry soils, deeper breaking, higher HP.
- J-Type: Wet/sticky soils, paddy fields, anti-clogging.
3) What is the width of the rotavator?
Working widths range from 125 cm (49″) up to 275 cm (108″) to suit different tractor capacities and field sizes.
4) How deep can a rotavator cultivate in a single pass?
Up to 17 cm (7″), adjustable between 2–17 cm via skid plates.
5) How important is blade hardness and quality?
High-hardness Boron steel blades last 50% longer, resist wear in rocky soils, maintain sharpness, reduce power draw, and lower long-term costs.
6) Are rotavators compatible with all tractor brands/models?
Yes, if your tractor’s PTO speed (540/1,000 RPM), hydraulic capacity, and 3-point hitch category match the implement specifications. Always verify with your dealer.
7) What about maintenance and warranty?
FieldKing offers a 6-month warranty on manufacturing defects. Regular maintenance (daily checks, periodic oil changes, greasing) keeps your Rotavator running smoothly for years.
