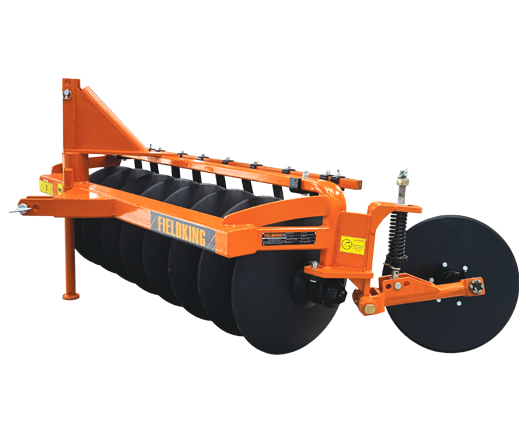

Fieldking Poly Disc Harrow
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Poly Disc Harrow price* in India, specifications, working width, depth & disc details.…
- About Product
Fieldking Poly Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | FKPDH-24-6 | FKPDH-24-7 | FKPDH-24-8 | FKPDH-26-6 | FKPDH-26-7 | FKPDH-26-8 |
| Number of Discs | 6 | 7 | 8 | 6 | 7 | 8 |
| Disc Diameter | 610 mm (24″) | 610 mm (24″) | 610 mm (24″) | 660 mm (26″) | 660 mm (26″) | 660 mm (26″) |
| Working Width | 1066 mm | 1284 mm | 1502 mm | 1202 mm | 1403 mm | 1604 mm |
| Working Depth | 200–250 mm (8″–10″) | 200–250 mm (8″–10″) | 200–250 mm (8″–10″) | 200–250 mm (8″–10″) | 200–250 mm (8″–10″) | 200–250 mm (8″–10″) |
| Weight | 387 kg | 416 kg | 445 kg | 510 kg | 540 kg | 570 kg |
| Tractor Power | 45–50 HP | 45–50 HP | 50–60 HP | 55–75 HP | 75–95 HP | 100–125 HP |
| Mounting Type | 3-point linkage / Semi-mounted | 3-point linkage / Semi-mounted | 3-point linkage / Semi-mounted | Trailed / Semi-mounted | Trailed / Semi-mounted | Trailed / Semi-mounted |
| Frame Material | Heavy-duty rectangular tubular frame | Heavy-duty rectangular tubular frame | Heavy-duty rectangular tubular frame | Heavy-duty rectangular tubular frame | Heavy-duty rectangular tubular frame | Heavy-duty rectangular tubular frame |
| Disc Spacing | 264–316 mm | 264–316 mm | 264–316 mm | 264–316 mm | 264–316 mm | 264–316 mm |
- Technical Specifications
- Soil Compatibility: Light / Medium / Heavy / Clay / Rocky soils
- Field Efficiency: 1.0–1.5 ha/hr at 8–12 km/hr
- Fuel Impact: Low tractor load reduces fuel consumption
- Durability: Boron steel discs, heavy-duty bearings with waterproof/dustproof seals
- Maintenance: Grease bearings every 50 hrs; inspect discs and frame monthly
- Spare Parts: Widely available through dealer network; cost-effective replacements
- Warranty: 12-month warranty on frame and components
- Weather Suitability: Effective in wet and dry field conditions
- Crop Compatibility: All major crops including cereals, cash crops, pulses, vegetables
- Agricultural Benefits and Applications
- Primary Tillage: Deep ploughing capability breaks hardpan and tough soil layers
- Secondary Tillage: Refines soil structure for optimal seedbed preparation
- Residue Management: Incorporates crop stubble and weeds effectively
- Soil Structure Improvement: Reduces compaction, enhances aeration and water infiltration
- Enhanced Farming Efficiency
- Time Saving: Dual-purpose design combines ploughing and harrowing in single pass
- Fuel Efficiency: Lower tractor horsepower requirements reduce operating costs
- Labor Reduction: Simple operation with minimal adjustments needed
- Productivity Gains: Consistent performance across varied soil conditions
- Versatile Crop Applications
- Cereals: Wheat, barley, oats, rice preparation
- Cash Crops: Cotton, sugarcane, maize, sunflower field preparation
- Pulses: Chickpea, lentils, pigeon pea seedbed creation
- Vegetables: Potato, onion, tomato land preparation
- Orchards & Plantations: Pre-planting soil conditioning and maintenance
- Performance Specifications
- Operating Speed: 6–12 km/hr for optimal performance
- Ground Pressure: Even weight distribution prevents excessive compaction
- Penetration Capability: Up to 250 mm depth in various soil conditions
- Finish Quality: Smooth, level seedbed with uniform tilth
- Farmer Decision Support
Farm Size Recommendations:
- Small (under 5 acres): 6-disc models (FKPDH-24-6, FKPDH-26-6)
- Medium (5–25 acres): 7-disc models for balanced coverage
- Large (above 25 acres): 8-disc models for maximum efficiency
Soil-Specific Guidance:
- Light soils: 24″ disc models with moderate depth
- Medium soils: 26″ disc models with standard settings
- Heavy clay: 26″ disc models with maximum penetration
Budget Categories:
- Economy: FKPDH-24-6 (basic features, cost-effective)
- Mid-range: FKPDH-26-7 (balanced performance)
- Premium: FKPDH-26-8 (maximum coverage and durability)
ROI & Financing:
- Payback period: 1–2 seasons through reduced passes and labor
- Government subsidies available under mechanization schemes
- Maintenance and Care
- Disc Maintenance: Replace discs when diameter reduces to 18″
- Bearing Lubrication: Grease all bearing points every 50 hrs
- Frame Care: Inspect and tighten all nuts and bolts monthly
- Shocker Assembly: Ensure spring tension is maintained for proper depth control
- Storage: Clean thoroughly, lubricate moving parts, store under cover
- Pre-Operation Checklist: Verify disc alignment, bearing condition, frame integrity
- Longevity Factors
- Material Quality: Boron steel discs with heat-treated edges for wear resistance
- Structural Durability: Heavy-duty rectangular tubular frame construction
- Component Replaceability: Easy access to spare parts and bearing assemblies
- Service Life: Designed for long-term field operations with proper maintenance
FAQs
What tractor horsepower is required for Poly Disc Harrow?
45–125 HP depending on model size and disc configuration.
What types of harrows are available in this series?
Disc harrows designed for both primary and secondary tillage operations.
What is the working width and depth capacity?
Working width ranges from 1066–1604 mm; depth up to 250 mm.
How does it help in seedbed preparation?
Creates fine tilth by breaking clods and leveling soil in single pass.
Why is disc quality important?
High-quality boron steel discs ensure consistent penetration and long service life.
Is it compatible with all tractor brands?
Yes, standard 3-point linkage and semi-mounted options fit most tractors.
What about gang angle adjustment and depth control?
Adjustable settings allow customization for different soil conditions and crops.
How does it compare to cultivators and rotavators?
Offers deeper penetration than cultivators; less aggressive than rotavators for soil mixing.
What maintenance schedule is recommended?
Grease bearings every 50 hrs; monthly inspection of discs and frame components.
What warranty and service support is available?
12-month warranty with comprehensive dealer network support across India.
TractorXpert helps farmers choose the right harrow implement by comparing models, prices*, features, and benefits from different manufacturers. With detailed specifications, soil-specific recommendations, and budget guidance, TractorXpert enables cost-effective decisions that improve seedbed quality, reduce tillage operations, and enhance overall farm productivity through efficient soil preparation solutions tailored to Indian farming conditions.
Product General Information
Brand Name:
Fieldking
Model Name:
Poly Disc Harrow
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
45–125 HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
