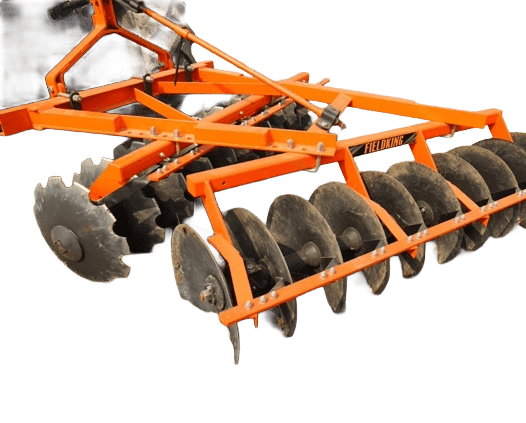

Fieldking Mounted Offset Disc Harrow (FKMODH Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Mounted Offset Disc Harrow price* in India, specifications, working width, depth & disc…
- About Product
Fieldking Mounted Offset Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | FKMODH-22-12 | FKMODH-22-14 | FKMODH-22-16 | FKMODH-22-18 | FKMODH-22-20 | FKMODH-22-22 | FKMODH-22-24 |
| Number of Discs | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Type of Disc | Notched front gang, plain rear gang | Notched front gang, plain rear gang | Notched front gang, plain rear gang | Notched front gang, plain rear gang | Notched front gang, plain rear gang | Notched front gang, plain rear gang | Notched front gang, plain rear gang |
| Disc Diameter | 508×3T (20″) or 560×4T (22″) | 508×3T (20″) or 560×4T (22″) | 508×3T (20″) or 560×4T (22″) | 508×3T (20″) or 560×4T (22″) | 508×3T (20″) or 560×4T (22″) | 508×3T (20″) or 560×4T (22″) | 508×3T (20″) or 560×4T (22″) |
| Working Width | 1420 mm (56″) | 1635 mm (64″) | 1852 mm (73″) | 2068 mm (81″) | 2285 mm (90″) | 2502 mm (99″) | 2718 mm (107″) |
| Working Depth | 127–178 mm (5–7″) | 127–178 mm (5–7″) | 127–178 mm (5–7″) | 127–178 mm (5–7″) | 127–178 mm (5–7″) | 127–178 mm (5–7″) | 127–178 mm (5–7″) |
| Disc Spacing | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) |
| Bearing Hubs | 4 | 4 | 6 | 6 | 6 | 8 | 8 |
| Weight | 390 kg (860 lbs) | 430 kg (948 lbs) | 500 kg (1102 lbs) | 575 kg (1268 lbs) | 615 kg (1356 lbs) | 676 kg (1490 lbs) | 731 kg (1612 lbs) |
| Tractor Power | 30–40 HP | 40–50 HP | 50–60 HP | 60–70 HP | 70–80 HP | 80–90 HP | 90–100 HP |
| Mounting Type | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage |
| Frame Material | Heavy-duty tubular channel frame | Heavy-duty tubular channel frame | Heavy-duty tubular channel frame | Heavy-duty tubular channel frame | Heavy-duty tubular channel frame | Heavy-duty tubular channel frame | Heavy-duty tubular channel frame |
| Gang Angle Adjustment | 0–50° | 0–50° | 0–50° | 0–50° | 0–50° | 0–50° | 0–50° |
- Technical Specifications
- Soil Compatibility: Light and medium soil conditions
- Field Efficiency: 1.0–1.8 ha/hr depending on tractor power and soil conditions
- Fuel Impact: Low fuel consumption due to efficient design and proper HP matching
- Build Quality: High-grade boron steel discs with 48–52 HRC hardness
- Bearings: Heavy-duty sealed bearings with waterproof/dustproof protection
- Maintenance: Grease bearings every 50 hrs; check disc wear and bolt tightness monthly
- Spare Parts: Widely available through extensive dealer network; cost-effective replacements
- Warranty: 12-month warranty on frame and bearings
- Weather Suitability: Suitable for wet and dry field conditions with proper gang angle adjustment
- Crop Compatibility: Ideal for all cereals, cash crops, pulses, and vegetable cultivation
- Agricultural Benefits and Applications
- Secondary Tillage: Breaks soil clods formed by ploughing for refined seedbed preparation
- Residue Management: Incorporates crop stubble and organic matter effectively into soil
- Weed Control: Uproots weeds and mixes them with soil for natural decomposition
- Soil Structure Enhancement: Improves soil aeration and eliminates hardpan formation
- Enhanced Farming Efficiency Through Mounted Offset Disc Harrow
- Time Saving: Wide cutting width covers more area in single pass, reducing field preparation time
- Fuel Efficiency: Lower HP requirements compared to heavy-duty harrows reduce diesel consumption
- Labor Reduction: Easy 3-point linkage mounting and simple adjustments minimize operator effort
- Productivity Gains: Consistent performance across varied soil conditions increases daily coverage
- Versatile Crop Applications Through Mounted Offset Disc Harrow
- Cereals: Wheat, Barley, Oats, Rice field preparation
- Cash Crops: Cotton, Sugarcane, Maize, Sunflower seedbed refinement
- Pulse Crops: Chickpea, Lentils, Pigeon Pea soil conditioning
- Vegetables: Potato, Onion, Tomato land preparation
- Orchards & Plantations: Pre-planting soil preparation and inter-cultivation
- Performance Specifications
- Operating Speed: 6–12 km/hr for optimal soil mixing and clod breaking
- Ground Pressure: Uniform weight distribution prevents excessive soil compaction
- Penetration Capability: Adjustable gang angle (0–50°) ensures proper depth in various soil types
- Finish Quality: Smooth, level seedbed with uniform tilth for improved germination
- Farmer Decision Support
Farm Size Recommendations:
- Small (under 5 acres): 12–16 disc models for compact tractors
- Medium (5–25 acres): 18–22 disc models for balanced coverage and efficiency
- Large (above 25 acres): 24 disc model for maximum coverage
Soil-Specific Guidance:
- Light soils: Use smaller disc count with reduced gang angle for gentle cultivation
- Medium soils: Standard models with moderate gang angle settings
- Heavy clay: Not recommended; use heavy-duty hydraulic harrows instead
Budget Categories:
- Economy: FKMODH-22-12/14 (basic features, cost-effective)
- Mid-range: FKMODH-22-16/18/20 (balanced performance and features)
- Premium: FKMODH-22-22/24 (maximum coverage and durability)
ROI & Financing:
- Payback period: 1–2 seasons through reduced labor and fuel costs
- Available under various state mechanization subsidy schemes
- Maintenance and Care of Mounted Offset Disc Harrow
- Disc Maintenance: Replace discs when diameter reduces by 5″ from original size
- Bearing Lubrication: Grease all bearing points every 50 hrs using quality grease
- Frame Care: Tighten all nuts and bolts after initial 2 hours of operation
- Scraper Adjustment: Loosen bolts and readjust scrapers if touching discs
- Storage: Clean thoroughly, lubricate moving parts, and store under cover
- Pre-Operation: Check disc sharpness, bearing condition, and bolt tightness before use
- Longevity Factors of Mounted Offset Disc Harrow
- Material Quality: Boron steel discs with 48–52 HRC hardness for superior wear resistance
- Structural Durability: Heavy-duty tubular channel frame designed for long service life
- Component Replaceability: Easy access to spare parts with standardized components
- Service Life: Proper maintenance ensures 8–10 years of reliable field operation
FAQs
What tractor horsepower is required for Mounted Offset Disc Harrow?
30–100 HP depending on the model variant and disc configuration.
What types of harrows are available in this series?
Offset disc harrows with notched front gang and plain rear gang discs for effective soil cutting and mixing.
What is the working width and depth capacity?
Working width ranges from 1420–2718 mm (56″–107″); depth 127–178 mm (5″–7″).
How does it help in seedbed preparation?
Breaks soil clods, incorporates residues, and creates uniform tilth for optimal seed placement and germination.
Why is disc quality important?
High-grade boron steel discs maintain sharpness longer and provide consistent soil penetration with reduced maintenance.
Is it compatible with all tractor brands?
Yes, standard 3-point linkage ensures compatibility with most tractor models in the specified HP range.
What about gang angle adjustment and depth control?
Gang angle adjustable from 0–50° for different soil conditions; depth controlled via top link adjustment.
How does it compare to cultivators and rotavators?
Provides deeper tillage than cultivators with better residue incorporation; less aggressive than rotavators for lighter soils.
What maintenance schedule is recommended?
Grease bearings every 50 hrs; monthly inspection of discs, bolts, and scrapers; annual comprehensive servicing.
What warranty and service support is available?
12-month warranty on frame and bearings with comprehensive dealer network support across India.
