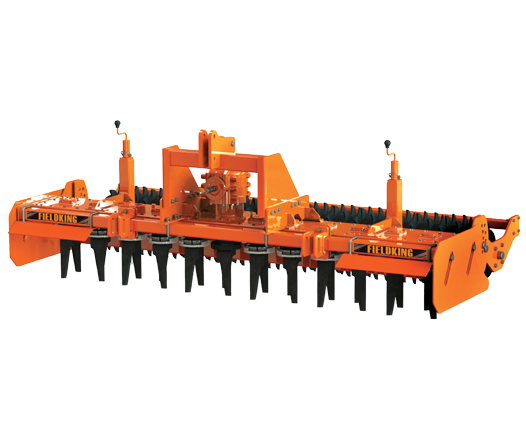

Fieldking Maxx Power Harrow FKRPHO10-250, FKRPHO12-300
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Maxx Power Harrow price* in India, specifications, working width, depth & tine details.…
- About Product
Fieldking Maxx Power Harrow price* in India, specifications, working width, depth & tine details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | FKRPHO10-250 | FKRPHO12-300 |
| Type of Harrow | Power Harrow | Power Harrow |
| Tillage width (mm/inch) | 2470 / 97″ | 2950 / 116″ |
| PTO Input Speed (RPM) | 540 | 540 |
| No. of Rotor | 10 | 12 |
| No. of Blades | 20 | 24 |
| Blade Dimension (mm) | 300 × 14 | 300 × 14 |
| Distance Between Rotor (mm) | 240 | 240 |
| Maximum Working Depth (mm/inch) | 280 / 11″ | 280 / 11″ |
| Gearbox Overload Protection | Shear Bolt/Slip Clutch | Shear Bolt/Slip Clutch |
| Weight (kg/lbs. approx.) | 820 / 1808 | 940 / 2072 |
| Weight with Packer Roller (kg/lbs. approx.) | 1120 / 2469 | 1290 / 2844 |
| Tractor Power (HP) | 90–120 | 90–120 |
- Technical Specifications
- Soil Compatibility: Light / Medium / Heavy / Clay / Rocky soils
- Field Efficiency: 1.2–2.4 ha/hr depending on width and conditions
- Fuel Consumption: Reduced by single-pass operation, wide coverage
- Durability: Hardened, heat-treated blades and robust frame
- Bearing Quality: Double-sealed, water/dustproof hub
- Maintenance: Lubricate gear and rotors every 50 hrs; inspect blades and hub oil every season
- Spare Parts: Easily available and affordable
- Warranty: 12-month warranty on main frame and gearbox
- Weather Suitability: Can be used in wet, moist, and dry soils
- Crop Compatibility: Universal for cereals, pulses, cash crops, vegetables, orchard fields
- Agricultural Benefits and Applications
- Primary Tillage: Effective stubble incorporation and deep mixing
- Secondary Tillage: Refines clods, creates perfect seedbed
- Weed Control: Uproots and buries weeds and crop residues
- Soil Structure Improvement: Increases aeration, reduces compaction and hardpan
- Enhanced Farming Efficiency
- Time Saving: Single-pass, wide working widths for fast coverage
- Fuel Efficiency: Saves diesel by reducing implement changes and field passes
- Labor Reduction: Simple operation, few adjustments needed
- Field Productivity: Uniform tilth and seedbed quality improve crop stands
- Versatile Crop Applications
- Cereal Crops: Wheat, barley, oats, rice
- Cash Crops: Maize, sunflower, cotton, sugarcane
- Pulses: Chickpea, lentils, pigeon pea
- Vegetables: Potato, onion, tomato
- Orchards and plantation tillage
- Performance Specifications
- Operating Speed: 5–10 km/hr
- Ground Pressure: Even distribution prevents compaction
- Penetration: Up to 280 mm (11″) depth
- Finish: Smooth, fine seedbed for direct sowing or transplanting
- Farmer Decision Support
Farm Size Recommendations:
- Small/Medium: FKRPHO10-250 (97″)
- Large: FKRPHO12-300 (116″)
Soil Recommendations:
- Light: Wide models at moderate depth
- Medium/Heavy: Full depth utilization, regular blade checks
Budget Categories:
- Economy: Basic models without packer
- Mid-Range: With additional features
- Premium: With packer roller, slip clutch
ROI Guidance:
- 1–2 seasons expected payback via saved labor, time, and fuel
- Government subsidies may be available
- Maintenance and Care
- Blades: Sharpen or replace when blunt
- Bearings: Lubricate every 50 hrs
- Gearbox: Check and change oil as per manual
- Frame: Tighten bolts, clean and prevent rust
- Storage: Lubricate and store covered in off-season
- Pre-Use: Inspect all linkages, PTO, and guards
- Longevity Factors
- Materials: Hardened/heat-treated blades; high-strength frame
- Wear Resistance: Replaceable tines; sealed hub bearings
- Structure: Engineered welds, anti-corrosion paint
- Service Life: 8–12 years with regular maintenance
FAQs Section (Farmer-Friendly Answers)
What tractor horsepower (HP) is required for Maxx Power Harrow?
90–120 HP for both FKRPHO10-250 and FKRPHO12-300.
What harrow type is this and what does it do?
Power harrow with rotors and blades; it mixes and refines soil to create a fine seedbed.
What is the working width and depth?
97″ (2470 mm) or 116″ (2950 mm) wide; up to 11″ (280 mm) deep.
How does it help in seedbed preparation/finishing?
Breaks soil, mixes residues, uproots weeds, and produces a firm and even seedbed in one pass.
Why is blade/hub quality important?
Hardened blades and oil-bath hub keep tillage effective and reduce replacement costs.
Is it compatible with all tractors?
Fits standard 3-point linkage, 90–120 HP tractors, any major brand.
Does it have angle adjustment?
N/A for power harrows, but depth and gearbox can be adjusted.
How does it compare to other implements?
Provides finer finish, faster coverage, and deeper tillage than most cultivators or rotavators.
What maintenance schedule?
Service blades and hubs every 50 hrs, check gearbox oil per manual.
What warranty/support?
12-month warranty, easy parts, and dealer support across India.
TractorXpert helps farmers compare harrow implements for price*, features, field coverage, and maintenance. With full support for tractor compatibility, crop, and soil type analysis, TractorXpert ensures you make the best investment for soil health, crop yield, and overall productivity.
Product General Information
Brand Name:
Fieldking
Model Name:
Maxx Power Harrow FKRPHO10-250, FKRPHO12-300
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
90–120 HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
