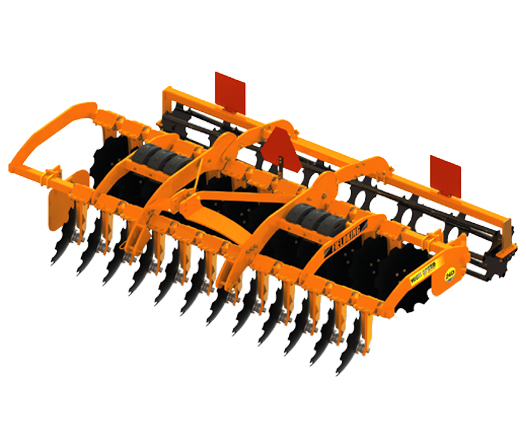

Fieldking High Speed Disc Harrow (FKMDHDCT Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking High Speed Disc Harrow price* in India, specifications, working width, depth & disc…
- About Product
Fieldking High Speed Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | FKMDHDCT-22-12 | FKMDHDCT-22-16 | FKMDHDCT-22-20 | FKMDHDCT-22-24 | FKMDHDCT-22-28 |
| Number of Discs | 12 | 16 | 20 | 24 | 28 |
| Disc Type | Notched | Notched | Notched | Notched | Notched |
| Disc Diameter | 560 mm×4.5 T (22″) | 560 mm×4.5 T (22″) | 560 mm×4.5 T (22″) / 610 mm×4.5 T (24″) | 560 mm×4.5 T (22″) / 610 mm×4.5 T (24″) | 560 mm×4.5 T (22″) / 610 mm×4.5 T (24″) |
| Disc Spacing | 250 mm (9.8″) | 250 mm (9.8″) | 250 mm (9.8″) | 250 mm (9.8″) | 250 mm (9.8″) |
| Working Width | 1.5 m (59″) | 2.0 m (79″) | 2.5 m (98″) | 3.0 m (118″) | 3.5 m (138″) |
| Working Depth | 100–150 mm (4–6″) | 100–150 mm (4–6″) | 100–150 mm (4–6″) | 100–150 mm (4–6″) | 100–150 mm (4–6″) |
| Weight | 808 kg | 1125 kg | 1442 kg | 1759–1959 kg | 2076–2361 kg |
| Tractor Power Requirement | 45–55 HP | 55–65 HP | 65–90 HP | 95–120 HP | 125–150 HP |
| Mounting Type | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage |
| Frame Material & Construction | Heavy-duty square tube frame with EPDM anti-vibration mounts | Heavy-duty square tube frame with EPDM anti-vibration mounts | Heavy-duty square tube frame with EPDM anti-vibration mounts | Heavy-duty square tube frame with EPDM anti-vibration mounts | Heavy-duty square tube frame with EPDM anti-vibration mounts |
| Gang Angle Adjustment | 0–25° | 0–25° | 0–25° | 0–25° | 0–25° |
- Technical Specifications
This model suits diverse soils and offers reliable performance with minimal upkeep:
- Soil Compatibility: Light, Medium, Heavy, Rocky
- Field Efficiency: Up to 2.5 ha/hr at 10–12 km/hr
- Fuel Impact: High-speed design reduces tractor hours and fuel use
- Build Quality: Boron-steel discs (48–52 HRC), heavy-duty bearings, waterproof & dustproof seals
- Maintenance: Grease bearings every 50 hrs; inspect discs and bolts monthly
- Spare Parts: Widely available through dealer network; competitive pricing
- Warranty & Support: 12-month frame and gearbox warranty; dealer servicing
- Weather Suitability: Wet and dry conditions
- Crop & Seasonal Use: All cereals, cash crops, pulses, vegetables, orchards
- Agricultural Benefits and Applications
High Speed Disc Harrow enables:
- Primary & Secondary Tillage: Hardpan breaking, residue mixing
- Weed Control: Incorporates weeds and residues to reduce labor
- Soil Structure: Clod shattering, aeration enhancement, compaction prevention
- Seedbed Preparation: Fine tilth and uniform leveling
- Enhanced Farming Efficiency
- Time Saving: Single-pass operation at up to 20 km/hr
- Fuel Efficiency: Reduced tractor hours vs. multiple implements
- Labor Reduction: Simple mounting and hydraulic depth control
- Higher Productivity: Uniform coverage boosts germination rates
- Versatile Crop Applications
Ideal for:
- Cereals: Wheat, Barley, Oats, Rice
- Cash Crops: Cotton, Sugarcane, Maize, Sunflower
- Pulses: Chickpea, Lentils, Pigeon Pea
- Vegetables: Potato, Onion, Tomato
- Orchards & Plantations: Pre-planting soil conditioning
- Performance Specifications
- Operating Speed: 8–20 km/hr
- Ground Pressure: Even load to prevent uneven compaction
- Penetration: Adjustable gang angle ensures consistent depth
- Finish Quality: Smooth, level seedbed for uniform germination
- Farmer Decision Support
Farm Size Recommendations:
Small (under 5 acres): 1.5–2.0 m models | Medium (5–25 acres): 2.5–3.0 m | Large (above 25 acres): 3.5 m
Soil-Specific Guidance:
Light soils: Narrow width, shallow depth | Medium: Standard settings | Heavy clay: Larger discs, higher HP
Budget Categories:
Economy: 12–16 discs | Mid-range: 20–24 discs | Premium: 28 discs
ROI & Financing:
Payback in 1–2 seasons; eligible for state mechanization subsidies
- Maintenance and Care
- Disc Care: Sharpen or replace when diameter drops 5″
- Lubrication: Grease all points every 50 hrs
- Structural Care: Tighten bolts, inspect EPDM mounts
- Storage: Clean and coat with oil before long-term storage
- Pre-Operation Checklist: Disc alignment, hydraulic settings, linkage security
- Longevity Factors
- Material Quality: Heat-treated boron-steel discs
- Wear Resistance: EPDM anti-vibration mounts protect frame
- Durability: Robust square-tube frame rated for 20 km/hr operations
- Component Life: Replaceable bearing hubs and scrapers for easy service
FAQs
What tractor horsepower is required for High Speed Disc Harrow?
45–150 HP, depending on model width.
What types of harrows are available in this series?
Only disc harrows—designed for intensive mixing and clod-shattering.
What is the working width and depth?
1.5–3.5 m width and 100–150 mm depth, hydraulically adjustable.
How does it help in seedbed preparation?
Shatters clods, levels soil, and refines tilth for uniform germination.
Why is disc quality important?
High-hardness discs ensure long life and consistent soil penetration.
Is it compatible with all tractor brands?
Yes, standard 3-point linkage fits most tractors in India.
What about gang angle adjustment and depth control?
Angle adjustable 0–25°; depth via tractor hydraulics.
How does it compare to cultivators and rotavators?
Faster coverage and finer finish than cultivators; less aggressive than rotavators.
What maintenance schedule is recommended?
Grease bearings every 50 hrs; inspect discs monthly; full service annually.
What warranty and service support is available?
12-month warranty on frame and gearbox; nationwide dealer support.
TractorXpert helps farmers compare harrow models, prices*, and features across brands—offering clear farm size, soil-specific recommendations, budget categories, and ROI insights to guide cost-effective decisions that enhance seedbed quality, reduce tillage operations, and boost farm productivity through efficient soil preparation solutions.
