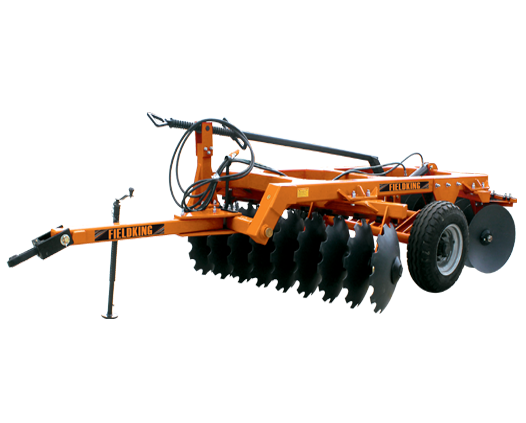

Fieldking Heavy Duty Hydraulic Harrow
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Heavy Duty Hydraulic Harrow price* in India, specifications, working width, depth & disc…
- About Product
Fieldking Heavy Duty Hydraulic Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | FKHDHH-22 | FKHDHH-24 | FKHDHH-28 | FKHDHH-32 |
| Number of Discs | 22 | 24 | 28 | 32 |
| Disc Configuration | Notched front, plain rear | Notched front, plain rear | Notched front, plain rear | Notched front, plain rear |
| Disc Diameter | 660 mm (26″) or 710 mm (28″) | 660 mm (26″) or 710 mm (28″) | 660 mm (26″) or 710 mm (28″) | 660 mm (26″) or 710 mm (28″) |
| Disc Spacing | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) |
| Working Width | 2.5 m | 2.7 m | 3.2 m | 3.7 m |
| Working Depth | 200–300 mm | 200–300 mm | 200–300 mm | 200–300 mm |
| Weight | 1820–1960 kg | 2260–2340 kg | 2680–2840 kg | 3170–3360 kg |
| Tractor Power Requirement | 90–110 HP | 110–120 HP | 130–150 HP | 180–200 HP |
| Mounting Type | Trailed, Hydraulic | Trailed, Hydraulic | Trailed, Hydraulic | Trailed, Hydraulic |
| Frame Material & Construction | Heavy-duty box/square tube frame | Heavy-duty box/square tube frame | Heavy-duty box/square tube frame | Heavy-duty box/square tube frame |
| Gang Angle Adjustment | 0–46° | 0–46° | 0–46° | 0–46° |
| Hydraulic Cylinder | Integrated for transport/lifting | Integrated for transport/lifting | Integrated for transport/lifting | Integrated for transport/lifting |
- Technical Specifications
- Soil Compatibility: Light / Medium / Heavy / Clay / Rocky
- Field Efficiency: Up to 2.5 ha/hr at 8–12 km/hr
- Fuel Impact: Single-pass, heavy-duty action reduces tractor hours and diesel use
- Durability: Boron-steel discs, robust frame, sealed bearings (water/dust proof)
- Maintenance: Grease bearings every 50 hrs, inspect discs and hydraulic lines seasonally
- Spare Parts: Easy parts access, cost-effective
- Warranty & Support: 12-month warranty; strong dealer network
- Weather Suitability: Performs in wet or dry conditions
- Crop Applications: All major crops and seasonal changes
- Agricultural Benefits and Applications
- Primary Tillage: Easily shatters hard soil, mixes stubble and residues
- Secondary Tillage: Prepares smooth, level, and fine seedbed
- Residue & Weed Management: Incorporates weeds and residues to improve soil
- Soil Structure: Reduces compaction, promotes better root development
- Enhanced Farming Efficiency
- Time Saving: Completes job in single pass at high field speed
- Fuel Efficiency: Less tractor time per acre
- Labor Reduction: Hydraulic controls simplify operation
- Higher Productivity: Large coverage area, increased yields
- Versatile Crop Applications
- Cereals: Wheat, barley, oats, rice
- Cash Crops: Cotton, sugarcane, maize, sunflower
- Pulses: Chickpea, lentil, pigeon pea
- Vegetables: Potato, onion, tomato
- Orchards: Suitable for field preparation in plantations
- Performance Specifications
- Operating Speed: 8–16 km/hr
- Ground Pressure: Wide, heavy frame for uniform load and compaction prevention
- Penetration: Can work deep in hard fields, even clay and rocky soils
- Finish Quality: Leaves seedbed well-leveled and even
- Farmer Decision Support
Farm Size:
- Small (under 5 acres): Not recommended due to size and power needs
- Medium (5–25 acres): Use 22/24 disc; matches most medium tractors
- Large (25+ acres): 28/32 disc models ideal for coverage
Soil:
- Light: Use with standard settings; save fuel
- Medium: Moderate disc angle and weight
- Heavy: Maximum gang angle and heaviest model
Budget:
- Economy: 22-disc
- Mid-range: 24-disc
- Premium: 28/32-disc, advanced durability
ROI:
- Most farms see payback in 1–2 seasons from time and fuel saved
- Financing and state subsidies may be available
- Maintenance and Care
- Discs: Replace if worn, sharpen when dull
- Bearings: Grease every 50 hrs; check for play or leaks
- Frame: Check joints/bolts for tightness; repaint for rust prevention
- Hydraulics: Confirm hoses/pistons are leak-free and clean
- Storage: Clean, oil discs, protect from sun and rain
- Pre-Operation: Inspect all connections, tires, angle settings, and fluid levels
- Longevity Factors
- Material: Boron steel, heat-treated discs, tough frame
- Wear Resistance: Thick discs, heavy construction, replaceable points
- Structural Strength: Engineered for years of hard use at high speeds
- Service Life: Replaceable parts; main frame built for long-term field use
FAQs — Fieldking Heavy Duty Hydraulic Harrow
What tractor horsepower (HP) is required for Fieldking Heavy Duty Hydraulic Harrow?
90–200 HP, depending on the model width/disc count.
What type of harrows are available in this model?
Only disc harrows—best for cutting, mixing, and leveling the soil after ploughing.
What is the working width and depth?
2.5–3.7 m working width; 200–300 mm working depth.
How does it help in seedbed preparation?
Creates a flat, residue-mixed surface ready for sowing.
Why is disc/tine quality important?
Strong discs maintain depth, resist wear, and ensure consistent mixing.
Is it compatible with all tractor brands in India?
Yes; standard trailed, hydraulic mount fits most major tractor makes.
What about gang angle adjustment and depth control?
Easily adjustable gang angle (up to 46°); hydraulic depth/lift for precise work.
How does it compare to cultivators/rotavators?
Covers more width per pass; ideal for finishing and residue mixing after the plough.
What maintenance is needed?
Regular disc inspection, bearing greasing, bolt checking, and hydraulic maintenance.
Warranty and after-sales?
1-year warranty and full Fieldking dealer support for parts and servicing.
TractorXpert helps farmers compare harrow implements by model, price*, and features from all top brands. With clear guidance for farm size, soil need, and budget, TractorXpert supports smart decisions that improve seedbed quality, reduce tillage costs, and maximize farm productivity through the best secondary tillage equipment in India.
