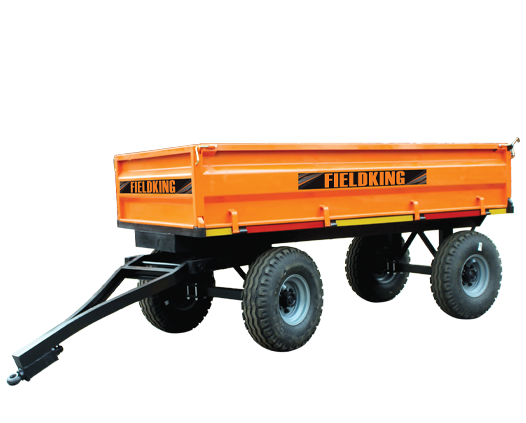

Fieldking FKAT4WNT-E Series
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Brand: Fieldking
Model Name: FKAT4WNT-E Series
Implement Type: Trailer
Category: Transportation / Haulage
- About Product
Brand: Fieldking
Model Name: FKAT4WNT-E Series
Implement Type: Trailer
Category: Transportation / Haulage
Compatible Tractor Power: 50–90 HP
Price Range: ₹ 110,000*–₹ 150,000* - Key Specification and Technology FKAT4WNT-E Series
|
Variant |
FKAT4WNT-E-5T | FKAT4WNT-E-9T |
|
Trailer Type |
Non-tipping | Non-tipping |
|
Loading Capacity |
5 T | 9 T |
|
Body Dimensions |
10 ft × 6 ft × 1.75 ft | 12 ft × 6 ft × 2 ft |
|
Tipping Mechanism |
Manual | Manual |
|
Number of Axles |
Double axle | Double axle |
|
Tyres |
4 × 7.5×16 |
4 × 7.5×16 |
| Unladen Weight | 1600 kg |
1800 kg |
| Tractor Power | 50–70 HP |
70–90 HP |
| Mounting Type | Drawbar coupling |
Drawbar coupling |
| Body Material | Mild steel |
Mild steel |
| Side Wall Height | 1.5 ft corrugated |
2 ft corrugated |
| Drop Side Specs | Full drop sides |
Full drop sides |
- Technical Specifications FKAT4WNT-E Series
- Payload & Distribution: Meets uniform load distribution standards.
- Axle Rating: 75 mm square front and rear axles.
- Suspension: Rigid frame with optional leaf springs.
- Braking System: Mechanical brakes standard; hydraulic optional.
- Bearings & Hubs: Heavy-duty sealed bearings (32214 & 32213).
- Frame Construction: Welded chassis with reinforced joints.
- Maintenance: Lubrication points at axle bearings; service every 100 hrs.
- Spare Parts: Widely available with affordable replacement costs.
- Warranty & Support: 12-month warranty; nationwide service network.
- Corrosion Treatment: Anti-rust primer and paint for weather resistance.
- Compliance: Conforms to RTO transport regulations for trailers.
- Agricultural Benefits and Applications of FKAT4WNT-E
Non-tipping trailers excel at steady haulage of:
- Bulk produce and harvested crops.
- Farm inputs like fertilizer, seed, and feed.
- Equipment and smaller implements.
- Enhanced Farming Efficiency through FKAT4WNT-E
- Simplifies material transport with full drop side design.
- Reduces labor by easy side unloading.
- Optimizes fuel use with balanced axle loads.
- Increases productivity via quick loading/unloading cycles.
- Minimizes crop spillage during transit.
- Versatile Agricultural Applications through FKAT4WNT-E
- Cereal transport: wheat, rice, barley.
- Cash crops: cotton, sugarcane, oilseeds.
- Vegetables & fruits: potatoes, onions, tomatoes.
- Livestock feed: fodder, hay, concentrates.
- Farm inputs & machinery hauling.
- Performance Specifications of FKAT4WNT-E
- Loading Efficiency: Full-width drop sides for fast unloading.
- Ground Clearance: 300 mm for rough terrain.
- Stability: Low center of gravity for secure hauling.
- Maneuverability: Tight turning radius for field operations.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (<5 acres): 5 T non-tipping trailer
- Medium farms (5–25 acres): 9 T non-tipping trailer
Application-specific:
- Grain farms: 5 T capacity
- Livestock: 5–9 T for feed distribution
Budget Categories:
- Economy: 5 T manual drop side trailer
- Mid-range: 9 T with optional brakes
ROI Guidance:
Payback in 1–2 seasons through reduced labor and fuel savings.
Eligible for government subsidies under farm mechanization schemes.
- Maintenance and Care of FKAT4WNT-E
- Lubricate axle bearings every 50 hrs.
- Inspect frame and touch-up paint quarterly.
- Check tyre pressure before each use.
- Adjust brakes every 100 hrs.
- Store under shelter during off-season.
- Pre-operation checklist: hitch pins, tyre bolts, side panels.
- Longevity Factors of FKAT4WNT-E
- High-tensile steel chassis with corrosion-resistant coating.
- Durable sealed bearings rated for heavy loads.
- Replaceable wear plates and easy maintenance access.
- Expected service life: 8–10 years with routine care.
FAQs
What tractor horsepower is required for FKAT4WNT-E trailer?
Compatible with 50–90 HP tractors, depending on variant.
What types of trailers are available in FKAT4WNT-E, and what are their advantages?
Non-tipping trailers with full drop sides offer easy side unloading and steady load support.
What is the loading capacity and body dimensions of the FKAT4WNT-E trailer?
Available in 5 T (10×6×1.75 ft) and 9 T (12×6×2 ft) variants.
How does FKAT4WNT-E trailer help in farm transportation and material handling efficiency?
Full drop sides shorten unloading time and reduce manual labor.
Why is hydraulic system quality and tipping mechanism important in FKAT4WNT-E trailer?
Not applicable for non-tipping design; focus is on robust drop side operation.
Is FKAT4WNT-E trailer compatible with all tractor brands and models in India?
Yes, fits standard drawbar hitch and power range of 50–90 HP.
What about tipping angle control and hydraulic operation in FKAT4WNT-E trailer?
Non-tipping design; unloading via drop sides for controlled material release.
How does FKAT4WNT-E trailer compare to other transportation methods in farming?
Offers safer, faster side unloading than fixed-bed or manual dump trolleys.
What maintenance schedule should be followed for FKAT4WNT-E trailer?
Axle greasing every 50 hrs, frame inspection quarterly, brake adjustment every 100 hrs.
What warranty and after-sales service support is available for FKAT4WNT-E?
12-month warranty with nationwide MSA service and parts availability.
How TractorXpert Helps:
TractorXpert compares trailer models, prices, features, and capacities—empowering farmers to select the most cost-effective and efficient implement. By showcasing specifications side by side and highlighting loading methods, durability, and maintenance needs, TractorXpert ensures farmers save money, streamline transportation, reduce logistics costs, and boost overall farm productivity with reliable non-tipping trailers.
