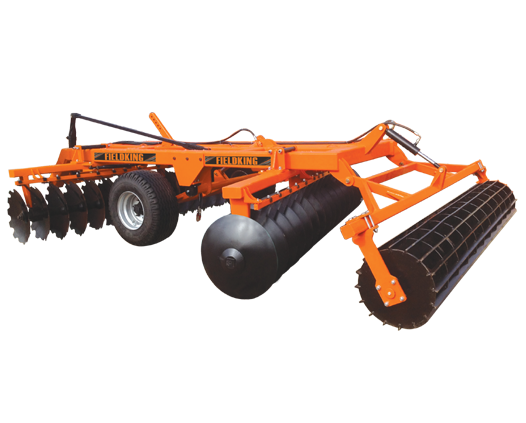

Fieldking Extra Heavy Duty Hydraulic Harrow (FKEHDHH Series)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Extra Heavy Duty Hydraulic Harrow price* in India, specifications, working width, depth &…
- About Product
Fieldking Extra Heavy Duty Hydraulic Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Specification | FKEHDHH-24 | FKEHDHH-28 | FKEHDHH-32 | FKEHDHH-36 |
| Number of Discs | 24 | 28 | 32 | 36 |
| Disc Configuration | Notched front, plain rear | Notched front, plain rear | Notched front, plain rear | Notched front, plain rear |
| Disc Diameter | 660 × 6 T (26″) or 710 × 7 T (28″) | 660 × 6 T (26″) or 710 × 7 T (28″) | 660 × 6 T (26″) or 710 × 7 T (28″) | 660 × 6 T (26″) or 710 × 7 T (28″) |
| Disc Spacing | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) | 228 mm (9″) |
| Working Width | 2.70 m (106″) | 3.10 m (122″) | 3.50 m (138″) | 3.90 m (153″) |
| Working Depth | 250–330 mm | 250–330 mm | 250–330 mm | 250–330 mm |
| Weight | 2 674 kg | 2 806 kg | 2 958 kg | 3 150 kg |
| Tractor Power Requirement | 125–140 HP | 145–165 HP | 170–200 HP | 210–235 HP |
| Mounting Type | Trailed, hydraulic | Trailed, hydraulic | Trailed, hydraulic | Trailed, hydraulic |
| Frame Material & Construction | Heavy-duty box section frame | Heavy-duty box section frame | Heavy-duty box section frame | Heavy-duty box section frame |
| Gang Angle Adjustment | 0–50° | 0–50° | 0–50° | 0–50° |
| Hydraulic Cylinder Capacity | 3 ton | 3 ton | 3 ton | 3 ton |
- Technical Specifications
- Soil Compatibility: Light / Medium / Heavy / Clay / Rocky
- Field Efficiency: Up to 2.8 ha/hr at 10–12 km/hr
- Fuel Impact: High-speed single-pass design reduces tractor hours
- Build Quality: Boron-steel discs (48–52 HRC), waterproof/dustproof bearings
- Maintenance: Grease bearings every 50 hrs; inspect discs and hydraulic hoses monthly
- Spare Parts: Readily available dealer network; competitive pricing
- Warranty & Support: 12-month warranty on frame and hydraulic components; dealer service coverage
- Weather Suitability: Effective in wet and dry fields
- Crop Compatibility: Cereals, cash crops, pulses, vegetables, orchards
- Agricultural Benefits and Applications
- Primary & Secondary Tillage: Breaks hardpan, incorporates residues
- Residue Management: Mixes crop stubble and weeds, enhancing soil fertility
- Soil Structure Improvement: Clod shattering, aeration enhancement, compaction reduction
- Seedbed Preparation: Delivers a fine tilth and uniform leveling
- Enhanced Farming Efficiency
- Time Saving: Single-pass operation at up to 20 km/hr
- Fuel Efficiency: Fewer passes lower fuel consumption
- Labor Reduction: Hydraulic depth and angle controls simplify operation
- Productivity Gains: Uniform coverage boosts germination rates
- Versatile Crop Applications
- Cereals: Wheat, Barley, Oats, Rice
- Cash Crops: Cotton, Sugarcane, Maize, Sunflower
- Pulses: Chickpea, Lentils, Pigeon Pea
- Vegetables: Potato, Onion, Tomato
- Orchards & Plantations: Pre-planting soil conditioning
- Performance Specifications
- Operating Speed: 8–20 km/hr
- Ground Pressure Distribution: Even across wide frame, preventing rutting
- Penetration Capability: Consistent depth via 0–50° gang angle adjustment
- Finish Quality: Smooth, level seedbed for optimal germination
- Farmer Decision Support
Farm Size Recommendations:
- Under 5 acres: FKEHDHH-24
- 5–25 acres: FKEHDHH-28, -32
- Above 25 acres: FKEHDHH-36
Soil-Specific Guidance:
- Light soils: Shallower depth, standard width
- Medium soils: Mid-range settings
- Heavy clay: Maximum disc count, deeper penetration
Budget Categories:
- Economy: FKEHDHH-24
- Mid-Range: FKEHDHH-28, -32
- Premium: FKEHDHH-36
ROI & Financing:
- Payback in 1–2 seasons via reduced passes and higher yields
- Eligible for state farm mechanization subsidies
- Maintenance and Care
- Disc/Tine Maintenance: Replace discs when diameter reduces by 5″
- Bearing Lubrication: Grease all points every 50 hrs with quality grease
- Frame Care: Inspect and tighten bolts; protect against rust
- Hydraulic Care: Use recommended hydraulic oil; check hoses for leaks
- Storage: Clean, lubricate, and store under shelter when idle
- Pre-Operation Checklist: Disc alignment, gang angle, hydraulic connections
- Longevity Factors
- Material Quality: Heat-treated boron-steel discs for wear resistance
- Wear Features: Anti-vibration mounts and sealed bearings
- Structural Durability: Heavy-duty box-section frame rated for high-speed fieldwork
- Component Service Life: Replaceable hubs, spools, and scrapers for minimal downtime
FAQs
What tractor horsepower is required for Extra Heavy Duty Hydraulic Harrow?
125–235 HP, depending on model variant.
What harrow types are available in this series?
Disc harrows with notched front and plain rear discs for effective mixing.
What is the working width and depth?
2.70–3.90 m width; 250–330 mm depth, hydraulically adjustable.
How does it help in seedbed preparation?
Shatters clods, levels soil, and refines tilth for uniform germination.
Why is disc quality important?
High-hardness discs ensure long life and consistent soil penetration.
Is it compatible with all tractor brands?
Yes; standard trailed hydraulic mounting ensures universal compatibility.
What about gang angle adjustment and depth control?
Angle adjustable 0–50°; depth via tractor hydraulics for precision.
How does it compare to cultivators and rotavators?
Offers faster coverage and finer finish than cultivators; less aggressive turnover than rotavators.
What maintenance schedule is recommended?
Grease bearings every 50 hrs; inspect discs monthly; full service annually.
What warranty and service support is available?
12-month warranty; nationwide dealer network for parts and service.
