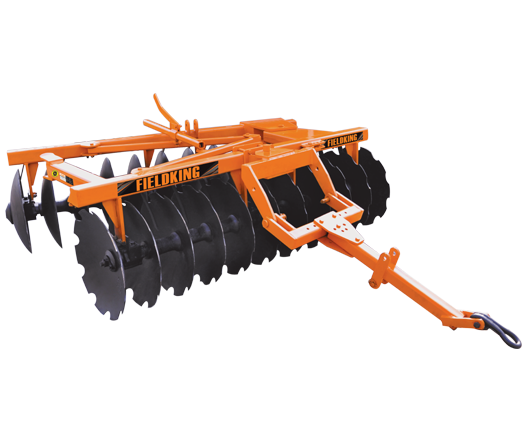

Fieldking Compact Model Disc Harrow
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Fieldking Compact Model Disc Harrow Auto Angle Adjustment price* in India, specifications, working width,…
- About Product
Fieldking Compact Model Disc Harrow Auto Angle Adjustment price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology
| Variant | No. of Discs | Disc Diameter | Working Width (mm/in) | Working Depth (mm/in) | Disc Spacing (mm/in) | Weight (kg) | Tractor Power (HP) | Mounting Type | Frame Material | Auto Angle Range |
| FKCMDHAAA-24-18 | 18 | 610×4.5T (24″)/660×6T (26″) | 2128/84 | 152–203/6–8 | 228/9 | 960 | 60–70 | 3-point linkage / Trailed | Heavy-duty square/rectangular tube frame | 0–50° |
| FKCMDHAAA-24-20 | 20 | 610×4.5T (24″)/660×6T (26″) | 2345/92 | 152–203/6–8 | 228/9 | 1025 | 70–80 | 3-point linkage / Trailed | Heavy-duty square/rectangular tube frame | 0–50° |
| FKCMDHAAA-24-22 | 22 | 610×4.5T (24″)/660×6T (26″) | 2562/100 | 152–203/6–8 | 228/9 | 1095 | 90–100 | 3-point linkage / Trailed | Heavy-duty square/rectangular tube frame | 0–50° |
- Technical Specifications
- Soil Compatibility: Light / Medium / Heavy / Clay / Rocky soils
- Field Efficiency: Up to 1.6 ha/hr at 8–12 km/hr
- Fuel Consumption: Efficient design reduces tractor hours and diesel use
- Durability: Boron steel discs (48–52 HRC), sealed bearings
- Maintenance: Grease bearings every 50 hrs; inspect auto-angle mechanism monthly
- Spare Parts: Widely available; cost-effective replacement
- Warranty: 12 months on frame, bearings, and angle mechanism
- Weather Suitability: Operates in wet and dry conditions
- Crop Compatibility: All cereals, pulses, cash crops, vegetables
- Agricultural Benefits and Applications
- Primary & Secondary Tillage: Mechanical clod reduction and seedbed refinement
- Residue Management: Mixes and buries crop residues evenly
- Weed Control: Uproots weeds and incorporates into soil for decomposition
- Soil Structure Improvement: Enhances aeration and reduces compaction
- Enhanced Farming Efficiency
- Time Saving: Auto-adjust angle works corners and headlands without manual change
- Fuel Efficiency: Reduced passes and tractor hours save diesel
- Labor Reduction: Eliminates manual angle adjustments
- Productivity Gains: Uniform seedbed quality boosts germination
- Versatile Crop Applications
- Cereal Crops: Wheat, Barley, Oats, Rice
- Cash Crops: Cotton, Sugarcane, Maize, Sunflower
- Pulse Crops: Chickpea, Lentils, Pigeon Pea
- Vegetable Cultivation: Potato, Onion, Tomato
- Orchard Applications: Pre-planting and inter-row soil finishing
- Performance Specifications
- Operating Speed: 6–12 km/hr
- Ground Pressure Distribution: Even load prevents ruts
- Penetration Capability: Consistent depth via auto-angle and hydraulic control
- Finish Quality: Smooth, level field ready for sowing
- Farmer Decision Support
Farm Size Recommendations:
- Small (under 5 acres): FKCMDHAAA-24-18
- Medium (5–25 acres): FKCMDHAAA-24-20
- Large (above 25 acres): FKCMDHAAA-24-22
Soil-Specific Guidance:
- Light soils: Lower depth; moderate speed
- Medium soils: Standard settings
- Heavy clay: Use full depth; slower speed
Budget Categorization:
- Economy: FKCMDHAAA-24-18
- Mid-Range: FKCMDHAAA-24-20
- Premium: FKCMDHAAA-24-22
ROI & Financing:
- Payback in 1–2 seasons via fuel and labor savings
- Eligible for mechanization subsidies
- Maintenance and Care
- Disc Maintenance: Replace discs when diameter reduces by 5 inches
- Bearing Lubrication: Grease every 50 hrs
- Angle Mechanism: Inspect and clean pivot points monthly
- Frame Care: Tighten bolts after initial use and quarterly
- Storage: Clean, lubricate, store under cover
- Longevity Factors
- Material Quality: Heat-treated boron steel discs for wear resistance
- Wear Resistance: Robust auto-angle mechanism with sealed bearings
- Structural Durability: Heavy-duty tube frame rated for high-speed fieldwork
- Component Replaceability: Standardized discs, bearings, and angle parts
- Service Life: 8–10 years with proper maintenance
FAQs
What tractor horsepower is required?
50–125 HP, depending on variant.
What types of harrows are available?
Disc harrows with auto angle adjustment for headlands.
What is the working width and depth?
84″–100″ width; 6–8″ depth, hydraulic control.
How does auto angle adjustment help?
Automatically changes gang angle on headlands, saving time and labor.
Why is disc quality important?
High-grade discs ensure penetration, durability, and consistent finish.
Is it compatible with all tractors?
Yes; fits standard 3-point linkage and tractors in the HP range.
How does it compare to other harrows?
Offers faster headland turns and uniform finish vs. manual-angle models.
What maintenance schedule is recommended?
Grease bearings and angle pivots every 50 hrs; inspect quarterly.
What warranty is available?
12 months on frame, bearings, and angle mechanism.
TractorXpert helps farmers compare harrow implements by model, prices*, features, and benefits across brands. With clear farm size, soil-specific, and budget guidance, TractorXpert ensures efficient seedbed preparation, fewer field passes, and improved farm productivity through advanced soil preparation tools like the Compact Model Disc Harrow Auto Angle Adjustment.
Product General Information
Brand Name:
Fieldking
Model Name:
Compact Model Disc Harrow
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
50–125 HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
