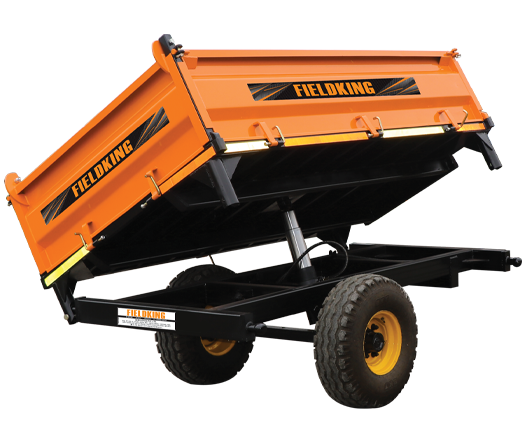

Fieldking 3 Way Tipping Trailer
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Brand: Fieldking
Model Name: 3 Way Tipping Trailer
Implement Type: Trailer
Category:…
- About Product
Brand: Fieldking
Model Name: 3 Way Tipping Trailer
Implement Type: Trailer
Category: Haulage
Compatible Tractor Power (HP Range): 30–90 HP
Price Range: ₹1,83,000*–₹3,26,000*
- Key Specification and Technology – Fieldking 3 Way Tipping Trailer
| Model Variant | Loading Capacity (Tons) | Outer Dimensions (mm/feet) | Main Chassis (mm/inch) | Hydraulic Jack | Tractor Power (HP) | Weight (kg/lbs) |
|
FKAT2WT-E-3TON |
3 | 2435×1828×610mm (8ft×6ft×2ft) | 125×65 (Tubular) | 8 Ton | 30-50 | 1265/2789 |
|
FKAT2WT-E-5TON |
5 | 3048×1828×610mm (10ft×6ft×2ft) | 160×80 (Tubular) | 15 Ton | 50-70 |
1580/3483 |
| FKAT2WT-E-9TON | 9 | 3658×1828×610mm (12ft×6ft×2ft) | 160×80 (Tubular) | 15 Ton | 70-90 |
1900/4189 |
Trailer Type: 3-way hydraulic tipping trailer
Tipping Mechanism Type: Three-side tipping mechanism with single cylinder
Number of Axles: Single axle configuration
Wheel Configuration: 7.50×16, 9.00×16, 12.5/80-15.3 & 400/60-15.5 (14 to 18PR) wide tubeless tires
Overall Weight: 1265–1900 kg (unladen weight)
Mounting Type: Drawbar coupling
Body Material: High-tensile steel with corrugated construction
Side Wall Height: 3 mm corrugated sidewall sheets
Tipping Angle Range: Multiple direction tipping (rear, left, right)
Floor Sheet: 4 mm thickness
Axle Specifications: 75 square to 90 square (model dependent)
- Technical Specifications – Fieldking 3 Way Tipping Trailer
Payload Distribution: Even load distribution per IS standards
Axle Rating: Heavy-duty square axles (75–90 square based on model)
Suspension Type: Optional leaf spring (914/36″ to 1066/42″)
Braking System: Optional brake system available
Bearing Quality: 32214 inner and 32211 outer bearings (3-ton), 32017 inner and 32211 outer (9-ton)
Frame Construction: Tubular chassis construction with bob hinge mechanism
Maintenance: Grease bearings every 50 hours, inspect hydraulic system monthly
Spare Parts: Widely available across India; economical replacement costs*
Warranty: 12-month standard warranty
Weather Resistance: Anti-corrosion treatment with protective coating
Road Worthiness: Designed to operate with tractors having hydraulic supply of at least 138 bar (2000 psi)
- Agricultural Benefits and Applications of Fieldking 3 Way Tipping Trailer
Fieldking 3 Way Tipping Trailer provides exceptional flexibility of loading and unloading goods and materials like farm produce by simply tipping them in three directions, which saves overall operating cost of transportation. The three-side tipping mechanism enables unloading in rear as well as sideways, overcoming problems of space, time, and fuel constraints that single-direction trailers face. During harvesting seasons, it excels in grain transport, produce hauling, and bulk material movement with enhanced efficiency.
- Enhanced Farming Efficiency through Fieldking 3 Way Tipping Trailer
The three-way tipping mechanism with single cylinder reduces loading and unloading time by up to 80%, delivering substantial labor cost reduction and operational simplicity. The control valve mechanism for side tipping makes it safer for side unloading operations. Well-designed towing and loading stability enhances fuel efficiency through optimized transport, leading to increased farm productivity and logistics optimization while reducing crop damage during transportation.
- Versatile Agricultural Applications through Fieldking 3 Way Tipping Trailer
Cereal Crop Transport: Efficient hauling of wheat, rice, barley, and maize with three-way discharge flexibility
Cash Crop Logistics: Reliable transport for cotton, sugarcane, and oilseed with space-saving unloading
Vegetable and Fruit Transport: Safe handling of potatoes, onions, tomatoes, and seasonal produce
Livestock Feed Distribution: Effective distribution of fodder, concentrate, and hay in confined spaces
Farm Input Transportation: Efficient movement of fertilizers, seeds, and chemicals
Construction Material Hauling: Transport of sand, soil, gravel with directional unloading capability
- Performance Specifications of Fieldking 3 Way Tipping Trailer
Loading/Unloading Efficiency: Complete discharge in three directions within 15-20 seconds via hydraulic system
Tipping Speed: Fast unloading process with single cylinder mechanism (8-15 ton capacity)
Ground Clearance: Adequate clearance for rough terrain operations
Stability Specifications: Well-designed for towing and loading stability with low center of gravity
Turning Radius: Optimized for tight farm spaces and confined area operations
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (under 5 acres): 3-ton capacity model ideal for limited space operations
- Medium farms (5-25 acres): 5-ton capacity trailer recommended for balanced performance
- Large farms (above 25 acres): Heavy-duty 9-ton capacity units for maximum efficiency
Application-Specific Recommendations:
- Grain transport: 5-9 ton capacity for bulk cereals with three-way discharge
- Livestock operations: 3-5 ton models for feed distribution in confined areas
- Horticultural applications: 3-5 ton capacity for produce transport with flexible unloading
Budget-Wise Categorization:
- Economy models: 3-ton basic three-way tipping at ₹1,83,000*
- Mid-range options: 5-ton enhanced features ₹1,90,000*–₹2,50,000*
- Premium models: 9-ton heavy-duty construction ₹3,00,000*–₹3,26,000*
ROI Calculation: Quick payback within first season through reduced labor costs, time savings, and fuel efficiency*
- Maintenance and Care of Fieldking 3 Way Tipping Trailer
Hydraulic System: Daily fluid level checks, monthly seal inspection, quarterly single cylinder servicing
Bearing and Axle: Lubricate high-grade hub and axle bearings every 50 hours with EP2 grease
Body and Frame: Regular cleaning of corrugated sheets, rust prevention coating, annual structural checks
Tire Maintenance: Check wide tubeless tire pressure before each use, replace at 2 mm tread depth
Bob Hinge Mechanism: Lubricate hinge points monthly for smooth three-way operation
Seasonal Storage: Store under cover, drain hydraulics, apply protective coating to prevent corrosion
Pre-Operation Checklist: Verify hydraulic hoses, check locking pins for hinge selection, ensure proper drawbar connection
- Longevity Factors of Fieldking 3 Way Tipping Trailer
High-tensile steel construction with tubular chassis and corrugated sheets ensures structural durability exceeding 12 years. The reliable heavy-duty hydraulic cylinder system and high-grade bearings provide extended component life. Wide tubeless tires and robust square axles reduce maintenance requirements while the three-way tipping mechanism optimizes operational versatility. Bob hinge mechanism with locking pins ensures easy replaceability and minimal downtime, making it economical and efficient for long-term farm operations.
FAQs Section
What tractor horsepower is required for Fieldking 3 Way Tipping Trailer?
30-90 HP tractors depending on model variant – 3-ton (30-50 HP), 5-ton (50-70 HP), 9-ton (70-90 HP) with hydraulic supply of at least 138 bar (2000 psi).
What types of trailers are available in Fieldking 3 Way Tipping Trailer range and their advantages?
Three-way hydraulic tipping trailers with single cylinder mechanism offer flexibility of unloading in rear, left, and right directions, saving space, time, and fuel compared to single-direction trailers.
What is the loading capacity and body dimensions of Fieldking 3 Way Tipping Trailer?
Loading capacity ranges from 3-9 tons with outer dimensions from 8×6×2 feet to 12×6×2 feet, featuring robust 4 mm floor sheets and 3 mm corrugated side walls.
How does Fieldking 3 Way Tipping Trailer help in farm transportation and material handling efficiency?
The three-side tipping mechanism with control valve enables safe and efficient unloading in confined spaces, reducing operating costs and improving transportation flexibility.
Why is hydraulic system quality and tipping mechanism important in Fieldking 3 Way Tipping Trailer?
The reliable single cylinder hydraulic system (8-15 ton capacity) with control valve mechanism ensures consistent three-way tipping performance and safety during varying work conditions.
Is Fieldking 3 Way Tipping Trailer compatible with all tractor brands and models in India?
Yes, easily transportable design with standard drawbar coupling system fits most Indian tractor models across 30-90 HP range with proper hydraulic supply.
What about tipping angle control and hydraulic operation in Fieldking 3 Way Tipping Trailer?
Bob hinge mechanism with locking pins allows selection of tipping direction (rear, left, right) while hydraulic control provides smooth operation for complete discharge.
How does Fieldking 3 Way Tipping Trailer compare to other transportation methods in farming?
Offers superior unloading flexibility compared to single-direction trailers, higher efficiency than manual methods, and space-saving advantages over conventional tipping trailers.
What maintenance schedule should be followed for Fieldking 3 Way Tipping Trailer?
50-hour bearing lubrication, monthly hydraulic and hinge checks, seasonal maintenance ensure optimal three-way tipping performance and longevity.
What warranty and after-sales service support is available for Fieldking 3 Way Tipping Trailer?
12-month standard warranty with nationwide Fieldking dealer network and readily available spare parts support for tubular chassis and hydraulic components.
