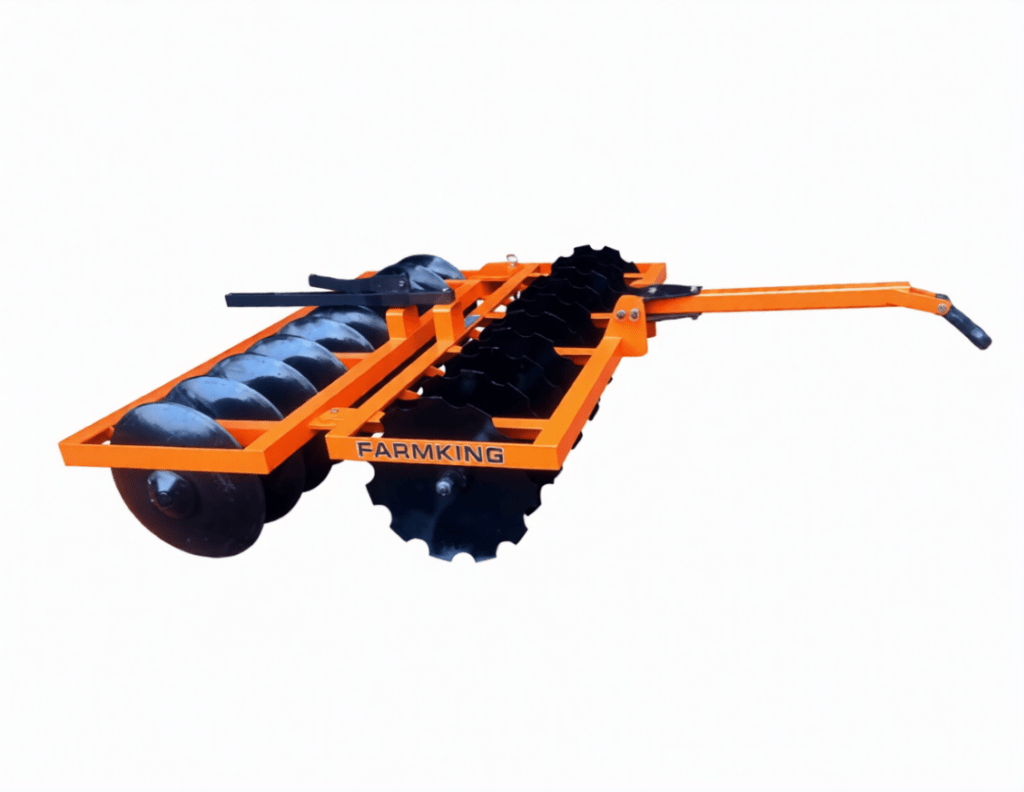

Farmking Trailed Disc Harrow
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Farmking Trailed Disc Harrow price* in India, specifications, working width, depth & disc details.…
- About Product
Farmking Trailed Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Trailed Disc Harrow
| Variant | FKDHUF-14D | FKDHUF-16D | FKDHUF-18D | FKDHUF-20D |
| Working Width | 1.410 m (4.6 ft) | 1.635 m (5.4 ft) | 1.870 m (6.1 ft) | 2.105 m (6.9 ft) |
| Disc Diameter | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) |
| Disc Spacing | 228 mm (9 in) | 228 mm (9 in) | 228 mm (9 in) | 228 mm (9 in) |
| No. of Discs | 14 | 16 | 18 | 20 |
| Underframe Clearance | 470 mm (18.5 in) | 470 mm (18.5 in) | 470 mm (18.5 in) | 470 mm (18.5 in) |
| Working Depth | Up to 150 mm (6 in) | Up to 150 mm (6 in) | Up to 150 mm (6 in) | Up to 150 mm (6 in) |
| Approx. Weight | 340 kg (750 lbs) | 360 kg (794 lbs) | 400 kg (882 lbs) | 580 kg (1,279 lbs) |
| Tractor Power Requirement | 45*–60* HP | 50*–60* HP | 50*–65* HP | 60*–75* HP |
| Mounting Type | Trailed | Trailed | Trailed | Trailed |
| Frame Material & Construction | Heavy-duty square tube frame | Heavy-duty square tube frame | Heavy-duty square tube frame | Heavy-duty square tube frame |
| Transportation Wheels | Standard road wheels | Standard road wheels | Standard road wheels | Standard road wheels |
- Technical Specifications
This trailed disc harrow is engineered for light to heavy soils, including rocky and clay conditions. It achieves up to 90% field efficiency and covers 2 ha/hr at 5 km/hr. Heavy-duty bearings with waterproof seals require greasing every 50 hours. Nationwide spare parts and a 12-month warranty ensure minimal downtime. Suitable for wet and dry fields, it adapts to seasonal crop rotations.
- Agricultural Benefits and Applications
Designed for secondary tillage, it breaks soil clods, incorporates residues, and levels the field in a single pass. The uniform disc spacing and adjustable gang angles improve soil mixing, control weeds, and reduce compaction for a friable seedbed.
- Enhanced Farming Efficiency
Single-pass operation reduces fuel consumption and labor compared to multiple implements. Coverage rates up to 2 ha/hr boost productivity, while simple hitch-and-go design saves time on setup.
- Versatile Crop Applications
Ideal for cereals (wheat, rice, barley), cash crops (cotton, sugarcane, maize), pulses (chickpea, lentils), vegetables (potato, tomato), and orchard soil conditioning.
- Performance Specifications
Operating speeds: 3–6 km/hr. Even ground pressure distribution prevents rutting, and 150 mm penetration handles tough residues. Adjustable gang angle delivers a smooth, level finish.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): FKDHUF-14D
- Medium farms (5–25 acres): FKDHUF-16D or 18D
- Large farms (> 25 acres): FKDHUF-20D
Soil-specific Recommendations:
- Light soils: Plain discs
- Medium soils: Notched discs for better cutting
- Heavy clay: Wider spacing and larger diameter discs
Budget Categories:
- Economy: FKDHUF-14D basic model
- Mid-range: FKDHUF-16D with optional notched discs
- Premium: FKDHUF-20D with extra discs
ROI guidance covers savings on fuel, labor, and increased yield. Financing schemes and government subsidies for farm mechanization support purchase decisions.
- Maintenance and Care
Keep discs sharp and replace when worn. Grease bearings every 50 hours with NLGI#2. Inspect frame bolts, apply rust prevention before storage, and check disc alignment and wheel condition before operation.
- Longevity Factors
Constructed with boron steel discs and heat-treated gang rods, this harrow offers high wear resistance. Modular disc assemblies simplify maintenance and extend service life beyond five years.
FAQs – Farmking Trailed Disc Harrow
What tractor horsepower is required?
45*–75* HP depending on variant.
What disc types are available and what do they do?
Plain discs for finishing; notched discs for residue cutting.
What is the working width and depth?
1.41–2.105 m width; up to 150 mm depth.
How does it help in seedbed preparation?
Breaks clods, levels soil, and mixes residues in one pass.
Why is disc quality important?
Durable discs ensure uniform cutting and reduce breakage.
Is it compatible with all tractor brands?
Yes; standard three-point drawbar or trailed hitch.
What about gang angle and depth control?
Adjustable gang angle and hydraulic depth settings allow precise operation.
How does it compare to cultivators and rotavators?
Disc harrows excel in residue management and leveling; cultivators and rotavators focus on deeper soil mixing.
What maintenance schedule is recommended?
Grease bearings every 50 hours and perform quarterly inspections.
What warranty and service support is available?
12-month warranty with regional service centers and genuine spare parts network.
By comparing specifications, features, and prices across manufacturers, TractorXpert helps farmers select the most cost-effective harrow implement, improve seedbed quality, reduce tillage operations, and boost farm productivity through efficient soil preparation solutions.
Product General Information
Brand Name:
Farmking
Model Name:
Trailed Disc Harrow
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
45* – 75* HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
